CPC Definition - Subclass B81B

Last Updated Version: 2023.02
MICROSTRUCTURAL DEVICES OR SYSTEMS, e.g. MICROMECHANICAL DEVICES (piezo-electric, electrostrictive or magnetostrictive elements per se H10N 30/00)
Definition statement

This place covers:

Encompasses microstructures:

  • Having an electro-mechanical function or a pure mechanical function coupled to an electrical processing circuit suitable for electro-mechanical applications (example of applications: sensors, switches, optical switches, microchannels, micromotors).
  • Having a dimension in the range of several microns to a few nanometers, and that are manufactured using a top down process (shaping material, moulding, stamping ...etc.).

Subject-matter belonging to B81B

Documents which contain one of the following characteristics should be classified in B81B:

  • A solution to a technical problem which is common to microstructures in general (e.g. avoiding stiction, hermetic encapsulation, fabricating structures with high aspect ratio)


  • Documents that deal with a structure which has no specific application, i.e. which can be used for several application, should be classified in B81B
  • documents that deal with structures that solve a general problem but mention as an example a specific application should nevertheless be classified in B81B since the invention could also be applied to other applications

Subject-matter excluded from B81B

  • B81B doesn't cover applications which describe pure biological or chemical material (DNA sensors, carbon nanotubes ...)
  • Purely optical or electrical micro- or nanodevices like optical fibers, diodes, transistors, etc.
  • Specific systems like pressure sensors, accelerometers, switches, micromotors, microreactors...etc. without any unspecific aspect/structure which may be applicable to other systems.
  • Structures for solving a problem which is specific to a kind of device like increasing the sensitivity of a pressure sensor.
Relationships with other classification places

Limits with application classes (e.g. switches H01H 1/0036)

  • If the objective problem solved by the invention is related to improving physical features of the device, or realising a given function, then the document should be classified in the application classes. For example: membrane structure for improving the sensitivity of an acceleration sensor, structure for realising a bi-stable switch, structure for increasing the oscillation frequency of an RF switch.
  • If the objective problem solved by the invention is related to fabricating a specific or a general structure, or to a structure for solving a general problem, i.e. a problem that is not specific to a given device, then the document should be classified in B81B. For example: structure for improving the rigidity of a beam.

Limits with Microfluidic applications

Following criteria applies for classifying a document on microfluidic technology in B81B:

  • The document describes a general structure (channel, groove, hole, arrangement of microfluidic structures without specific purpose) for use in microfluidic devices.

Following documents are not to be classified in B81B:

  • Documents that describe a microfluidic structure which has a specific purpose, where the structure solves a problem specific to the technical field contemplated. For example, a specific arrangement of channels for mixing given liquids (belongs to B01F 33/30)

Limits with Nanotechnologies (B82B)

Limit B81B vs B82B 1/00:

  • Nanostructures having exclusively nanosized components are classified in B82B
  • Nanostructures forming part of a larger structure having at least one microsized component are classified in B81
Informative references

Attention is drawn to the following places, which may be of interest for search:



B25J 7/00

Ink jet, Nozzles, Production of nozzles, manufacturing processes, etching, dry etching, wet etching. media1.jpg

B41J 2/1626, B41J 2/1628, B41J 2/1629


F04B 19/006, G01N 2035/1034

Micropumps having electric drive having plate-like flexible members, e.g. diaphragms

F04B 43/043

Mechanically-driven clocks or watches; mechanical parts of clocks or watches in general N.B.: Processes for making gears (in particular for clocks) are classified in B81C 99/0075+


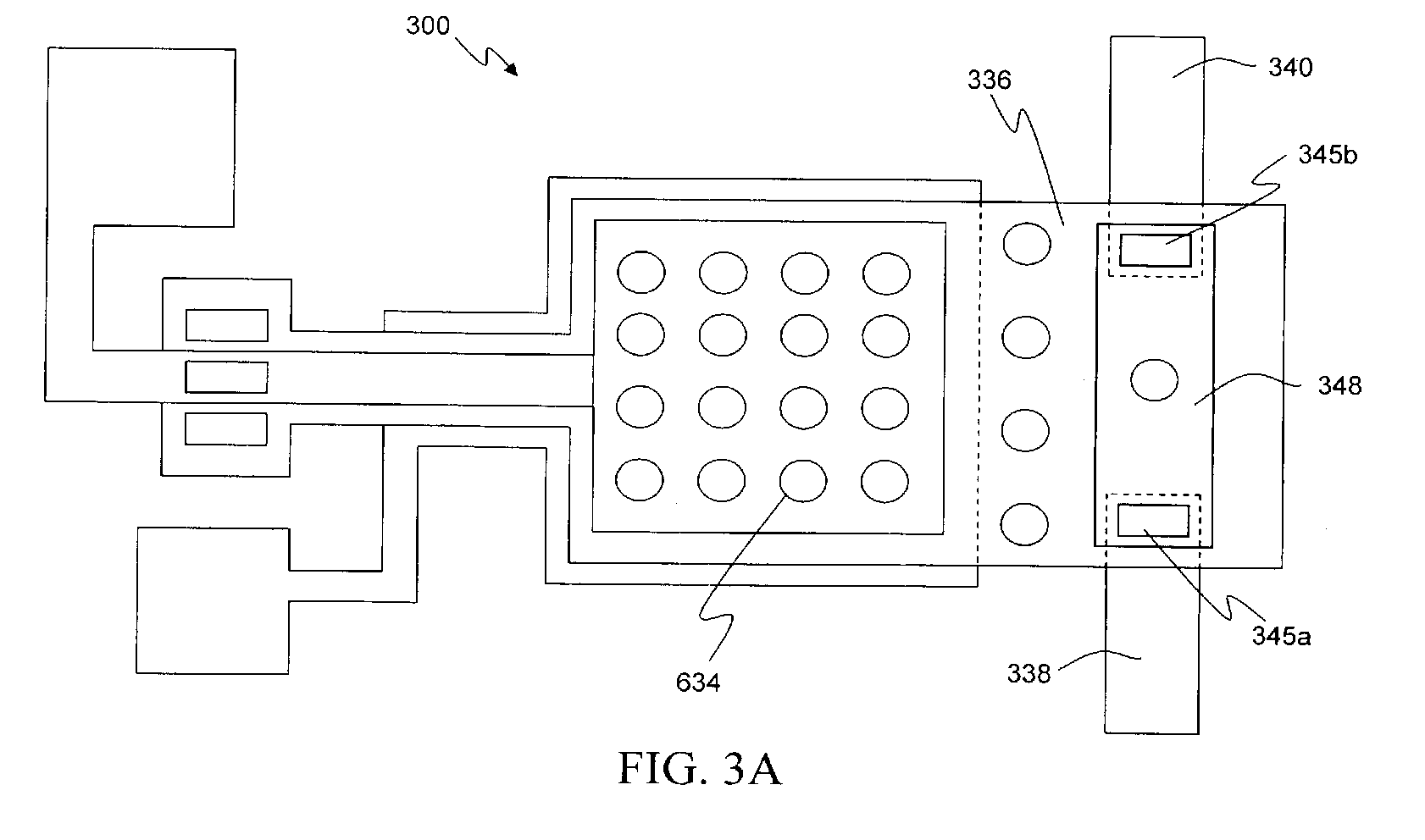

Switches making use of micromechanics; Apparatus or processes for their manufacturing, e.g. anisotropic etching (for electrostatic relays H01H 59/0009, for relays in general H01H 50/005) media2.pngmedia3.png

H01H 1/0036

Electrostatic relays; Electro-adhesion relays; making use of micromechanics

H01H 59/0009

Electrostatic motors, electric motors using thermal effect

H02N 1/002, H02N 10/00

Electric machines using piezo-electric effect

H02N 2/00

Networks comprising electromechanical or electro-acoustic devices; Electromechanical resonators. Details of microelectro-mechanical resonators, Driving or d etection means, Comb electrodesmedia0.jpg

H03H 9/02244, H03H 9/2405, H03H 9/2447

Microphones, microspeakers: Electrostatic transducers using semiconductor materials

H04R 19/005

Piezo-electric devices (includes sensors using a piezo-electric element); Electro active polymer (EAP) actuated artificial muscles

H10N 30/00


Gyroscopes; Turn-sensitive devices using gyroscopic effect, e.g. using gas, using electron beam. Turn-sensitive devices with vibrating masses, e.g. tuning fork, the vibrating mass being an essentially two-dimensional body which undergoes a deformation or translation vibration in a micromechanical structure

G01C 19/5719

Measuring volume flow or mass flow

G01F 1/6845

IR sensor

G01J 5/00

Pressure sensors, manufacturing methods of pressure sensors

G01L 9/0041, G01L 9/0042

Accelerometers, Measuring acceleration; Measuring deceleration; Measuring shock, i.e. sudden change of acceleration

G01P 15/00, G01P 15/0802

Arrangements or instruments for measuring magnetic variables (flux or magnetic sensors)

G01R 33/00

Acoustic emission sensors

Optical devices

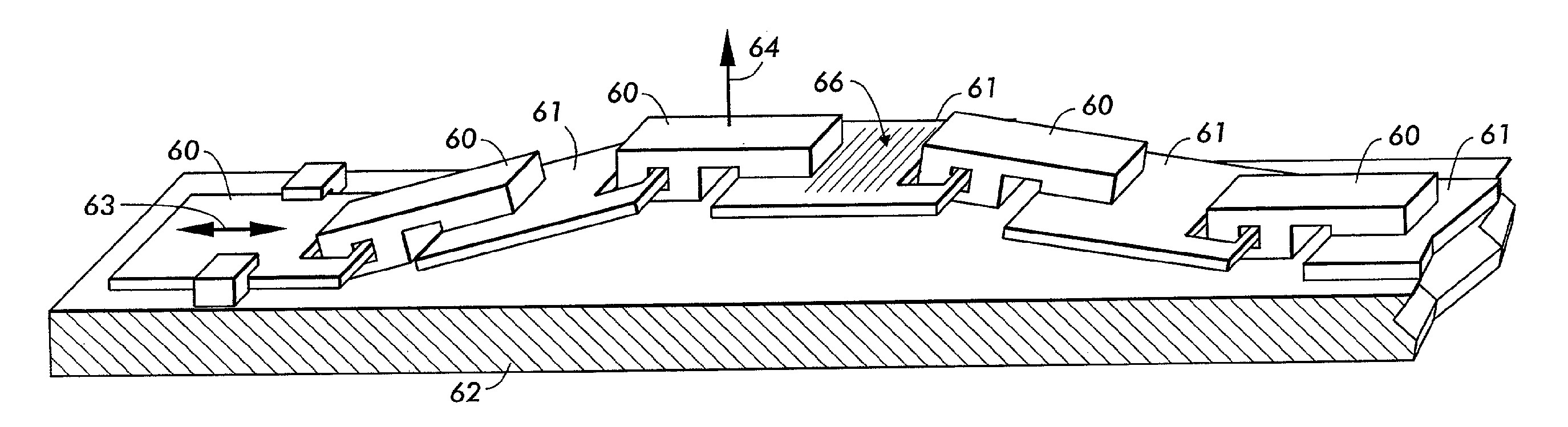

Optical switches: Optical devices or arrangements using movable or deformable optical elements for controlling the intensity, colour, phase, polarisation or direction of light, e.g. switching, gating, modulating, the reflecting element being a micromechanical device, e.g. a MEMS mirror, DMD. T he reflecting element being moved or deformed by electrostatic means:media4.jpg by means of one or more diffracting elements:media5.jpg N.B: Optical devices or arrangements using movable or deformable optical elements for controlling the intensity, colour, phase, polarisation or direction of light are classified in subgroups of G02B 26/08 . In particular MEMS micromirrors and optical devices using them for changing the direction of light are treated in G02B 26/0833 and its subgroups.

G02B 26/0833, G02B 26/0841, G02B 26/0808

Microfluidic and chemical analysis devices or processes

Microneedles (Devices for taking blood samples by percutaneous method)

A61B 5/1411

Microneedles (devices for introducing media into the body) N.B.: Manufacturing methods (other then plastic moulding) for making raised tips (in particular microneedles) are classified in B81C 1/00111. Methods for coating the needles with an active material for therapeutic purposes is not classified in B81

A61M 37/0015

Processes specially adapted for manufacturing semi-permeable membranes for separation processes or apparatus, Inorganic membrane formation (micropores)

B01D 67/0039


B01F 33/30

Microreactors, e.g. miniaturised or microfabricated reactors

B01J 19/0093

Containers for the purpose of retaining a material to be analysed with fluid transport, e.g. multi-compartment structures by integrated microfluidic structures, i.e. dimensions of channels and chambers are such that surface tension forces are important, e.g. lab-on-a-chip

B01L 3/5027

Measuring or testing processes involving nucleic acids (DNA analysis)

C12Q 1/68

Manufacture of fluid circuit elements; Manufacture of assemblages of such elements as integrated circuits (microvalves)

F15C 5/00

Investigating or analysing materials by the use of electric, electro-chemical, or magnetic means. Electrophoresis for analysis in microdevices

G01N 27/447


Recording or reproducing by means directly associated with the tip of a microscopic electrical probe as used in Scanning Tunneling Microscopy [STM] or Atomic Force Microscopy [AFM] for inducing physical or electrical perturbations in a recording medium

G11B 9/14

Digital stores characterised by the use of particular electric or magnetic storage elements; Storage elements therefor, using electric elements, using ferroelectric elements (using multibit ferroelectric storage elements G11C 11/5657)

G11C 11/22

Digital stores characterised by movement of mechanical parts to effect storage, e.g. using balls; Storage elements therefor (storing by actuating contacts G11C 11/48) - RAM with mechanical structure

G11C 23/00

Magnets or magnetic bodies characterised by the magnetic materials therefor; Selection of materials for their magnetic properties. Bidimensional, e.g. nanoscale period nanomagnet arrays.

H01F 1/009

Read-only memory structures including field-effect components

H10B 20/00


Micromanipulators N.B: Documents which comply with the following criteria are to be classified in B81: The micromanipulator is specific to the manipulation and assembling of micro- or nanoparts for MEMS or NEMS. The device solves the problem of surface forces being higher than the gravitational force The document describes the structure and manufacturing process of the micromanipulator. Methods for controlling the micromanipulator are to be classified in B25J 7/00 only.

B25J 7/00

Chemistry, nanoparticles, nanowires

Other nanoparticles

C01B 13/00, C01B 17/00, C01C, C01F

Coated nanoparticles for use as pigments and/or fillers

C01G, C09C

Hyperbranched macromolecules

C08G 83/005

Nanowires: electrolytic coating by surface reaction, i.e. forming conversion layers

C25D 11/00

Single crystal growth methods of nanorods and nanowires (deposition)


Semi-conductor nanoparticles


Manufacturing method for silicon nanowires / nanotubes / whiskers

H01L 21/30

Nanowires as interconnects for ICs

H01L 21/768

Semi-conductor nanowires / nanotubes / whiskers

H01L 29/0665

Nanowires as semiconductor heterojunction of materials of different groups

H01L 29/267

Testing and monitoring

Measuring probes, probe needles, cantilever beams, "bump" contacts; replaceable spring loaded probe pins ; N.B: plugs, sockets or clips are in G01R 1/0408; testing of connections in G01R 31/66; contacting IC's for test purposes when probe design is not the essential feature in G01R 31/2886; using radiation beam as probe in G01R 31/302; end pieces for wires terminating in a probe in H01R 11/18

G01R 1/06711

Details of semiconductor or other solid state devices, marks applied to semiconductor devices (or parts), e.g. registration marks, test patterns (alignment structures, wafer maps), using circuits for characterising or monitoring manufacturing processes, e.g. whole test die, wafers filled with test structures, on-board-devices incorporated on each die, process/product control monitors or PCM, devices in scribe-line/kerv, drop-in devices

H01L 23/544

Apparatus for lithography

Photomechanical, e.g. photolithographic, production of textured or patterned surfaces, e.g. printing surfaces; Materials therefor, e.g. comprising photoresists; Apparatus specially adapted therefor, Apparatus for microlithography

G03F 7/00


Injection moulding (for example for microneedles)

B29C 45/00

Imprinting and embossing machines

B29C 59/00

Control arrangements or circuits, of interest only in connection with visual indicators other than cathode-ray tubes (no fixed position being assigned to or needed to be assigned to the individual characters or partial characters), by control of light from an independent source. Control circuit for an array of optical MEMS, for example for avoiding stiction.

G09G 3/34

Apparatus or processes specially adapted for manufacturing or assembling transformers, inductances, reactors or choke coils, for applying magnetic films to substrates (covering metals, or materials with metals, in general C23C; manufacturing record carriers G11B 5/84), for applying nanostructures, e.g. by molecular beam epitaxy (MBE)

H01F 41/30

Variable MEMS capacitors

H01G 5/16

Special rules of classification

The classification scheme in B81B comprises two kinds of classification codes:

Accordingly, the classifier should stick as much as possible to the following rules:

  • Each document to be classified in B81B should be allocated only one main group corresponding to the objective technical problem solved by the invention, unless the content of the document describes more than one invention. In case the classification does not contain a group corresponding to the technical problem, the classifier should allocate either a residual group (see below), or in exceptional cases, when appropriate, several groups that in conjunction describe the technical problem.
  • As the invention may comprise several essential technical features, a document classified in B81B may be allocated more than one Indexing Code. The Indexing Codes which are allocated should be relevant to the invention.
  • Furthermore, the Indexing Codes must only be allocated to documents which are receiving a main group

Residual Groups

The classification in B81B contains so called residual groups. For example:

B81B 7/0077: Other packages not provided for in groups B81B 7/0035 - B81B 7/0074

When classifying a document which doesn't correspond to any subgroup (for example B81B 7/0035 - B81B 7/0074), the document must be classified in the residual group, if present, and not in the main group. In the present example, the documents should be classified in B81B 7/0077 and not in B81B 7/0032.

The classifier must stick to this policy: no new document should be classified in a main group if a residual group is present.

The reason for these residual groups is to provide the search examiner with the certainty, that all documents in the groups have been classified or reclassified. If a residual group is not present, but subgroups are, the examiner has no certainty that the documents from the main group have been reclassified when creating the subgroups.

When doing the search, the presence of the residual group indicates that all documents in the residual group have been classified taking into account the subgroups of the same level. Documents in the group of higher level, which have been split up into the sub-groups, may not have been classified taking into account the sub-groups.

Therefore, at search stage, the examiner must keep in mind that he must verify if documents are present in the main group, since these documents have not been reclassified.

The classification structure in B81.

The classification in B81, based on IPC8, makes the difference between structures and processes. In many cases, the underlying problems, which form the basis for the technical definition of a group, are solved either with a structural solution, or with a manufacturing process. Therefore, some group descriptors are duplicated in B81B (Structures) and in B81C (Processes).

The criteria for deciding if a document is to be classified in the structures or in the process is the following:

if the solution to the technical problem is a structure, then the document should be classified in B81B

if the solution to the technical problem is a method, then the document belongs to B81C


B81B 3/0002 . Arrangements for avoiding sticking of the flexible or moving parts


B81C 1/00912 . Treatments or methods for avoiding stiction of flexible or moving parts of MEMS

If for example, a document describes a process using supercritical CO2 for avoiding stiction, then it should be classified in B81C 1/00928.

If the document describes a bump for avoiding stiction of a cantilever, then it should be classified in B81B 3/001.


B81B 3/0005 contains also the processes for making anti-stiction coatings

Glossary of terms

In this place, the following terms or expressions are used with the meaning indicated:

Many technical terms in MEMS technology are defined in the SEMI norm SEMI MS3-0307. In the following sections, some technical expressions are given an additional explanation in the meaning of the classification scheme.

Summary of static of elastic structures:

Defined by their geometry

Extending structures

Pillar / ColumnTip

Depressed structures

Cavity GrooveHole

Suspended structures

Bridge Cantilever Diaphragm See-sawComb structure

Defined by their function

Extending structures


Depressed structures


Suspended structures

Flexure Membrane Spring Torsion hingeProof mass

Rotating elements

Rotating elements

Gears Rack and pinionHinge


Figure 1: Basic structures

1) Cantilever 2) Bridge 3) Diaphragm 4) V-Groove 5) Well/Cavity

6) Hole/Nozzle, [1]


A tall vertical structure, usually narrow in proportion to its height, which is usually used as a support structure, anti-adhesion structure or a structure for thermal exchange.


Tips are small pointed or rounded structures often used for Scanning Probe Microscopy probes (SPM) - like atomic force microscope (AFM), but also for data storage (Millipede), electron tunnelling tip (used in sensors) or microneedles.


is also used in relation to structures for reducing adhesion.

Functional layers

Functional layers are used mostly as protective coatings. They can protect structures against chemical or mechanical corrosion that can release particles into the protected cavity. Special coatings are used also to prevent adhesion of movable structures or to reduce the stress. Metallic layers covering polymer sealing are used to make them hermetic, but can be used also to compensate the RF-interferences.

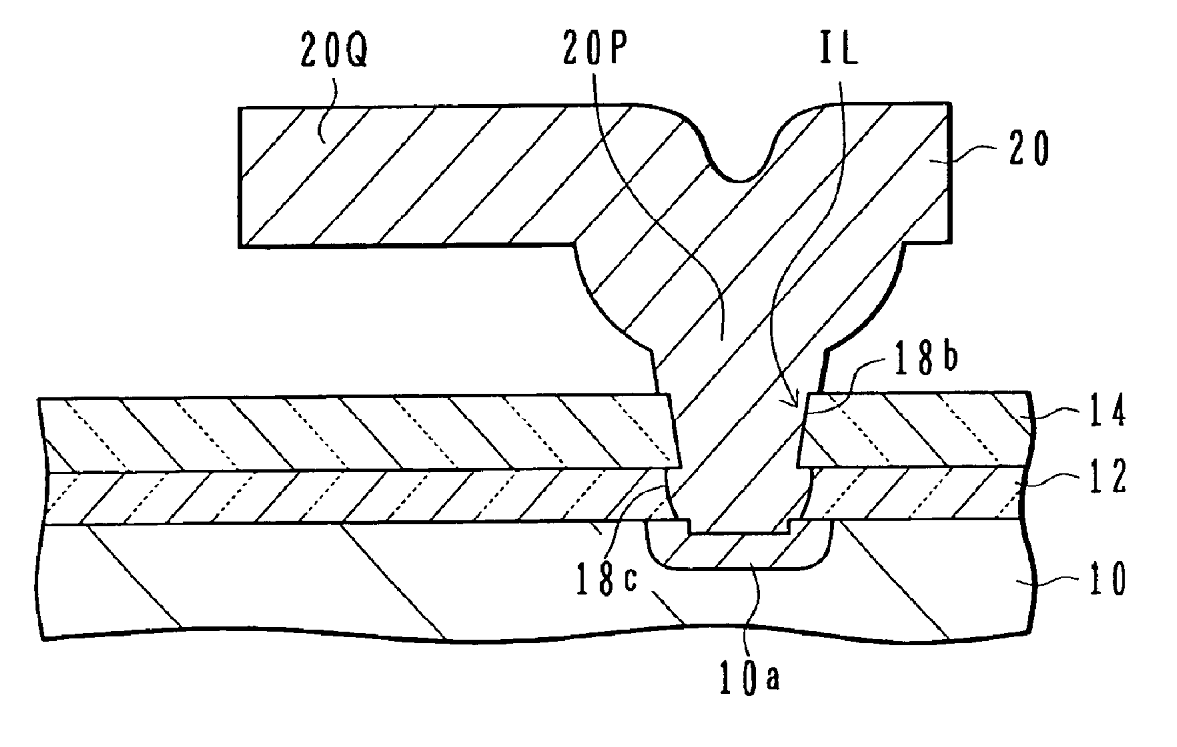

Anchors are structures connecting the suspended movable parts to the substrate. They can affect the resonant frequency and the reliability of the device.media7.png Figure 2 : Anchor (US2005032266)


Stiffening ribs are may be used to improve the stiffness of suspended structures. Improving the stiffness to mass ratio, they can have impact on resonant frequency and efficiency of the devices.


In bulk micromachining, cavity is used to make the movement of a suspended element possible. It can be used also for the protection of movable structures in packaging, for thermal insulation or as a container for fluids (see Figure 1). The synonyms are chamber, hollow, well.

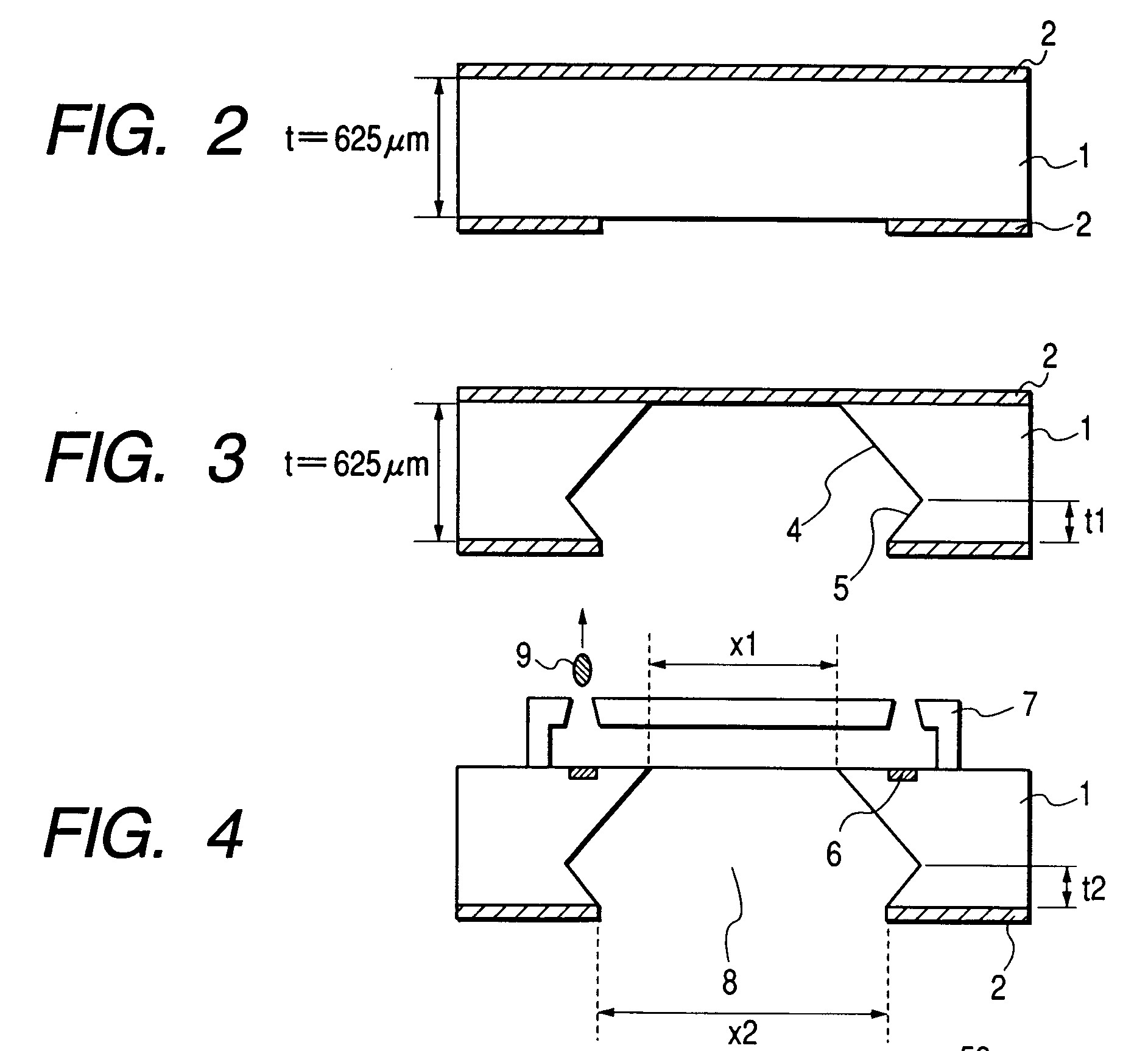

A typical example is a V-Groove (see Figure 1), which can be formed in 100 - Si substrate by KOH etching. Sometimes the groove in 111 - Si substrate is called channel or trench to distinguish them, but we consider channel to be a function oriented definition. Grooves are usually used in microfluidic applications, but can also be used for precise positioning of optical fibres or controlled weakening of structures holding a device prior to its separation by breaking.


An aperture passing through anything, a perforation, opening.


A tube or tubular passage, natural or artificial, usually for liquids or fluids.


A spout, mouthpiece, projecting aperture, or a short terminal pipe from which a jet of gas or liquid may issue or be discharged (see Figure 1).

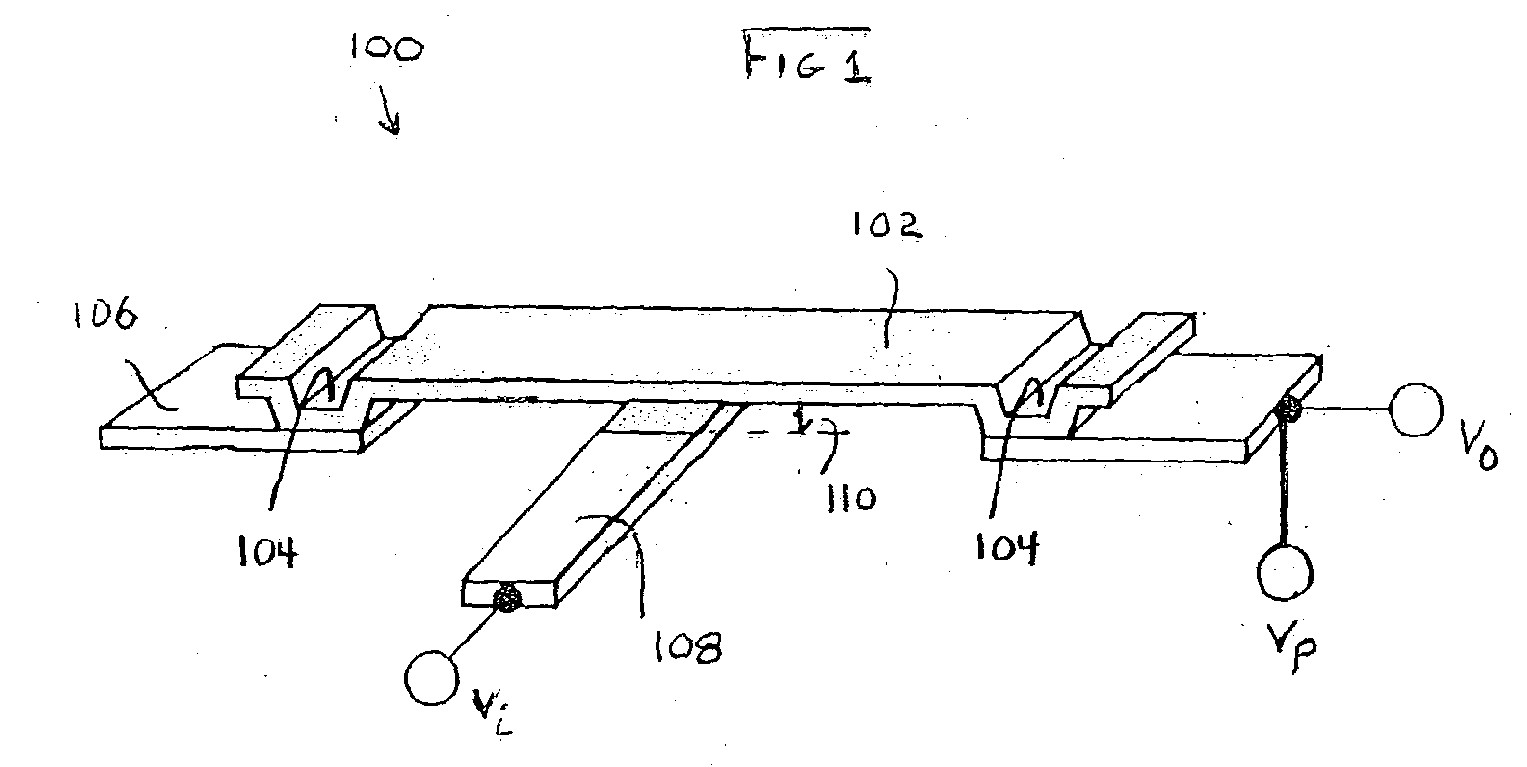

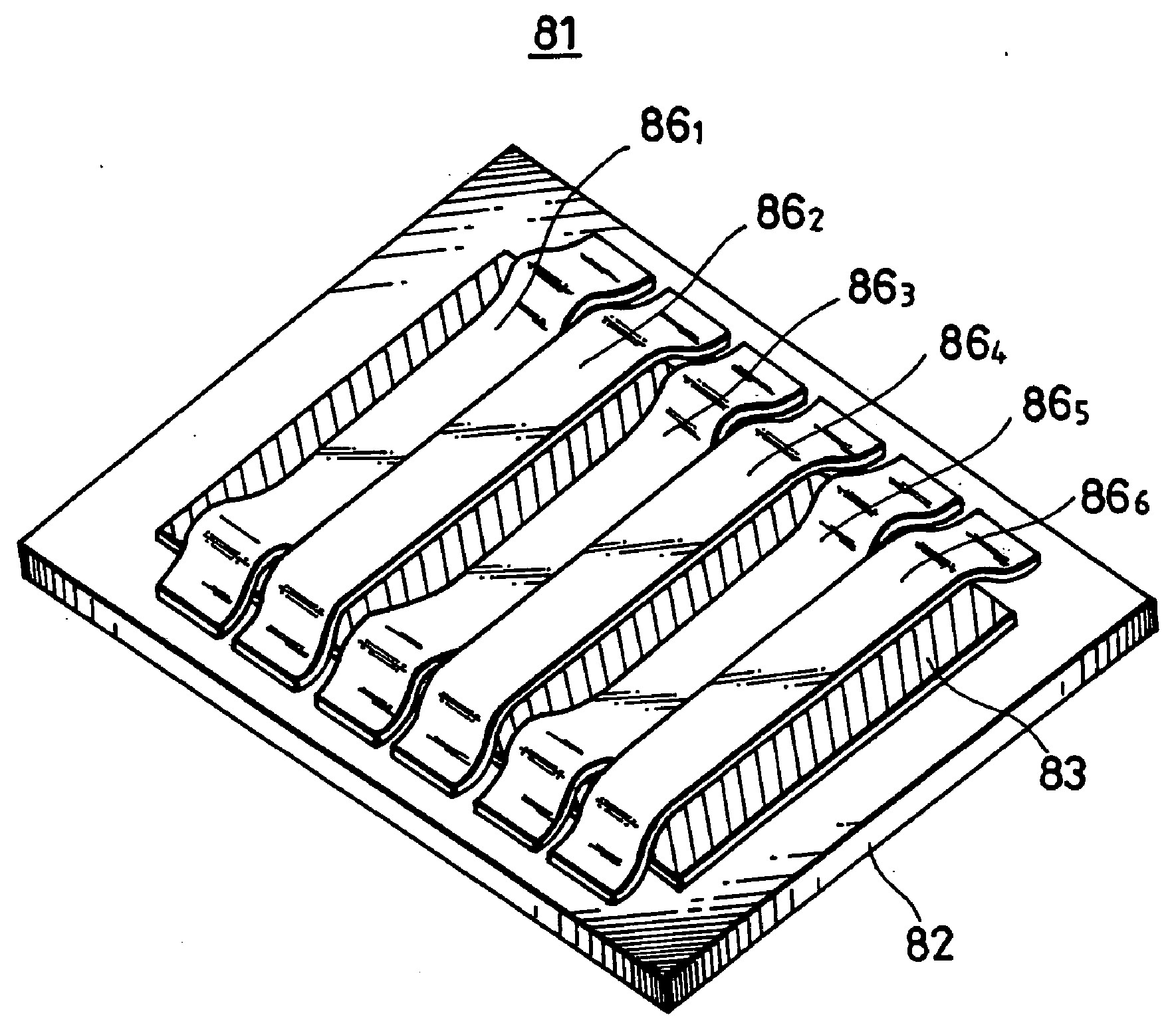

A bridge is a structure, erected or suspended over a surface, depression or an obstruction, connecting two or more extremities, including structures with supports deformable in torsion (see Figure 4), flexion or supported by springs (see Figure 5 ).media8.png Figure 3 : Bridge (flow sensor: US6626037)media9.png Figure 4 : Bridge with torsion hinges (accelerometer: EP1431240)media10.png Figure 5 : Bridge with springs (inertial sensor: DE10118340) Application : thermal insulation for flow sensors, infra-red sensors, bolometers. According to this definition, most of the accelerometers, gyroscopes and micromirrors are bridges


A cantilever is a structure which projects beyond a supporting column on a wall and is counterbalanced and/or supported at only one end. Cantilevers are also called flexures, suspension or cantilever beams and suspension springs if their structure is more complicated. These elements usually store and release mechanical energy by deformation resulting in vibration. A proof mass can be attached to one extremity of a cantilever. If there is a cantilever on both sides of a supported structure (proof mass or a micromirror), this structure is called a bridge.media11.png Figure 6: Cantilever/flexure with proof mass (accelerometer: EP1431240)media12.png Figure 7 : Cantilever (microvalve: EP1496269)Application: switches, resonators, chemical and biological sensors, accelerometers


A diaphragm is a layer covering a hole or a cavity, fixed to a frame all along its periphery, separating two environments. This separation can be hermetic or not, permanent or temporal and its opening can be controllable. Diaphragms can be perforated or have a seismic mass attached to it.media13.png Figure 8 : Diaphragm (micropump: FR2862629) Applications: pressure sensors, microphones, ultra-sound resonators, valves, accelerometers, thermal insulation


See-saw structures are suspended structures supported by a flexible element which main axis is usually perpendicular to the substrate plane. These structures can be used as a support for micromirrors, switches, gyroscopes and resonators.media14.png Figure 9: See-saw (EP1306348)

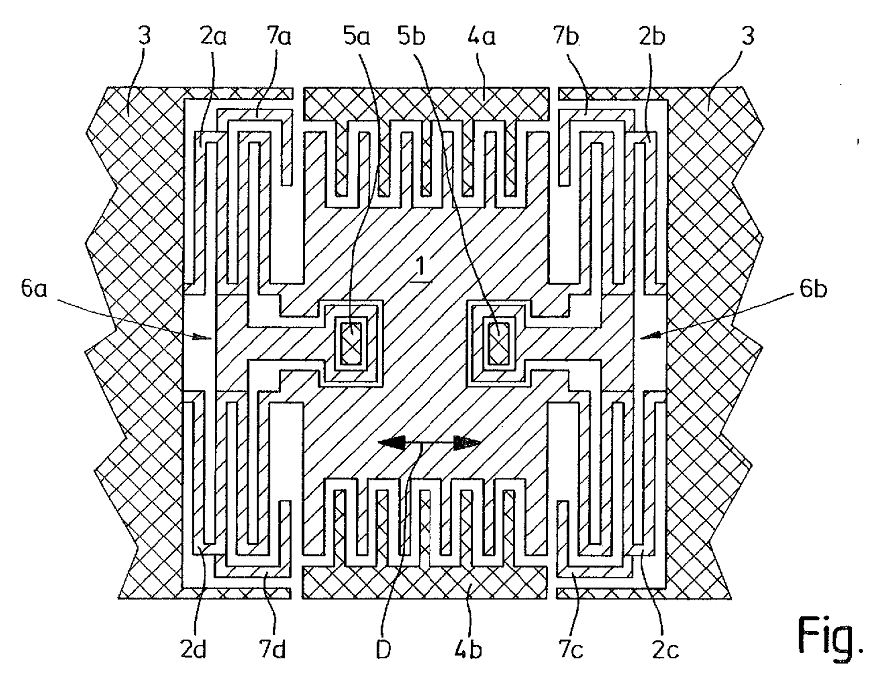

Comb structure, comb drive

A comb is a structure with a pair of comb-shaped electrodes. This shape increases the total capacitor surface. Comb structures are used for actuation or sensing. When voltage is applied, the combs are attracted to each-other. They are often attached to a deformable element that pulls them back to the initial position because they can not develop a repulsive force.media15.png Figure 10 : Comb structure (EP1868024)


Flexure or a flexure beam is a structural element that carries load primarily in bending. Deformation comprises bending about an axis normal to the beam's axis. This allows the structures to move along the perpendicular axis to the substrate (see Figure 6).


A membrane is a thin layer separating two environments allowing selective mass transport control, like chemical or physical filtering or separation of substances. Membrane is often used as synonym to diaphragm.


Spring is a suitably shaped structure that can return to its original shape after a deformation (see Figure 5).

Torsion hinge

Torsion hinge also called deformation hinge or a torsion beam is an element that deforms by twisting about an axis parallel to the beam's axis. This allows the structures to rotate around the axis parallel to the substrate (see Figure 4).

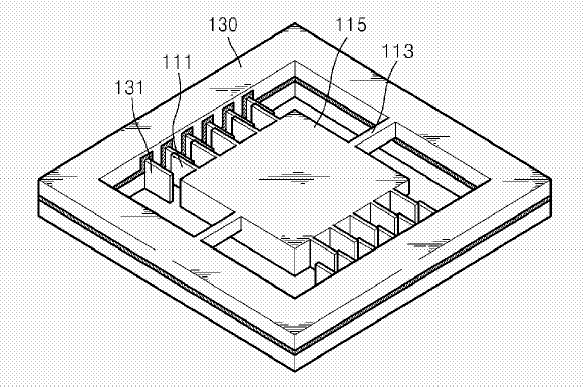

Proof mass

Proof mass also called seismic mass is a structural element usually connected to a deformable element. The mass of this element defines the resonant frequency, sensitivity and precision of the system. In some cases, holes or grooves are made on the proof mass to control or eliminate damping (see Figure 6).


A gear is a toothed wheel designed to transmit torque to another gear or toothed component.

Rack and pinion

Structure used to transform rotation to translation movement.


The movable joint or mechanism to provide for the turning of two movable parts.media16.png Figure 11: Hinge


Electrically conducting element for transmitting a signal from one point to another one. Interconnects that may be formed on, in or through the substrate or any element formed on the substrate (e.g. lid of a package). A via is a particular form of an interconnect.


Electrically conducting element through which an electric current enters or leaves a substance (or a vacuum) whose electrical characteristics are being measured, used, or manipulated. Also terminal points in electrical components.

Thermal actuators

The movement is generated by the difference in thermal expansion of two of more elements (generally beams), each elements having at least one anchoring point to the substrate. A typical thermal actuator is formed out of two parallel beams (one cold beam and one thermal beam) attached at one end to the substrate and having one connecting point at the other end. When the temperature of the thermal beam becomes higher than the temperature of the cold beam, the difference of thermal expansion generates a deflection at the connecting point.media17.png Figure 12 : Thermal beam (US2003002133) Search and Classification Notes: Thermal actuators are also found in H01H.

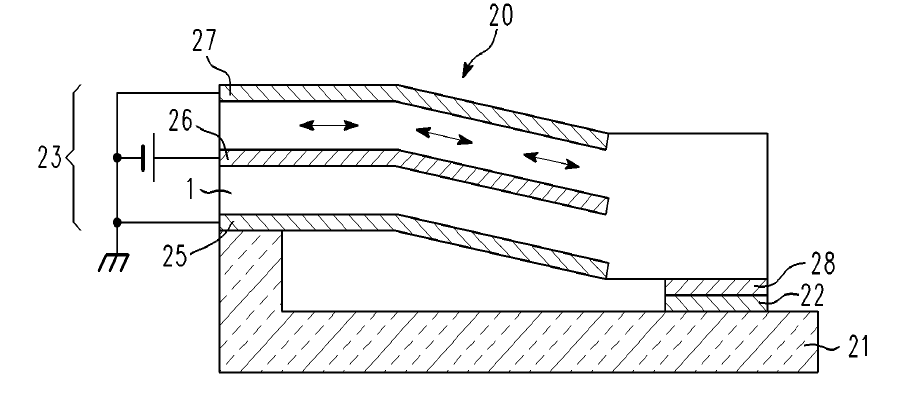

Bimorph and unimorph actuators

A bimorph is a cantilever that consists of two active layers. These layers produce a displacement via: Thermal activation (a temperature change causes one layer to expand more than the other). Electrical activation as in a piezoelectric bimorph (electric field(s) cause one layer to extend and the other layer to contract). A piezoelectric unimorph has one active (i.e. piezoelectric) layer and one inactive (i.e. non-piezoelectric) layer. For example in the following figure, in response to application of a voltage to the first movable electrode 25, the second movable electrode 26, and the third movable electrode 27, the piezoelectric thin film 1 extends/contracts and the movable section 23 is driven toward the substrate 21.media18.png Figure 13 : Bimorph actuator (US2008296529)

Devices without movable or flexible elements, e.g. microcapillary devices
Definition statement

This place covers:

Structures without a degree of freedom, static structures. A non extensive list of these structures is Pillar / Columns, Tips, Anchors, Ribs, Cavities, Grooves, Holes, Channels, Nozzles.

Limiting references

This place does not cover:

Microneedles (Devices for taking blood samples by percutaneous method)

A61B 5/1411

Microneedles (devices for introducing media into the body)

A61M 37/0015

Devices comprising flexible or deformable elements, e.g. comprising elastic tongues or membranes (B81B 5/00 takes precedence)
Definition statement

This place covers:

Structures that are flexible and/or deformable with at least one degree of freedom. A non extensive list of these structures is Bridges, Cantilevers, Diaphragms, See-saws, Comb structures, Flexures, Membranes, Springs, Torsion hinges, Proof mass.

Devices comprising elements which are movable in relation to each other, e.g. comprising slidable or rotatable elements
Definition statement

This place covers:

Arrangement of individual elements which are not connected to each other by a flexible element and that are rotatable or slidable in relation to each other. Typically gear trains, actuators with a rotor or a sliding part, racks and pinions, hinges.

Relationships with other classification places

Documents describing a single element (like a gear or a wheel) which may be used in a movable structure should NOT be classified in B81B 5/00. These documents may be classified for example in B81B 1/006 or B81C 99/0075

Informative references

Attention is drawn to the following places, which may be of interest for search:

Micro Dynamo-electric machines, rotary and linear motors or generators

H02K 99/00

Microstructural systems; {Auxiliary parts of microstructural devices or systems}
Definition statement

This place covers:

Microsystems may be either:

  • Structural arrangements of functional microstructures (structures that have a mechanical or electro-mechanical function) with further additional elements which are not directly participating to the mechanical or electro-mechanical function. These further elements may be protecting structures like packages, structures for controlling temperature, interconnects...etc.
  • Arrangements of MEMS or of MEMS and discrete electronic components
Limiting references

This place does not cover:

Elements and structures having a main mechanical function in the system.

containing distinct electrical or optical devices of particular relevance for their function, e.g. microelectro-mechanical systems [MEMS] (B81B 7/04 takes precedence)
Definition statement

This place covers:

The scope of this group has been limited to the following problems:

  • Integrating a plurality of different MEMS devices on a single substrate. For example integrating together a pressure sensor and a switch.
  • Integrating a MEMS device with discrete electronic components like tunable capacitors, optoelectronic devices, resistors for a switchable resistor array,...etc. on a single substrate
  • Interconnecting several different MEMS devices.
Limiting references

This place does not cover:

Networks or arrays of similar microstructural devices

B81B 7/04

Integration of a processing unit (circuit that transforms, amplifies, computes...) with a MEMS device (Smart-MEMS)

B81C 1/00222

Networks or arrays of similar microstructural devices
Definition statement

This place covers:

This group relates to systems consisting of an array of structurally identical MEMS devices.
