You are viewing a Class definition.

 [Search a list of Patent Appplications for class 475]   CLASS 475,PLANETARY GEAR TRANSMISSION SYSTEMS OR COMPONENTS
Click here for a printable version of this file

SECTION I - CLASS DEFINITION

This is the class for planetary gear power transmission and elements thereof, such transmission being defined as an assembly of parts including interacting first and second gears each having a central axis and wherein, during at least one mode of operation, the axis of one of the gears follows a path extending around the axis of the other gear.

(1) Note. A nominal recitation of a device for applying power to, or receiving power from, a structure of this class will not exclude a patent from being placed in this class.

SECTION II - LINES WITH OTHER CLASSES AND WITHIN THIS CLASS

A method or apparatus for manufacturing a device of this class is not found herein (Class 475), but is found in an appropriate manufacturing class. See References to Other Classes, below.

SECTION III - REFERENCES TO OTHER CLASSES

SEE OR SEARCH CLASS:

29Metal Working,   subclasses 893+ and the other subclasses in Class 29, directed to process and apparatus of mechanical manufacture. (See Lines With Other Classes and Within This Class, above.)
74Machine Element or Mechanism,   subclass 52 and 63+ for mechanical movements which may include planetary gearing, 640 for gearing of the "strain wave" type, and 843+ for a planetary gearing control interrelated with a motor control.
180Motor Vehicles,   for combinations of significant vehicle structure which may include planetary gearing, especially subclasses 6.2+ for steering by driving; 65.7 for an electric motor driven change speed gearing; 165 for the use of a fluid accumulator or flywheel to store and release energy; 233+ for a four wheel drive vehicle; 292+ and 374+ for spatial relationships of a transmission and a vehicle frame; and 369 and 372 for planetary combinations.
184Lubrication,   for lubrication generally, and especially subclass 6.12 which has not been screened for planetary gearing.
188Brakes,   for brakes*, per se.
192Clutches and Power-Stop Control,   subclasses headed "INTERRELATED POWER DELIVERY CONTROLS", which may include planetary gearing controls combined with clutch* and motor controls; 3.21+ and 3.34 for an impeller-turbine type fluid drive in combination with a clutch* and brake*, respectively; 3.52+ for controls for a planetary transmission and coaxial clutch*; and 215+ for a transmission control and brake*.
477Interrelated Power Delivery Controls, Including Engine Control,   for interrelated control between an engine and a transmission, clutch, or brake.
701Data Processing: Vehicles, Navigation, and Relative Location,   subclasses 51+ for a transmission control of that type.

SECTION IV - GLOSSARY

The following glossary will define words or phrases used in the class and subclass definitions and are identified by an asterisk which appears after the word, or in the instance of a phrase, after the last word of the phrase:

BEVEL GEAR

A gear having radial teeth extending in the same general direction as the rotational axis of the gear, but inclined with respect to the rotational axis of the gear.

BRAKE

Mechanism to selectively or automatically stop a moving part with respect to a stationary part.

CLUTCH

Mechanism to selectively or automatically couple two relatively moving parts together for common movement or to uncouple such parts.

CONDITION RESPONSIVE

Mechanism to sense a condition or change of condition in the environment of a planetary gear transmission; and, in response to such sensing, effect a control function on the transmission or on a drive train* to or from such transmission.

DIFFERENTIAL TRANSMISSION

Mechanism having separate outputs driven simultaneously from a different member of a planetary gear transmission; the arrangement being such that a change in speed of one of the outputs, in at least one mode of operation, has a direct effect on the speed of the other output.

DRIVE TRAIN

Mechanism including a group of interconnected elements which transfers rotational power from a power source* to a load device*.

INPUT MEMBER

Mechanism which receives rotational power from a power source*, and transfers such rotational power to a planetary gear transmission.

LOAD DEVICE

Mechanism which receives rotational power from an output member* to put such rotational power to useful work.

ONE-WAY BRAKE

A brake* which automatically engages to stop a rotating part when the rotating part attempts to rotate in a first direction, but which permits rotation of the rotating part in a direction opposite to said first direction.

ONE-WAY CLUTCH

A clutch* which automatically couples two rotatable parts together for joint rotation when a first of said parts rotates in a first direction, but which automatically uncouples said parts when the first of said parts rotates in a direction opposite to said first direction, or uncouples said parts when the second part rotates faster than the first part.

ORBIT GEAR

A gear mounted for rotation about the same axis as a planet carrier* and having a drive face contacting a drive face of a planet pinion* at a location radially outward from the rotational axis of the planet pinion*.

OUTPUT MEMBER

Mechanism which receives rotational power from a planetary gear transmission and transfers such rotational power to a load device*.

OVERDRIVE

Mechanism wherein an output member* is driven at a greater rotational velocity than the rotational velocity of an input member*.

PLANET CARRIER

A device mounted for rotation about a first axis, and carrying a planet pinion*, the planet pinion having a second rotational axis.

PLANET PINION

A gear mounted on a planet carrier*, said carrier rotatable about a first axis, and said gear rotatable about a second axis.

POWER SOURCE

Agency for supplying rotational power to an input member* of a planetary gear transmission.

SPEED RATIO

Rotational velocity of an output member* divided by the rotational velocity of an input member*.

SPUR GEAR

A gear having radially extending teeth on the rim, wherein the edges of the teeth extend in a direction generally parallel with rotational axis of the gear.

SUN GEAR

A gear mounted for rotation about the same axis as the rotational axis of a planet carrier* and having a drive face contacting a drive face of a planet pinion* between the axis of the planet pinion and the axis of the planet carrier.

UNDERDRIVE

Mechanism wherein an output member* is driven at a slower rotational velocity than the rotational velocity of an input member*.

UNITARY DRIVE

Mechanism wherein an output member is driven at the same rotational velocity as an input member.

WORM GEAR

A gear having radial teeth on the rim with the edges of the teeth arranged as a helix extending around the rotational axis of the gear.

SUBCLASSES

[List of Patents for class 475 subclass 1]    1INPUT FROM INDEPENDENT POWER SOURCES:
 This subclass is indented under the class definition.  Subject matter including at least two power sources* which act separately or in unison.

Image 1 for class 475 subclass 1

SEE OR SEARCH THIS CLASS, SUBCLASS:

13,for two power sources*, one of which starts the other and said one is subsequently driven by the other.
267+,for a flywheel which is, at times, used as a power source*.

SEE OR SEARCH CLASS:

60Power Plants,   subclasses 698+ for a residual system of plural motors.
74Machine Element or Mechanism,   subclasses 661 and 665+ for related subject matter.

[List of Patents for class 475 subclass 2]    2Condition responsive motor control:
 This subclass is indented under subclass 1.  Subject matter wherein a power source* is a motor which is condition responsive*.

SEE OR SEARCH CLASS:

477Interrelated Power Delivery Controls, Including Engine Control,   for interrelated control between an engine and a transmission, clutch, or brake.

[List of Patents for class 475 subclass 3]    3Including manual input:
 This subclass is indented under subclass 1.  Subject matter wherein a power source* is human force.

auxiliary  hand crank; input  pulley; output

auxiliary hand crank; input pulley; output

SEE OR SEARCH THIS CLASS, SUBCLASS:

349,for related subject matter.

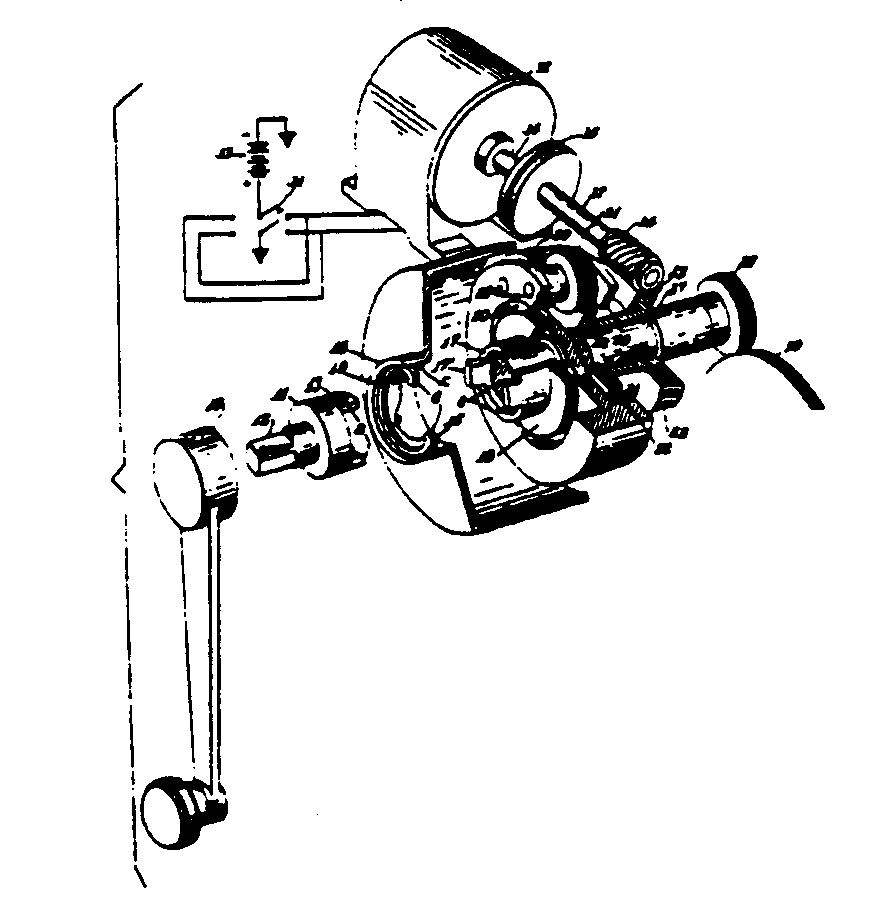

[List of Patents for class 475 subclass 4]    4And electric motor input:
 This subclass is indented under subclass 3.  Subject matter wherein a power source* includes a motor driven by electricity.

Image 1 for class 475 subclass 4

SEE OR SEARCH THIS CLASS, SUBCLASS:

5,and 149+, for related subject matter.

[List of Patents for class 475 subclass 5]    5Including electric motor input:
 This subclass is indented under subclass 1.  Subject matter wherein a power source* includes a motor driven by electricity.

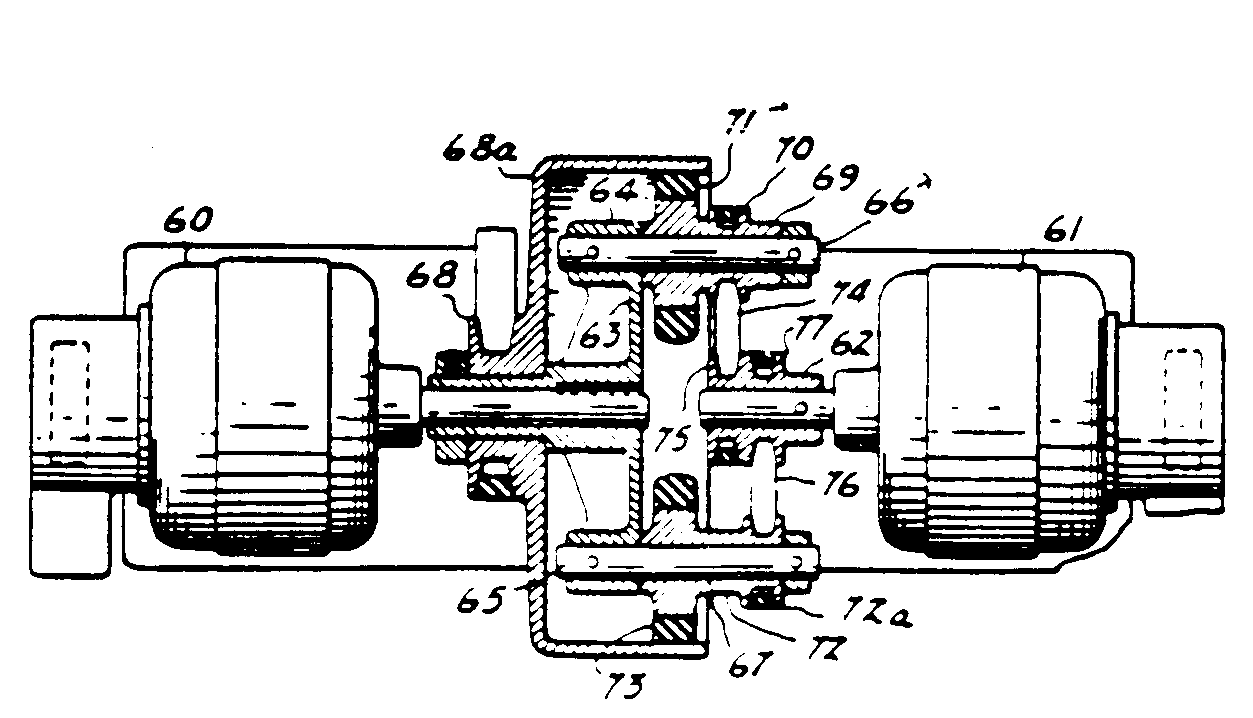

Image 1 for class 475 subclass 5

SEE OR SEARCH THIS CLASS, SUBCLASS:

4,for subject matter including a manual and electric drive.
149+,for a planetary transmission having an electric motor drive.

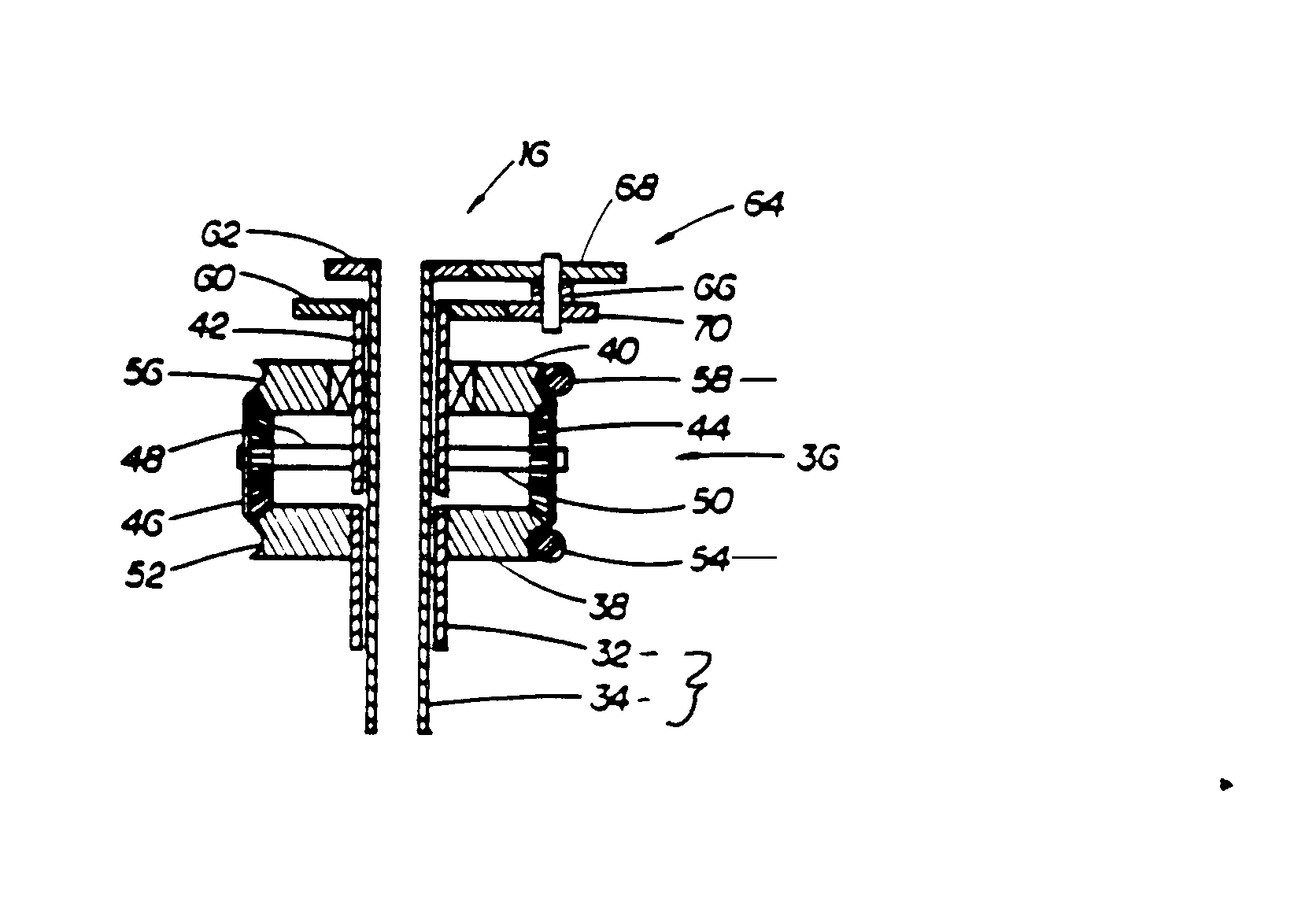

[List of Patents for class 475 subclass 6]    6Plural outputs:
 This subclass is indented under subclass 1.  Subject matter including means to drive at least two load devices*.

input; input; outputs

input; input; outputs

SEE OR SEARCH THIS CLASS, SUBCLASS:

332,and see the search notes therein for related subject matter.

[List of Patents for class 475 subclass 7]    7Worm gear in drive train:
 This subclass is indented under subclass 1.  Subject matter wherein a drive train* includes a worm gear*.

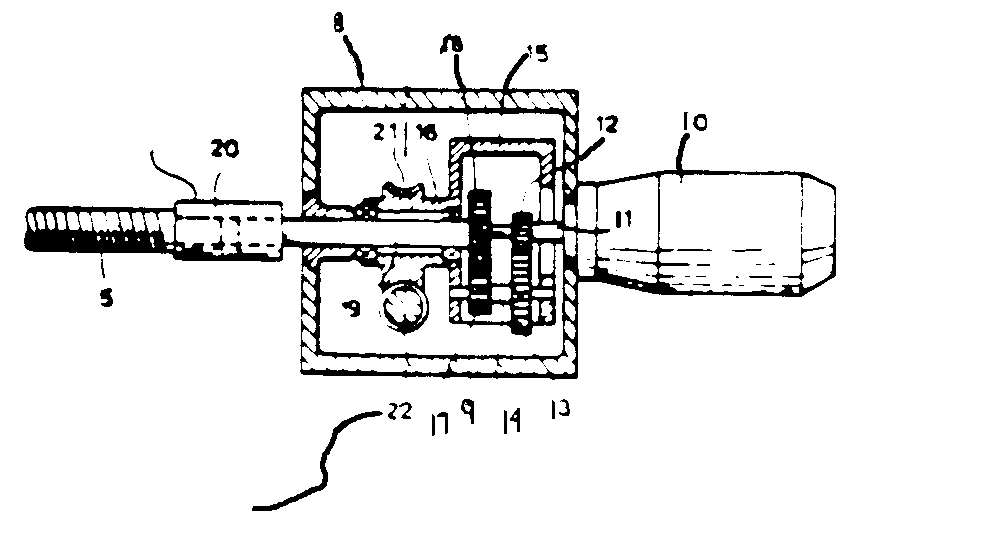

output; input; worm drive input

output; input; worm drive input


[List of Patents for class 475 subclass 8]    8One-way clutch or brake in drive train:

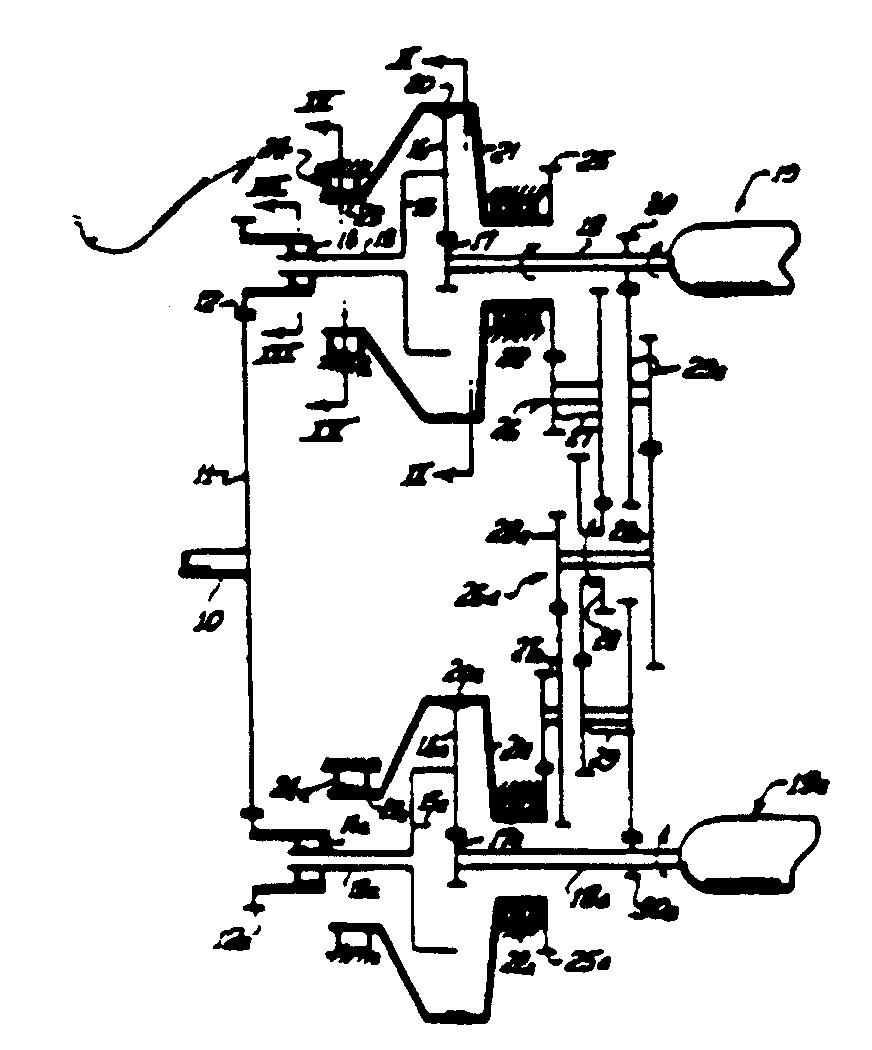

 This subclass is indented under subclass 1.  Subject matter wherein a drive train* includes a one-way clutch* or a one-way brake*.

one-way brake; engine #1; engine #2

one-way brake; engine #1; engine #2

SEE OR SEARCH CLASS:

188Brakes,   for a one-way brake, per se.
192Clutches and Power-Stop Control,   for a one-way clutch, per se.

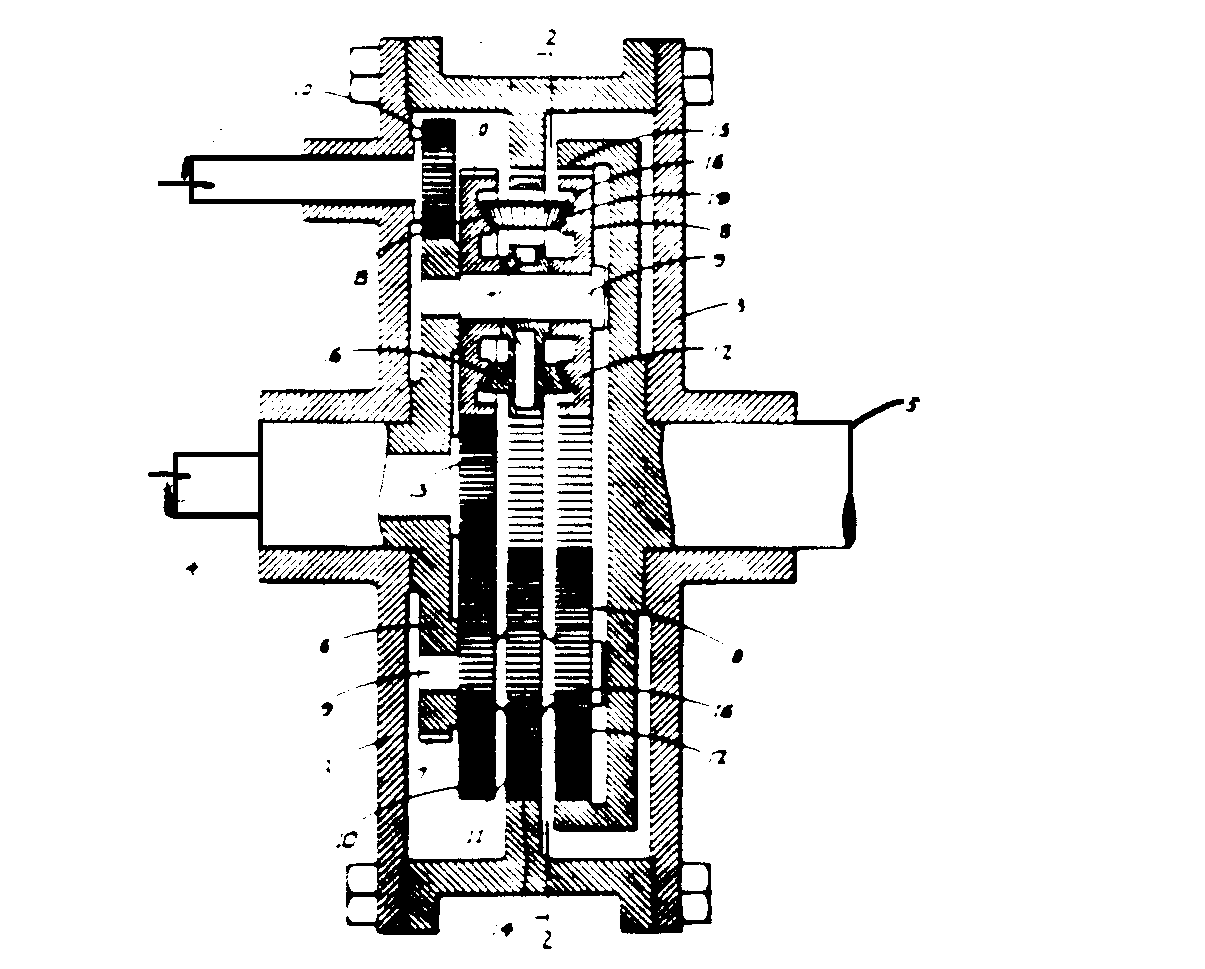

[List of Patents for class 475 subclass 9]    9Bevel planet pinion in drive train:
 This subclass is indented under subclass 1.  Subject matter wherein a planetary gear transmission in a drive train* includes a planet pinion* which is a bevel gear*.

input; input; output

input; input; output

SEE OR SEARCH THIS CLASS, SUBCLASS:

190+,197, 230+, 273+, 306+, and 336, for related subject matter.

[List of Patents for class 475 subclass 10]    10Intermeshing planet pinions in drive train:
 This subclass is indented under subclass 1.  Subject matter wherein a drive train* includes a plurality of planet pinions* which intermesh with each other.

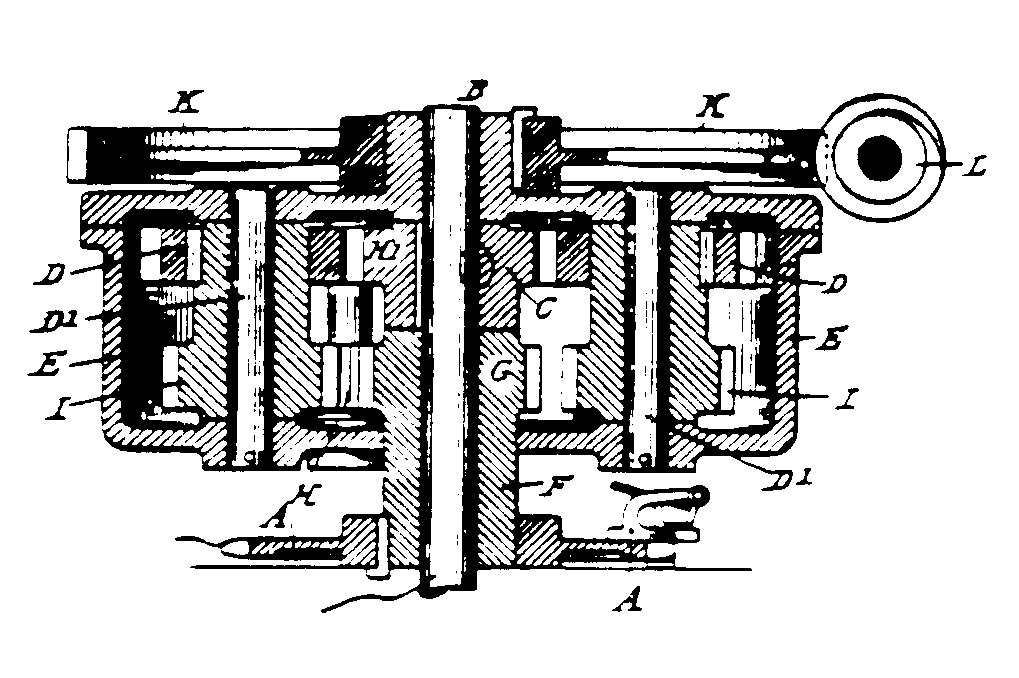

input; output; input

input; output; input

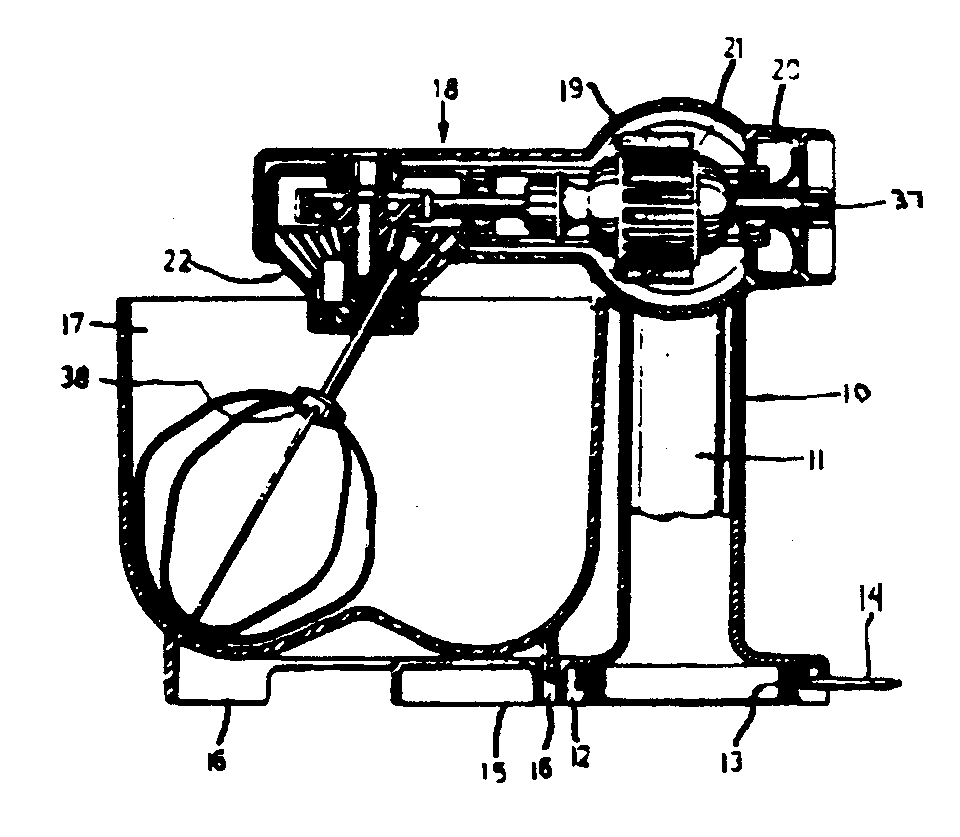

[List of Patents for class 475 subclass 11]    11ROTARY PLANETATING OUTPUT:
 This subclass is indented under the class definition.  Subject matter wherein a load device* is connected to a planet pinion* for rotation about the axis of the planet pinion* and also for rotation about the axis of a planet carrier*.

Image 1 for class 475 subclass 11

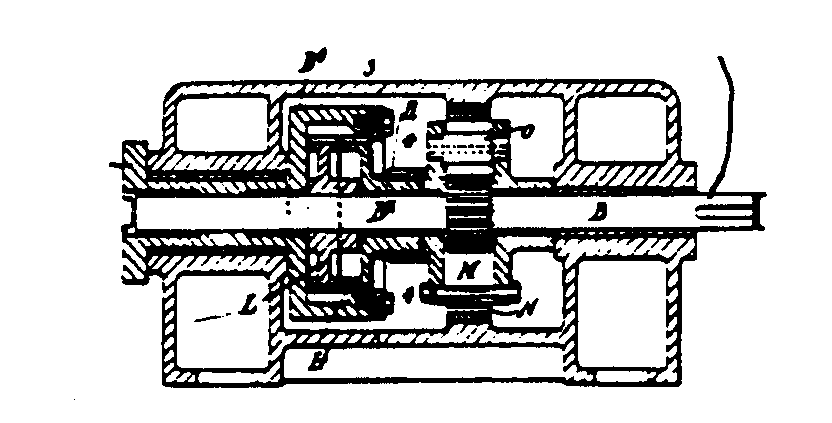

[List of Patents for class 475 subclass 12]    12REVERSAL OF DIRECTION OF POWER FLOW CHANGES POWER TRANSMISSION TO ALTERNATE PATH:
 This subclass is indented under the class definition.  Subject matter having two alternately usable power paths between a single input member* and a single output member* so arranged that (1) the interchange of the input and output relationship or (2) the change of direction of rotation of the input, changes the path through which the power is transmitted.

output driven in same direction at variable speeds; input drivenin opposite directions

output driven in same direction at variable speeds; input drivenin opposite directions

SEE OR SEARCH THIS CLASS, SUBCLASS:

126,for a valve, actuated in response to the reversal of rotation of an element of a planetary transmission, to control a fluid operated clutch or brake.

SEE OR SEARCH CLASS:

74Machine Element or Mechanism,   subclasses 810.1+ for means to effect this function with nonplanetary gearing.

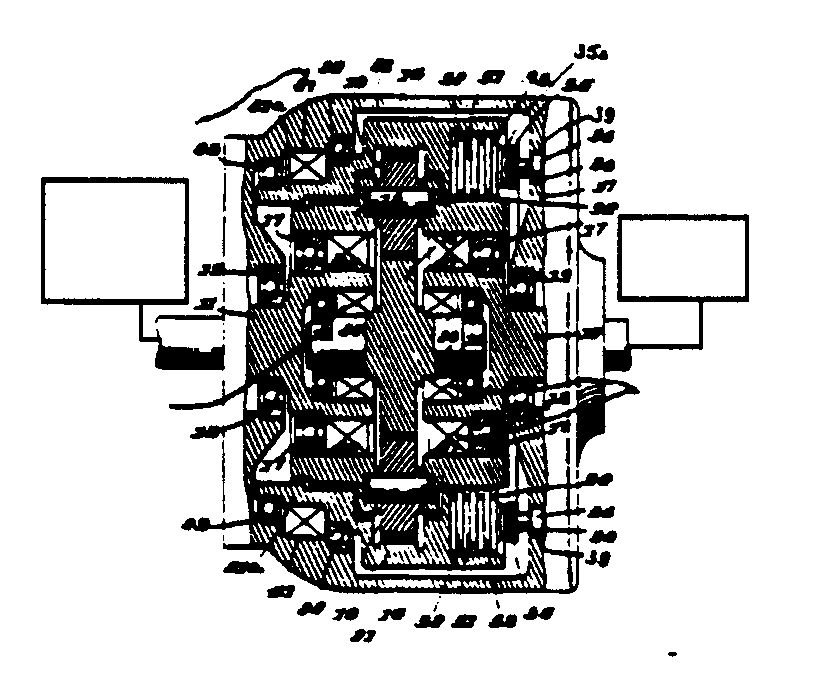

[List of Patents for class 475 subclass 13]    13Input and output exchange functions:
 This subclass is indented under subclass 12.  Subject matter wherein in response to the interchange of roles between the input member* and output member* the path through which power is transmitted is changed.
(1) Note. To be placed herein the transmission must have a useful load at each of its input and output ends. Most of the patents herein disclose either motor-generators or motor-pumps used to start an engine which in turn drives the generator or pump.

one-way brake; motorpump unit; one-way clutch; pump-motoracts as input  (underdrive) to start  I.C. engine then I.C. enginedrives motor-pump; I.C.  engine; one-way clutch

one-way brake; motorpump unit; one-way clutch; pump-motoracts as input (underdrive) to start I.C. engine then I.C. enginedrives motor-pump; I.C. engine; one-way clutch

SEE OR SEARCH CLASS:

74Machine Element or Mechanism,   subclass 810.2 for the exchange of input and output roles using nonplanetary gearing.
290Prime-Mover Dynamo Plants,   subclass 38 for gearing of this type combined with significant generator structure.

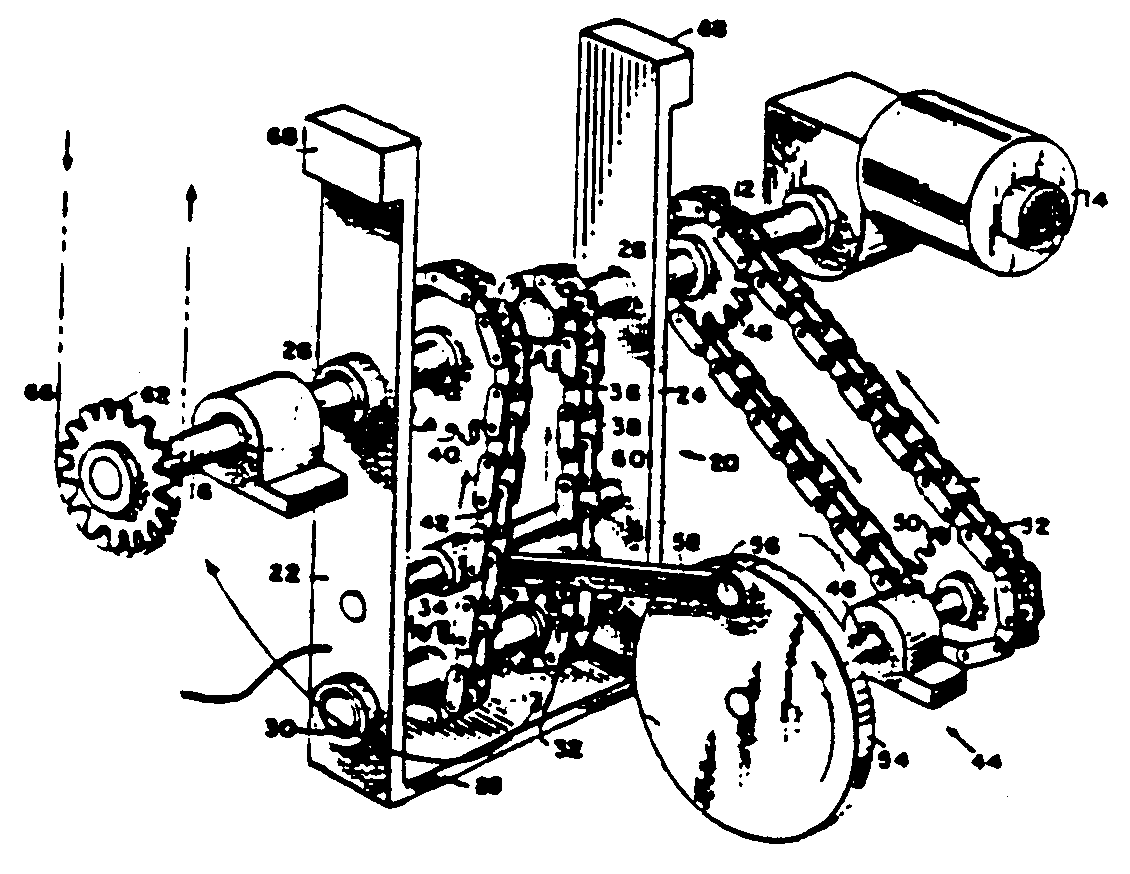

[List of Patents for class 475 subclass 14]    14CYCLICAL OR INTERMITTENT DRIVE:
 This subclass is indented under the class definition.  Subject matter wherein means is included to vary the rotational speed of a gear of a planetary transmission according to a predetermined pattern without operator intervention; or wherein means is included to provide driving force to a gear of a planetary transmission at predetermined intervals without operator intervention.

planet carrier

planet carrier


[List of Patents for class 475 subclass 15]    15Plural outputs:

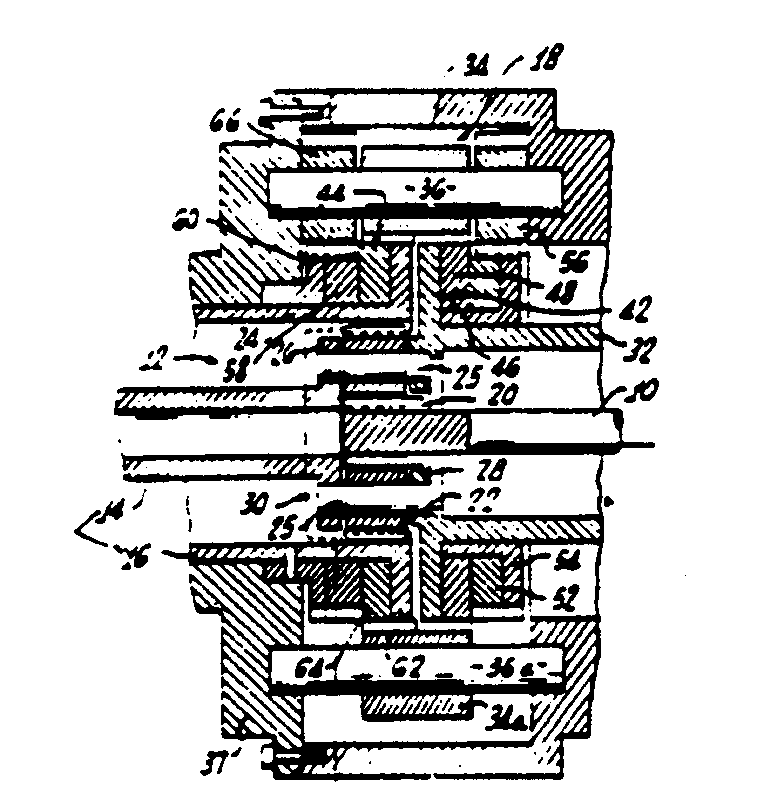

 This subclass is indented under subclass 14.  Subject matter including means to drive at least two load devices*.

output; input shaft

output; input shaft

SEE OR SEARCH THIS CLASS, SUBCLASS:

332,and see the search notes therein for related subject matter.
,

[List of Patents for class 475 subclass 16]    16With means to adjust cycle or drive during operation:
 This subclass is indented under subclass 14.  Subject matter which includes a control member, either manually or automatically operated during operation of the transmission, to alter a rotational speed pattern or driving force interval.

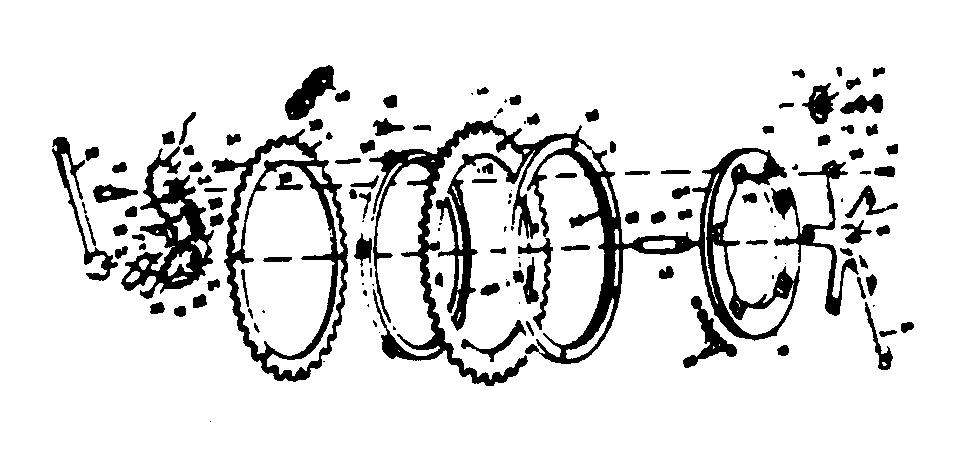

[List of Patents for class 475 subclass 17]    17Mutilated or noncircular gear in drive train:
 This subclass is indented under subclass 14.  Subject matter wherein a gear in a drive train* has an irregular pattern of gear teeth; or wherein the circumference of the gear rim is a shape other than round.

elliptical gear

elliptical gear


[List of Patents for class 475 subclass 18]    18STEERING BY DRIVING:

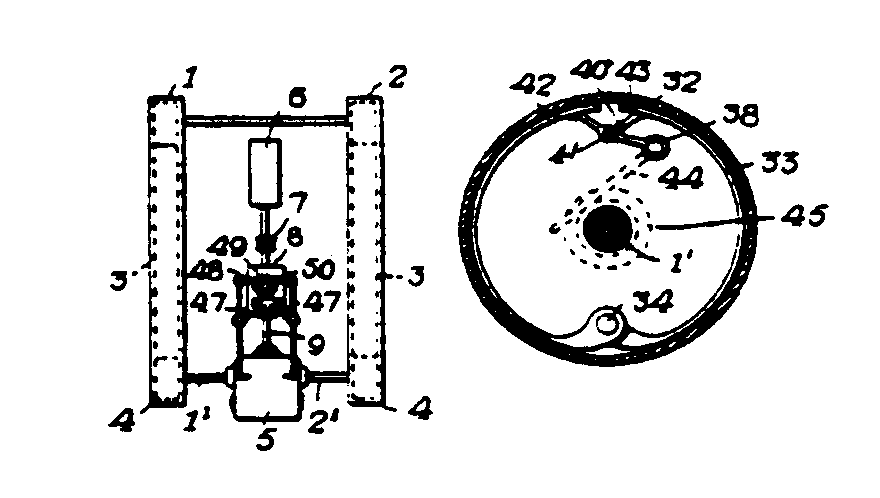

 This subclass is indented under the class definition.  Subject matter wherein plural drive trains* are utilized for driving two load devices* on opposite sides of a vehicle at different relative speed ratios* to cause turning.

Image 1 for class 475 subclass 18

SEE OR SEARCH THIS CLASS, SUBCLASS:

3,for steering by driving where manual steering constitutes a second power input to the drive trains.
223+,for means to apply power to only one of two differential outputs for the purpose of steering.

SEE OR SEARCH CLASS:

180Motor Vehicles,   subclasses 6.2+ , for steering by driving combined with vehicle structure and see the (1) Note under subclass 6.2 for the line.
477Interrelated Power Delivery Controls, Including Engine Control,   subclass 1 for steering by driving with prime mover control.

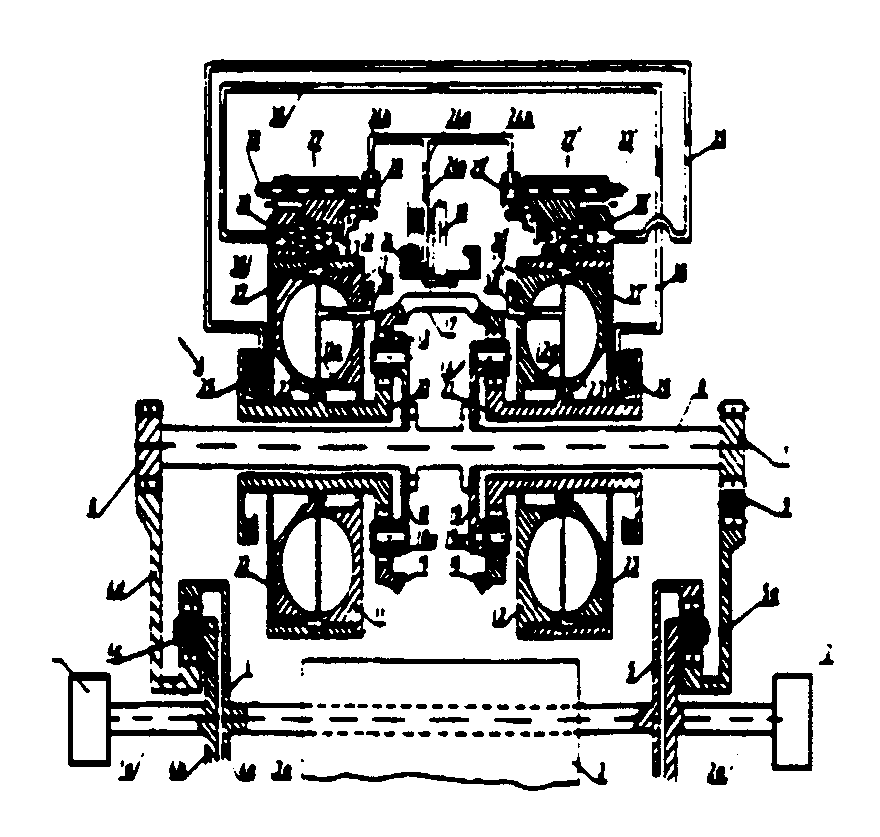

[List of Patents for class 475 subclass 19]    19With condition responsive steer control:
 This subclass is indented under subclass 18.  Subject matter wherein means to cause turning is condition responsive*.

speed sensor

speed sensor

SEE OR SEARCH CLASS:

477Interrelated Power Delivery Controls, Including Engine Control,   for steering by driving with prime mover control.

[List of Patents for class 475 subclass 20]    20With cooling or lubrication:
 This subclass is indented under subclass 18.  Subject matter provided with means to change the temperature of an element of, or means to apply or direct a lubricating fluid between, moving parts of a drive train*.

Image 1 for class 475 subclass 20

SEE OR SEARCH THIS CLASS, SUBCLASS:

159+,for drive train* lubrication generally.
161,for drive train* cooling or heating.

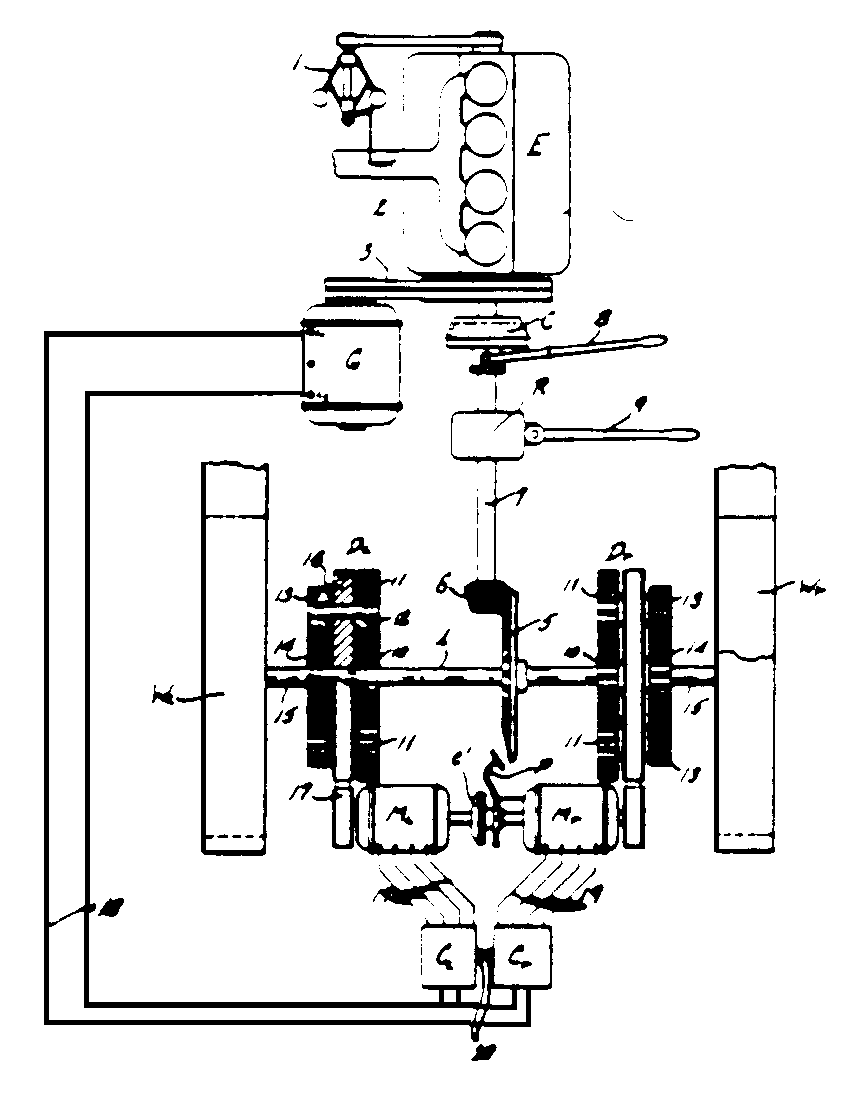

[List of Patents for class 475 subclass 21]    21With infinitely variable drive:
 This subclass is indented under subclass 18.  Subject matter wherein at least one of the plural drive trains* includes a means to vary the speed ratio* steplessly.

Image 1 for class 475 subclass 21


[List of Patents for class 475 subclass 22]    22Variable drive is fluid drive:
 This subclass is indented under subclass 21.  Subject matter wherein the stepless ratio change is effected by the use of a hydraulic or pneumatic drive train*.

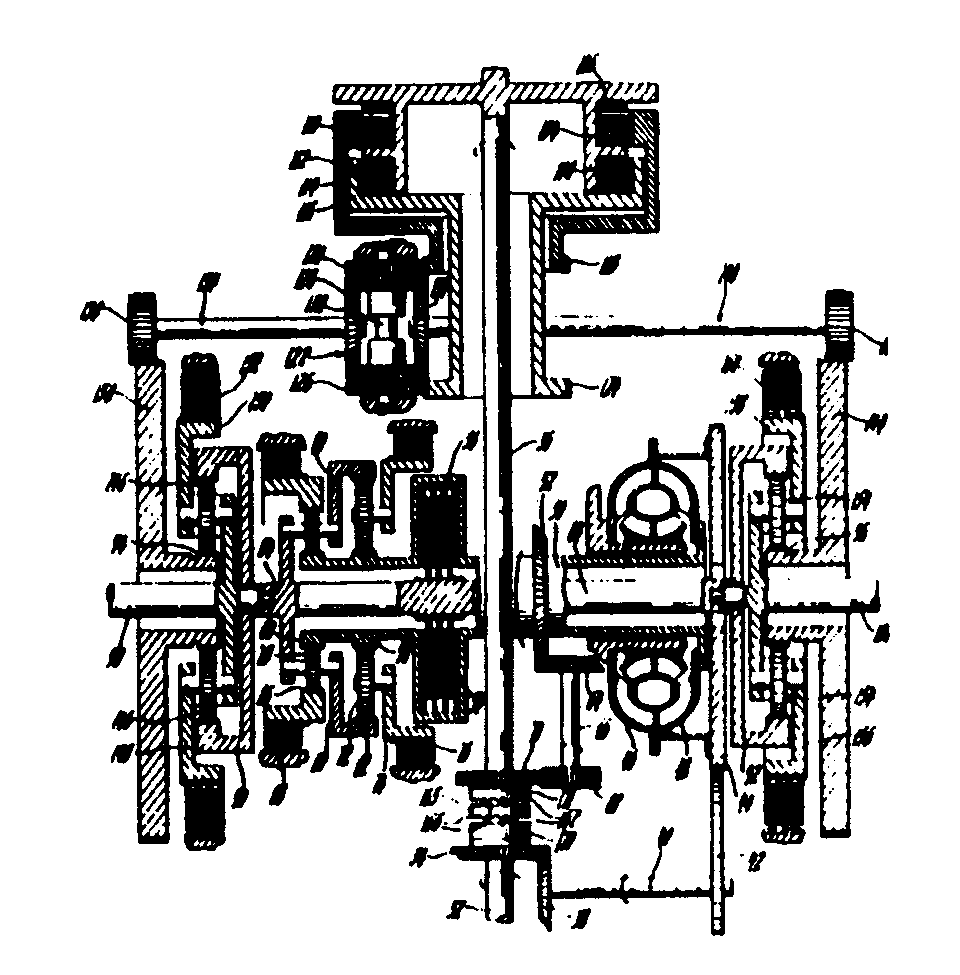

Image 1 for class 475 subclass 22


[List of Patents for class 475 subclass 23]    23Hydrostatic type:

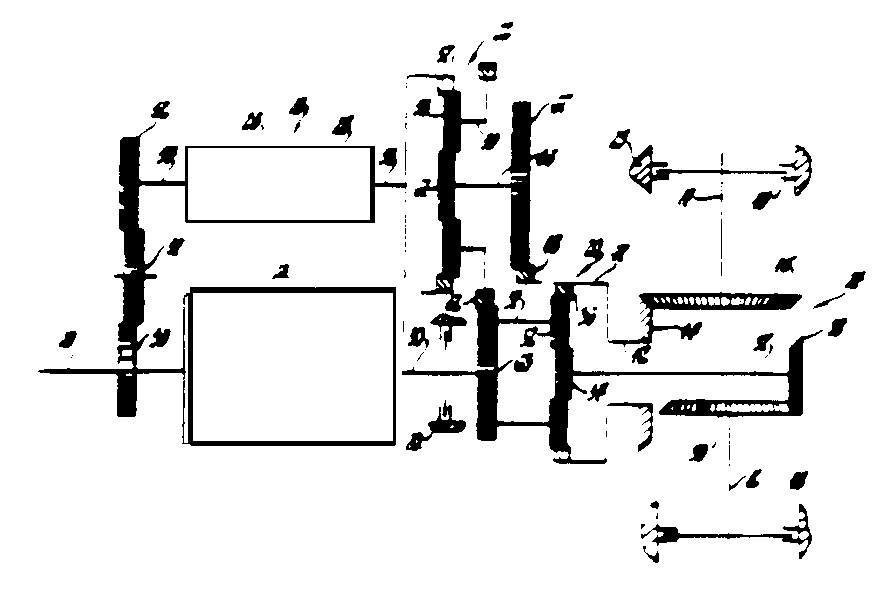

 This subclass is indented under subclass 22.  Subject matter wherein the fluid drive train* includes an expansible chamber pump which transfers power via fluid to an expansible chamber motor to provide useful work.

pump motor; variable speed ratio range unit

pump motor; variable speed ratio range unit

SEE OR SEARCH THIS CLASS, SUBCLASS:

72+,for the general combination of planetary gearing and hydrostatic drive.

SEE OR SEARCH CLASS:

60Power Plants,   subclasses 325+ , for a pump and motor combination, per se.

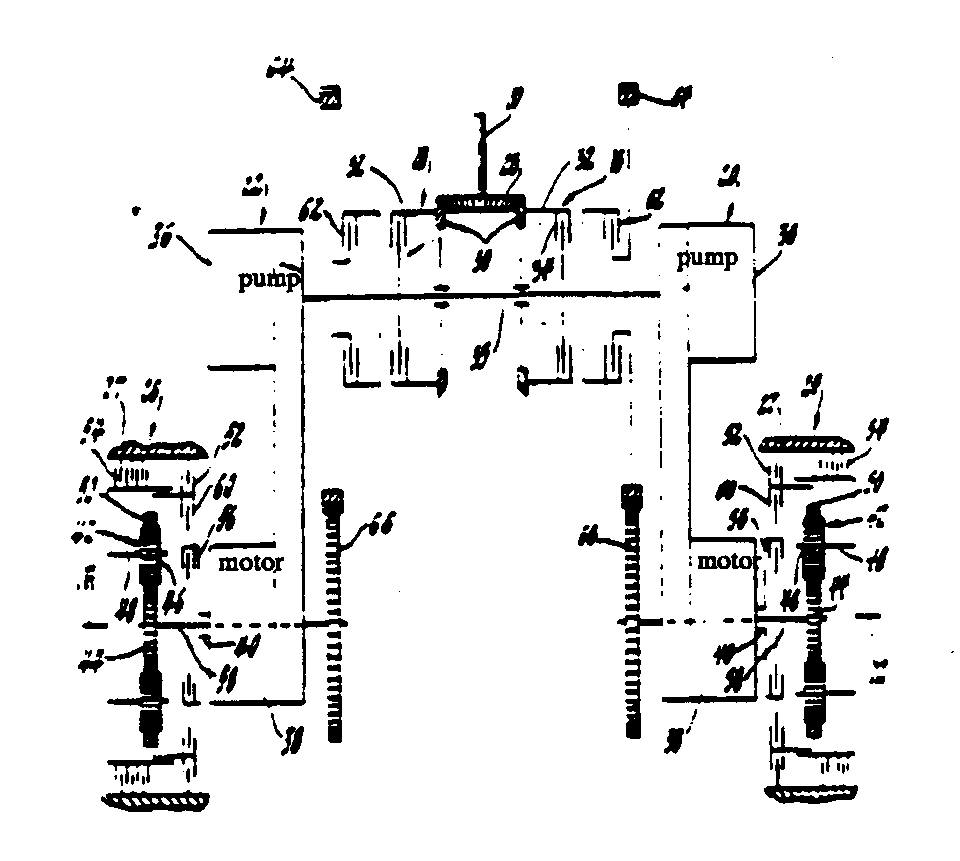

[List of Patents for class 475 subclass 24]    24Plural pump-motor sets:
 This subclass is indented under subclass 23.  Subject matter wherein at least two pump-motor combinations are included in the plural drive trains*.

Image 1 for class 475 subclass 24


[List of Patents for class 475 subclass 25]    25Belt type:
 This subclass is indented under subclass 21.  Subject matter wherein said ratio varying means comprises an endless flexible band.

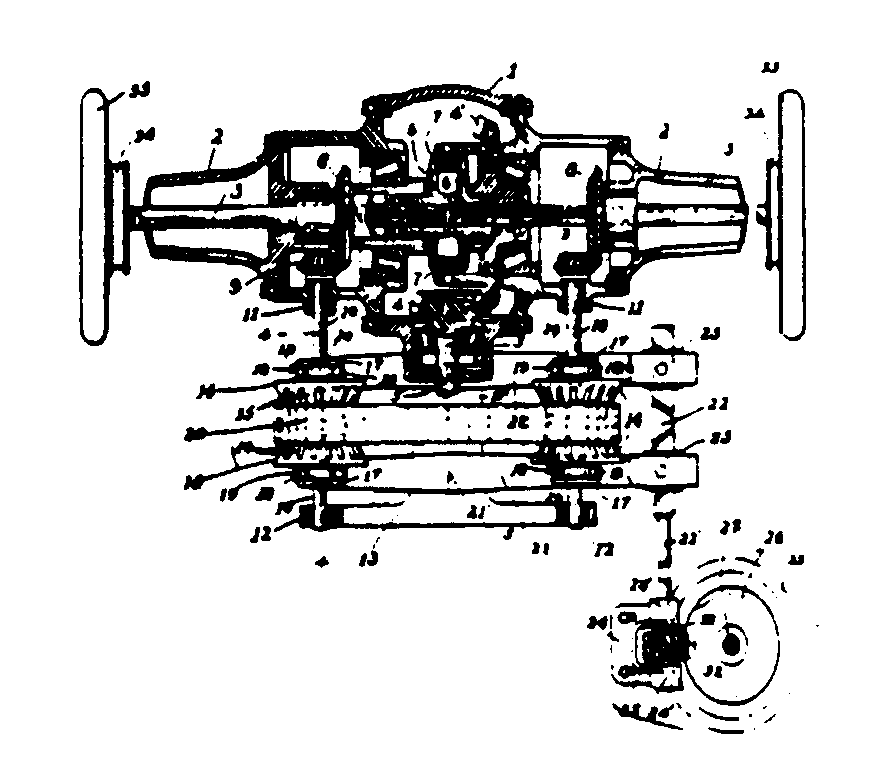

Image 1 for class 475 subclass 25

SEE OR SEARCH THIS CLASS, SUBCLASS:

210+,for variable speed or direction belt transmission combined with a planetary transmission.

SEE OR SEARCH CLASS:

474Endless Belt Power Transmission Systems or Components,   appropriate subclasses, for steplessly variable belt transmissions, per se.

[List of Patents for class 475 subclass 26]    26Variable drive is friction drive:
 This subclass is indented under subclass 21.  Subject matter wherein the stepless ratio change is effected by a drive train* which includes toothless gearing that transmits force by frictional contact.

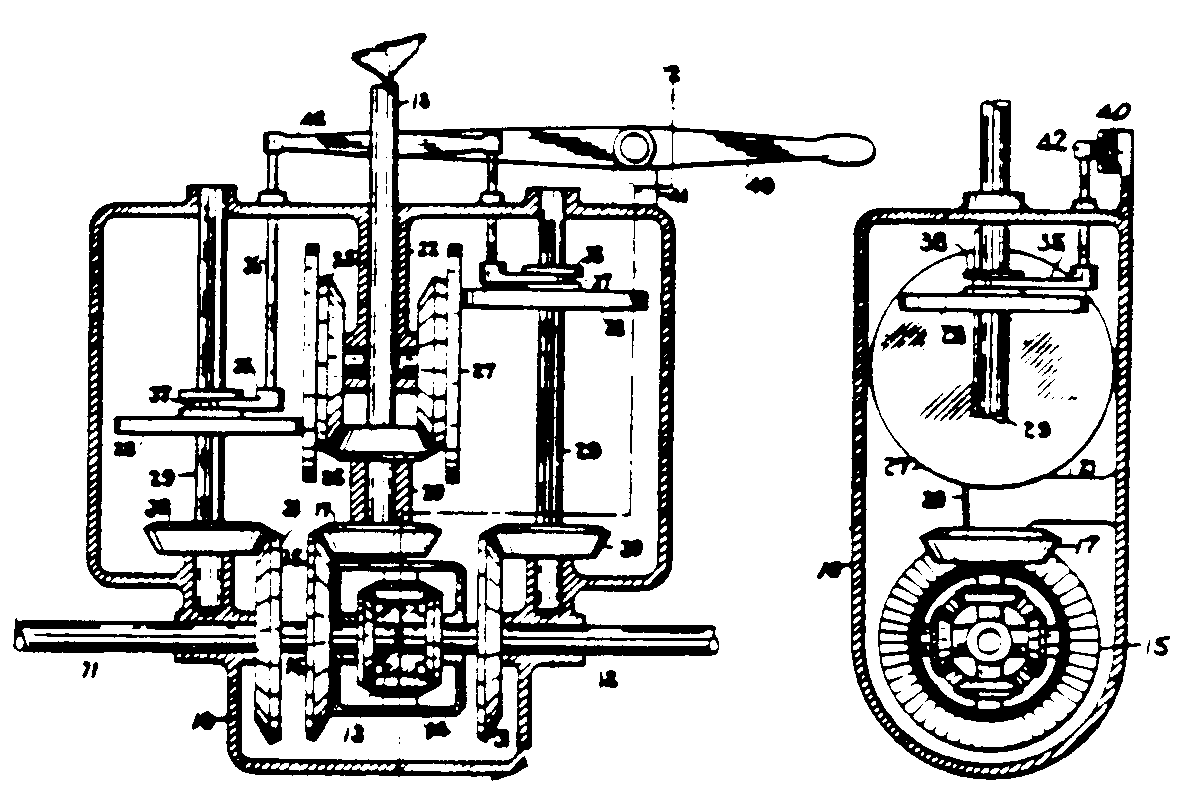

Image 1 for class 475 subclass 26

SEE OR SEARCH THIS CLASS, SUBCLASS:

114+,for fluid control of planetary friction gearing.
185+,for planetary friction gearing, per se.
214+,for nonplanetary variable speed or direction friction gearing combined with a planetary transmission.

SEE OR SEARCH CLASS:

476Friction Gear Transmission Systems or Components,   for variable speed nonplanetary friction gearing, per se.

[List of Patents for class 475 subclass 27]    27Fluid steer control:
 This subclass is indented under subclass 18.  Subject matter wherein the plural drive trains* include controlling clutches* or brakes* which are operated by hydraulic or pneumatic pressure.

Image 1 for class 475 subclass 27

SEE OR SEARCH THIS CLASS, SUBCLASS:

23+,for the control of pump-motor units for steering purposes.

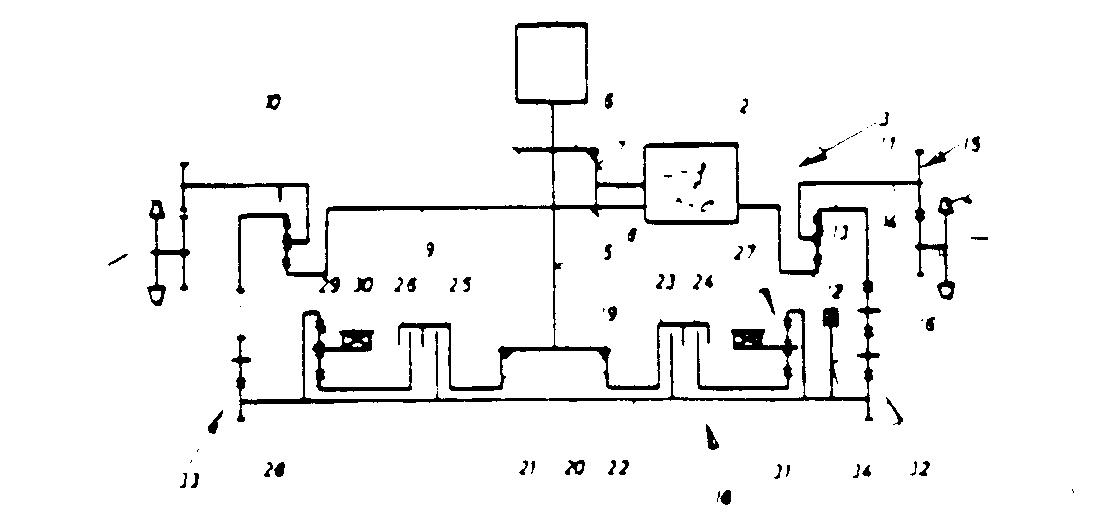

[List of Patents for class 475 subclass 28]    28With plural power paths to a planetary transmission at each output:
 This subclass is indented under subclass 18.  Subject matter wherein the plural drive trains* include a planetary gear set adjacent each load device*, each gear set having one output member* and two input members*.

output; output

output; output

SEE OR SEARCH THIS CLASS, SUBCLASS:

21+,for this combination with a steplessly variable drive.

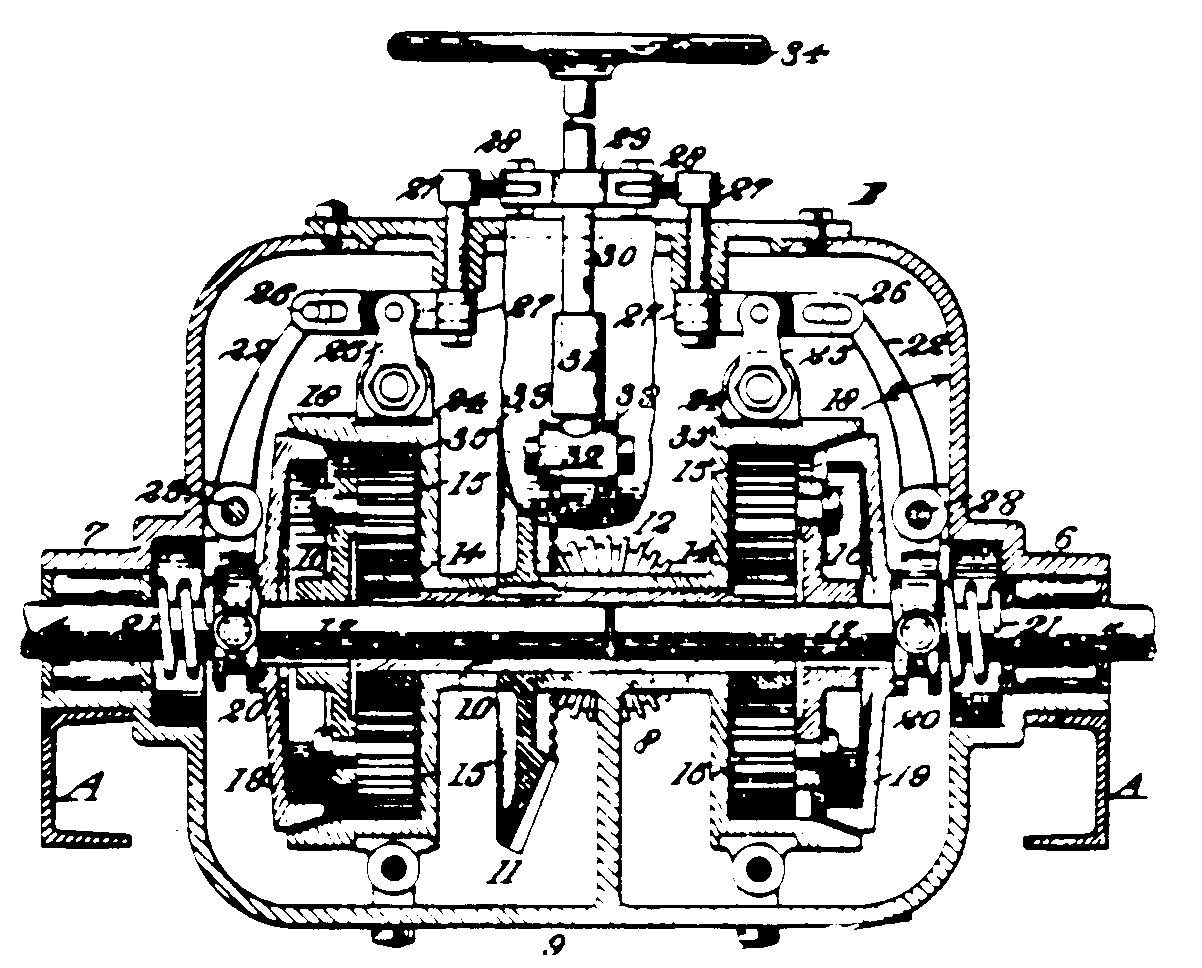

[List of Patents for class 475 subclass 29]    29With planetary reaction brake steering:
 This subclass is indented under subclass 18.  Subject matter wherein means for driving one load device* at a speed ratio* different from the other load device includes a brake control for a planetary element of one of the drive trains.
(1) Note. The planetary element to be braked may not be an output member* and form a basis for classification in the subclass.

Image 1 for class 475 subclass 29

SEE OR SEARCH THIS CLASS, SUBCLASS:

224,for means to apply power to only one of two differential outputs, while braking the other, for the purpose of steering.

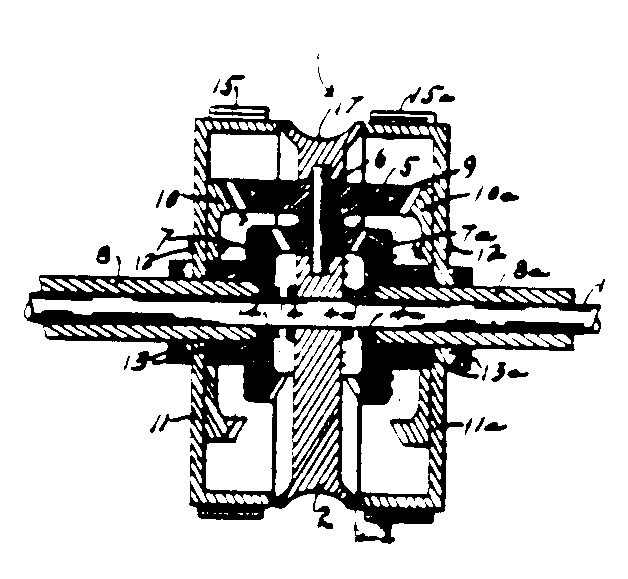

[List of Patents for class 475 subclass 30]    30And carrier input to planetary gearing:
 This subclass is indented under subclass 29.  Subject matter wherein an input member* is a planet carrier*.
(1) Note. The carrier input is usually part of a differential transmission*.

input

input


[List of Patents for class 475 subclass 31]    31FLUID DRIVE OR CONTROL OF PLANETARY GEARING:
 This subclass is indented under the class definition.  Subject matter wherein (1) a planetary transmission is combined with a hydraulic or pneumatic torque transmitting means to form a drive train*, or (2) means is provided to change the speed ratio* or otherwise regulate the operation of a planetary transmission and such means is actuated, at least in part, by hydraulic or pneumatic energy.

fluid equalizes axial thrust on gears

fluid equalizes axial thrust on gears

SEE OR SEARCH THIS CLASS, SUBCLASS:

18+,for fluid drive or control in a steering by driving arrangement.

SEE OR SEARCH CLASS:

477Interrelated Power Delivery Controls, Including Engine Control,   for fluid drive or control of planetary gearing in combination with prime mover control.

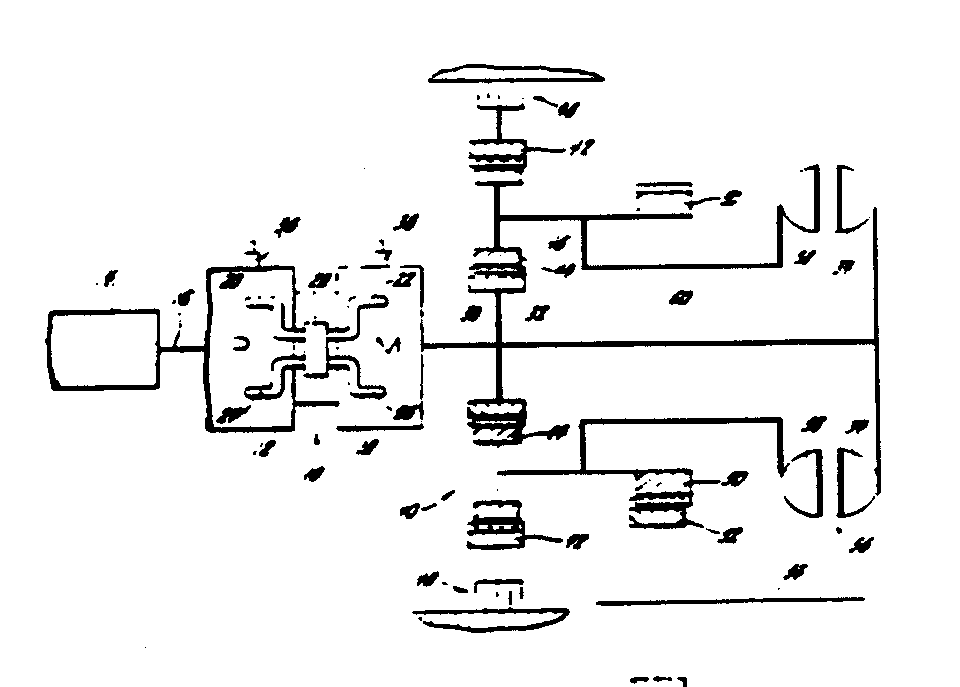

[List of Patents for class 475 subclass 32]    32Diverse fluid drives:
 This subclass is indented under subclass 31.  Subject matter wherein at least two different types of fluid torque transmitting means are included in the drive train*.

engine

engine


[List of Patents for class 475 subclass 33]    33Plural impeller-turbine type fluid circuits:
 This subclass is indented under subclass 31.  Subject matter wherein two fluid torque transmitting means are present in the drive train* and each includes a rotary vaned pump which acts as an input element and a coaxial rotary vaned turbine which acts as an output element.
(1) Note. For a more detailed description of this type of fluid drive see Class 60 subclass 330 and the notes thereunder.

Image 1 for class 475 subclass 33

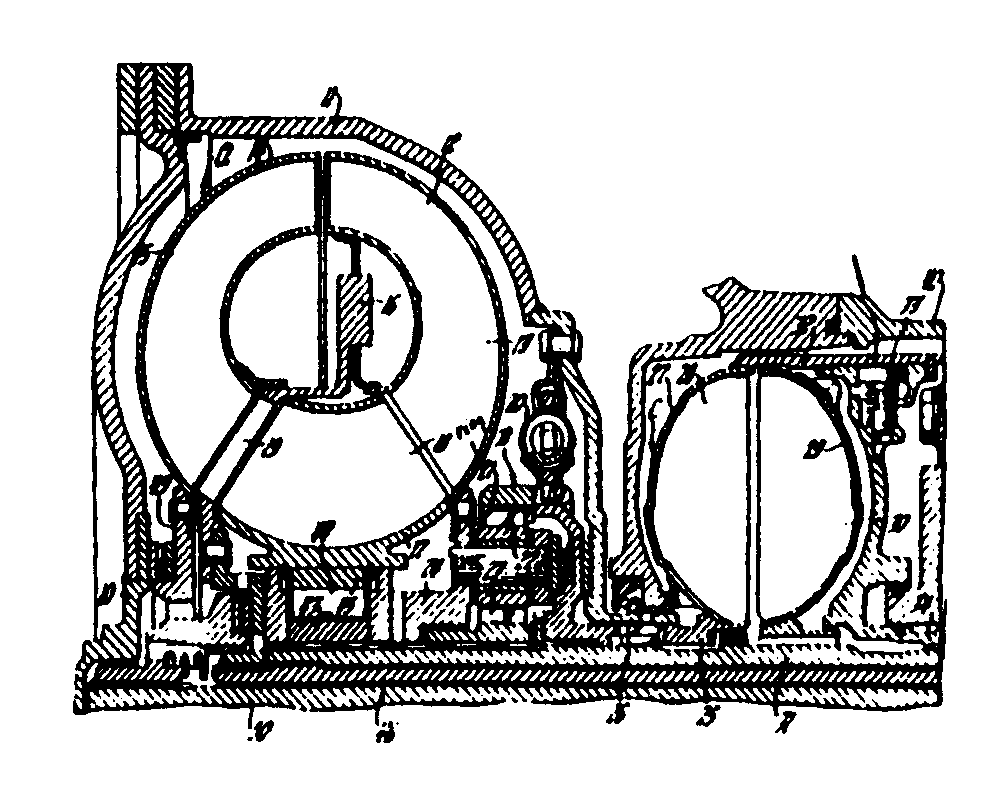

[List of Patents for class 475 subclass 34]    34Fill and empty type:
 This subclass is indented under subclass 33.  Subject matter wherein one of the fluid torque transmitting means may be emptied or filled to change the speed ratio.

fluid volume control valve

fluid volume control valve


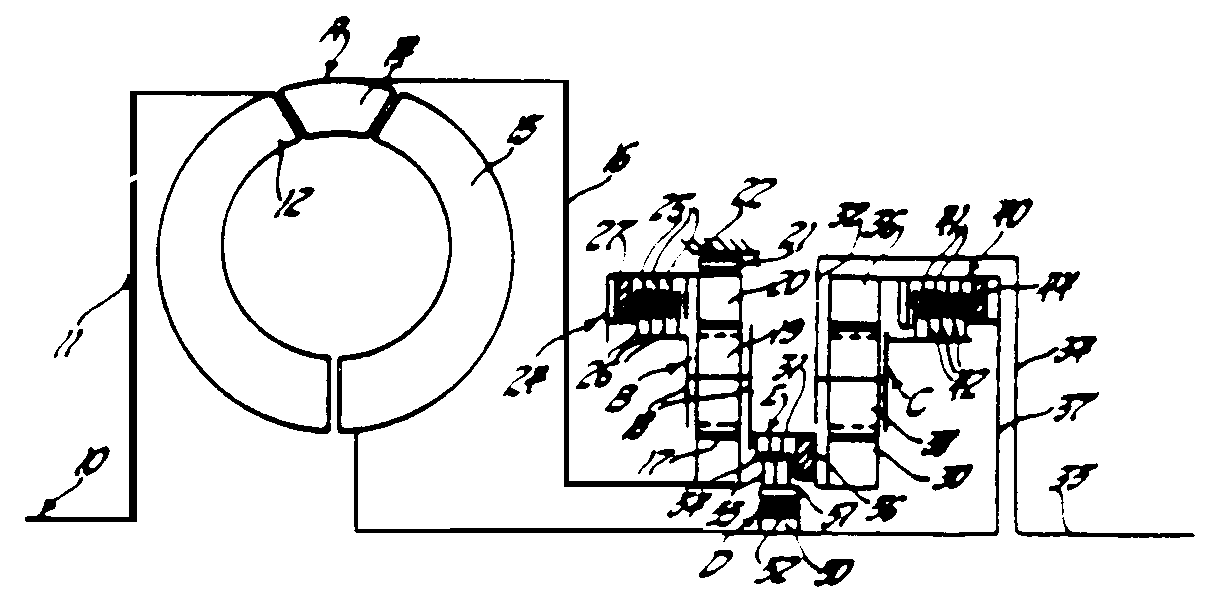

[List of Patents for class 475 subclass 35]    35Single impeller-turbine type fluid circuit divides or combines plural power paths:
 This subclass is indented under subclass 31.  Subject matter wherein the fluid torque transmitting means comprises at least three coaxial bladed elements forming a fluid filled torus, said elements being mechanically connected in power transmitting relationship to other parts of the drive train*.
(1) Note. Normally the circuit includes an input element, or pump, and two or more output elements, or turbines. There may be additionally included one or more reaction elements, or stators, which function to redirect or guide the fluid within the circuit and thus change the transmitted torque, or a turbine may fulfill the function of both turbine and stator.

input; output

input; output


[List of Patents for class 475 subclass 36]    36Planetary gearing divides paths:
 This subclass is indented under subclass 35.  Subject matter wherein the planetary transmission includes a planetary gear set made up of at least three elements, one of said elements being directly connected to an input member* but rotatable relative to all elements of the fluid torque transmitting means, and each of the other two elements constituting a power path within the drive train.*

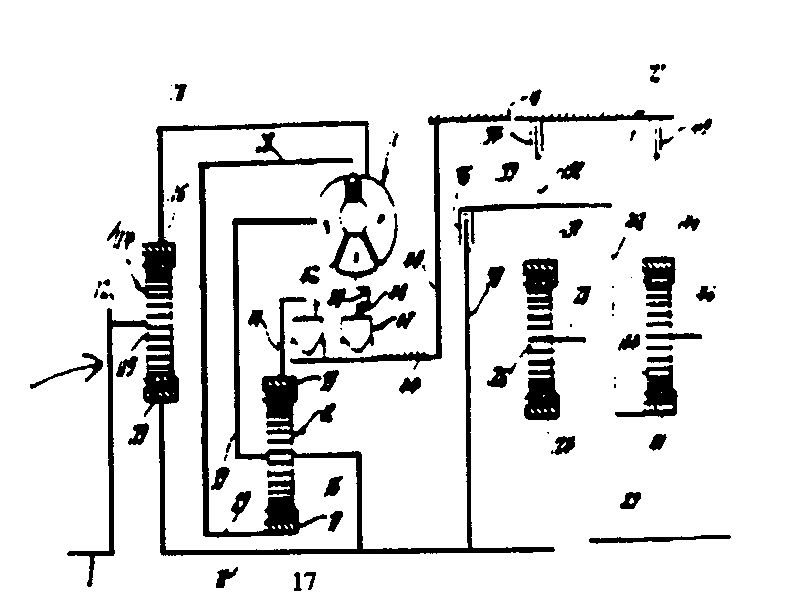

carrier divides path

carrier divides path


[List of Patents for class 475 subclass 37]    37Three fluid outputs:
 This subclass is indented under subclass 35.  Subject matter wherein the fluid torque transmitting means includes at least three coaxial bladed elements each of which provides a mechanical power output to the drive train*.

output; output; output

output; output; output

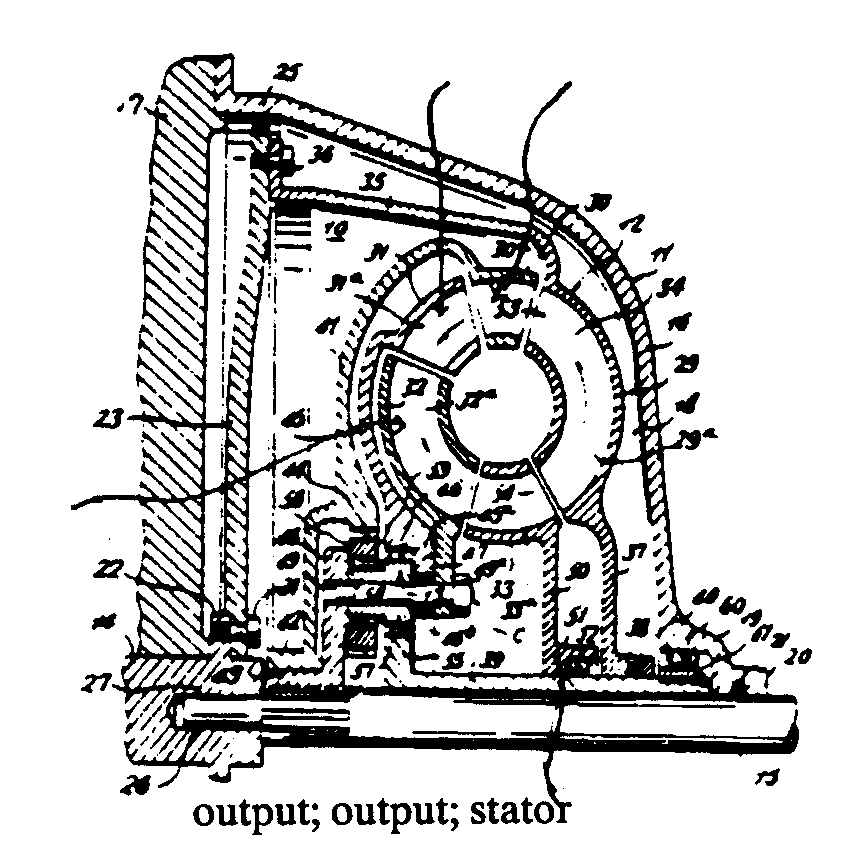

[List of Patents for class 475 subclass 38]    38And stator:
 This subclass is indented under subclass 37.  Subject matter wherein the fluid torque transmitting means includes a fourth coaxial bladed element which is stationary during at least one mode of operation as it acts to guide or redirect the fluid within the torque transmitting means.

output; output; stator

output; output; stator


[List of Patents for class 475 subclass 39]    39Two fluid outputs and stator:
 This subclass is indented under subclass 35.  Subject matter wherein the fluid torque transmitting means includes four coaxial bladed elements, a first input element, two power output elements and a fourth reaction element, stationary during at least one mode of operation, which acts to guide or redirect the fluid within the torque transmitting means.

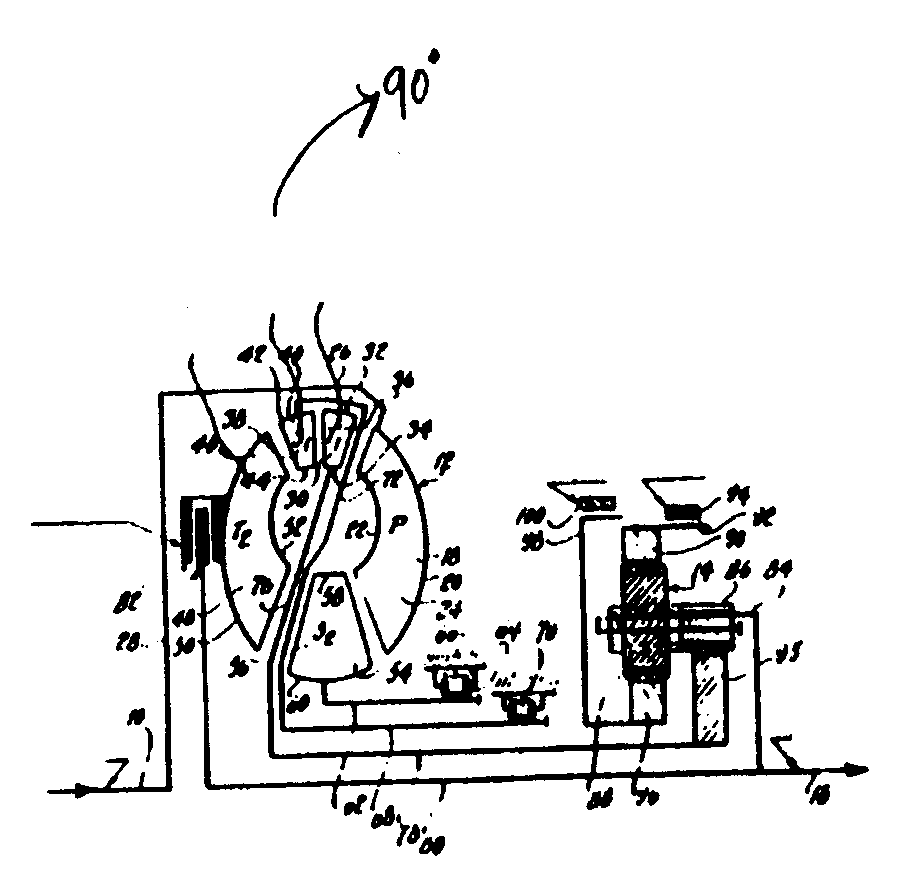

output; stator; output; forward clutch; input; low band; reverseband; output

output; stator; output; forward clutch; input; low band; reverseband; output

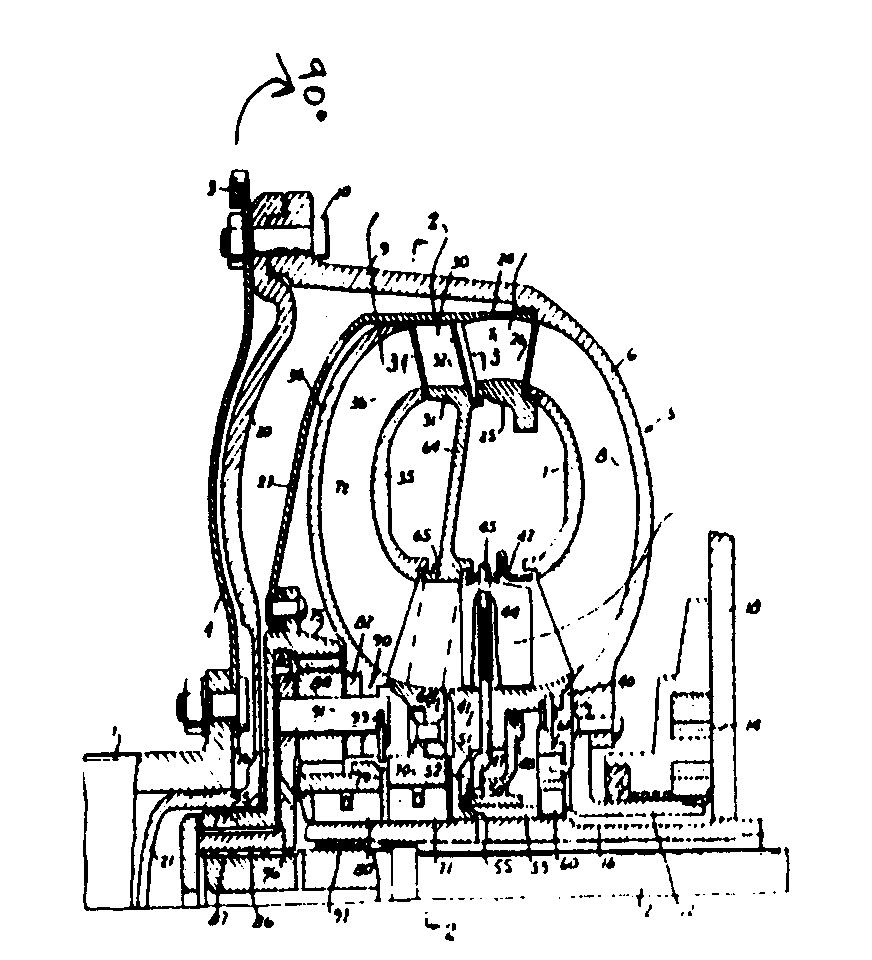

[List of Patents for class 475 subclass 40]    40With variable fluid drive control:
 This subclass is indented under subclass 39.  Subject matter wherein means are provided to change the path of the fluid within the torque transmitting means.
(1) Note. This is usually accomplished by changing the angle or position of one of the blade elements.

output; stator; output; vane control

output; stator; output; vane control

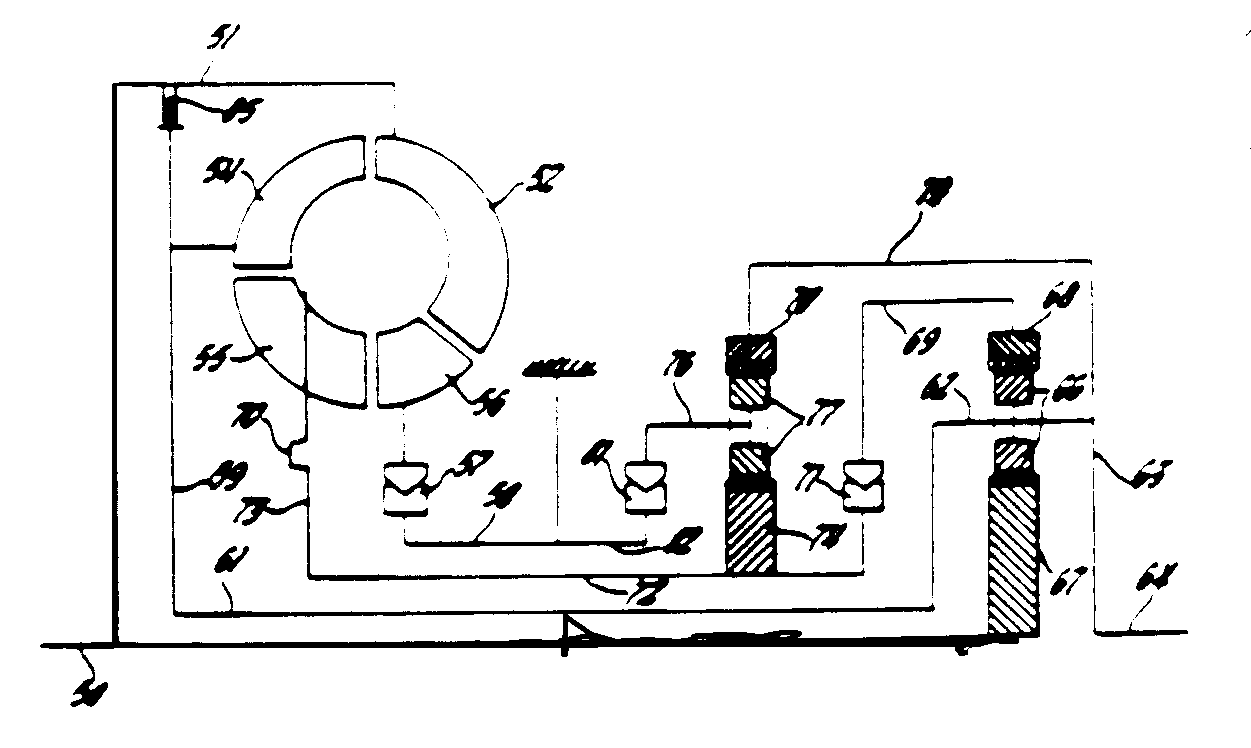

[List of Patents for class 475 subclass 41]    41And mechanical drive path:
 This subclass is indented under subclass 39.  Subject matter wherein in addition to the two outputs from the fluid torque transmitting means a third power path is mechanically connected to the input member*, by-passing the fluid circuit.

input; output

input; output

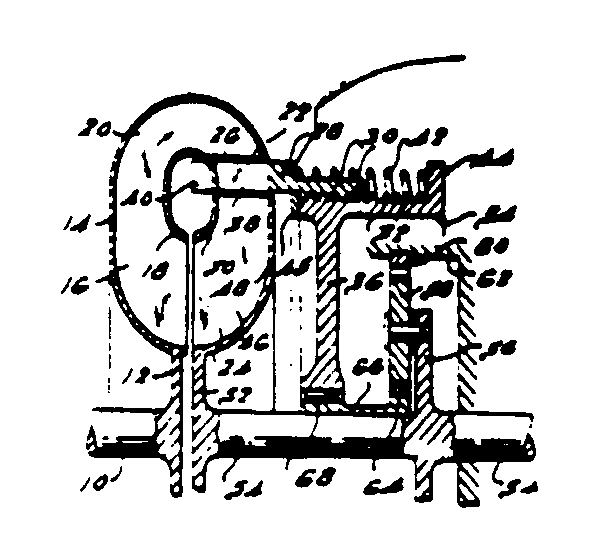

[List of Patents for class 475 subclass 42]    42Control of or by fluid drive:
 This subclass is indented under subclass 35.  Subject matter wherein means is provided to regulate the operation of the fluid torque transmitting means or to affect the operation of a mechanical drive train* in response to a condition of the fluid torque transmitting means.

fluid control

fluid control

SEE OR SEARCH THIS CLASS, SUBCLASS:

61+,for related art and see the notes thereunder.

[List of Patents for class 475 subclass 43]    43With speed or torque responsive clutch or brake control:
 This subclass is indented under subclass 35.  Subject matter wherein the drive train* is controlled by a clutch* or brake* which operates in response to the velocity or resistance to rotary movement of a transmission part.

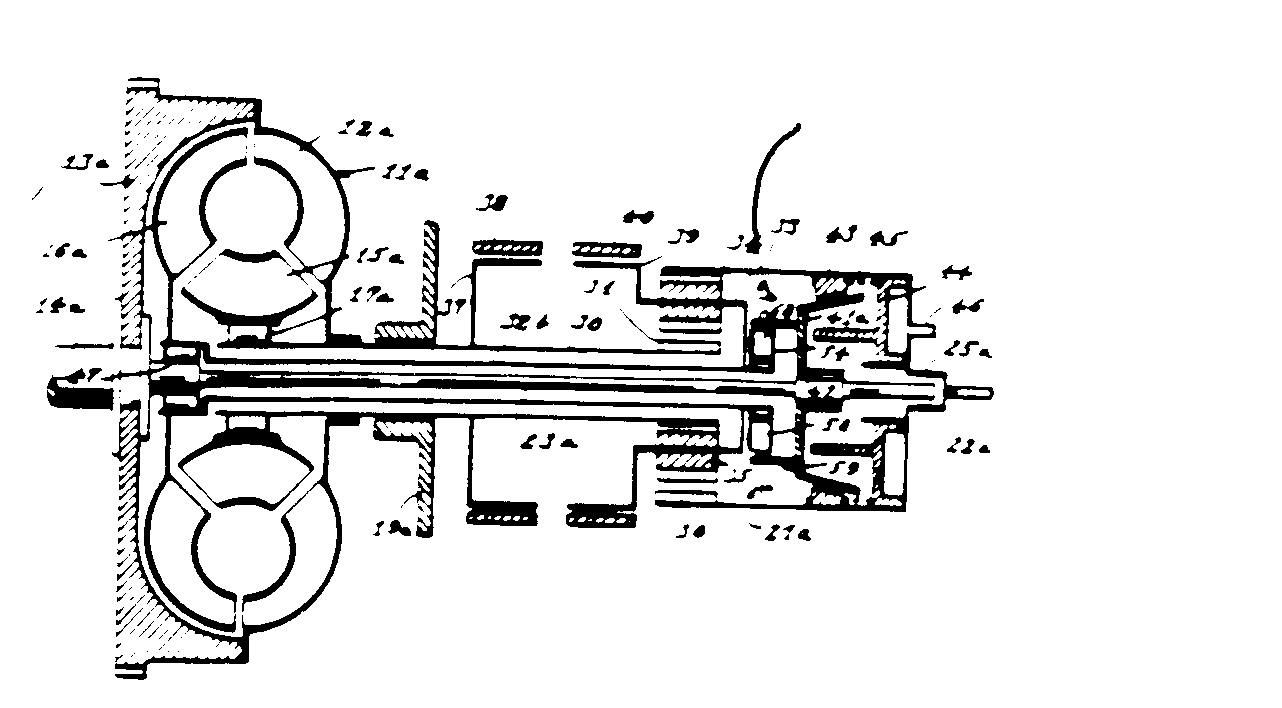

centrifugal control

centrifugal control

SEE OR SEARCH THIS CLASS, SUBCLASS:

254+,for other speed or torque responsive transmission controls.

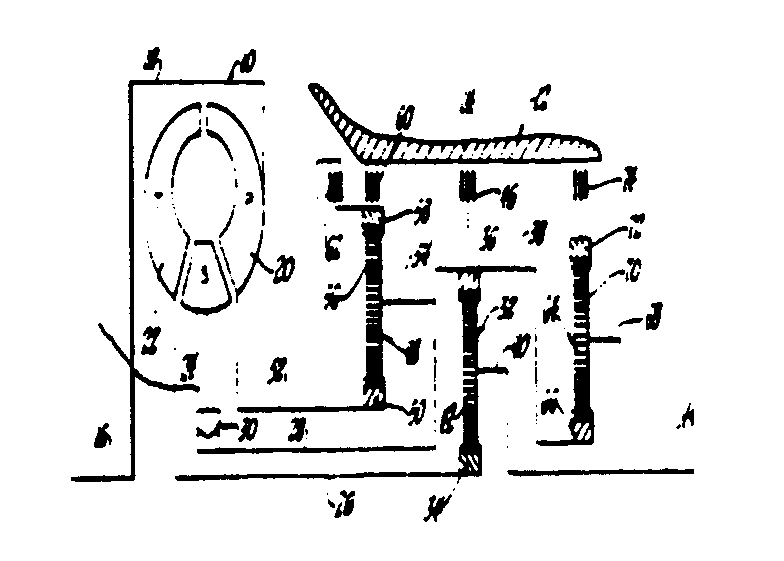

[List of Patents for class 475 subclass 44]    44Stator rotatable in reverse direction to provide drive:
 This subclass is indented under subclass 35.  Subject matter wherein one of the coaxial bladed elements functions as a reaction member to modify the speed and direction of the fluid in the torque transmitting means in one mode of operation and also functions, when rotating in a direction opposite to an input element, of the fluid torque transmitting means to add torque to the drive train.

under high load condition stator  rotated in reverse direction

under high load condition stator rotated in reverse direction


[List of Patents for class 475 subclass 45]    45Turbine braked, stator provides reverse drive:
 This subclass is indented under subclass 44.  Subject matter wherein the reverse rotation of the stator is enabled by braking a turbine and the transmitted force results in a reverse drive of a load device*.

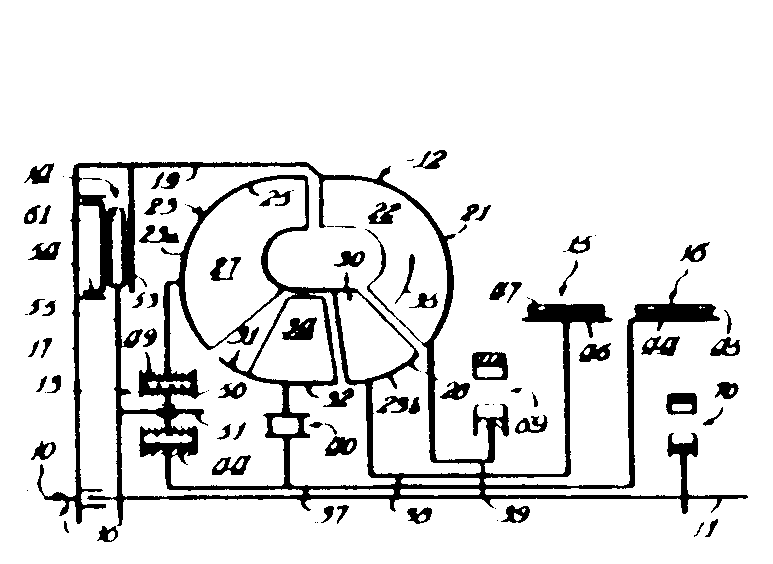

turbine brake

turbine brake


[List of Patents for class 475 subclass 46]    46And adds torque in forward drive:
 This subclass is indented under subclass 45.  Subject Matter wherein in addition to its function as both reaction element and reverse drive output element, in one mode of operation, the stators` rotary force is transmitted to the load device* in the same direction as the input element.

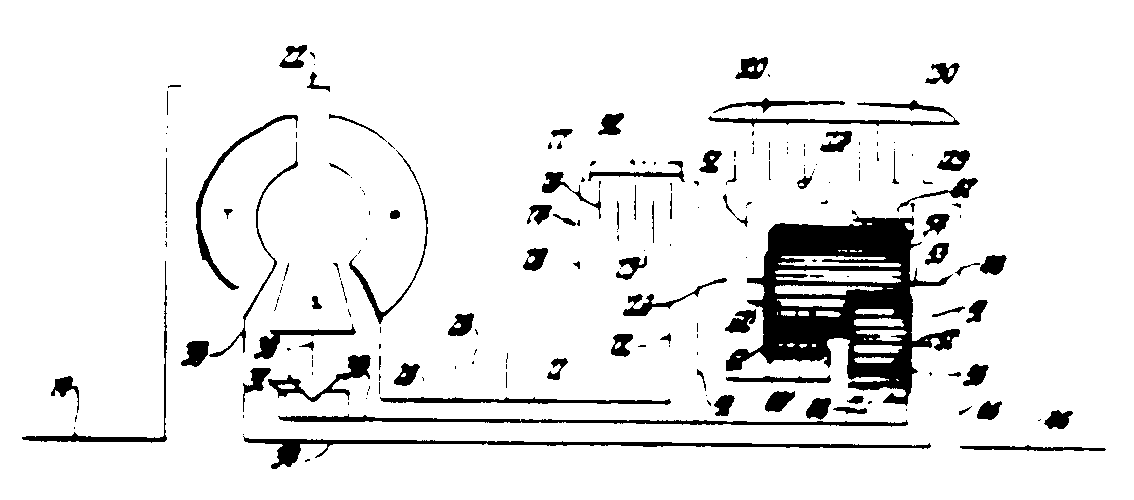

Image 1 for class 475 subclass 46


[List of Patents for class 475 subclass 47]    47Impeller-turbine type fluid circuit and mechanical path in parallel:
 This subclass is indented under subclass 31.  Subject matter wherein the fluid torque transmitting means includes at least two coaxial bladed element forming a fluid filled torus, one functioning as an input element and the other as an output element and a separate mechanical drive train* is provided, by-passing the fluid torque transmitting means.
(1) Note. A mere lock-up clutch* which connects the input and output elements of the fluid unit together is not here but in subclasses 59+.

out

out

SEE OR SEARCH THIS CLASS, SUBCLASS:

35+,especially subclass 41, for a fluid drive and mechanical drive in parallel where, in addition, the fluid unit has either two inputs or two outputs.
329+,for other plural power path transmissions and see the notes thereunder.

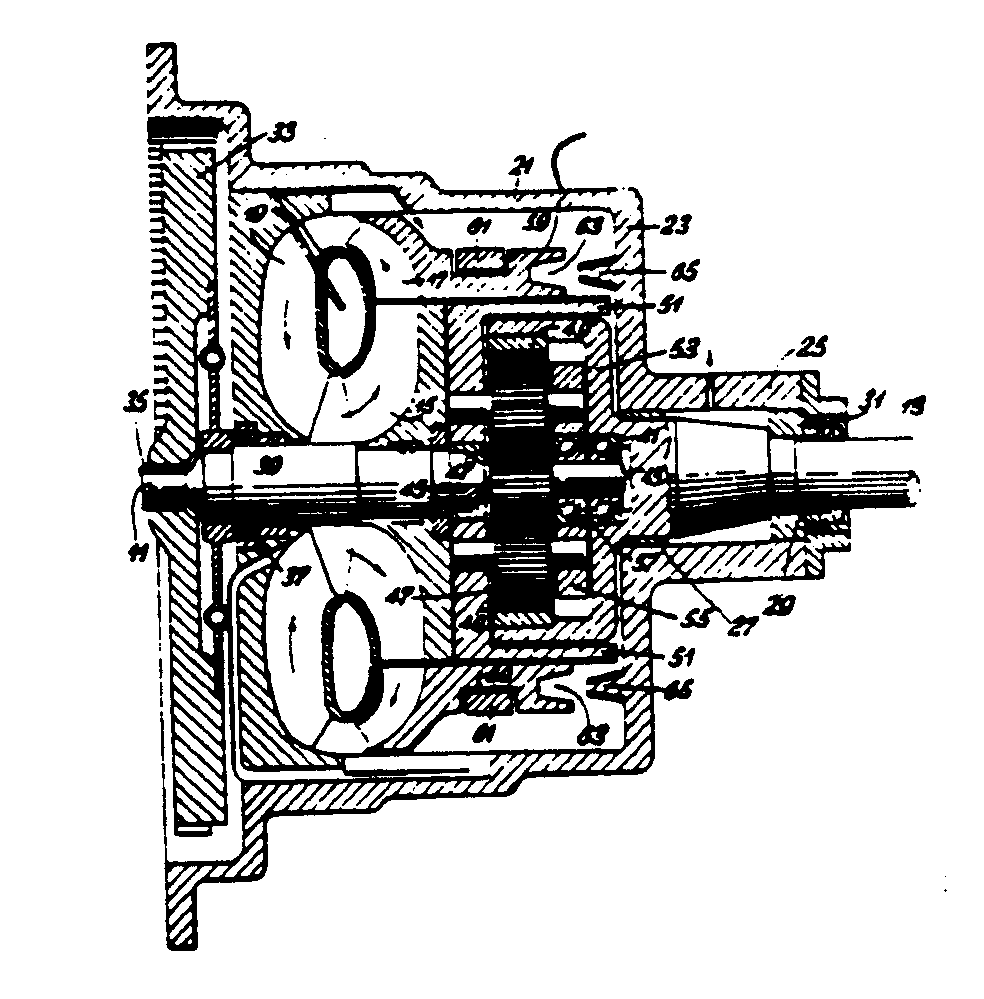

[List of Patents for class 475 subclass 48]    48With control of or by the fluid circuit:
 This subclass is indented under subclass 47.  Subject matter wherein means is provided to regulate the operation of the mechanical drive train* in response to a condition of the fluid torque transmitting means.

turbine  movable by 61

turbine movable by 61

SEE OR SEARCH THIS CLASS, SUBCLASS:

61+,for related art and see the notes thereunder.

[List of Patents for class 475 subclass 49]    49Gearing controlled by fluid circuit condition:
 This subclass is indented under subclass 48.  Subject matter wherein means is provided to affect the mechanical drive train* in response to a condition of the fluid torque transmitting means.

Image 1 for class 475 subclass 49


[List of Patents for class 475 subclass 50]    50Fill and empty type fluid circuit:
 This subclass is indented under subclass 48.  Subject matter wherein the operation of the fluid torque transmitting means is regulated by controlling the amount of fluid contained therein.

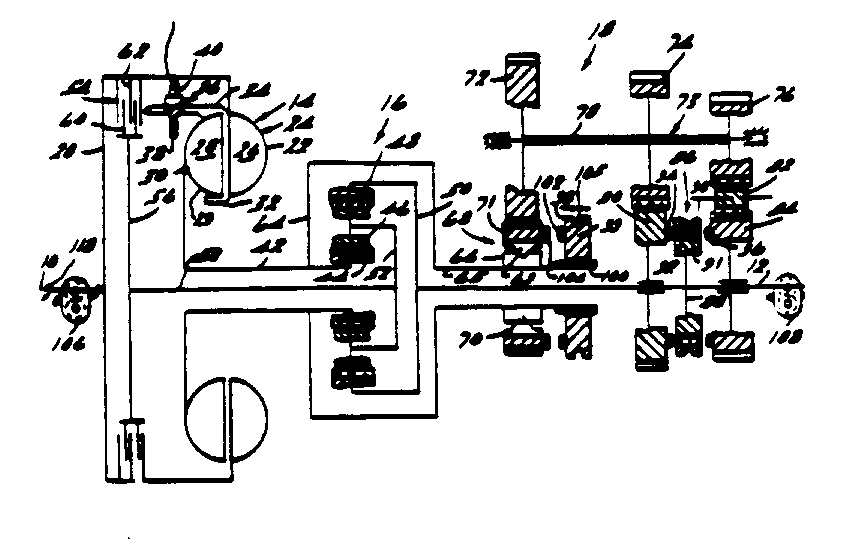

fill and empty valve

fill and empty valve


[List of Patents for class 475 subclass 51]    51With speed responsive control:
 This subclass is indented under subclass 47.  Subject matter wherein means is provided to regulate the operation of the drive train* dependent on the velocity of a part thereof.

centrifugal control

centrifugal control

SEE OR SEARCH THIS CLASS, SUBCLASS:

254+,for other speed responsive controls and see the notes therein.

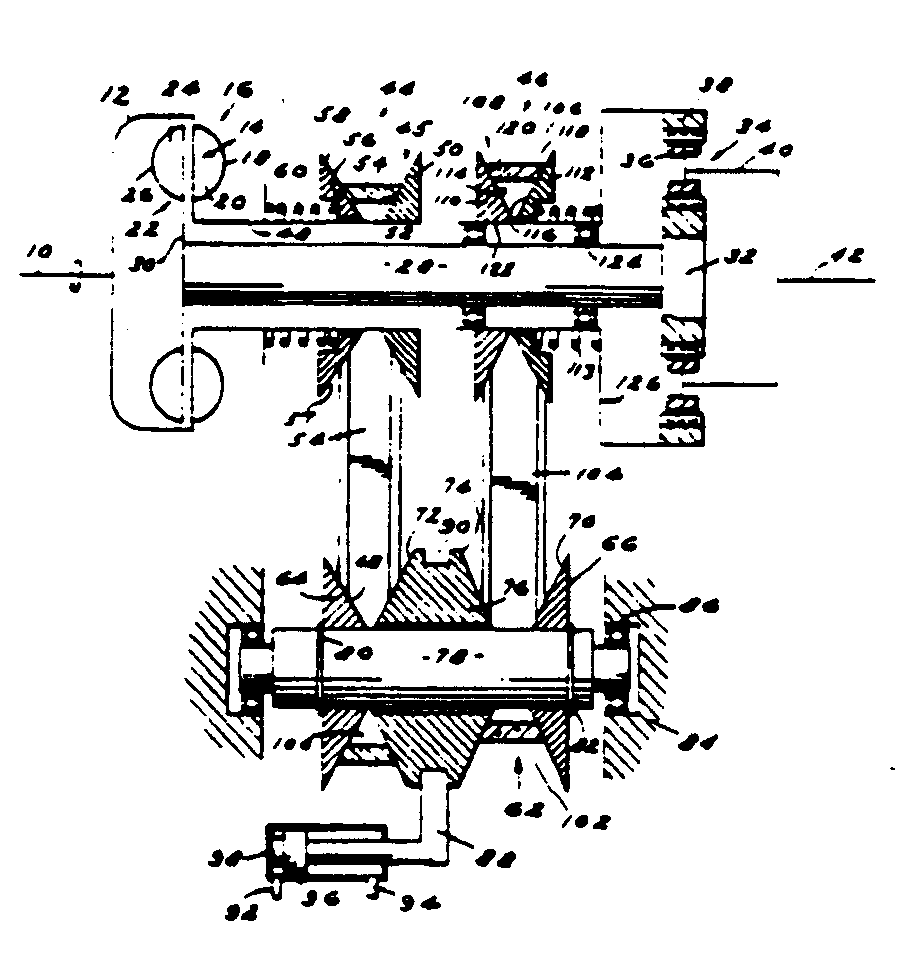

[List of Patents for class 475 subclass 52]    52And nonplanetary gearing:
 This subclass is indented under subclass 47.  Subject matter wherein in addition to the fluid torque transmitting means and planetary transmission the drive train includes gearing of a type not falling under the class definition.
(1) Note. The additional gearing may be either variable or single speed.

Image 1 for class 475 subclass 52

SEE OR SEARCH THIS CLASS, SUBCLASS:

66,198, 207, 225, 302, and 343, for other combinations of planetary and nonplanetary gearing.

[List of Patents for class 475 subclass 53]    53Planetary gearing divides paths:
 This subclass is indented under subclass 47.  Subject matter wherein gearing under the class definition is before the fluid torque transmitting means in the path of power transmission and is effective to split such path into parallel fluid and mechanical paths, an input element of said gearing being rotatable relative to all elements of said fluid torque transmitting means.

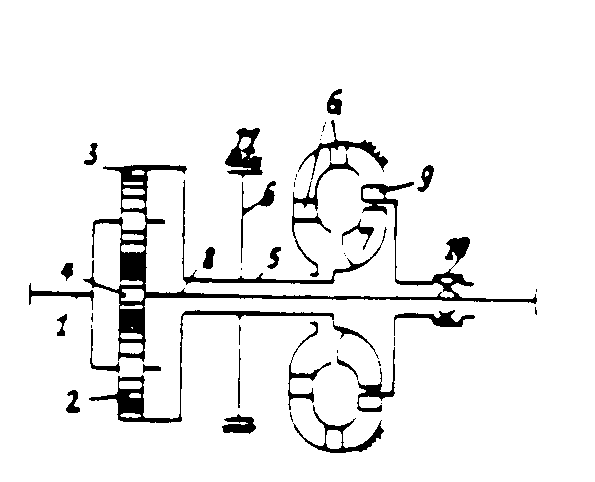

Image 1 for class 475 subclass 53

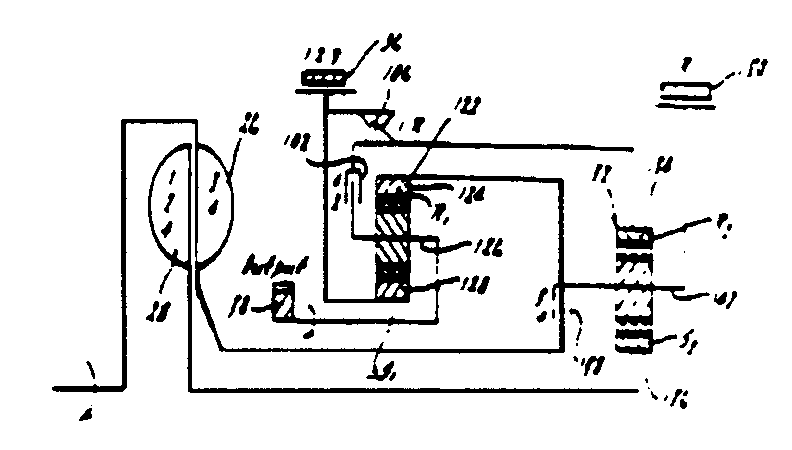

[List of Patents for class 475 subclass 54]    54Sun, orbit and carrier braked:
 This subclass is indented under subclass 47.  Subject matter wherein the planetary transmission is controlled by the braking of a sun gear*, an orbit gear* and a planet carrier*.

input

input

SEE OR SEARCH THIS CLASS, SUBCLASS:

276,and 280+, for a similar planetary transmission without a fluid drive.

[List of Patents for class 475 subclass 55]    55Sun and orbit braked:
 This subclass is indented under subclass 47.  Subject matter wherein the planetary transmission is controlled by the braking of a sun gear* and an orbit gear*.

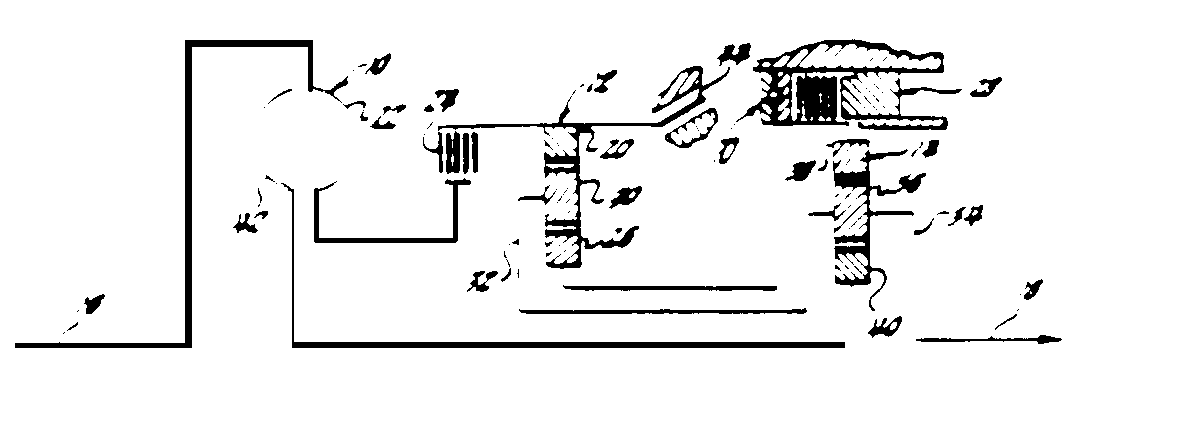

Image 1 for class 475 subclass 55

SEE OR SEARCH THIS CLASS, SUBCLASS:

277,279 and 282+, for a similar planetary transmission without a fluid drive.

[List of Patents for class 475 subclass 56]    56Sun and carrier braked:
 This subclass is indented under subclass 47.  Subject matter wherein the planetary transmission is controlled by the braking of a sun gear* and a planet carrier*.

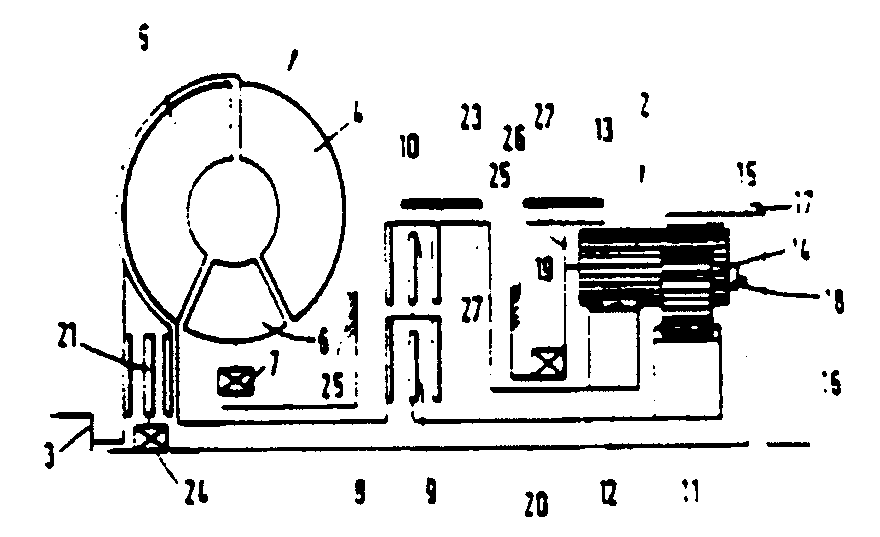

Image 1 for class 475 subclass 56

SEE OR SEARCH THIS CLASS, SUBCLASS:

278,and 284+, for a similar planetary transmission without a fluid drive.

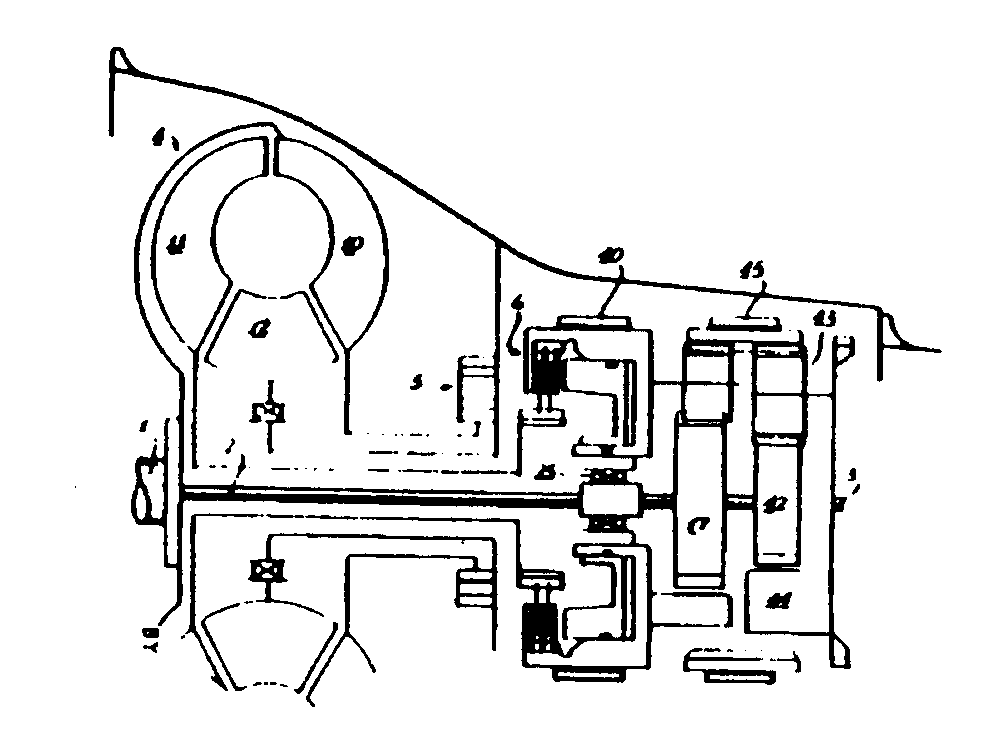

[List of Patents for class 475 subclass 57]    57Orbit and carrier braked:
 This subclass is indented under subclass 47.  Subject matter wherein the planetary transmission is controlled by the braking of an orbit gear* and a planet carrier*.

Image 1 for class 475 subclass 57

SEE OR SEARCH THIS CLASS, SUBCLASS:

279,and 286+, for a similar planetary transmission without a fluid drive.

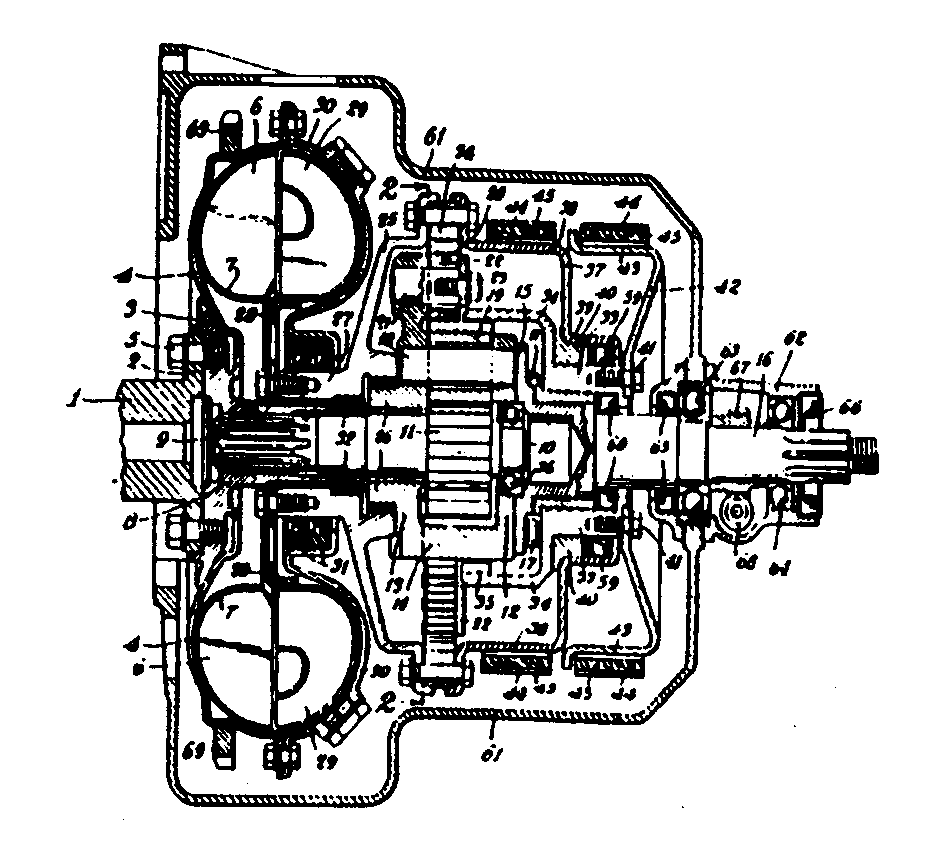

[List of Patents for class 475 subclass 58]    58Orbits braked:
 This subclass is indented under subclass 47.  Subject matter wherein the planetary transmission is controlled by the braking of plural orbit gears*.

Image 1 for class 475 subclass 58

SEE OR SEARCH THIS CLASS, SUBCLASS:

279,and 290+, for a similar planetary transmission without a fluid drive.

[List of Patents for class 475 subclass 59]    59Impeller-turbine type fluid circuit in series with planetary gearing:
 This subclass is indented under subclass 31.  Subject matter wherein the fluid torque transmitting means comprises a plurality of coaxial bladed elements forming a fluid filled torus having an input and an output, and only a single power path extends between said fluid drive and the planetary gearing.
(1) Note. The fluid drive may include a lock-up clutch.

Image 1 for class 475 subclass 59

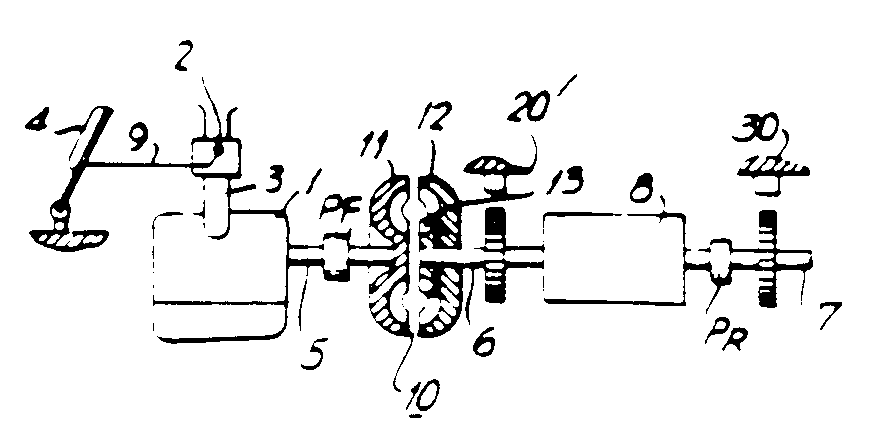

[List of Patents for class 475 subclass 60]    60And condition responsive control:
 This subclass is indented under subclass 59.  Subject matter wherein means is provided to regulate the operation of the drive train* and such means is condition responsive*.

speed  sensor

speed sensor

SEE OR SEARCH THIS CLASS, SUBCLASS:

254+,for related subject matter and see the notes thereunder.

[List of Patents for class 475 subclass 61]    61Control of or by fluid circuit:
 This subclass is indented under subclass 60.  Subject matter wherein said means regulates the operation of the fluid torque transmitting means, or affects the operation of the mechanical drive train* in response to a condition of the fluid torque transmitting means.

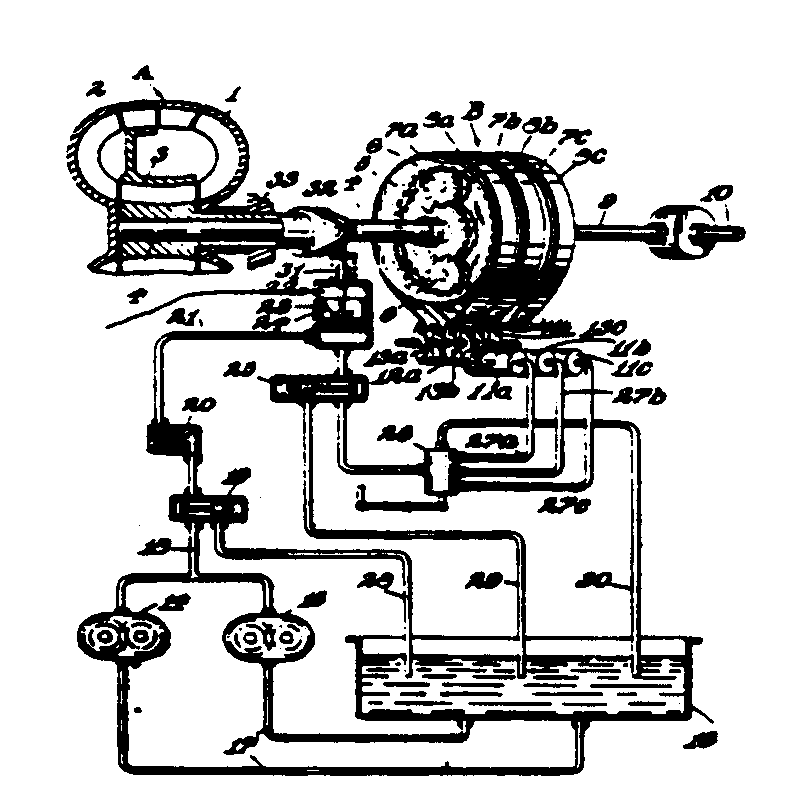

stator  torque affects fluid pressure

stator torque affects fluid pressure

SEE OR SEARCH THIS CLASS, SUBCLASS:

42,and 48+, for related art.

SEE OR SEARCH CLASS:

477Interrelated Power Delivery Controls, Including Engine Control,   subclass 61 for this combination and a motor control.

[List of Patents for class 475 subclass 62]    62Controls responsive to relative impeller and turbine speeds:
 This subclass is indented under subclass 61.  Subject matter wherein the difference in velocities of the input and output of the fluid torque transmitting means regulate the operation of the drive train*.

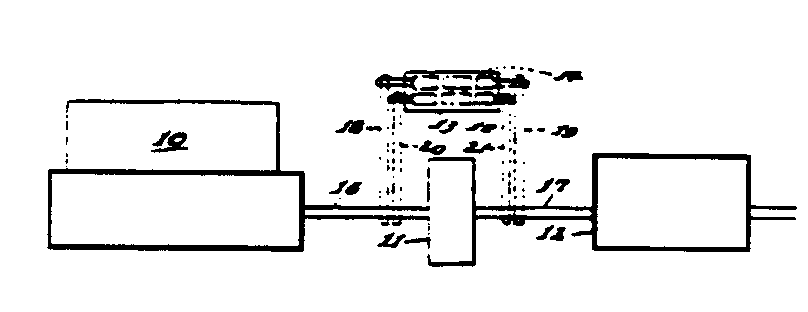

speed ratio governor; engine; power shift gear transmission;hydraulic torque converter

speed ratio governor; engine; power shift gear transmission;hydraulic torque converter

SEE OR SEARCH CLASS:

477Interrelated Power Delivery Controls, Including Engine Control,   subclass 61 for this combination and a motor control.

[List of Patents for class 475 subclass 63]    63System or servo fluid pressure controlled:
 This subclass is indented under subclass 62.  Subject matter wherein the relative input and output speeds of the fluid torque transmitting means affect or regulate a fluid control pressure.

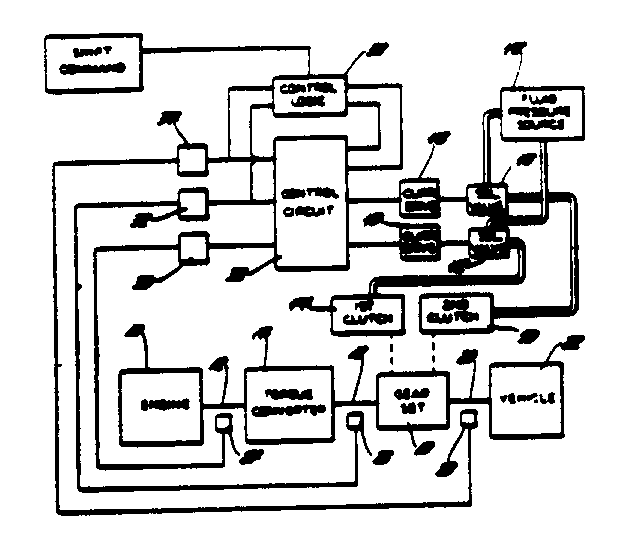

Image 1 for class 475 subclass 63


[List of Patents for class 475 subclass 64]    64Fluid circuit controlled:
 This subclass is indented under subclass 61.  Subject matter wherein the condition responsive* means controls the fluid torque transmitting means.

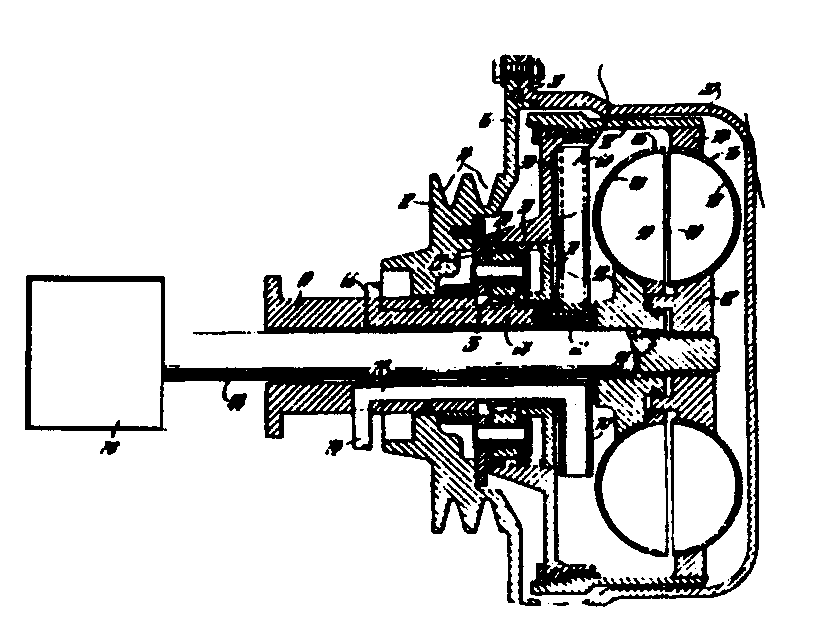

compressor; volume of fluid controlled

compressor; volume of fluid controlled


[List of Patents for class 475 subclass 65]    65By lock-up clutch actuation:
 This subclass is indented under subclass 64.  Subject matter wherein the fluid torque transmitting means is controlled by mechanically connecting the input and output thereof.

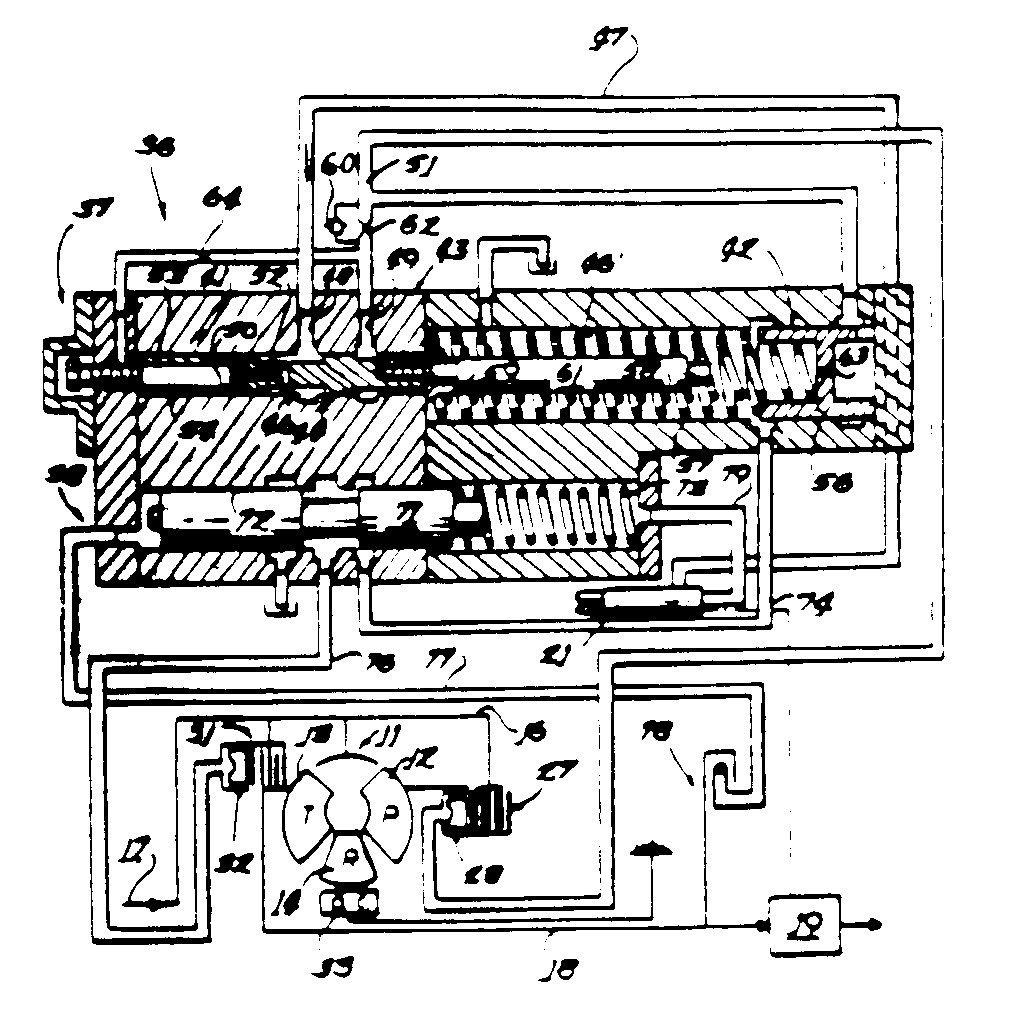

Image 1 for class 475 subclass 65

SEE OR SEARCH CLASS:

192Clutches and Power-Stop Control,   subclasses 3.21+ for the combination of impeller-turbine type fluid drive and clutch in the absence of a gear transmission.

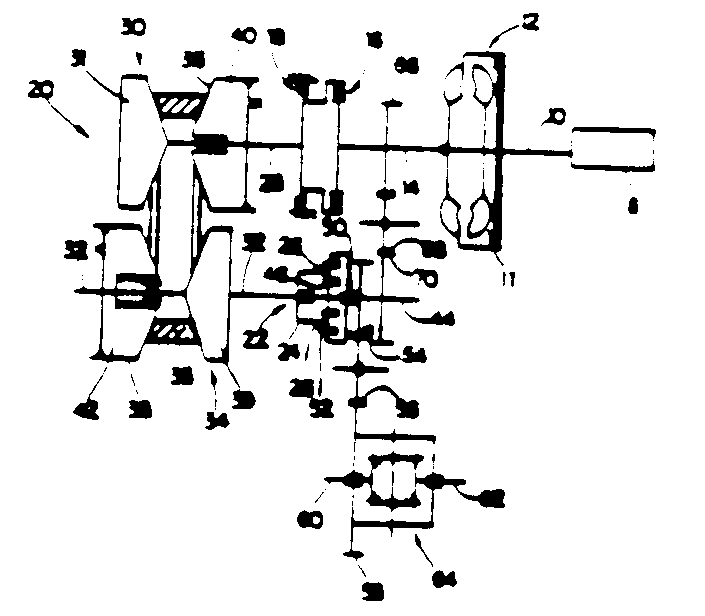

[List of Patents for class 475 subclass 66]    66And nonplanetary gearing:
 This subclass is indented under subclass 59.  Subject matter wherein in addition to the fluid torque transmitting means and planetary transmission the drive train* includes gearing of a type not falling under the class definition.
(1) Note. Where the nonplanetary gearing forms a power path between the combination of subclass 59 and a differential* the patent has been placed in subclass 71.

Image 1 for class 475 subclass 66

SEE OR SEARCH THIS CLASS, SUBCLASS:

52,198+, 207+, 225, 302, and 343, for other combinations of planetary and nonplanetary gearing.

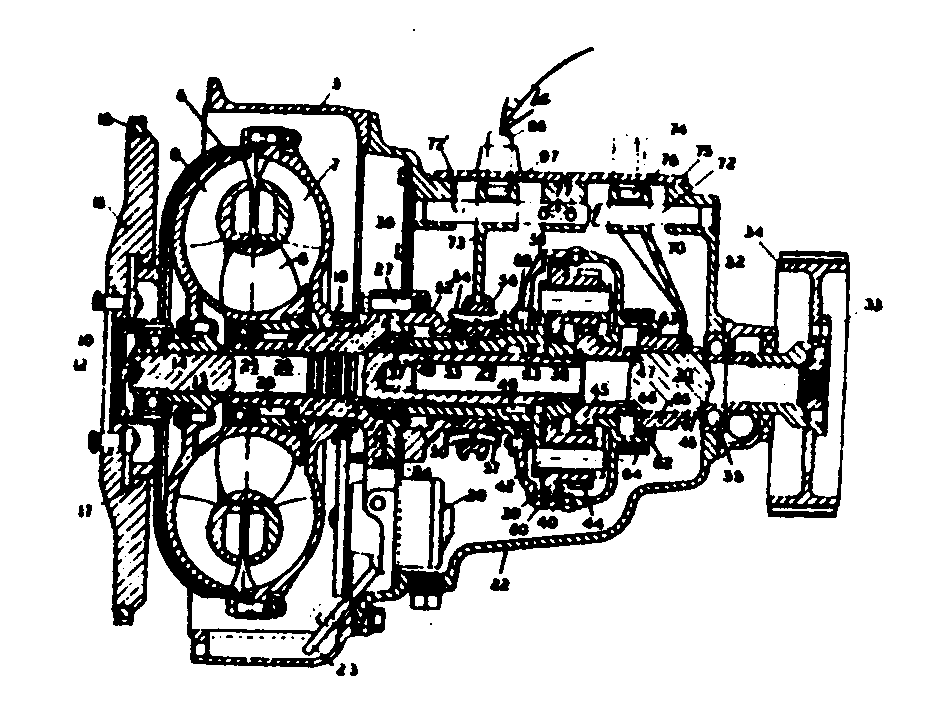

[List of Patents for class 475 subclass 67]    67With synchronizing of positive clutch or brake:
 This subclass is indented under subclass 59.  Subject matter wherein the two parts of a clutch* or a brake* are provided with toothed surfaces which intermesh when engaged and means is provided to reduce the relative movement between the two parts before such engagement to reduce the impact of engagement.

synchronizer

synchronizer

SEE OR SEARCH THIS CLASS, SUBCLASS:

139,and 303, for clutch or brake synchronizers in other planetary transmissions.

SEE OR SEARCH CLASS:

74Machine Element or Mechanism,   subclasses 339+ for meshing assisters together with nonplanetary gearing.
192Clutches and Power-Stop Control,   subclasses 53.1+ for frictional synchronizing of positive clutches.

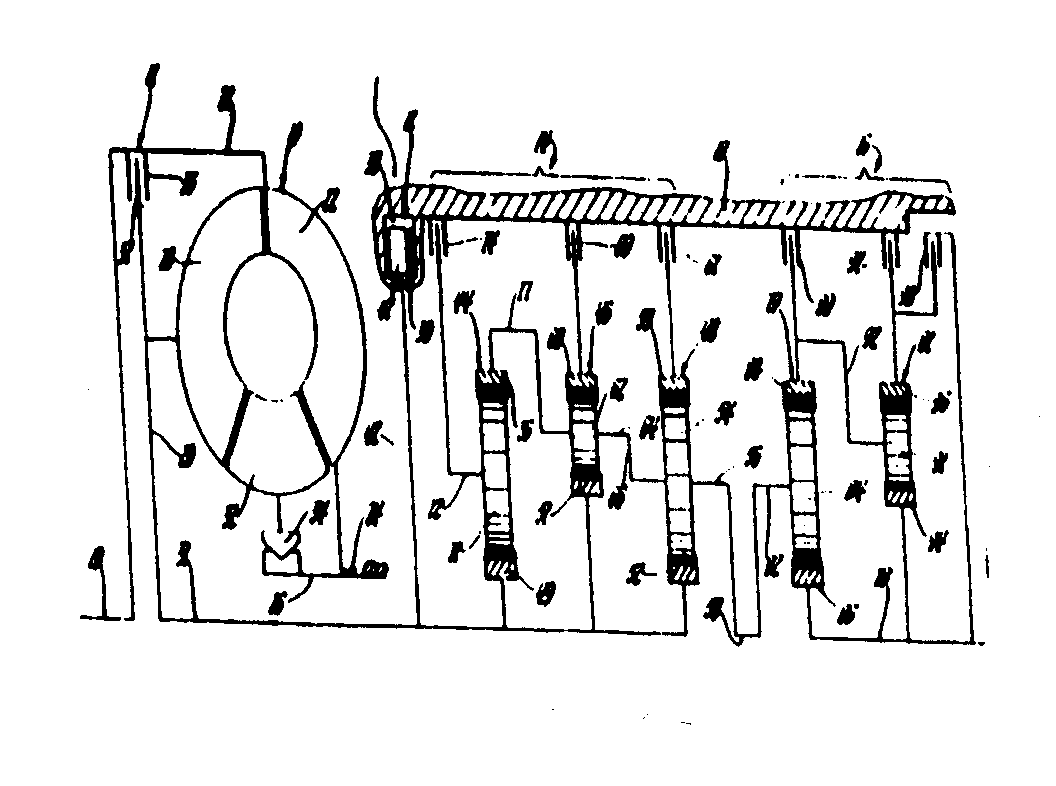

[List of Patents for class 475 subclass 68]    68With nonratio brake:
 This subclass is indented under subclass 59.  Subject matter combined with a brake* which is utilized for a purpose other than effecting a particular speed ratio* in a planetary transmission.

fluid brake to slow down turbine

fluid brake to slow down turbine

SEE OR SEARCH THIS CLASS, SUBCLASS:

18+,and 224, for brakes utilized in steering by driving.
113,175, 293, and 900, for other nonratio brake combinations.

SEE OR SEARCH CLASS:

74Machine Element or Mechanism,   subclass 888 for a nonratio brake together with a prime mover control.
192Clutches and Power-Stop Control,   subclasses 215+ for the combination of transmission control and brake.

[List of Patents for class 475 subclass 69]    69Fluid circuit controlled:
 This subclass is indented under subclass 59.  Subject matter wherein the operation of the fluid torque transmitting means is regulated.

2nd pump can be engaged for greater capacity; transmissioncontrols

2nd pump can be engaged for greater capacity; transmissioncontrols

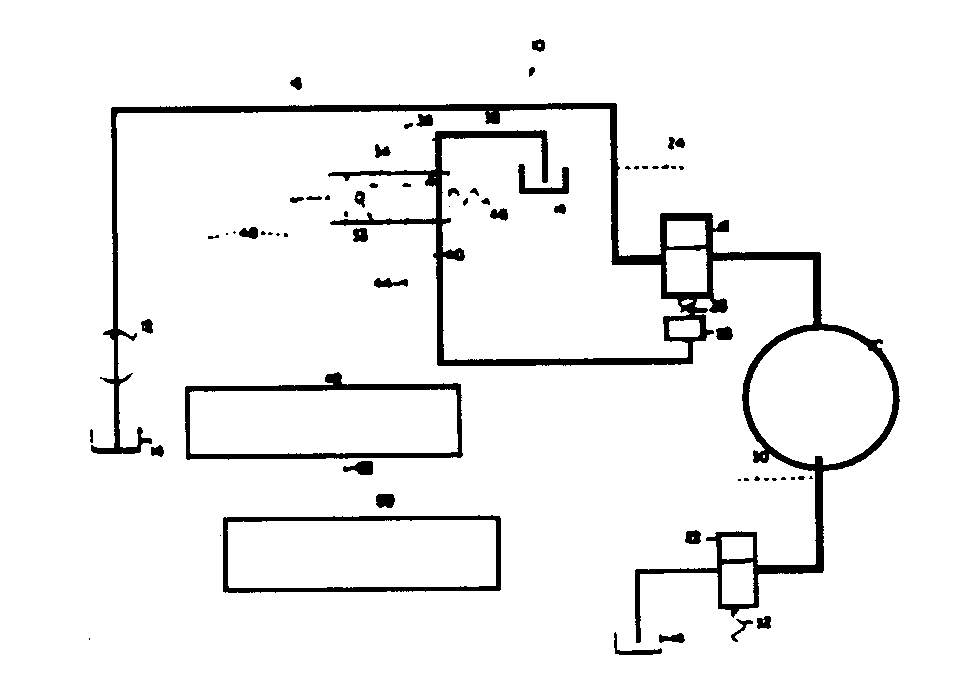

[List of Patents for class 475 subclass 70]    70Pressure controlled:
 This subclass is indented under subclass 69.  Subject matter wherein the fluid torque transmitting means is regulated by controlling the pressure within said means.

powershift transmission control valve; powershift transmissioncontrol elements; torque converter

powershift transmission control valve; powershift transmissioncontrol elements; torque converter

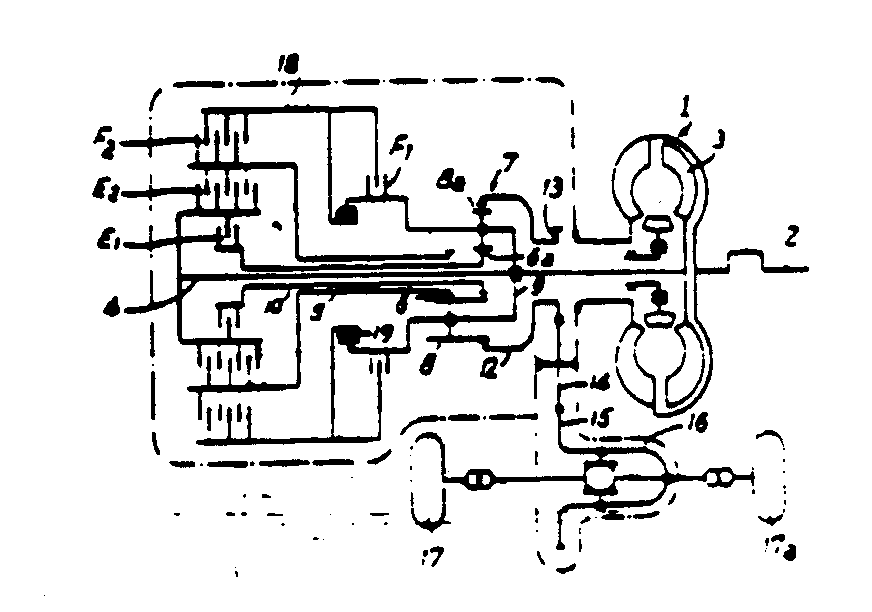

[List of Patents for class 475 subclass 71]    71And differential in series:
 This subclass is indented under subclass 59.  Subject matter wherein a power path extends between the device of said subclass and a differential transmission*.

Image 1 for class 475 subclass 71

SEE OR SEARCH THIS CLASS, SUBCLASS:

198+,for this combination without an impeller-turbine type fluid drive in series.

[List of Patents for class 475 subclass 72]    72Fluid pump and motor in one of plural paths to or from planetary gearing:
 This subclass is indented under subclass 31.  Subject matter wherein the drive train* consists of a transmission under the class definition having two power paths, one of which is a fluid torque transmitting drive comprising means to pressurize a fluid and means responsive to such pressure to convert such pressure to useful mechanical work.

SEE OR SEARCH THIS CLASS, SUBCLASS:

23+,for this type of drive used for steering by driving.
329+,for other plural power path transmissions and see the notes thereunder.

SEE OR SEARCH CLASS:

60Power Plants,   subclasses 325+ for pump and motor combinations per se.
477Interrelated Power Delivery Controls, Including Engine Control,   subclass 52 for this combination together with prime mover control.

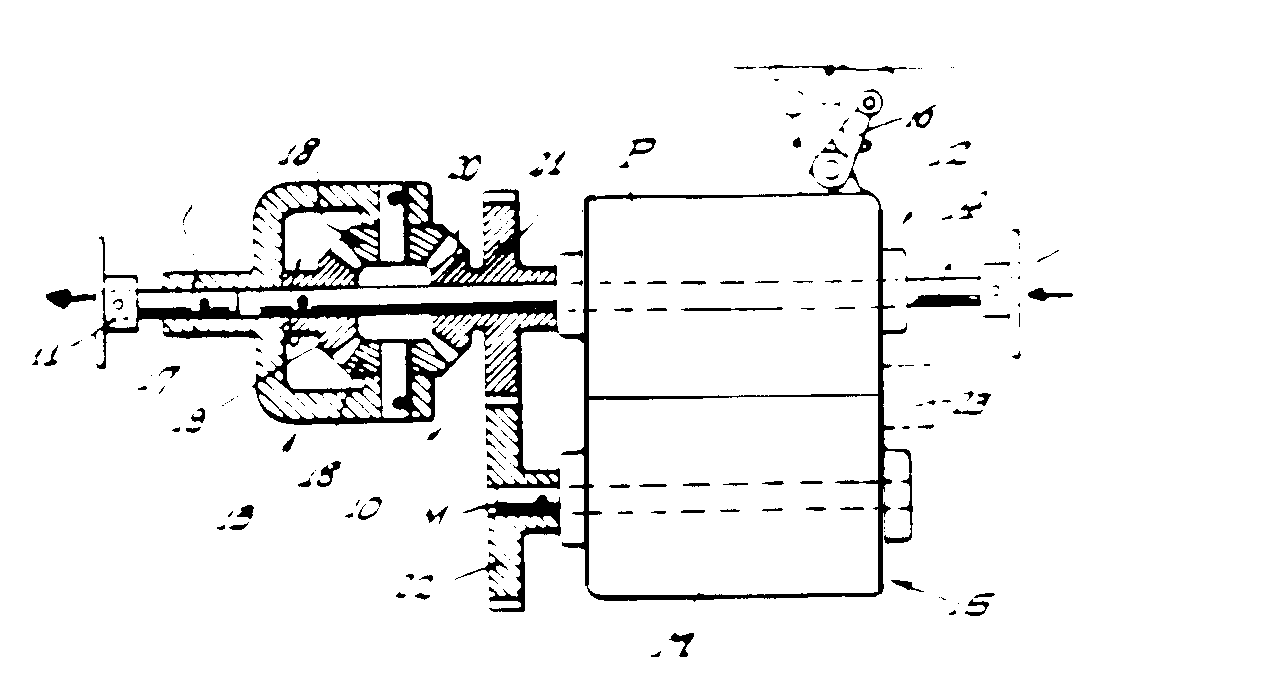

output; pump; input; motor

output; pump; input; motor

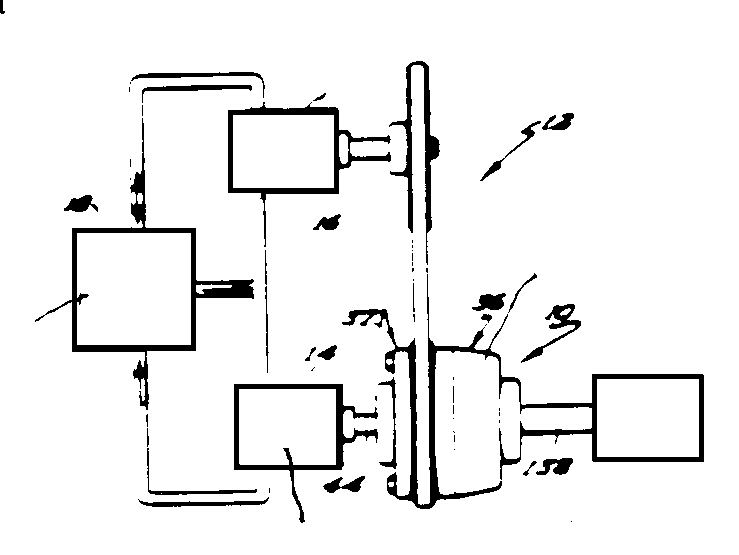

[List of Patents for class 475 subclass 73]    73Plural fluid power paths to planetary gearing:
 This subclass is indented under subclass 72.  Subject matter wherein the plural power paths are each input paths to the planetary gearing and each input path consists of a fluid drive.

motor; pump; planetary gearing; load; motor

motor; pump; planetary gearing; load; motor

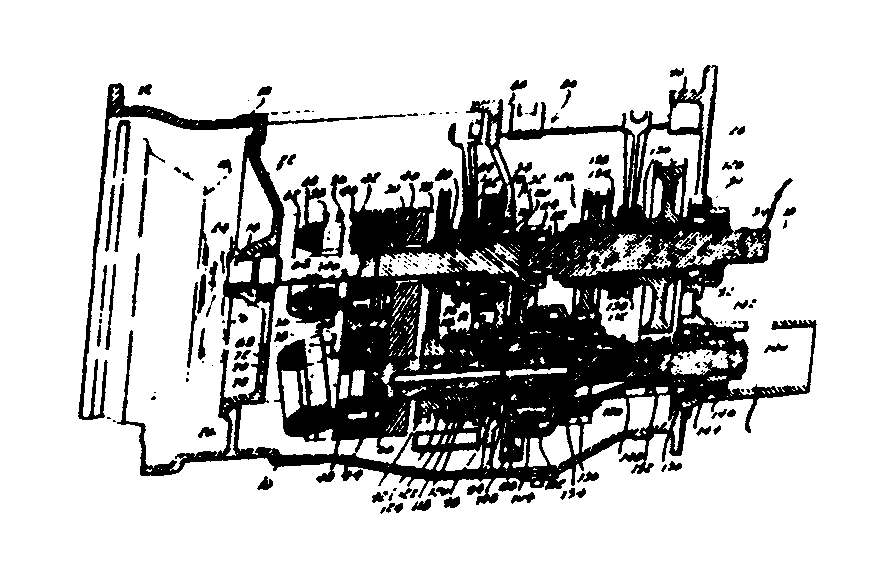

[List of Patents for class 475 subclass 74]    74Plural outputs:
 This subclass is indented under subclass 72.  Subject matter wherein the drive train* includes means to drive two load devices*.

output; output

output; output

SEE OR SEARCH THIS CLASS, SUBCLASS:

18+,for plural outputs in a steering by driving combination.
332,for other plural output transmissions and see the notes therein.

[List of Patents for class 475 subclass 75]    75Three pumps or motors:
 This subclass is indented under subclass 72.  Subject matter wherein more than two fluid pressurizing or pressure converting means are utilized for transferring torque in the drive train*.




[List of Patents for class 475 subclass 76]    76Speed responsive control:
 This subclass is indented under subclass 72.  Subject matter wherein means is provided to regulate the operation of the drive train* dependent on the velocity of a part thereof.

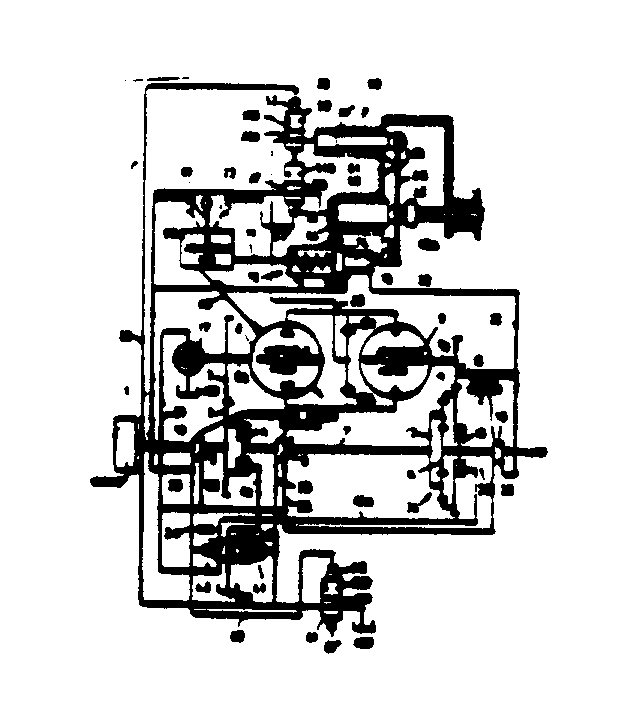

Image 1 for class 475 subclass 76

SEE OR SEARCH THIS CLASS, SUBCLASS:

254+,for related subject matter and see the notes there under.

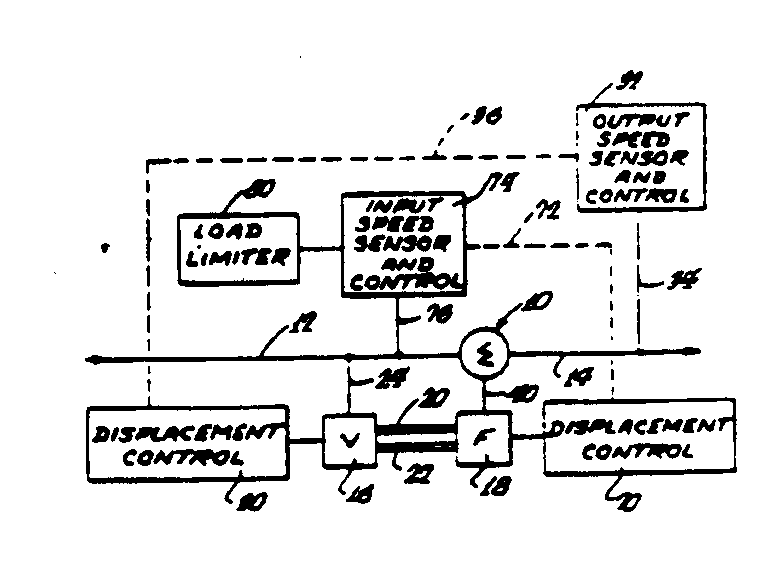

[List of Patents for class 475 subclass 77]    77Constant speed output:
 This subclass is indented under subclass 76.  Subject matter wherein the regulation is such that the load device* rotates at a constant velocity.

planetary gear

planetary gear


[List of Patents for class 475 subclass 78]    78Interrelated fluid unit and gear control:
 This subclass is indented under subclass 72.  Subject matter wherein means are provided to regulate the operation of the fluid drive and planetary transmission and such regulation is interdependent or operated by a common control.

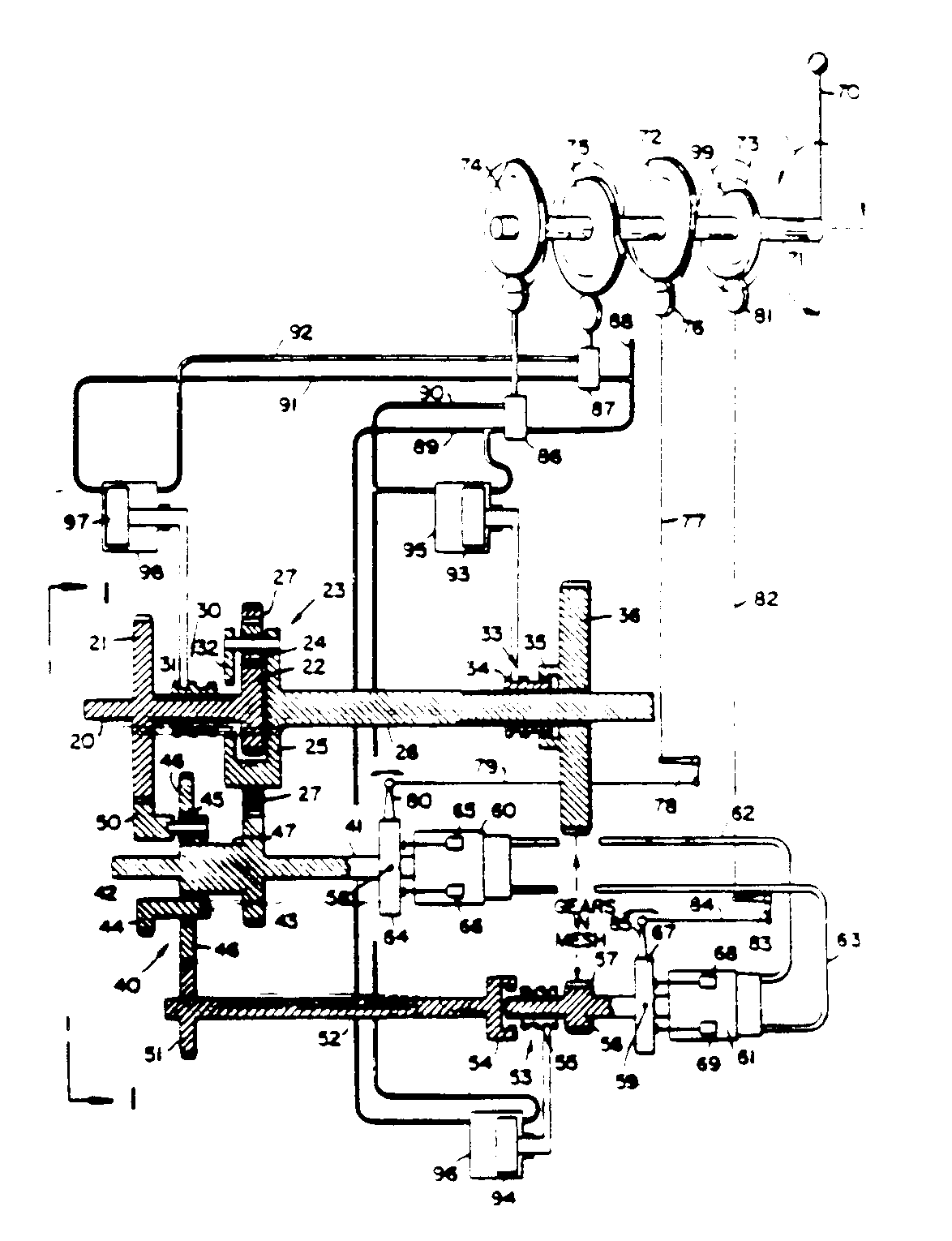

forward; reverse

forward; reverse


[List of Patents for class 475 subclass 79]    79With constant speed ratio between input and one fluid unit:
 This subclass is indented under subclass 78.  Subject matter wherein an input member* has a constant speed ratio* with an input of the fluid drive in all conditions of operation.

input; output

input; output


[List of Patents for class 475 subclass 80]    80Plural speed ranges:
 This subclass is indented under subclass 72.  Subject matter wherein the fluid drive provides a stepless speed ratio* variation capability and wherein a speed ratio* of a planetary transmission is also variable to result in the stepless variation at a plurality of speed ratio* levels.

Image 1 for class 475 subclass 80


[List of Patents for class 475 subclass 81]    81With constant speed ratio between input and one fluid unit:
 This subclass is indented under subclass 80.  Subject matter wherein an input member* has a constant speed ratio* with the fluid drive in all conditions of operation.

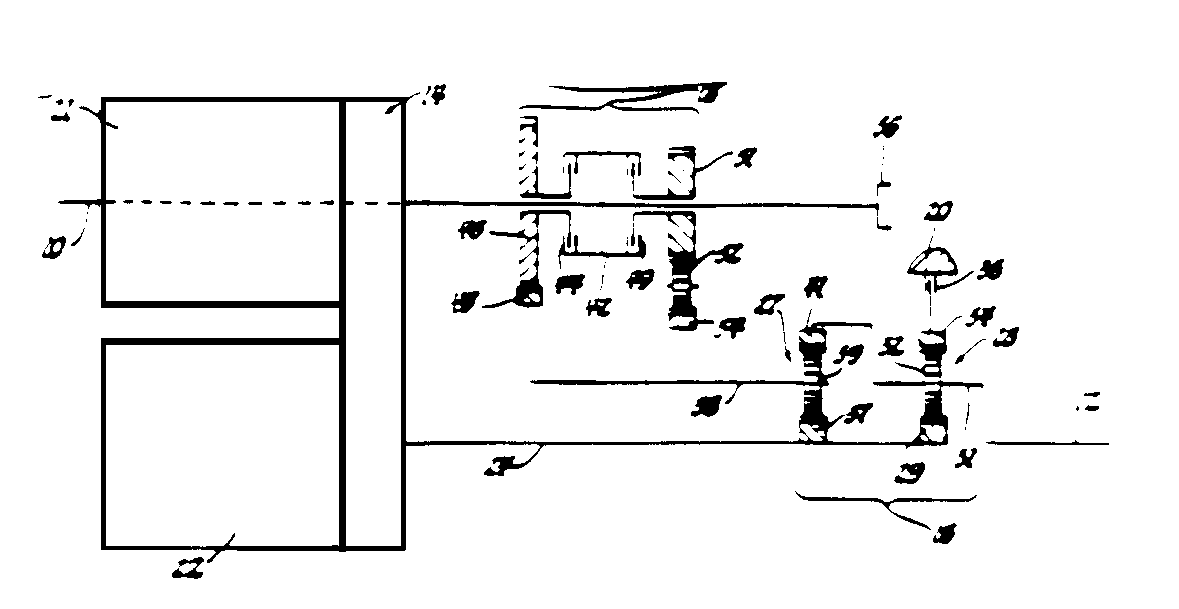

pump; motor

pump; motor


[List of Patents for class 475 subclass 82]    82Having single planet carrier:
 This subclass is indented under subclass 81.  Subject matter wherein the planetary transmission includes but one planet carrier*.
(1) Note. A Planet carrier* may include more than one set of planet pinions* mounted thereon as long as the carrier is unitary.

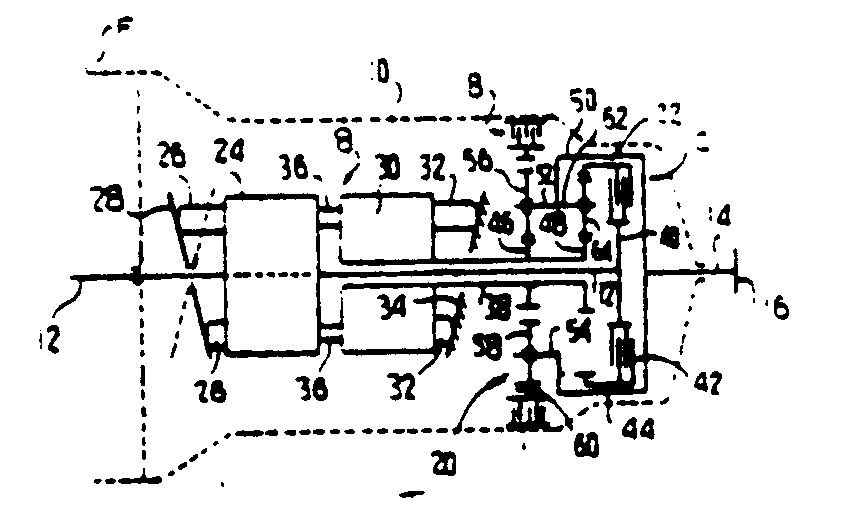

Image 1 for class 475 subclass 82

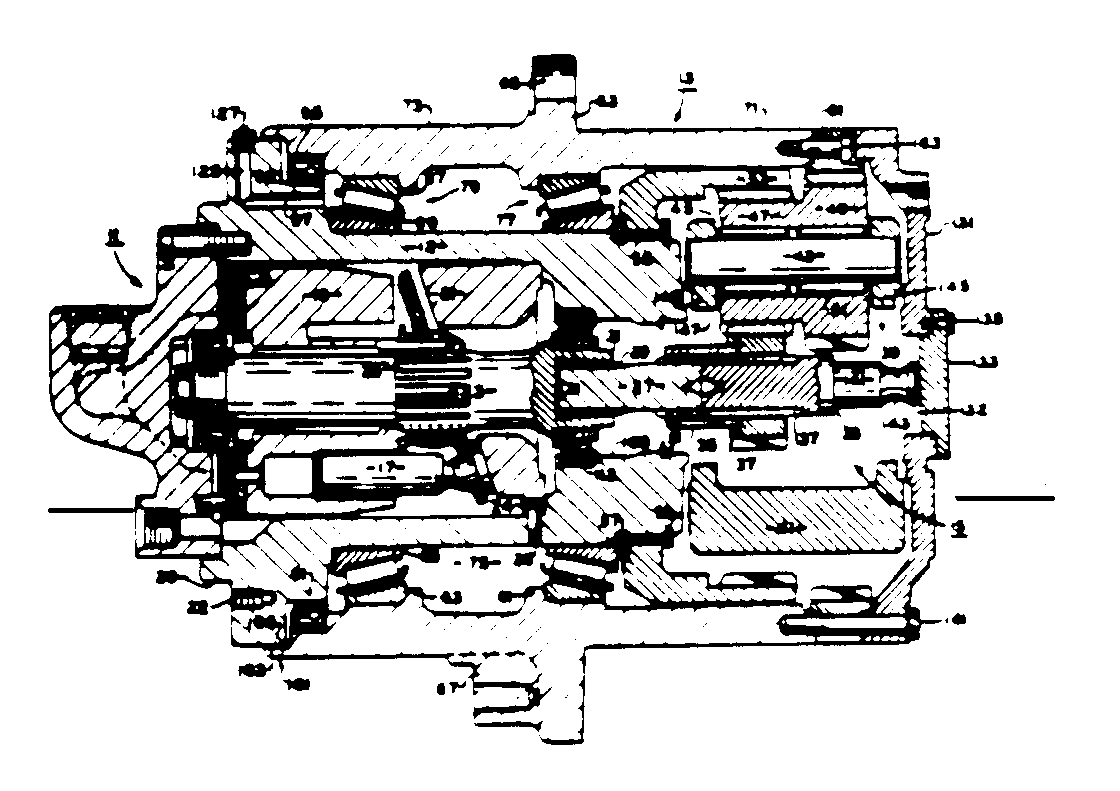

[List of Patents for class 475 subclass 83]    83Pump and motor in series with planetary gearing:
 This subclass is indented under subclass 31.  Subject matter wherein a means to pressurize a fluid and means responsive to such pressure to convert such pressure to useful mechanical work is placed in tandem with a transmission under the class definition and a single power path extends there between.
(1) Note. The claiming of a pump is not necessary for placement herein.

inboard ; outboard

inboard;outboard

SEE OR SEARCH CLASS:

91Motors: Expansible Chamber Type,   subclass 55 for related art and see the notes thereunder.
180Motor Vehicles,   subclasses 305+ for this transmission combined with significant vehicle structure.

[List of Patents for class 475 subclass 84]    84Control of differential planetary gearing:
 This subclass is indented under subclass 31.  Subject matter wherein the operation of a differential transmission* is regulated by fluid means.

Image 1 for class 475 subclass 84

SEE OR SEARCH THIS CLASS, SUBCLASS:

220+,for differential transmissions,* per se.

[List of Patents for class 475 subclass 85]    85Special fluid:
 This subclass is indented under subclass 84.  Subject matter wherein significance is attributed to the type of fluid, or the physical characteristics thereof, used to control the differential transmission*.

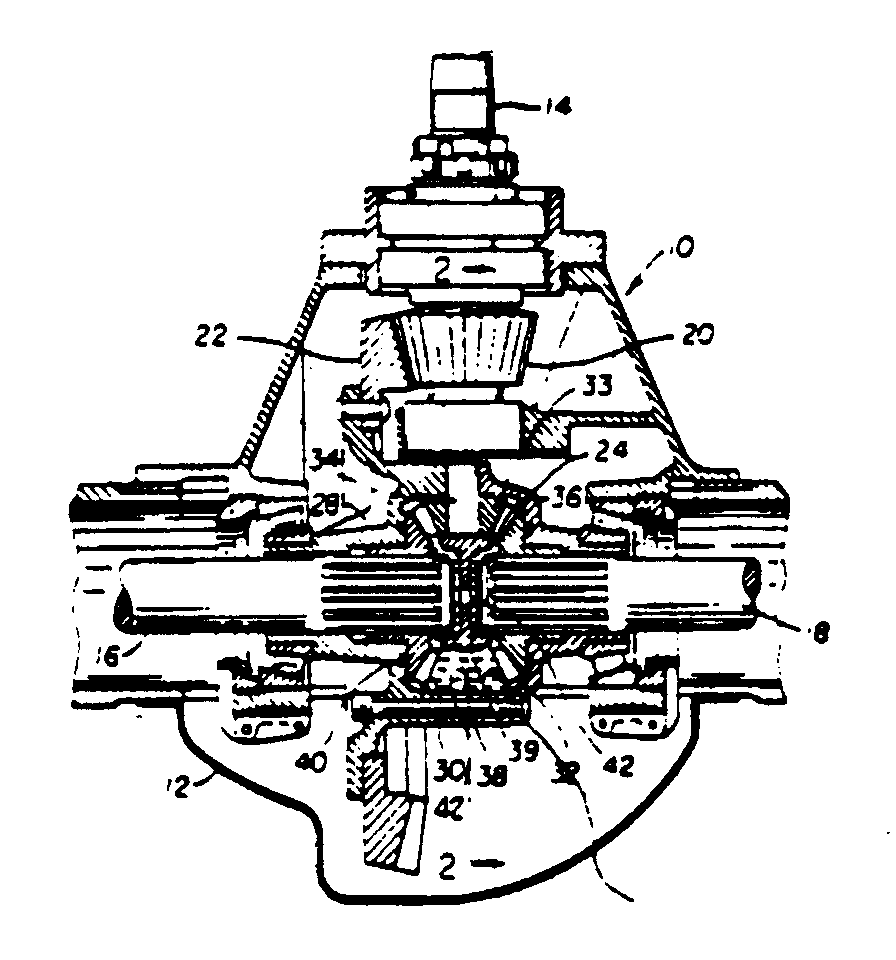

fluid  is silicone polymer

fluid is silicone polymer

SEE OR SEARCH THIS CLASS, SUBCLASS:

160,for a fluid which is used to lubricate a differential.

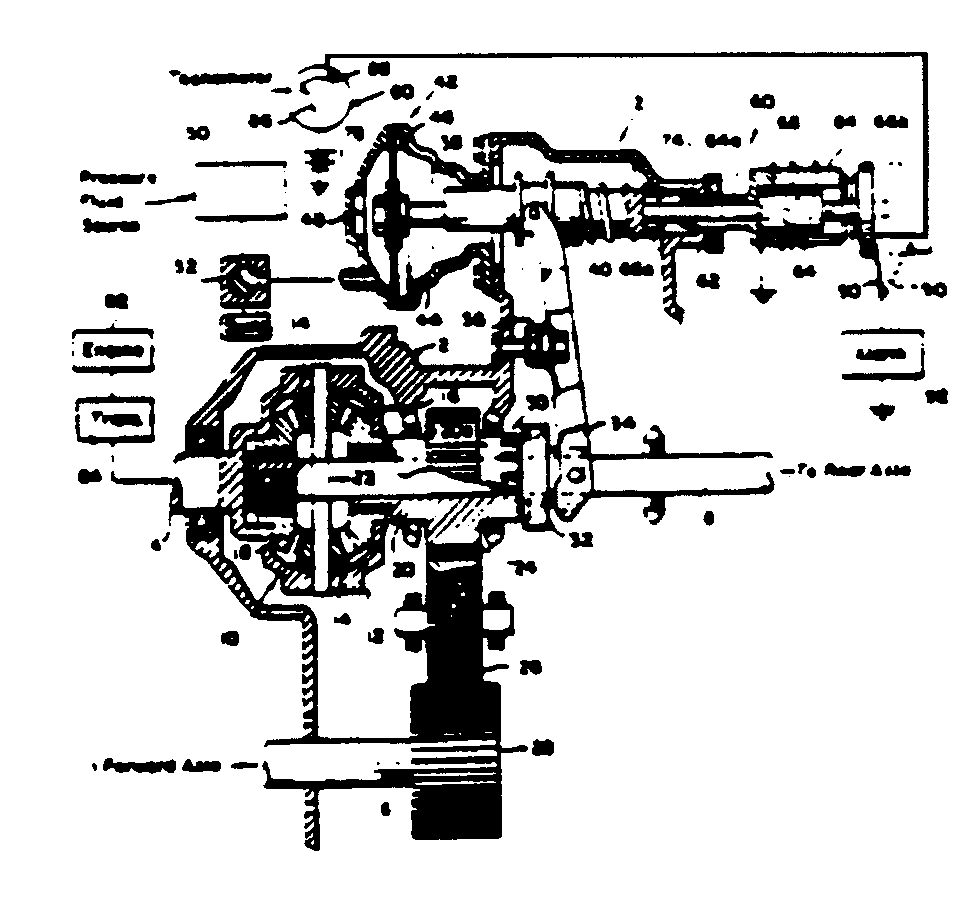

[List of Patents for class 475 subclass 86]    86By fluid operated mechanical clutch:
 This subclass is indented under subclass 84.  Subject matter wherein the differential is controlled by a fluid actuated mechanical clutch*.

Image 1 for class 475 subclass 86


[List of Patents for class 475 subclass 87]    87Operated by viscous drag:
 This subclass is indented under subclass 86.  Subject matter wherein the mechanical clutch* is controlled by the retarding force transmitted between two relatively rotating parts by a fluid medium.

Viscus Drag between 76 & 86 engages one-way clutch

Viscus Drag between 76 & 86 engages one-way clutch


[List of Patents for class 475 subclass 88]    88Operated by a pump responsive to differential action:
 This subclass is indented under subclass 86.  Subject matter wherein the mechanical clutch is controlled by fluid from a pressure source, such source being activated in response to relative rotation of the outputs of the differential transmission*.

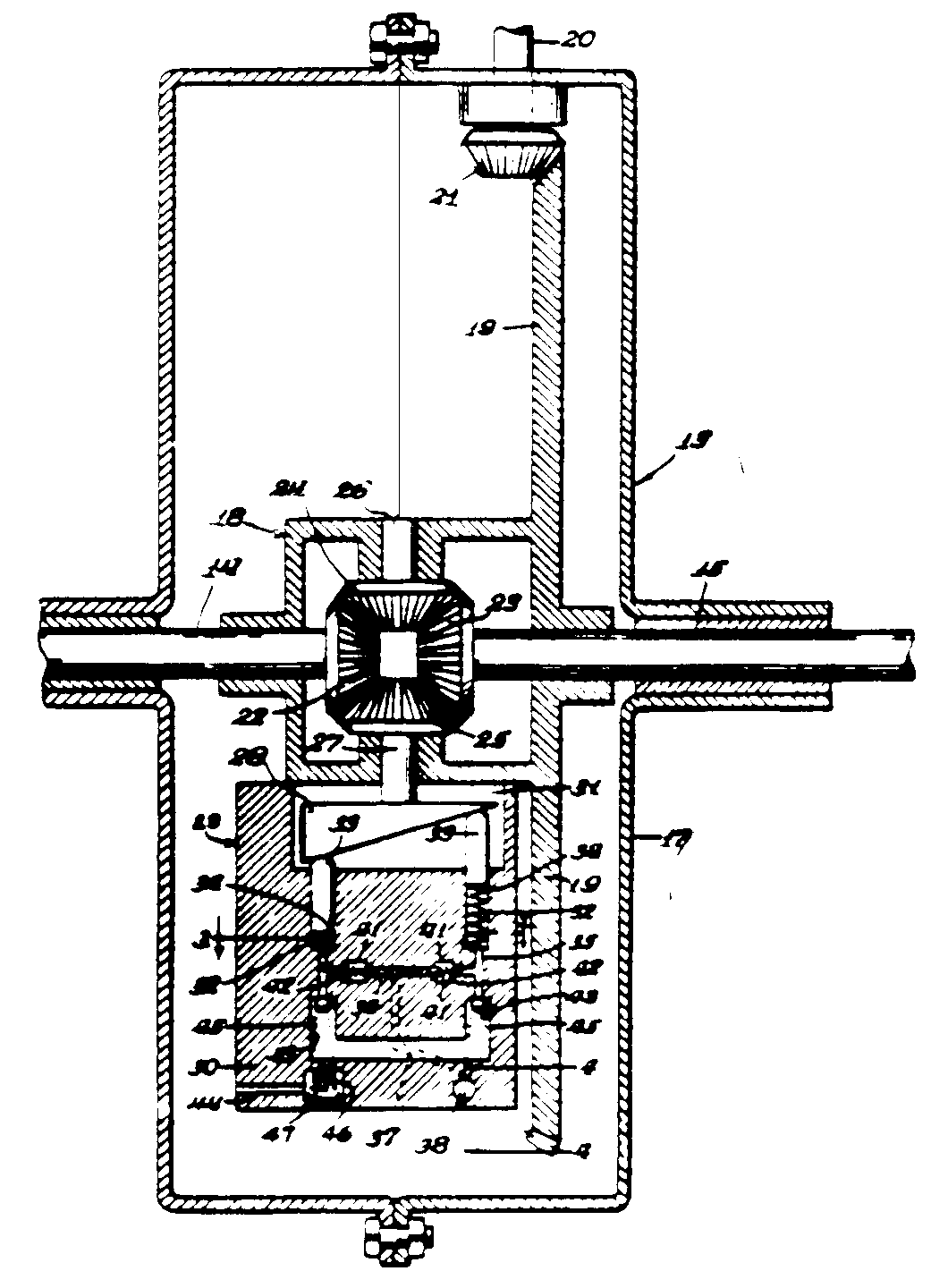

[List of Patents for class 475 subclass 89]    89Fluid resistance controls relative rotation of outputs:
 This subclass is indented under subclass 84.  Subject matter wherein fluid in contact with relatively rotatable parts of the differential transmission* is effective to retard such relative rotation.

Image 1 for class 475 subclass 89


[List of Patents for class 475 subclass 90]    90Fluid pumped by differential gears:
 This subclass is indented under subclass 89.  Subject matter wherein the gears of the differential transmission* act as pumps, to pressurize a fluid contained therein, the resistance to flow of such fluid acting to retard relative rotation of the differential outputs.

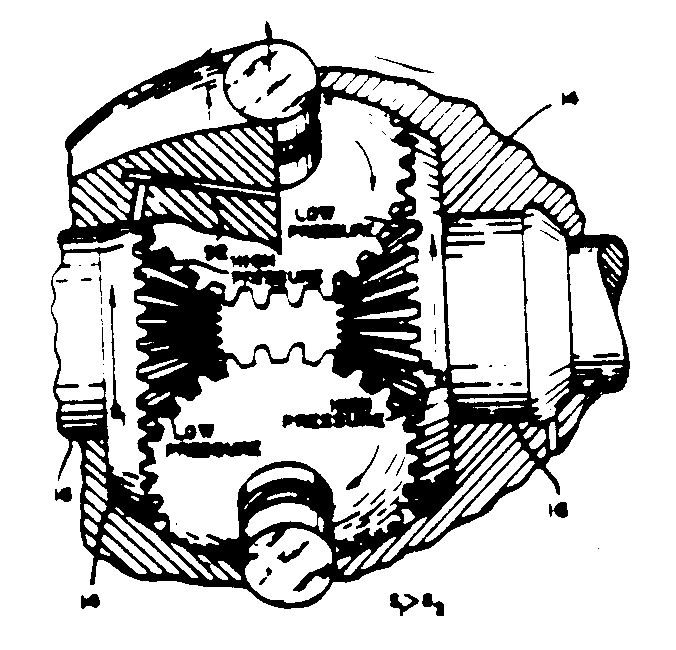

Image 1 for class 475 subclass 90


[List of Patents for class 475 subclass 91]    91Fluid resistance inhibits relative rotation:
 This subclass is indented under subclass 31.  Subject matter wherein either the weight or momentum of a fluid mass or a fluids resistance to flow, is effective to retard the rotation of an element of a planetary transmission.
(1) Note. Both the subclasses hereunder and Class 192, Clutches and Power-Stop Control, subclass 61 contain planetary units including gear pumps so arranged that when fluid flow through the pump is unrestricted the unit slips, and as fluid flow is restricted relative rotation of the planetary elements is inhibited. Where the planet pinion of the unit drives a separate gear pump the art is found herein but where the planet pinion and cooperating sun and orbit together constitute the gear pump the art will be found in Class 192, subclass 61.

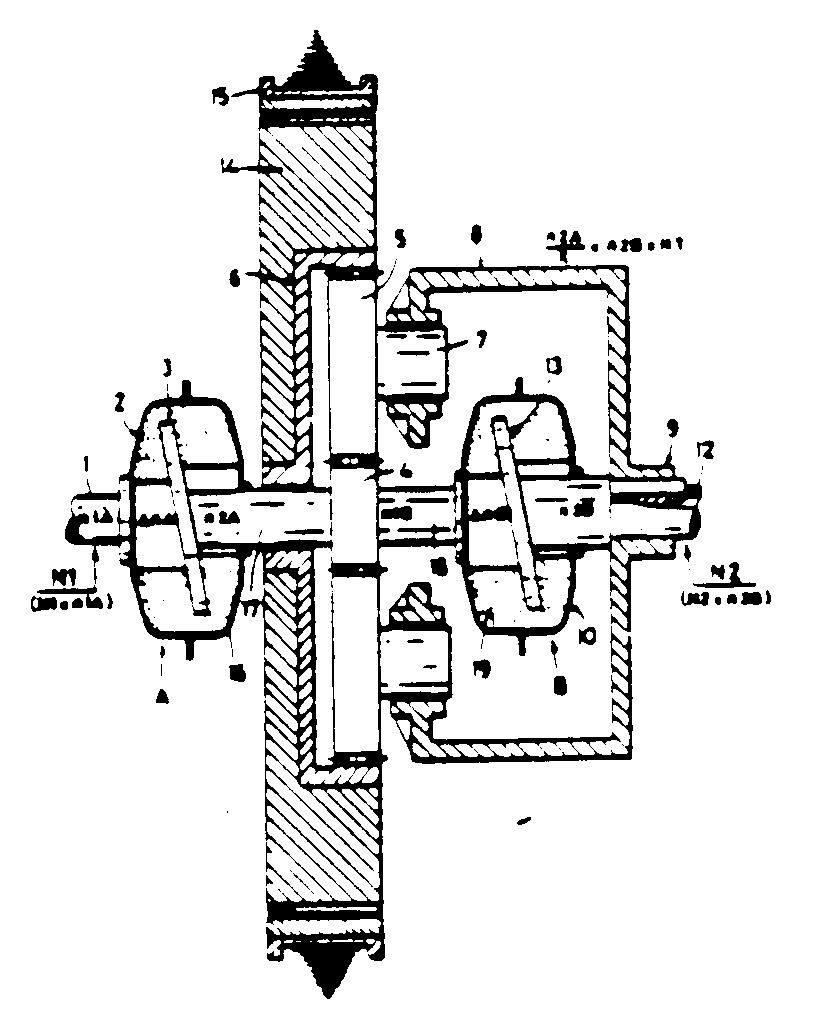

Image 1 for class 475 subclass 91

SEE OR SEARCH THIS CLASS, SUBCLASS:

89,for control of a differential transmission* by fluid resistance.

SEE OR SEARCH CLASS:

188Brakes,   subclasses 266+ for internal resistance motion retarders, per se.

[List of Patents for class 475 subclass 92]    92Fluid damper for reaction element:
 This subclass is indented under subclass 91.  Subject matter wherein a liquid or gas medium resists movement of an otherwise stationary planetary gear member.

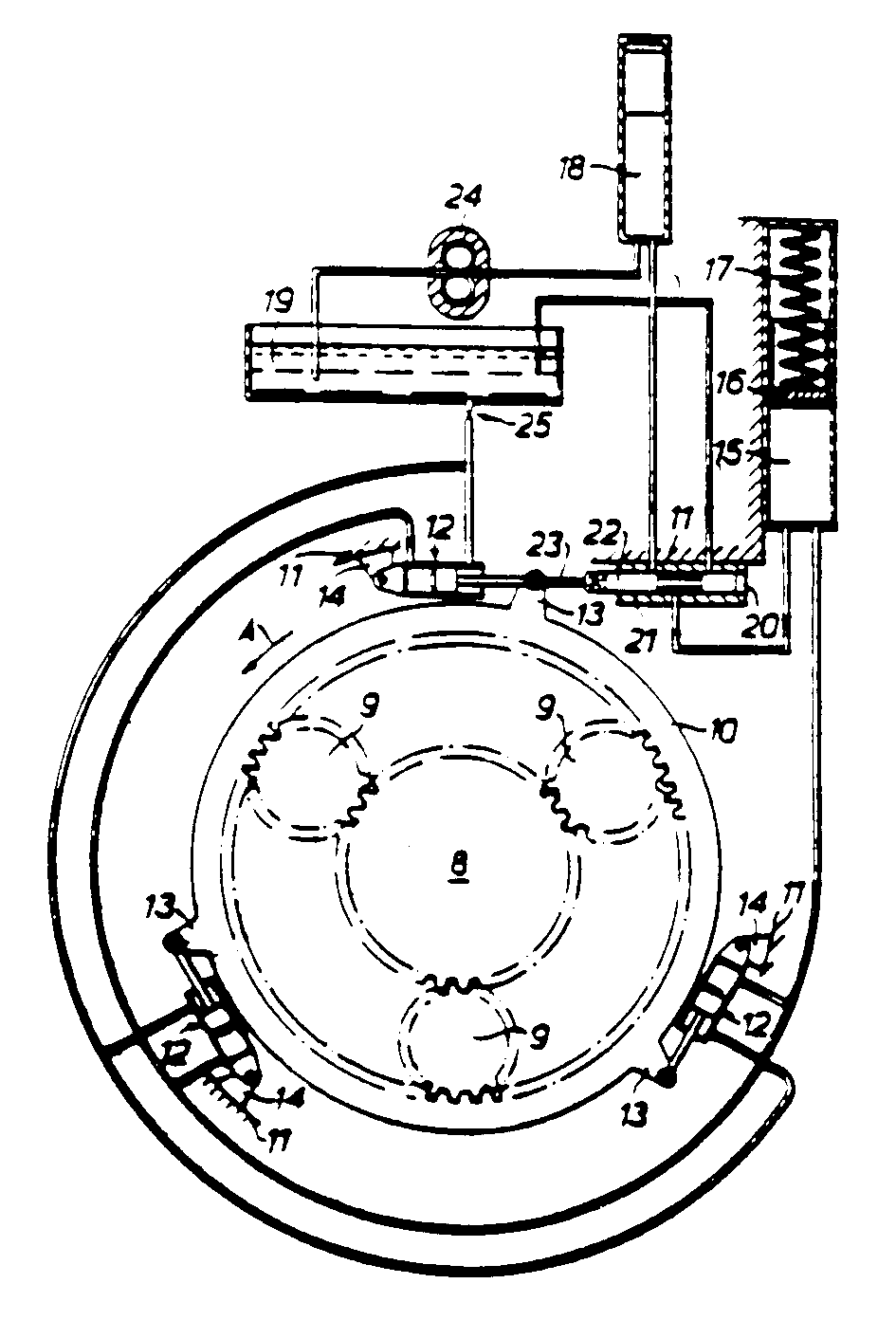

fluid buffer for orbit

fluid buffer for orbit


[List of Patents for class 475 subclass 93]    93Valve inhibits fluid flow:
 This subclass is indented under subclass 91.  Subject matter wherein the resistance to fluid flow is controlled by a passage way that is opened to a variable degree.

[List of Patents for class 475 subclass 94]    94Speed or torque responsive valve control:
 This subclass is indented under subclass 93.  Subject matter wherein the variable opening of the valve is regulated by either the velocity or the resistance to rotary movement of a transmission part.

torque responsive to move valve 100

torque responsive to move valve 100

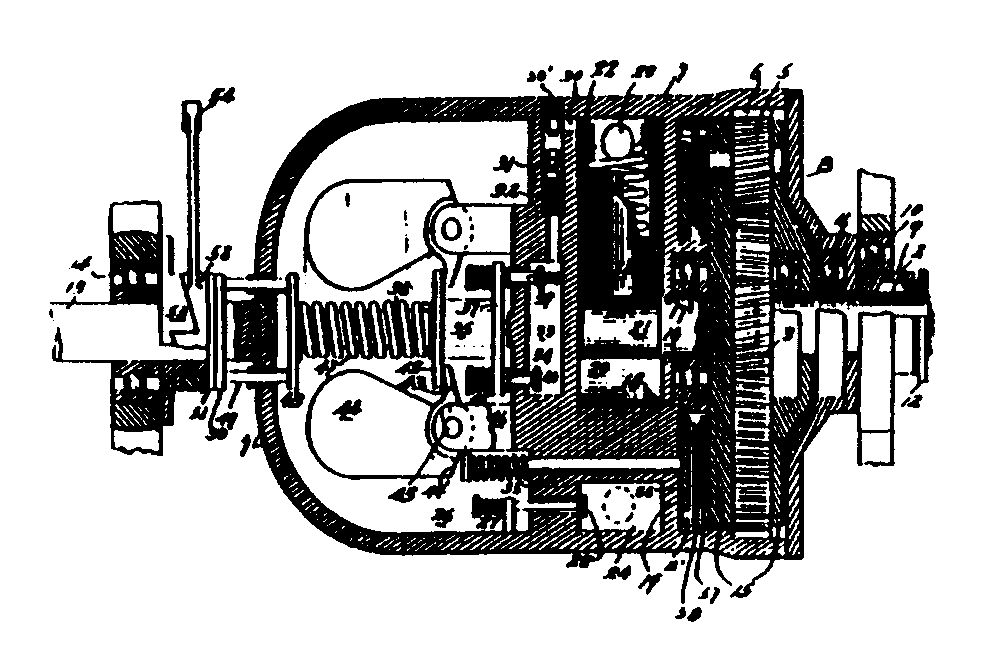

[List of Patents for class 475 subclass 95]    95Centrifugally actuated valve controls fluid clutch:
 This subclass is indented under subclass 94.  Subject matter wherein the valve is regulated by the speed of an element of the transmission as measured by centrifugal force and such regulation is effective to retard the rotation of one rotary element of a transmission with respect to another rotary element thereof.

Image 1 for class 475 subclass 95


[List of Patents for class 475 subclass 96]    96Clutch connects planet pinion and carrier:
 This subclass is indented under subclass 95.  Subject matter wherein the said one rotary element is a planet pinion* and the said another rotary element is a planet carrier*.

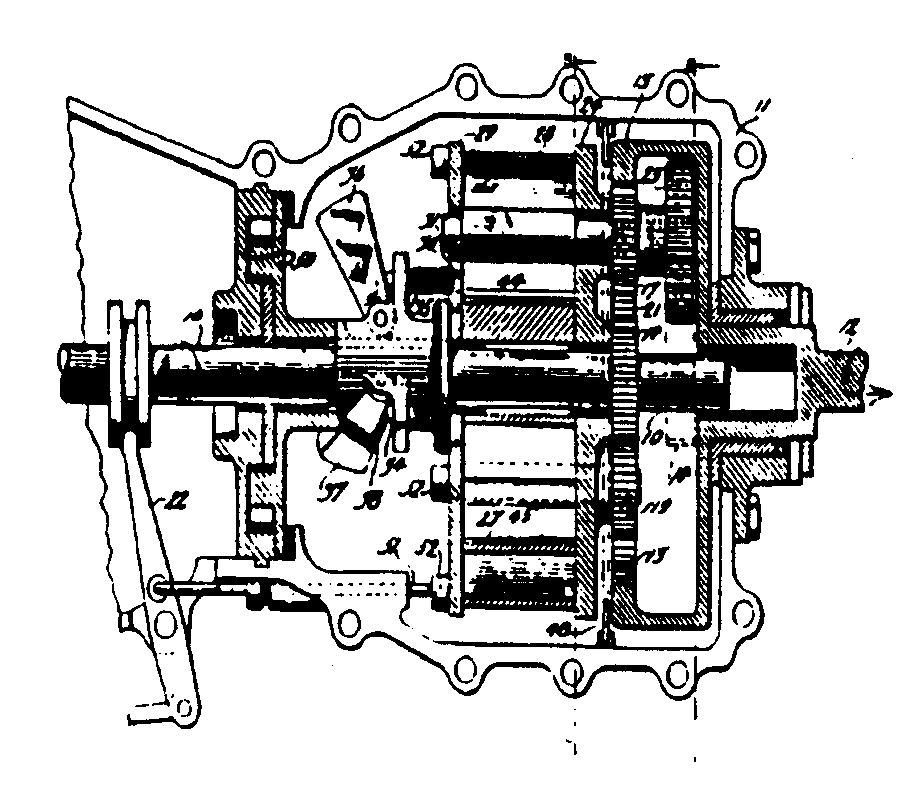

Image 1 for class 475 subclass 96


[List of Patents for class 475 subclass 97]    97With fluid brake control:
 This subclass is indented under subclass 95.  Subject matter wherein in addition to the clutch control means, resistance to fluid flow is utilized to retard the rotation of a planetary element with respect to a stationary element.

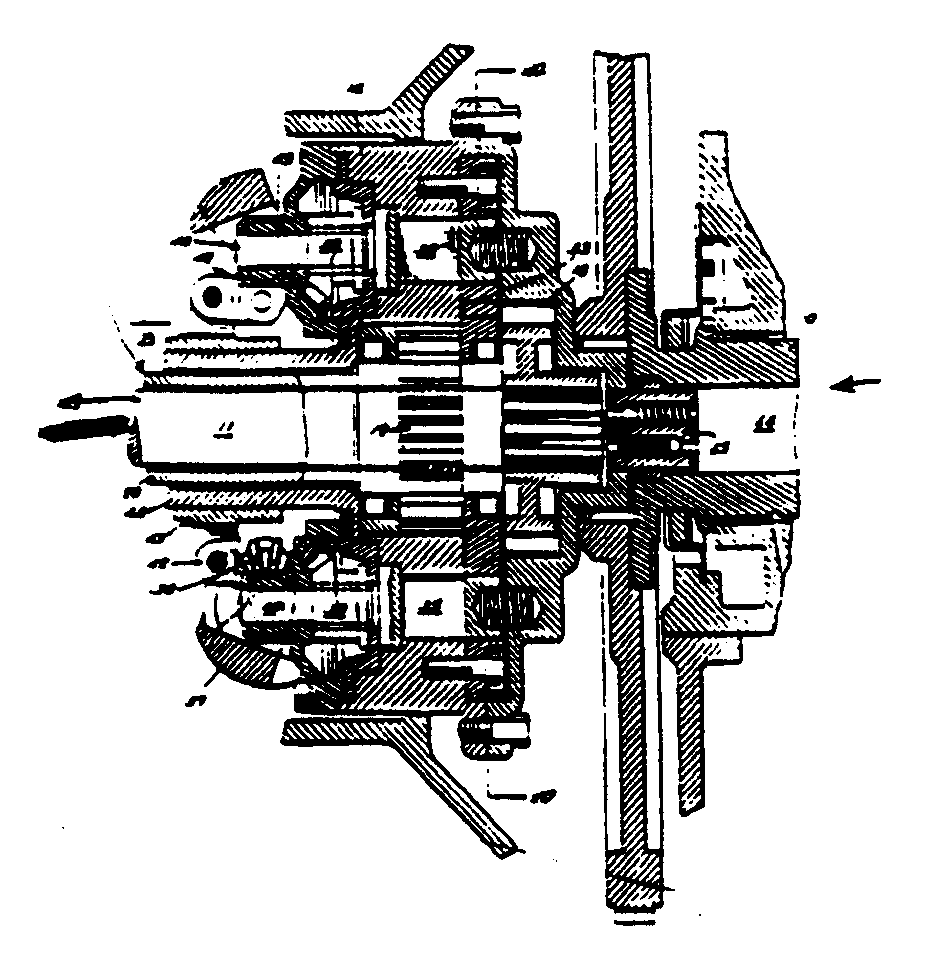

centrifugal weight 37 closes valve 35 of clutch; fluid brake26, 27 stops this shaft; output; input

centrifugal weight 37 closes valve 35 of clutch; fluid brake26, 27 stops this shaft; output; input


[List of Patents for class 475 subclass 98]    98Centrifugally actuated valve controls fluid brake:
 This subclass is indented under subclass 94.  Subject matter wherein the valve is regulated by the speed of an element of a transmission as measured by centrifugal force and such regulation is effective to retard the rotation of an element of the planetary transmission with respect to a stationary element.

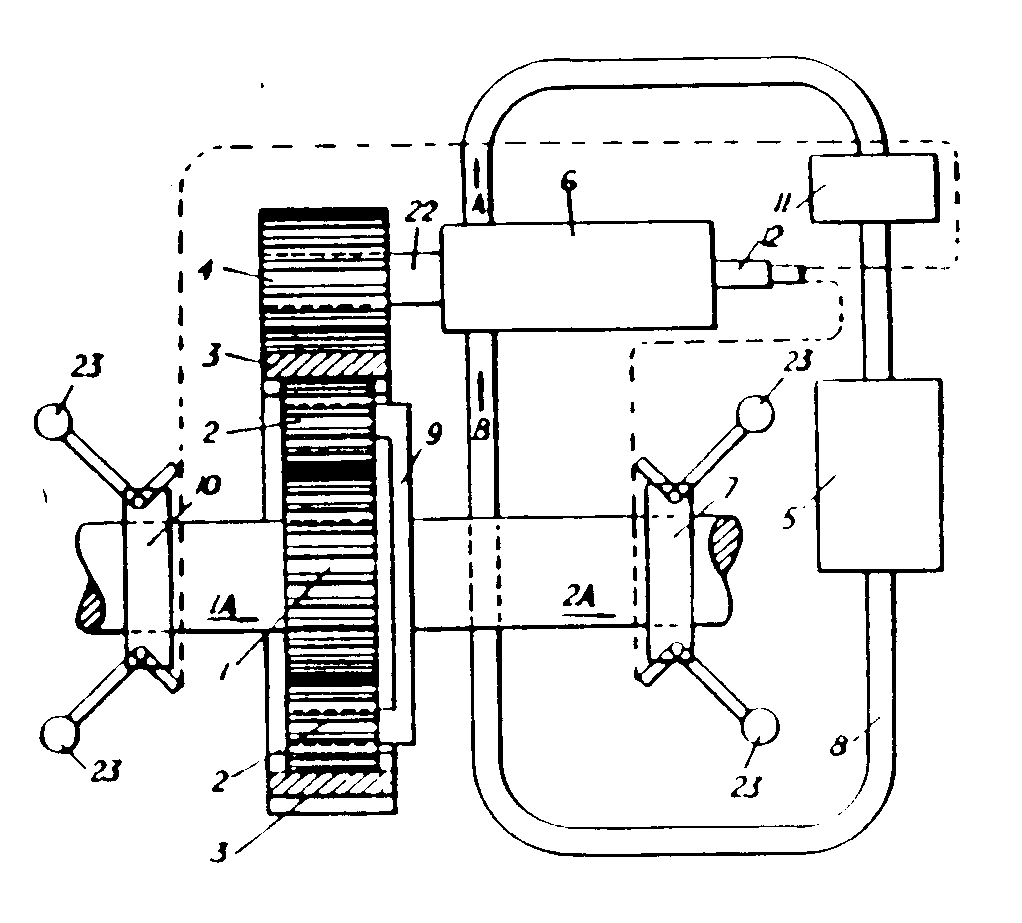

Image 1 for class 475 subclass 98


[List of Patents for class 475 subclass 99]    99Interrelated valve control and mechanical clutch or brake:
 This subclass is indented under subclass 93.  Subject matter wherein there is provided means to regulate a valve, which is effective to retard an element of a planetary transmission, and means to operate a mechanical clutch* or brake*, the operation of one of said means affecting the other, or said means being a common means.

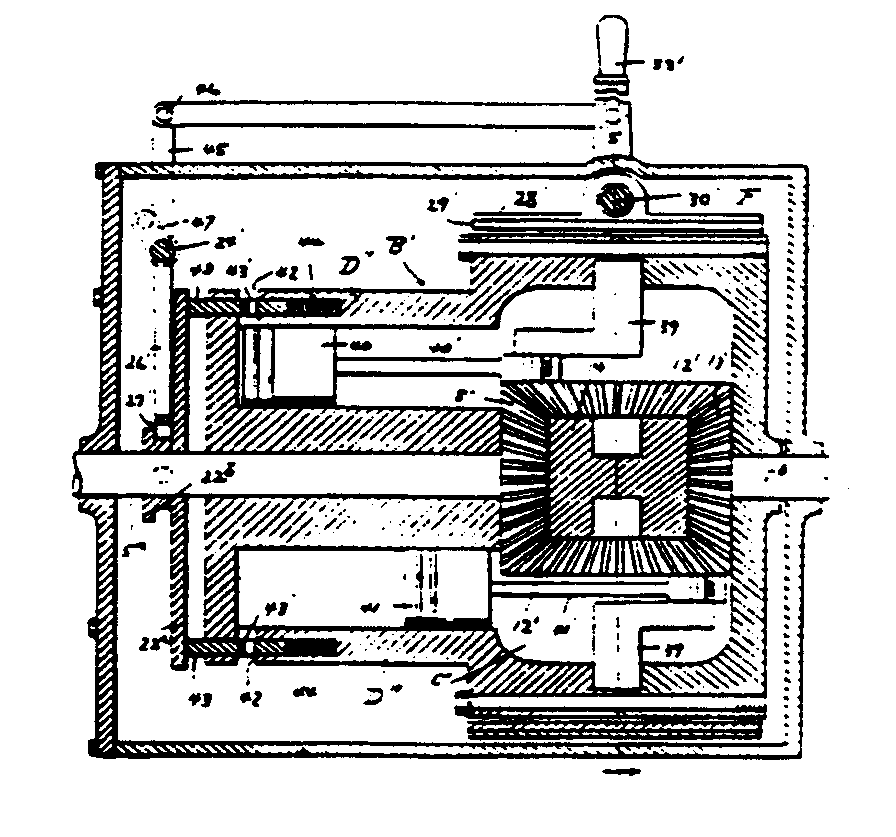

Image 1 for class 475 subclass 99


[List of Patents for class 475 subclass 100]    100Valve control and mechanical clutch:
 This subclass is indented under subclass 99.  Subject matter wherein the operation of the valve is related to the operation of a mechanical clutch*.

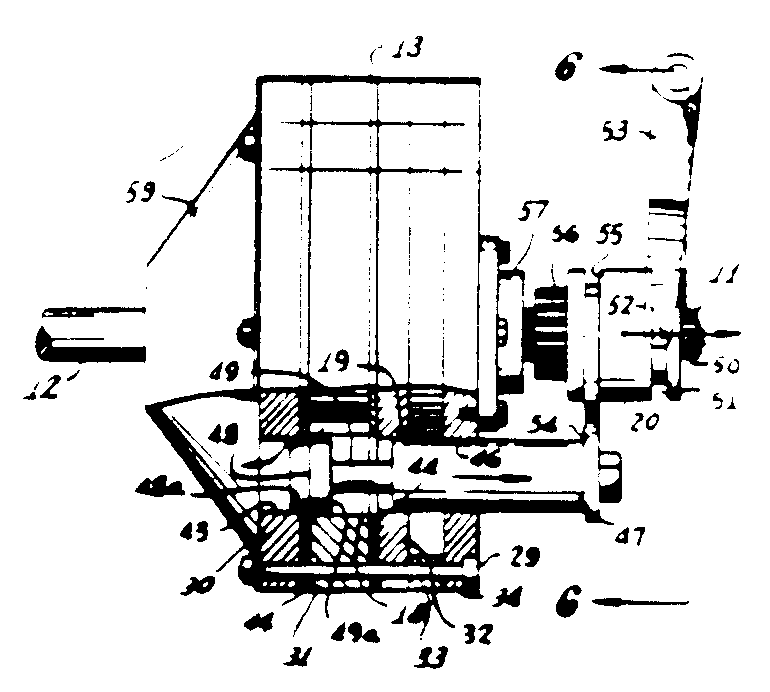

Image 1 for class 475 subclass 100

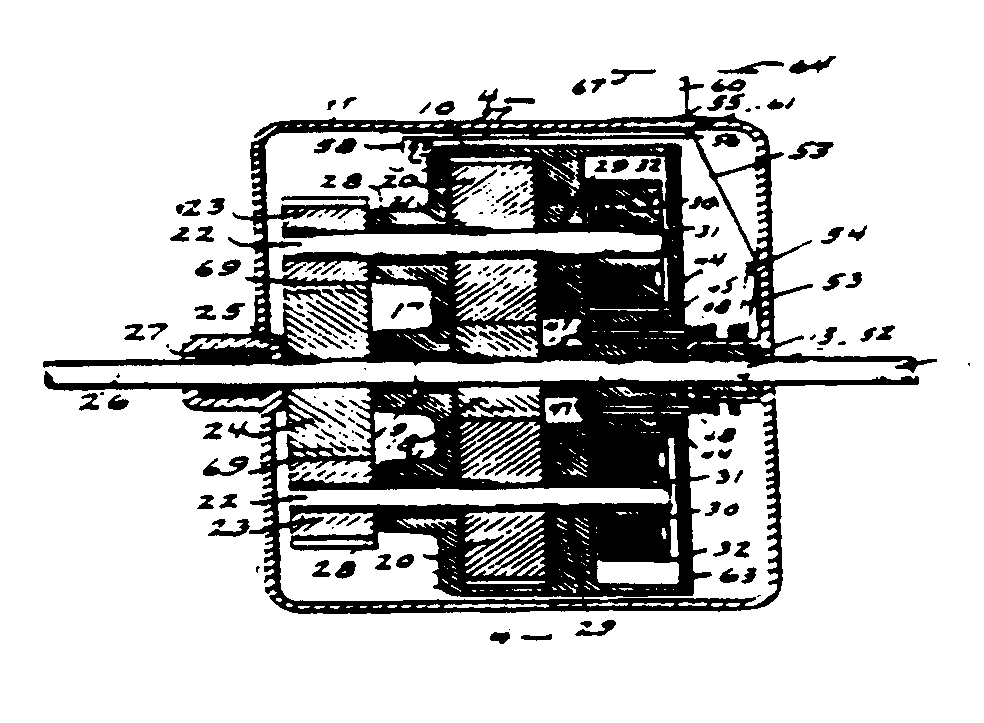

[List of Patents for class 475 subclass 101]    101Pump pressure engages mechanical clutch:
 This subclass is indented under subclass 100.  Subject matter wherein the valve controls the outlet of a fluid pressurizing device which in turn retards rotation of a planetary element and the pressurized fluid provides the force to engage a mechanical clutch*.

Image 1 for class 475 subclass 101

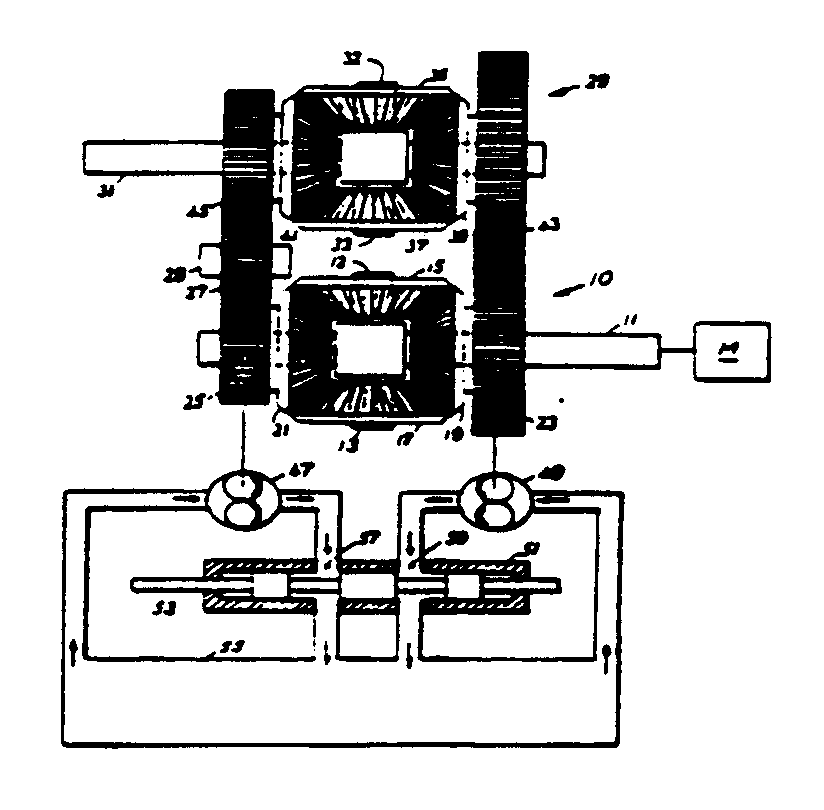

[List of Patents for class 475 subclass 102]    102Fluid brake(s) for plural planetary elements:
 This subclass is indented under subclass 93.  Subject matter wherein a valve controls the fluid flow from a pump which, in turn, retards the rotation of two elements of a planetary transmission with relation to a stationary element.

Image 1 for class 475 subclass 102


[List of Patents for class 475 subclass 103]    103Plural fluid clutches:
 This subclass is indented under subclass 93.  Subject matter wherein the transmission includes plural fluid clutches*.

SEE OR SEARCH CLASS:

192Clutches and Power-Stop Control,   subclass 61 . See the (1) Note under subclass 91 of Class 475.

[List of Patents for class 475 subclass 104]    104Fluid brake for planetary element:
 This subclass is indented under subclass 93.  Subject matter wherein the valve controls a fluid brake*.

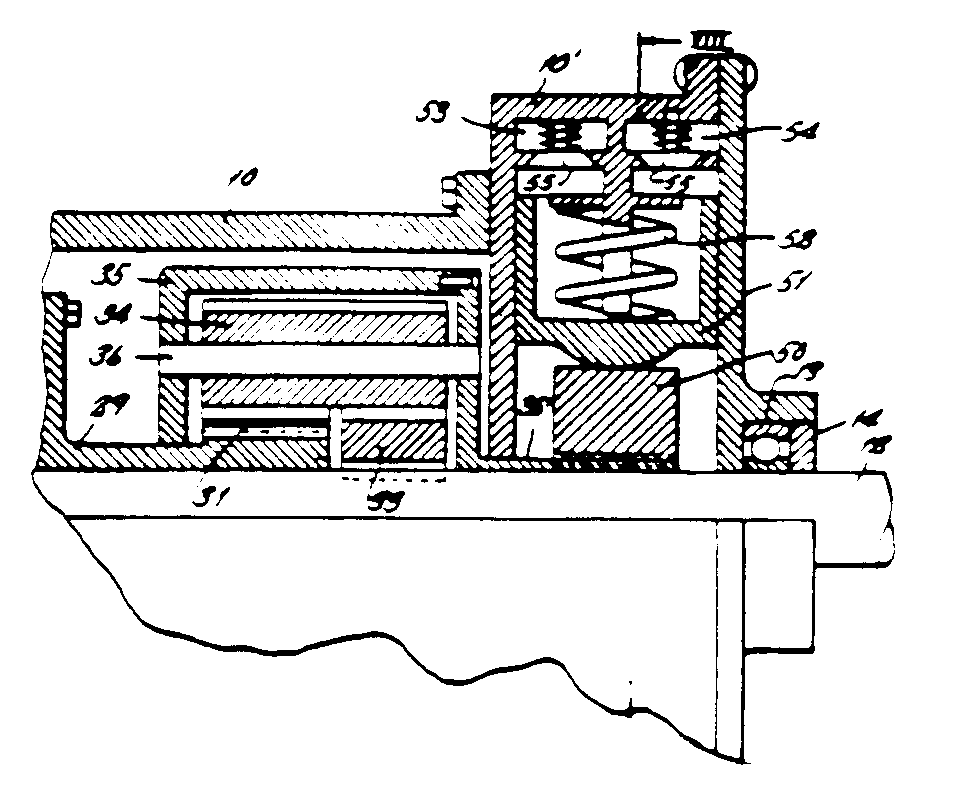

Image 1 for class 475 subclass 104


[List of Patents for class 475 subclass 105]    105And fluid clutch:
 This subclass is indented under subclass 104.  Subject matter wherein there is also provided a fluid clutch*.

[List of Patents for class 475 subclass 106]    106Bevel gearing:
 This subclass is indented under subclass 104.  Subject matter wherein the planetary transmission includes a planet pinion* that is a bevel gear*.

[List of Patents for class 475 subclass 107]    107Sun or orbit braked:
 This subclass is indented under subclass 104.  Subject matter wherein the planetary element braked is either a sun gear* or an orbit gear*.

[List of Patents for class 475 subclass 108]    108Fluid clutch includes gear type pump:
 This subclass is indented under subclass 93.  Subject matter wherein the valve is effective to restrict fluid flow from a fluid pressurizing means, said pressurizing means being operative to operate a fluid clutch* and said pressurizing means comprising interengaging rotating members.

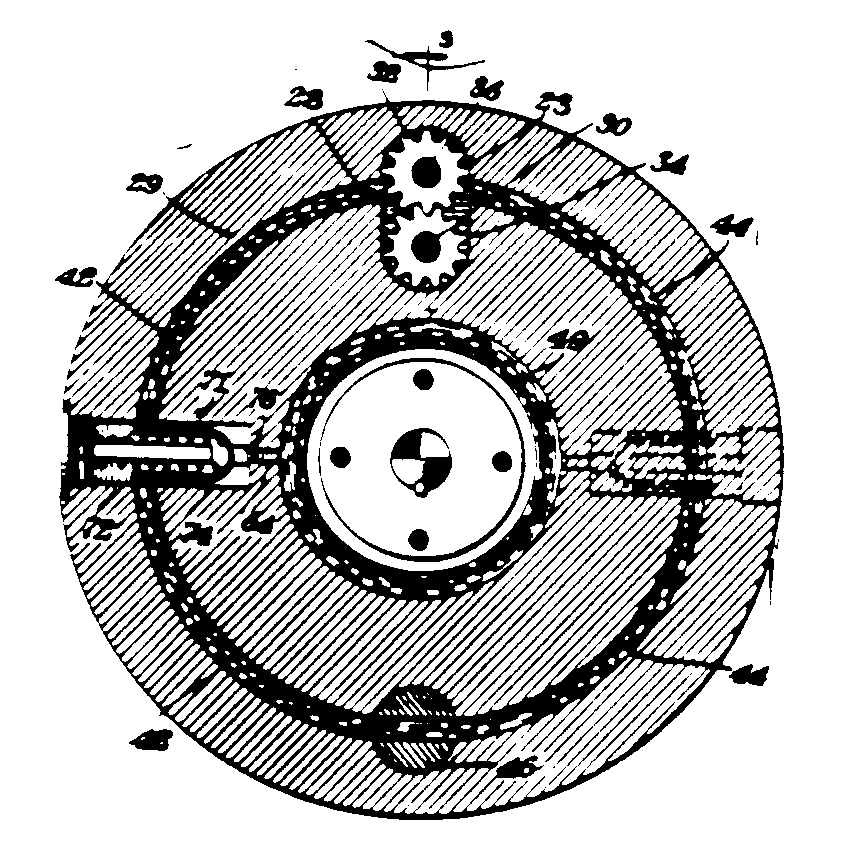

Image 1 for class 475 subclass 108

SEE OR SEARCH CLASS:

192Clutches and Power-Stop Control,   subclass 61 . See the (1) Note under subclass 91 of Class 475.
418Rotary Expansible Chamber Devices,   subclasses 54+ and 191+ for gear type pumps, per se.

[List of Patents for class 475 subclass 109]    109Planet clutched to carrier:
 This subclass is indented under subclass 93.  Subject matter wherein a pump is supported by a planet carrier* and is driven by a planet pinion*, the valve being effective to restrict flow from said pump.

SEE OR SEARCH THIS CLASS, SUBCLASS:

96,for this combination controlled by a speed responsive valve.

[List of Patents for class 475 subclass 110]    110With reversing means:
 This subclass is indented under subclass 109.  Subject matter wherein a means is also provided to change the direction of rotation of an output member*.

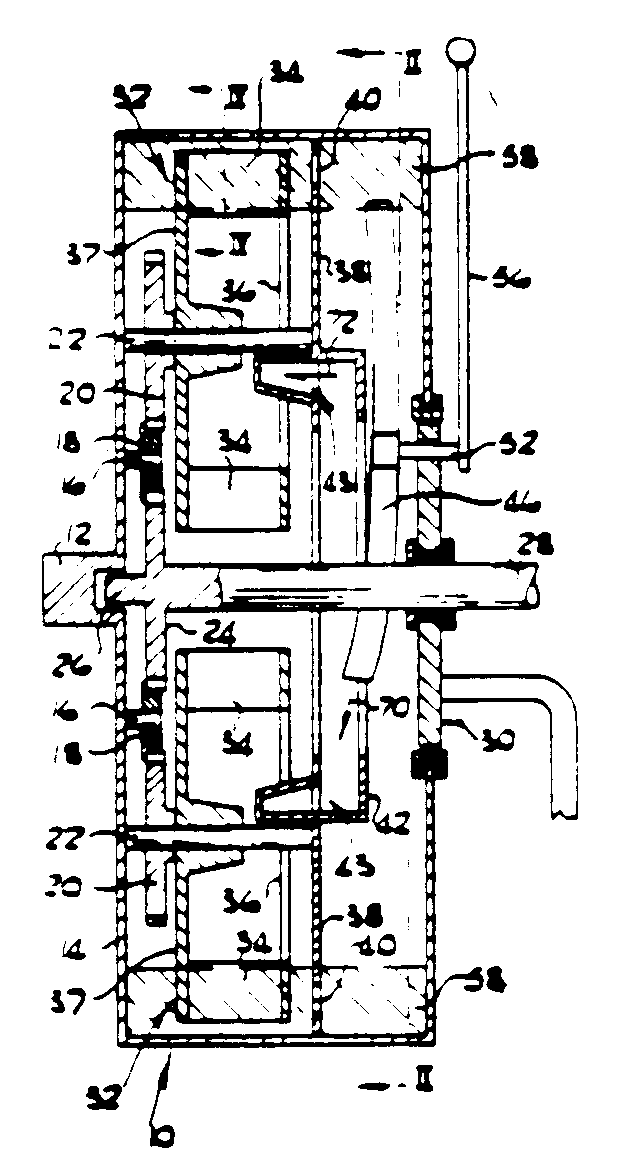

[List of Patents for class 475 subclass 111]    111Planet clutched to fluid flywheel:
 This subclass is indented under subclass 91.  Subject matter wherein a rotatable fluid containing housing concentric with the planetary transmission surrounds vaned elements connected to planet pinions*; the housing, when rotated, forming a radially outer layer of fluid that is effective to retard the rotation of the vaned elements relative to the housing.

Image 1 for class 475 subclass 111

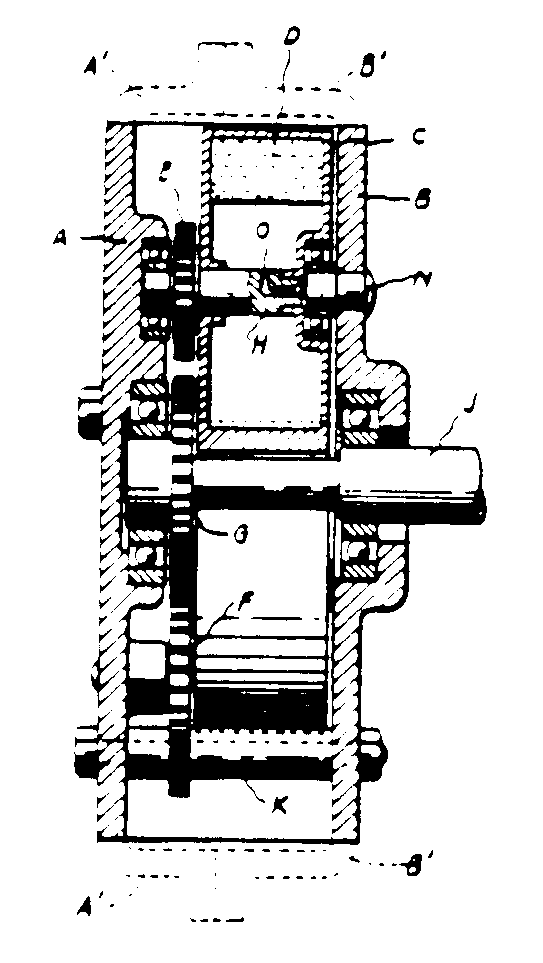

[List of Patents for class 475 subclass 112]    112Fluid container connected to planet pinion:
 This subclass is indented under subclass 91.  Subject matter wherein a fluid containing housing is connected to a planet pinion*.

fluid

fluid

SEE OR SEARCH THIS CLASS, SUBCLASS:

255,for an eccentrically weighted planet of a nonfluid type.

[List of Patents for class 475 subclass 113]    113Impeller-turbine type fluid unit used as brake:
 This subclass is indented under subclass 91.  Subject matter wherein at least two coaxial bladed elements form a fluid filled torus, one of said elements being either stationary or its motion controlled to retard another of said elements which is connected to a rotary planetary element.

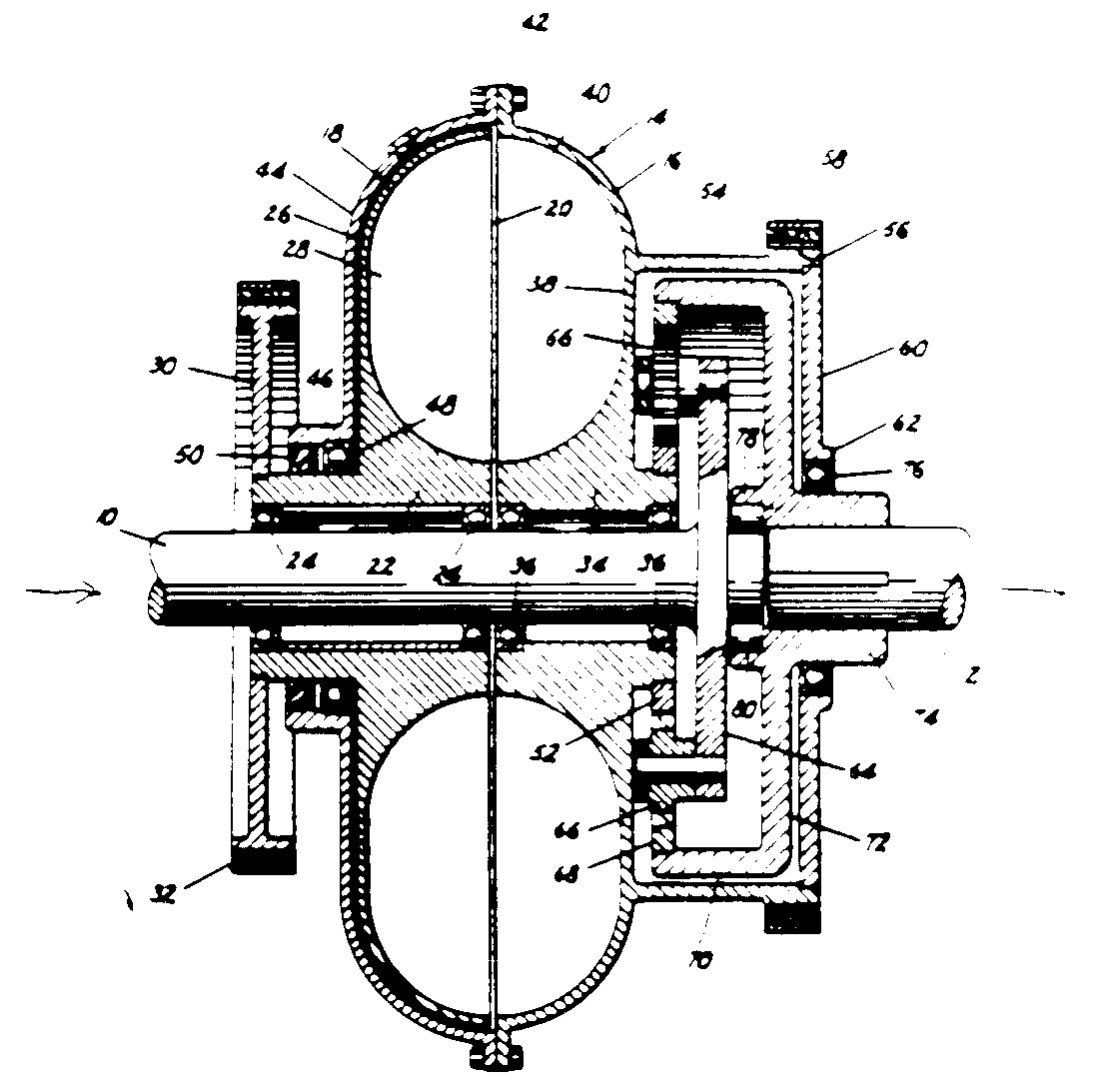

Image 1 for class 475 subclass 113

SEE OR SEARCH CLASS:

188Brakes,   subclass 296 , for impeller-turbine type brakes, per se.
192Clutches and Power-Stop Control,   subclasses 215+ for related art.
477Interrelated Power Delivery Controls, Including Engine Control,   subclass 59 for hydrodynamic braking in combination with a motor control.

[List of Patents for class 475 subclass 114]    114Fluid control of friction planetary gearing:
 This subclass is indented under subclass 31.  Subject matter wherein the planetary transmission that is regulated by fluid pressure includes a toothless planet pinion* capable of transmitting force by frictional contact.

[List of Patents for class 475 subclass 115]    115Stepless ratio change controlled:
 This subclass is indented under subclass 114.  Subject matter wherein the planetary transmission is capable of a stepless speed ratio* change and such change is regulated by means of fluid pressure.

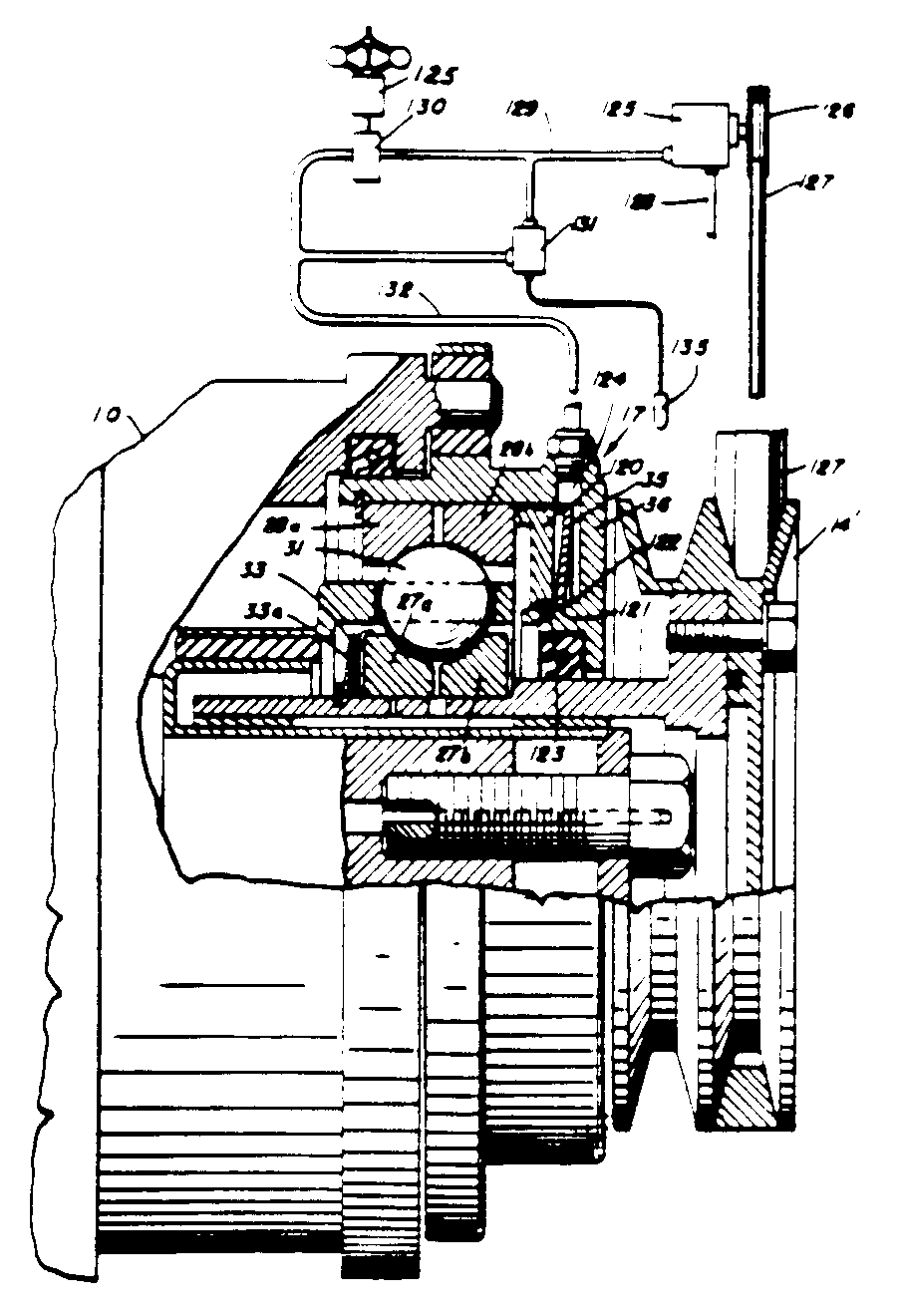

Image 1 for class 475 subclass 115


[List of Patents for class 475 subclass 116]    116Fluid controlled mechanical clutch or brake:
 This subclass is indented under subclass 31.  Subject matter wherein a clutch* or brake* operated by fluid pressure is effective to regulate the speed ratio* of the planetary transmission.

SEE OR SEARCH THIS CLASS, SUBCLASS:

209,for an interrelated control between a planetary and nonplanetary transmission.

SEE OR SEARCH CLASS:

192Clutches and Power-Stop Control,   subclasses 3.51+ for interrelated clutch and transmission controls wherein the clutch and transmission is in series and subclasses 215+ for transmission control and brake where the brake is effective to retard the load device*.

Image 1 for class 475 subclass 116


[List of Patents for class 475 subclass 117]    117Temperature responsive control:
 This subclass is indented under subclass 116.  Subject matter wherein the heat level of the transmission, a portion thereof or its surroundings affects the regulation thereof.

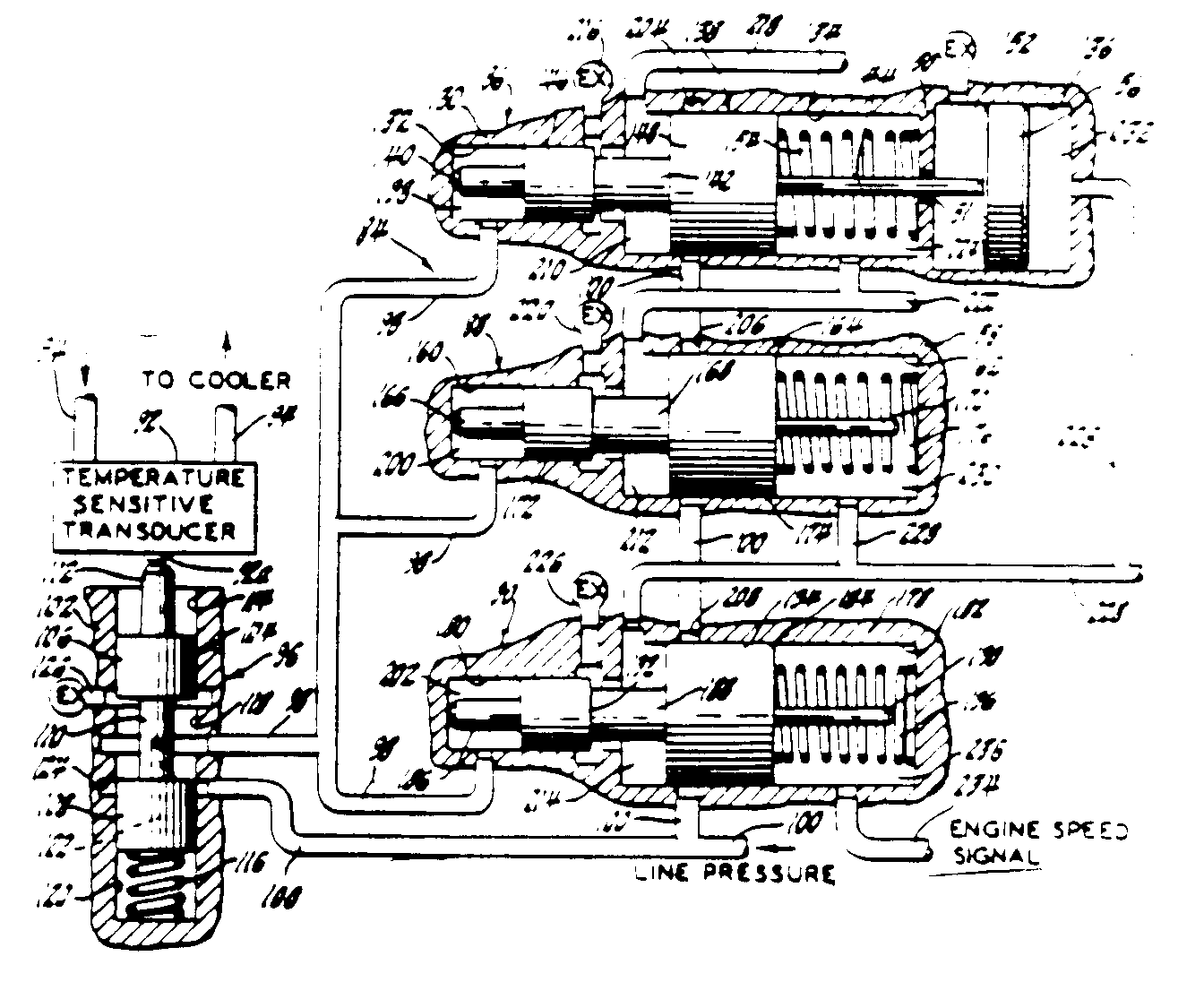

Image 1 for class 475 subclass 117


[List of Patents for class 475 subclass 118]    118Speed responsive control:
 This subclass is indented under subclass 116.  Subject matter wherein velocity of a transmission part affects a control for the clutch* or brake*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

254+,for other speed responsive transmission controls and see the notes thereunder.

SEE OR SEARCH CLASS:

137Fluid Handling,   subclasses 47+ for speed responsive valves, per se.
477Interrelated Power Delivery Controls, Including Engine Control,   for a prime mover control which may be combined with a speed responsive control.

[List of Patents for class 475 subclass 119]    119Safety device:
 This subclass is indented under subclass 118.  Subject matter wherein the control prevents the transmission or the means driving the transmission from being damaged.
(1) Note. For example, the speed responsive means may prevent a shift valve or selector valve from shifting at too high a speed.

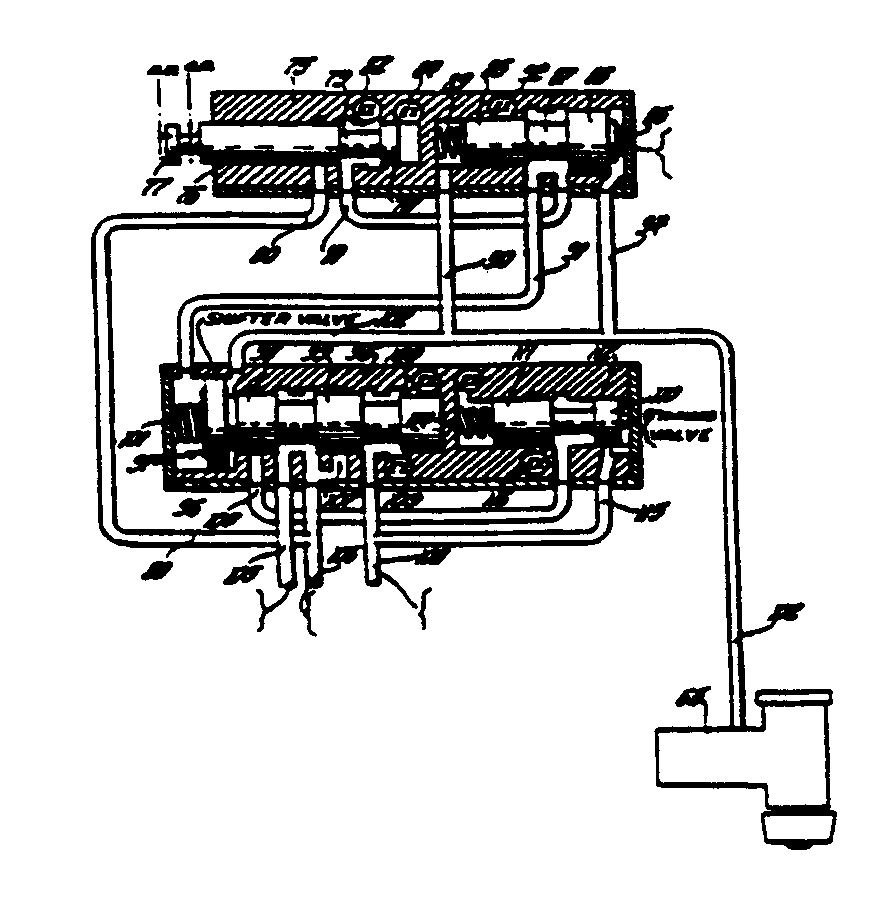

manual  valve; prevents manual  downshift at high speedsto direct drive clutch 60; pump pressure; to over  drive brake 40;governor; governor inhibitor valve

manual valve; prevents manual downshift at high speedsto direct drive clutch 60; pump pressure; to over drive brake 40;governor; governor inhibitor valve


[List of Patents for class 475 subclass 120]    120Pressure control:
 This subclass is indented under subclass 118.  Subject matter wherein the control affects the force exerted by the fluid utilized to regulate the operation of the transmission.

[List of Patents for class 475 subclass 121]    121Ratio change:
 This subclass is indented under subclass 118.  Subject matter wherein the control is effective to change the speed ratio* of the transmission.

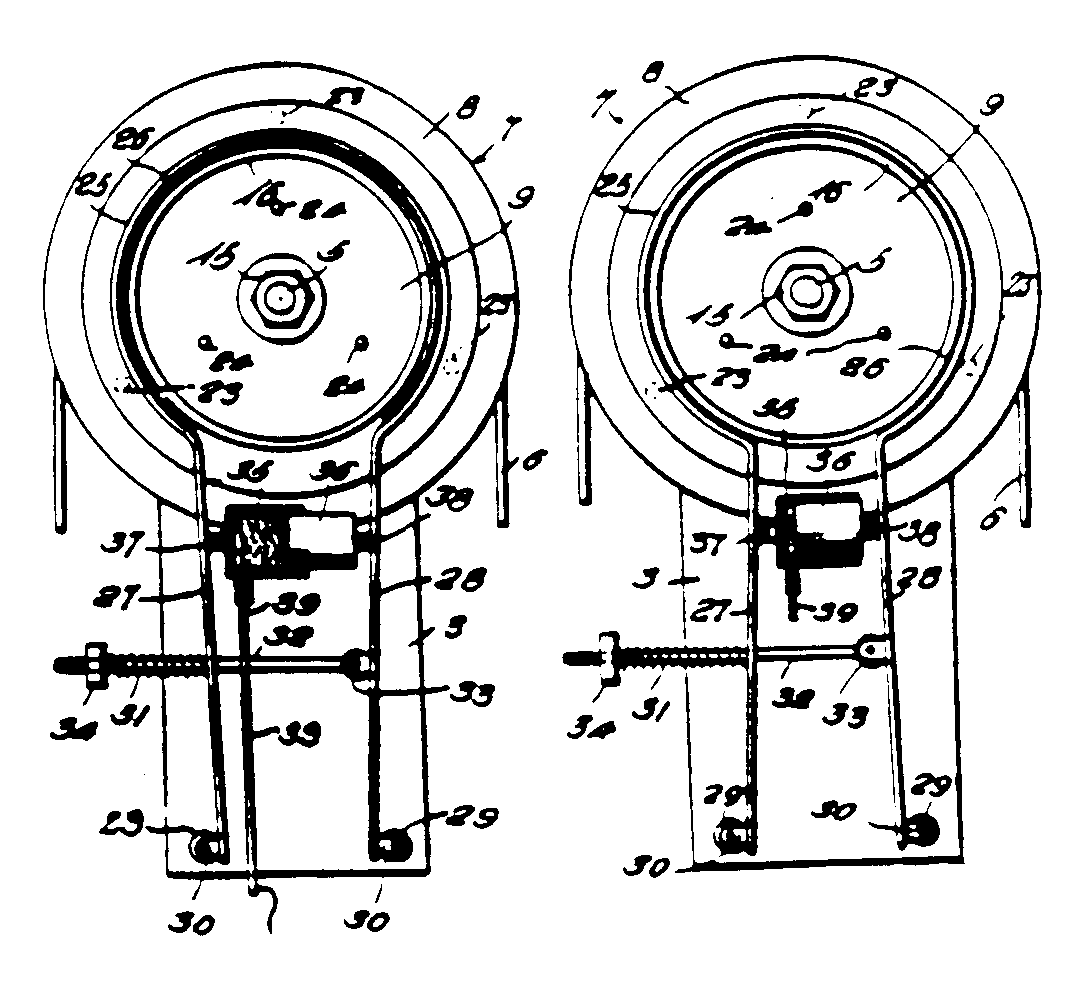

to oil pump

to oil pump


[List of Patents for class 475 subclass 122]    122Speed responsive valve control:
 This subclass is indented under subclass 121.  Subject matter wherein the speed ratio* change is effected by a valve which is moved in response to the velocity of a transmission part.

[List of Patents for class 475 subclass 123]    123Electrical control:
 This subclass is indented under subclass 122.  Subject matter wherein between the transmission part and the valve is an electrical or magnetic device.

[List of Patents for class 475 subclass 124]    124Centrifugal control:
 This subclass is indented under subclass 122.  Subject matter wherein the velocity of the transmission part is sensed by a centrifugal device.

[List of Patents for class 475 subclass 125]    125Torque responsive control:
 This subclass is indented under subclass 116.  Subject matter wherein force exerted to rotate a transmission part affects control of the clutch* or brake*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

254+,for other torque responsive transmission controls and see the notes there under.

[List of Patents for class 475 subclass 126]    126Responsive to torque reversal:
 This subclass is indented under subclass 125.  Subject matter wherein the control of the clutch* or brake* is affected by a valve and such valve is actuated responsive to a change in direction of rotation or relative rotation of a planetary drive transmission part or parts.

[List of Patents for class 475 subclass 127]    127Pressure regulation:
 This subclass is indented under subclass 116.  Subject matter wherein force exerted by the fluid that operates the clutch* or brake* is controlled.

[List of Patents for class 475 subclass 128]    128Valving controls shift timing:
 This subclass is indented under subclass 127.  Subject matter wherein means is provided to regulate the speed or sequence of engagement or disengagement of a clutch* or brake*.

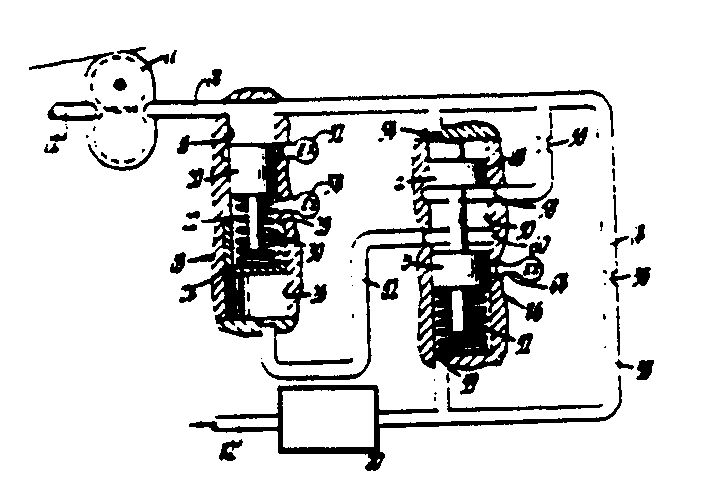

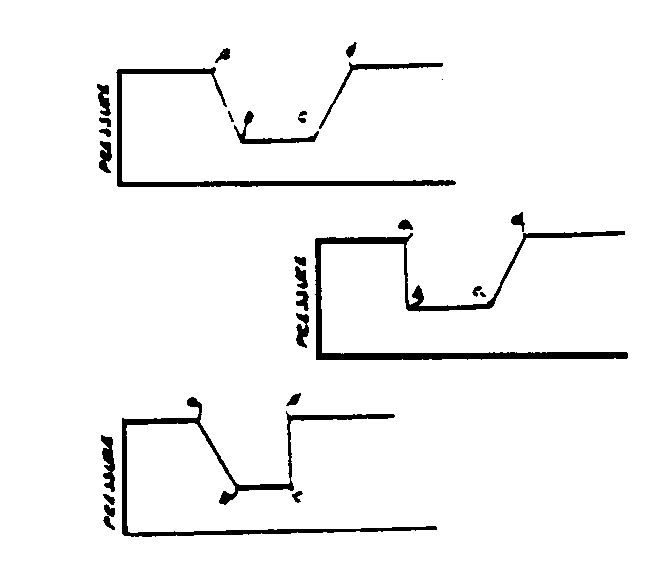

Image 1 for class 475 subclass 128

clutch  motors; control valves; time; time; time

clutch motors; control valves; time; time; time

SEE OR SEARCH CLASS:

477Interrelated Power Delivery Controls, Including Engine Control,   especially subclasses 143+ for shift timing control combined with motor control.

[List of Patents for class 475 subclass 129]    129With fluid accumulator:
 This subclass is indented under subclass 128.  Subject matter which further includes a variable capacity chamber which is effective to control the buildup of fluid pressure.

SEE OR SEARCH CLASS:

138Pipes and Tubular Conduits,   subclasses 30+ for accumulators, per se.

[List of Patents for class 475 subclass 130]    130Manual regulator:
 This subclass is indented under subclass 127.  Subject matter wherein means to regulate the pressure is controlled by human force.

SEE OR SEARCH CLASS:

477Interrelated Power Delivery Controls, Including Engine Control,   for pressure regulation which may be controlled by actuation of a vehicle accelerator pedal.

[List of Patents for class 475 subclass 131]    131Manually actuated ratio selector:
 This subclass is indented under subclass 116.  Subject matter wherein significance is attributed to a human operated device utilized to select a particular speed ratio*.

[List of Patents for class 475 subclass 132]    132Electrical:
 This subclass is indented under subclass 131.  Subject matter wherein said device operates an electrical control.

[List of Patents for class 475 subclass 133]    133With safety valve:
 This subclass is indented under subclass 131.  Subject matter wherein said device is a valve and means is associated with said valve to prevent damage to the transmission.

SEE OR SEARCH THIS CLASS, SUBCLASS:

119,for a safety device controlled in response to speed.

[List of Patents for class 475 subclass 134]    134Plural selector valves:
 This subclass is indented under subclass 131.  Subject matter wherein said device includes a plurality of valves.

[List of Patents for class 475 subclass 135]    135Rotary valve:
 This subclass is indented under subclass 131.  Subject matter wherein said device is a valve which turns about an axis.

[List of Patents for class 475 subclass 136]    136With ancillary pump or governor drive:

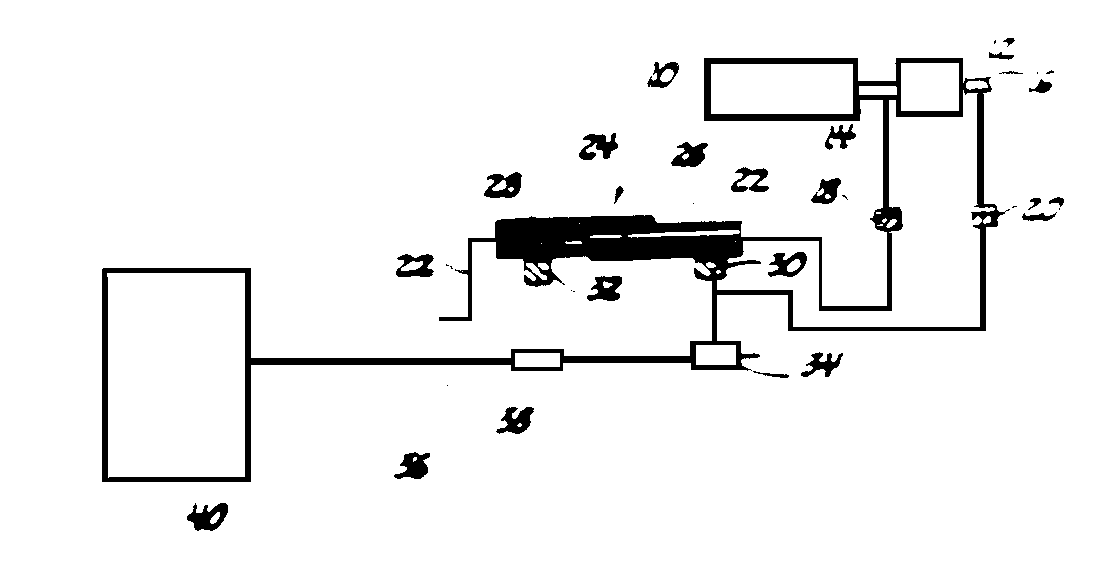

 This subclass is indented under subclass 116.  Subject matter wherein significance is attributed to a drive of an auxiliary pressurizing device or speed responsive valve utilized in fluid control for the transmission.

pump; engine; tran

pump; engine; tran


[List of Patents for class 475 subclass 137]    137Plural pumps:
 This subclass is indented under subclass 136.  Subject matter wherein more than one said device is driven to provide pressurized fluid for control of the transmission.

SEE OR SEARCH CLASS:

477Interrelated Power Delivery Controls, Including Engine Control,   for plural pumps used in transmission control which also includes motor control.

[List of Patents for class 475 subclass 138]    138With positive clutch or brake:
 This subclass is indented under subclass 116.  Subject matter wherein a clutch* or brake* includes two parts each having teeth which are capable, of meshing, one with the other, to effect a positive, as opposed to a frictional connection therebetween.
(1) Note. The positive clutch* or brake* need not be fluid actuated to be found herein.

[List of Patents for class 475 subclass 139]    139And friction synchronizer:
 This subclass is indented under subclass 138.  Subject matter wherein frictional means is provided to equalize the speed of the two clutch* or brake* parts before the teeth thereof intermesh.

SEE OR SEARCH THIS CLASS, SUBCLASS:

67,and 303, for other synchronizing clutches or brakes.

SEE OR SEARCH CLASS:

192Clutches and Power-Stop Control,   subclasses 53+ for friction synchronizers, per se.

[List of Patents for class 475 subclass 140]    140Spring engaged, fluid released clutch or brake device:
 This subclass is indented under subclass 116.  Subject matter wherein two parts of the clutch* or brake* are separated by fluid pressure against the resistance of a spring.

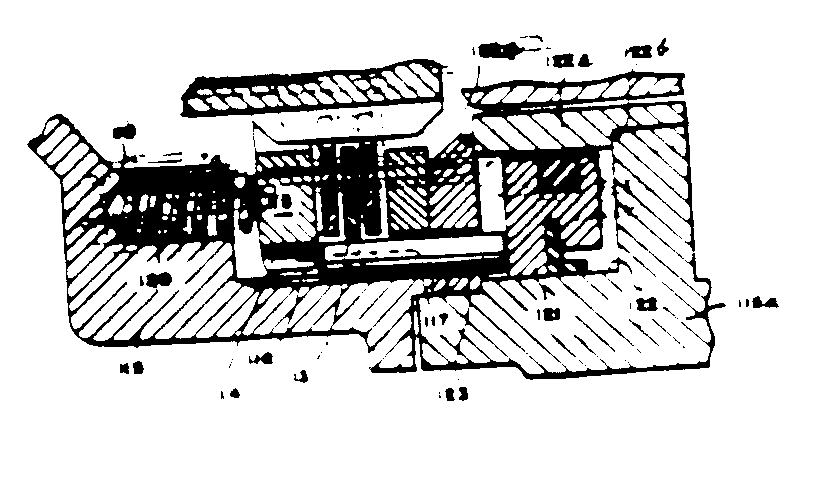

Image 1 for class 475 subclass 140

SEE OR SEARCH THIS CLASS, SUBCLASS:

144,for one-way devices that may be placed in inoperative position by means of fluid pressure and operative position by means of a spring.

[List of Patents for class 475 subclass 141]    141Plural devices simultaneously spring engaged:
 This subclass is indented under subclass 140.  Subject matter wherein more than one clutch or brake is engaged by spring pressure at the same time.

SEE OR SEARCH CLASS:

192Clutches and Power-Stop Control,   subclasses 215+ for related subject matter.

[List of Patents for class 475 subclass 142]    142Single fluid motor engages one device and releases other:
 This subclass is indented under subclass 140.  Subject matter wherein pressurized fluid is utilized to move a mechanical element and such element is effective to connect the two parts of a clutch* or brake* and disconnect the two parts of another clutch* or brake*.

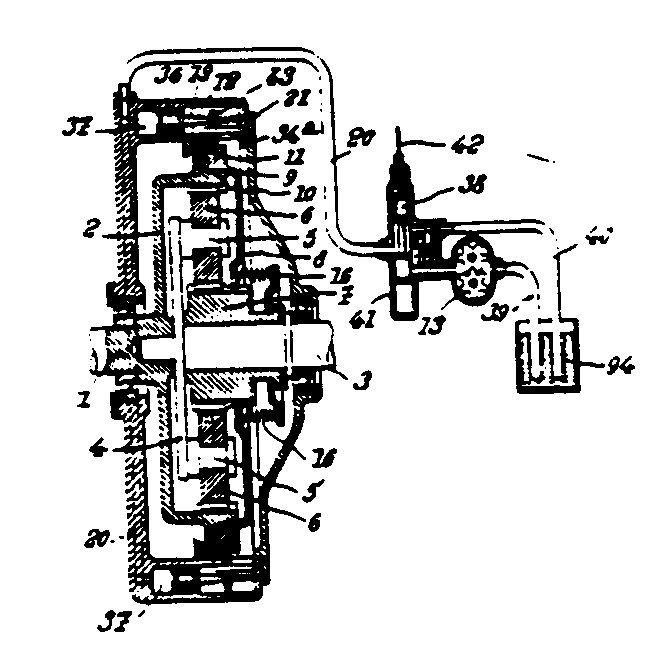

Image 1 for class 475 subclass 142


[List of Patents for class 475 subclass 143]    143Expanding fluid motor chamber mechanically contracts second motor:
 This subclass is indented under subclass 116.  Subject matter wherein the clutch* or brake* is actuated by admitting pressurized fluid to an expansible chamber and the expansion of such chamber effects the collapse of a second fluid expansible chamber.
(1) Note. To be placed here each fluid motor must control a different clutch* or brake*. A double acting motor for one clutch* or brake* is in subclass 146.

[List of Patents for class 475 subclass 144]    144Fluid controlled one-way devices:
 This subclass is indented under subclass 116.  Subject matter wherein the fluid pressure is operative to control a one-way clutch* or a one-way brake*.

SEE OR SEARCH CLASS:

188Brakes,   subclasses 82.1+ for one-way brakes, per se.
192Clutches and Power-Stop Control,   subclasses 41+ for one-way clutches, per se.

[List of Patents for class 475 subclass 145]    145Fluid motor controls device through cam or lever:
 This subclass is indented under subclass 116.  Subject matter wherein a chamber wall, expanded by pressurized fluid, is effective to actuate a clutch* or brake* through the medium of a cam or lever.

[List of Patents for class 475 subclass 146]    146Fluid motor structure:
 This subclass is indented under subclass 116.  Subject matter herein significance is attributed to the configuration, support or spatial arrangement of an expansible chamber motor or motors which effect the actuation of the clutch* or brake*.

[List of Patents for class 475 subclass 147]    147Radially expanding motor:
 This subclass is indented under subclass 146.  Subject matter wherein the fluid motor expands in a radial direction with respect to the rotary axis of the transmission.

[List of Patents for class 475 subclass 148]    148With one-way device:
 This subclass is indented under subclass 146.  Subject matter and further including a one-way clutch* or one-way brake*.

[List of Patents for class 475 subclass 149]    149ELECTRIC OR MAGNETIC DRIVE OR CONTROL:
 This subclass is indented under the class definition.  Subject matter wherein (1) the planetary transmission is combined with an electric motor or generator to form a drive train or (2) means is provided to change the speed ratio* or otherwise regulate the operation of the planetary transmission by means of electric or magnetic energy.
(1) Note. Where the electric or magnetic energy regulates a fluid drive or a fluid control that in turn controls the transmission, the patents have been placed with the fluid drive or control under subclass 31.

Image 1 for class 475 subclass 149

SEE OR SEARCH THIS CLASS, SUBCLASS:

4,and 5, for electric motor drives where plural power sources drives a planetary transmission.
13,for electric motors used as engine starters that are subsequently driven by the engine.

SEE OR SEARCH CLASS:

192Clutches and Power-Stop Control,   subclasses 129+ and 150 for safety devices and overload controls that may turn off power from an electric motor.
310Electrical Generator or Motor Structure,   subclass 83 for the combination with significant dynamo-electric machine structure.
318Electricity, Motive Power Systems,   subclasses 12+ and 15 for Class 310 structure having a significant electrical circuit. See section IE6B of the class 318 definitions for the line with this class.

[List of Patents for class 475 subclass 150]    150Differential drive or control:
 This subclass is indented under subclass 149.  Subject matter wherein the electric or magnetic drive or control is associated with a differential transmission*.

[List of Patents for class 475 subclass 151]    151Plural power paths:
 This subclass is indented under subclass 149.  Subject matter wherein two power paths extend to or from a planetary transmission, between an input member* and an output member*, and one path includes an electric or magnetic drive.
(1) Note. A clutch* that locks up the planetary transmission for unitary drive* is not considered a separate power path. See other subclasses under subclass 149.

SEE OR SEARCH THIS CLASS, SUBCLASS:

21,for this type drive used in a steering by driving combination.
47+,and 72+, for similar gearing arrangements but using a fluid drive as the variable transmission.

SEE OR SEARCH CLASS:

318Electricity: Motive Power Systems,   subclass 8 for similar systems where the generated electricity is not wholly utilized in the motor-generator systems.

[List of Patents for class 475 subclass 152]    152With nonplanetary drive to electric or magnetic path:
 This subclass is indented under subclass 151.  Subject matter wherein the input member* is either directly connected to the input of the electric or magnetic path or drivingly connected thereto by gearing not coming under the class definition.

[List of Patents for class 475 subclass 153]    153With condition responsive control:
 This subclass is indented under subclass 149.  Subject matter herein the electric or magnetic drive or control is regulated by condition responsive* means.

SEE OR SEARCH THIS CLASS, SUBCLASS:

254+,for other condition responsive* controls and see the notes thereunder.

[List of Patents for class 475 subclass 154]    154With electric or magnetic controlled brake:
 This subclass is indented under subclass 149.  Subject matter wherein the speed ratio* of the planetary transmission is regulated by means of an electrically or magnetically actuated brake*.

[List of Patents for class 475 subclass 155]    155And manual speed selector:
 This subclass is indented under subclass 154.  Subject matter wherein a human force operated device is used to choose the speed ratio* of the transmission.

SEE OR SEARCH THIS CLASS, SUBCLASS:

132,for a manually operated speed selector of the electrical type that in turn regulates a fluid control.

[List of Patents for class 475 subclass 156]    156Electric or magnetic device disengages brake:
 This subclass is indented under subclass 154.  Subject matter wherein the electric or magnetic energy is effective to separate one part of the brake* from the other.

[List of Patents for class 475 subclass 157]    157Electric or magnetic engaged brake and spring engaged lockup clutch:
 This subclass is indented under subclass 154.  Subject matter wherein the electric or magnetic energy is effective to engage the two parts of a brake* and a spring is effective to engage the two parts of a clutch* to provide unitary drive*.

[List of Patents for class 475 subclass 158]    158WITH INDICATOR OR ALARM:
 This subclass is indented under the class definition.  Subject matter and further including a separate device for indicating a condition thereof or for providing a warning that an undesirable condition exists.

SEE OR SEARCH CLASS:

116Signals and Indicators,   for indicators and alarms in general.

[List of Patents for class 475 subclass 159]    159WITH LUBRICATION:
 This subclass is indented under the class definition.  Subject matter provided with means for directing or applying a substance between moving parts to reduce friction between the moving parts.

SEE OR SEARCH THIS CLASS, SUBCLASS:

20,for lubrication in a steering by driving combination.

SEE OR SEARCH CLASS:

184Lubrication,   for lubricating devices and systems in general.

[List of Patents for class 475 subclass 160]    160For differential planetary gearing:
 This subclass is indented under subclass 159.  Subject matter wherein the moving parts comprise a differential transmission*.

[List of Patents for class 475 subclass 161]    161WITH TRANSMISSION COOLING OR HEATING MEANS:
 This subclass is indented under the class definition.  Subject matter and further including means to alter the temperature of an element thereof during operation.

SEE OR SEARCH THIS CLASS, SUBCLASS:

20,for cooling or heating in a steering by driving combination.

[List of Patents for class 475 subclass 162]    162PLANET PERIPHERY SURROUNDS AXIS OF INTERACTING GEAR (E.G., ECCENTRICALLY DRIVEN TRANSMISSION):
 This subclass is indented under the class definition.  Subject matter wherein a first gear has an axis which follows a path around the axis of a second gear, and wherein the external periphery of the first gear surrounds the axis of the second gear.

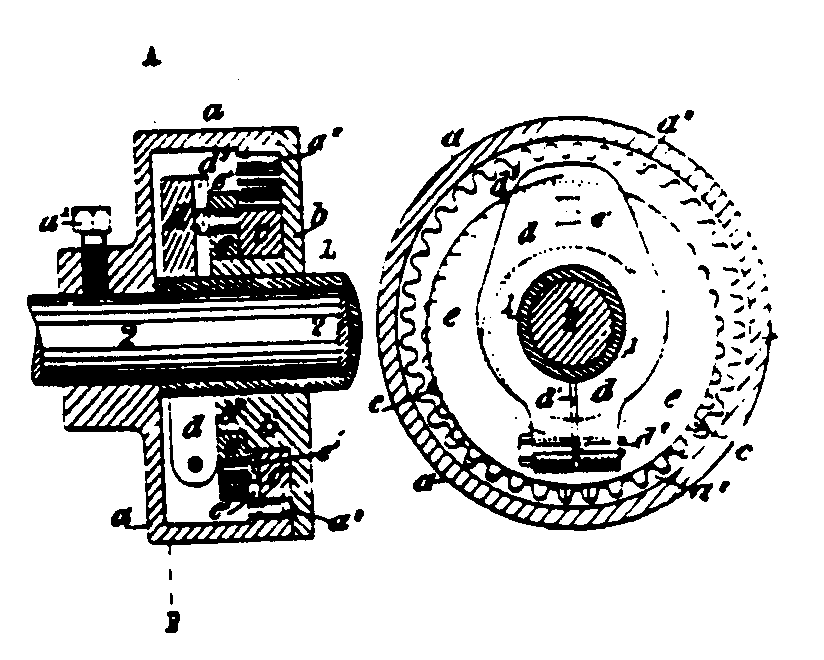

Image 1 for class 475 subclass 162

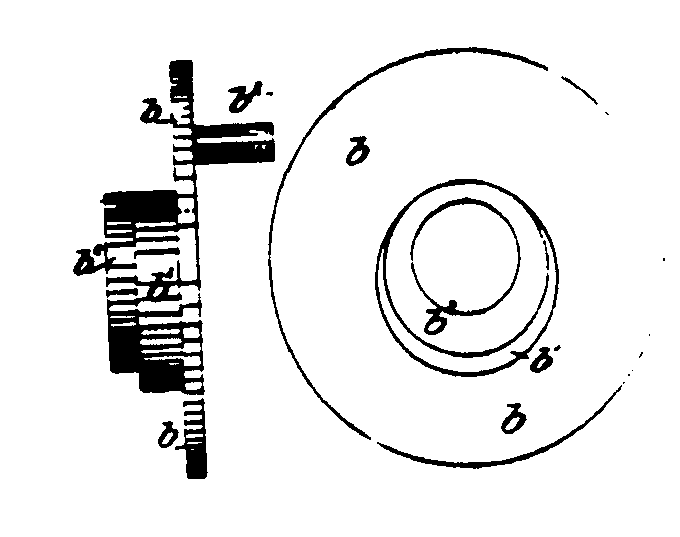

Image 2 for class 475 subclass 162

SEE OR SEARCH CLASS:

74Machine Element or Mechanism,   subclass 640 for similar structure using a cam-operated flexible gear, sometimes referred to as "strain-wave" gearing.

[List of Patents for class 475 subclass 163]    163Wabbler transmission:
 This subclass is indented under subclass 162.  Subject matter wherein drive surfaces of the gears face each other in an axial direction.

Image 1 for class 475 subclass 163


[List of Patents for class 475 subclass 164]    164Single member has oppositely axially facing tooth sets:
 This subclass is indented under subclass 163.  Subject matter wherein one of the gears has tooth sets one each of oppositely axially facing surfaces

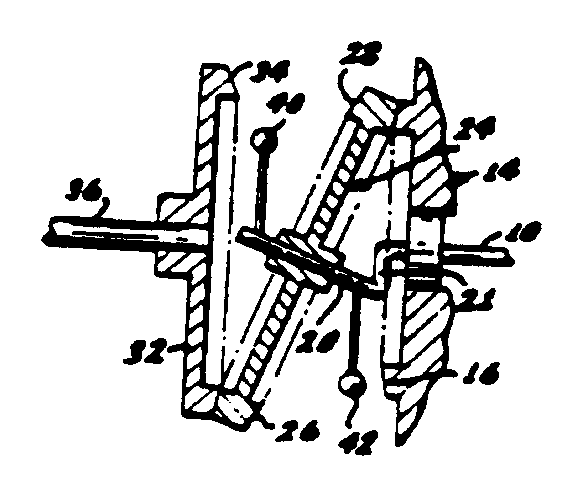

Image 1 for class 475 subclass 164


[List of Patents for class 475 subclass 165]    165Friction gearing:
 This subclass is indented under subclass 162.  Subject matter in which rotary motion is transmitted from one of said gears to the other by frictional engagement.

SEE OR SEARCH THIS CLASS, SUBCLASS:

183+,for related subject matter.

[List of Patents for class 475 subclass 166]    166Variable speed:
 This subclass is indented under subclass 165.  Subject matter wherein there is included means to vary the speed ratio*.

[List of Patents for class 475 subclass 167]    167Link chain gearing:
 This subclass is indented under subclass 162.  Subject matter wherein one of said gears comprises an endless member formed of interconnected links forming openings to receive cogs on the periphery of the other of said gears.

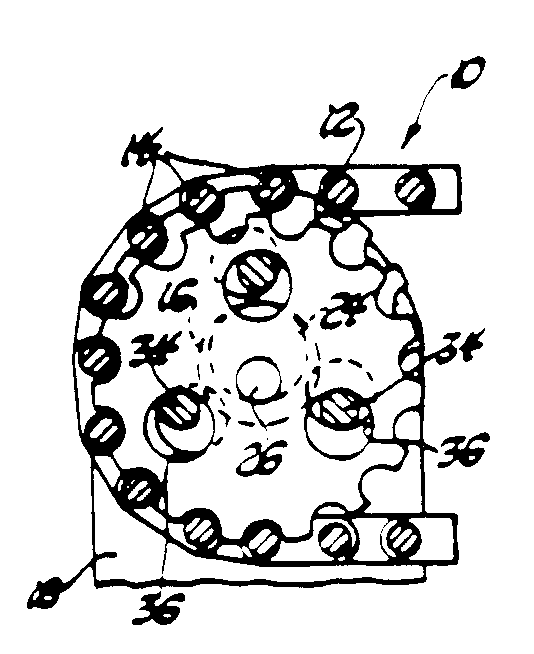

Image 1 for class 475 subclass 167

SEE OR SEARCH THIS CLASS, SUBCLASS:

182,for related subject matter.

[List of Patents for class 475 subclass 168]    168Gear teeth comprise rolling bodies:
 This subclass is indented under subclass 162.  Subject matter wherein surface contact between said first and second gears is via smooth surface cylinders or balls positioned between facing surfaces of said first and second gears.

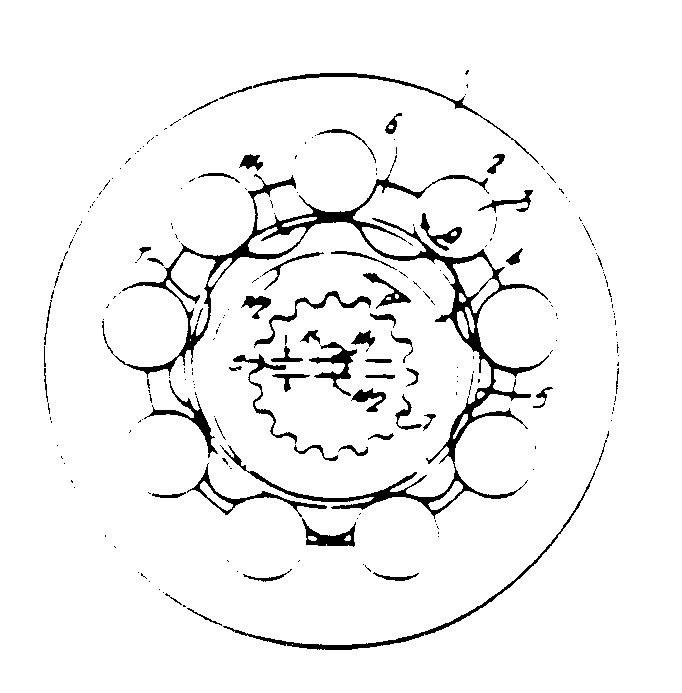

Image 1 for class 475 subclass 168


[List of Patents for class 475 subclass 169]    169Means to change speed ratio between input and output:
 This subclass is indented under subclass 162.  Subject matter including means selectively or automatically actuated to vary the speed ratio*.

Image 1 for class 475 subclass 169

SEE OR SEARCH THIS CLASS, SUBCLASS:

13,where the speed ratio* change is accompanied by an exchange in function of an input member* and an output member*.
166,for means to change the speed ratio* of friction gearing.

[List of Patents for class 475 subclass 170]    170Variable eccentricity:
 This subclass is indented under subclass 169.  Subject matter wherein the varying of the speed ratio* includes means to vary the radius of said path.

[List of Patents for class 475 subclass 171]    171Plural power paths to planetary gearing:
 This subclass is indented under subclass 169.  Subject matter wherein a power transmitting path extends between an input member* and each of two elements of a planetary transmission while an output member* is driven by a third planetary element.

[List of Patents for class 475 subclass 172]    172Condition responsive control:
 This subclass is indented under subclass 169.  Subject matter wherein said means is affected by a condition responsive* control.

SEE OR SEARCH THIS CLASS, SUBCLASS:

254+,and see the search notes therein for related subject matter.

[List of Patents for class 475 subclass 173]    173Plural planetary elements braked:
 This subclass is indented under subclass 169.  Subject matter wherein said means includes structure for applying a brake* to two planetary elements.

[List of Patents for class 475 subclass 174]    174Plural outputs:
 This subclass is indented under subclass 162.  Subject matter including means to drive at least two load devices*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

322,see the search notes therein for related subject matter.

[List of Patents for class 475 subclass 175]    175With releasable clutch or brake:
 This subclass is indented under subclass 162.  Subject matter which further has a selectively or automatically actuatable clutch* or brake* in a drive train* for said gears.

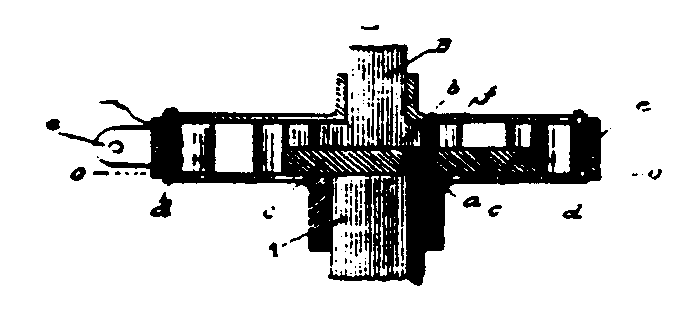

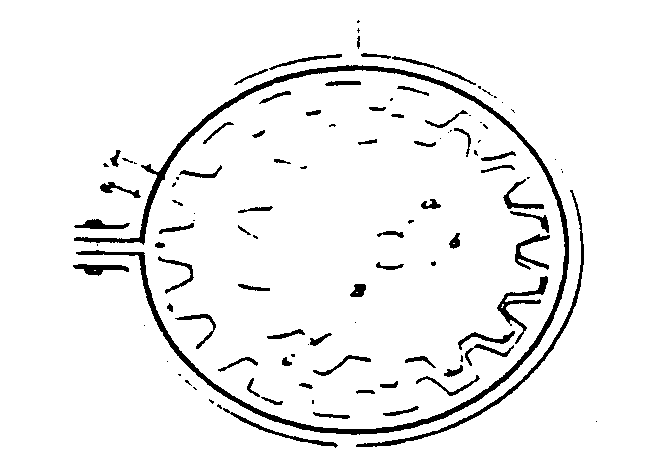

Image 1 for class 475 subclass 175

releasable brake to establish or release drive

releasable brake to establish or release drive

SEE OR SEARCH THIS CLASS, SUBCLASS:

68,and 900, for related subject matter, and 169+ for a clutch or brake to change speed ratio in this kind of gearing.

[List of Patents for class 475 subclass 176]    176Gear has plural circumferential tooth sets:
 This subclass is indented under subclass 162.  Subject matter wherein said first or second gear has a plurality of sets of drive teeth protecting therefrom, said sets being connected to each other for common movement.

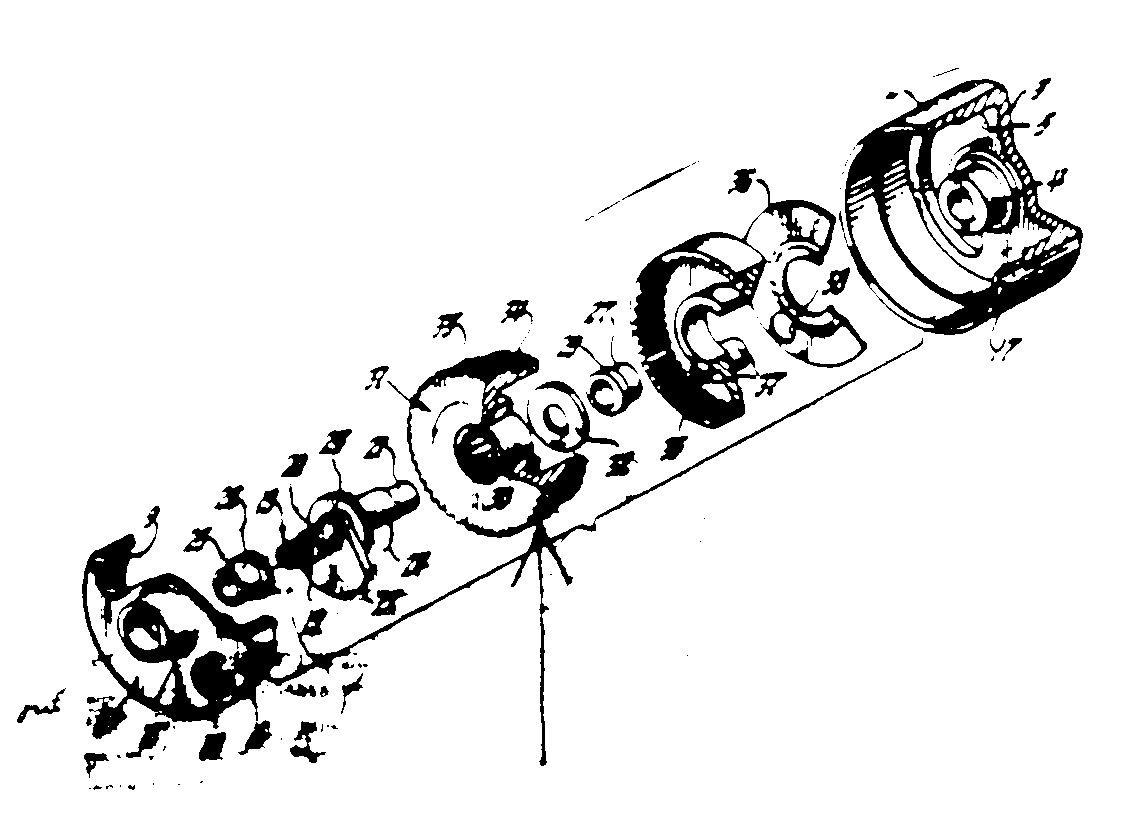

Image 1 for class 475 subclass 176


[List of Patents for class 475 subclass 177]    177Internal and external tooth sets:
 This subclass is indented under subclass 176.  Subject matter wherein the teeth of one of said sets of teeth project inwardly, and the teeth of the other of said sets of teeth project outwardly.

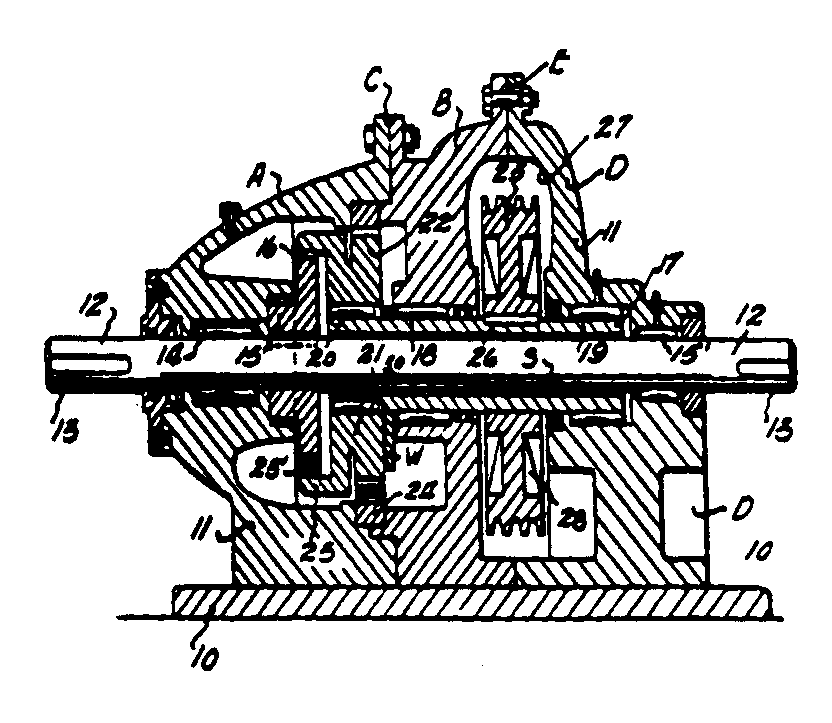

Image 1 for class 475 subclass 177


[List of Patents for class 475 subclass 178]    178Circumferentially spaced connector pins:
 This subclass is indented under subclass 162.  Subject matter wherein a plurality of peg-like elements are spaced about the axis of one of said gears to guide said gear for relative motion with respect to a stationary reaction element, or to guide said gear for relative motion with respect to another rotary member.

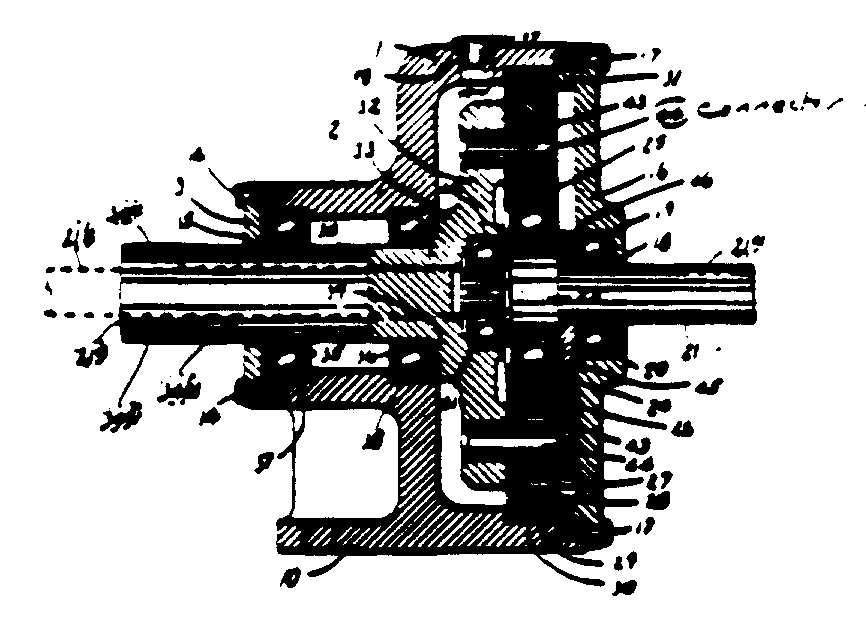

Image 1 for class 475 subclass 178


[List of Patents for class 475 subclass 179]    179Roller bearing surrounds pin:
 This subclass is indented under subclass 178.  Subject matter wherein said peg-like elements are guided for movement by roller bearings.

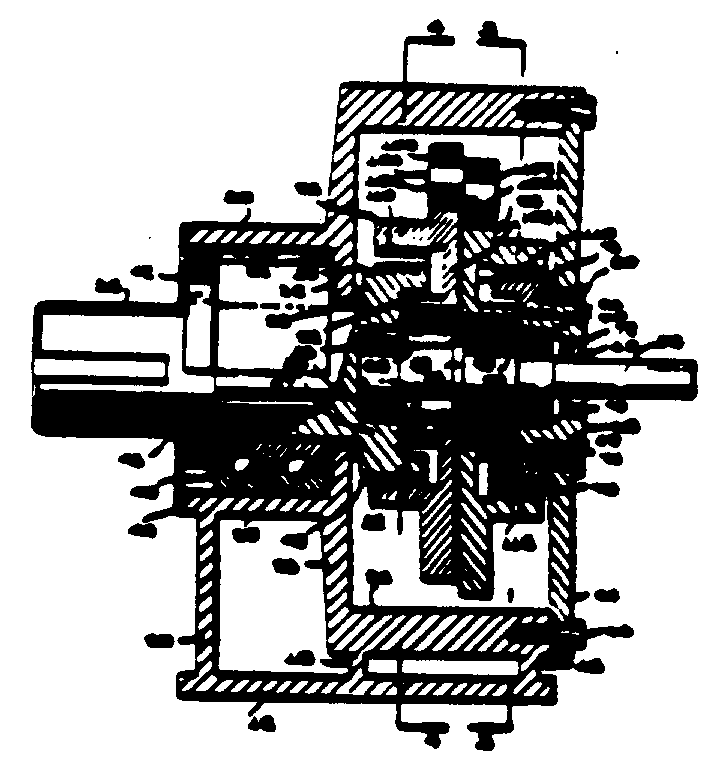

Image 1 for class 475 subclass 179


[List of Patents for class 475 subclass 180]    180Particular gear teeth:
 This subclass is indented under subclass 162.  Subject matter wherein significance is attributed to the configuration or material of a tooth used in one of said gears.

Resiliently deformable teeth

Resiliently deformable teeth

SEE OR SEARCH THIS CLASS, SUBCLASS:

344+,for related subject matter

[List of Patents for class 475 subclass 181]    181Particular counterweight:
 This subclass is indented under subclass 162.  Subject matter wherein significance is attributed to the configuration, material or location of a mass to balance one of said gears or rotating drive train* members.

[List of Patents for class 475 subclass 182]    182PLANET PINION ENGAGES FLEXIBLE BELT OR CHAIN:
 This subclass is indented under the class definition.  Subject matter wherein a planet pinion* has a driving surface which is in driving engagement with an endless pliant member.

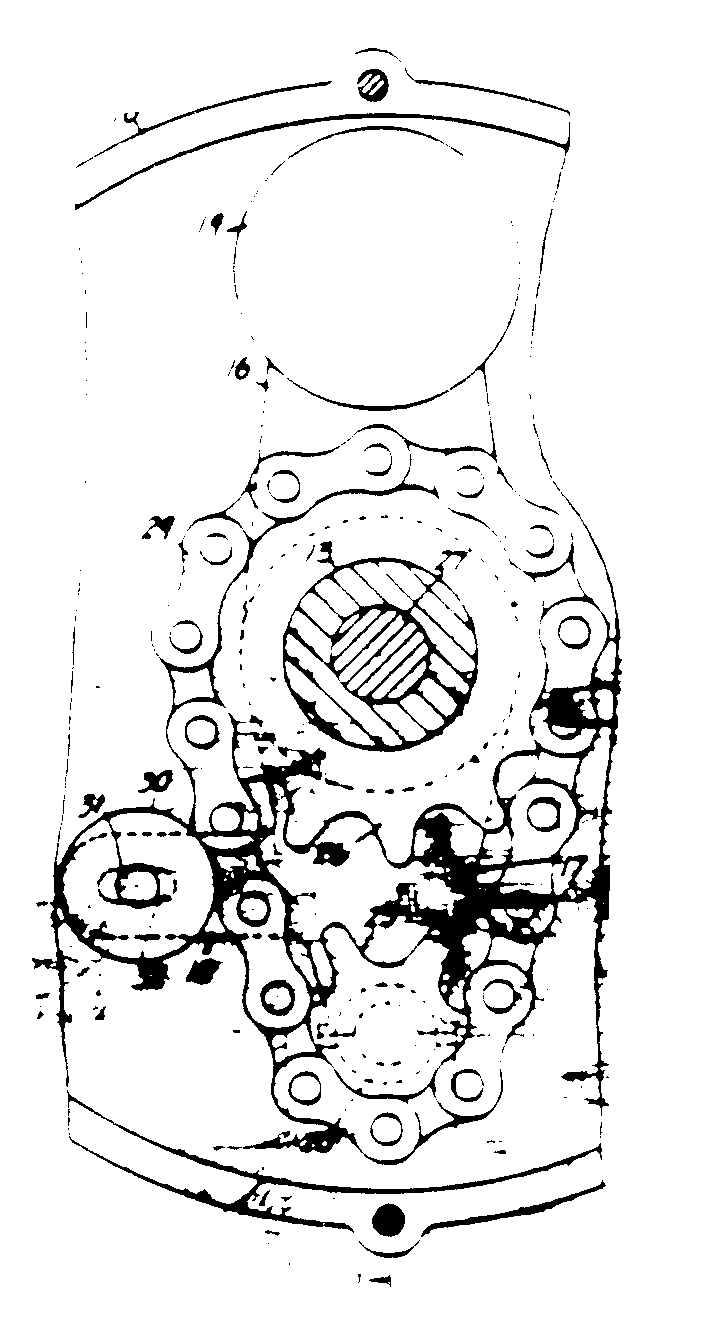

Image 1 for class 475 subclass 182

SEE OR SEARCH THIS CLASS, SUBCLASS:

167,for related subject matter.

[List of Patents for class 475 subclass 183]    183PLANET PINION IS FRICTION GEAR:
 This subclass is indented under the class definition.  Subject matter wherein a planet pinion includes a drive surface which receives or transmits rotary motion to a mating gear by frictional contact.

SEE OR SEARCH THIS CLASS, SUBCLASS:

26,for a friction drive in steering by driving, 114+ for fluid control of friction gearing, and 165+ for friction gearing in an eccentrically driven transmission.

[List of Patents for class 475 subclass 184]    184Plural outputs (e.g., differential):
 This subclass is indented under subclass 183.  Subject matter wherein plural load devices* are driven by the planetary transmission using said planet pinion*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

332,and see the search notes therein for related subject matter.

[List of Patents for class 475 subclass 185]    185Variable speed ratio (without slippage):
 This subclass is indented under subclass 183.  Subject matter wherein means is provided to change the speed ratio*.
(1) Note. A patent is not considered appropriate for this or indented subclasses if slippage between contacting surfaces is the only way the speed ratio is changed.

[List of Patents for class 475 subclass 186]    186Condition responsive ratio change:
 This subclass is indented under subclass 185.  Subject matter wherein said ratio changing means is condition responsive*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

254,and see the search notes therein for related subject matter.

[List of Patents for class 475 subclass 187]    187Releasably braked element:
 This subclass is indented under subclass 185.  Subject matter wherein said ratio changing means comprises a selectively actuatable brake* for an element of a planetary transmission.

[List of Patents for class 475 subclass 188]    188Plural elements releasably braked:
 This subclass is indented under subclass 187.  Subject matter which further include means to apply a second brake* to another element of said planetary transmission.

[List of Patents for class 475 subclass 189]    189Planet pinion is a ball:
 This subclass is indented under subclass 185.  Subject matter wherein said planet pinion* is a spherical element.

SEE OR SEARCH THIS CLASS, SUBCLASS:

196,for related subject matter.

[List of Patents for class 475 subclass 190]    190Planet pinion rotatable about axis at angle to axis of input or output gear:
 This subclass is indented under subclass 185.  Subject matter wherein said planet pinion* is mounted for rotation about an axis which is angularly related with respect to the rotational axis of a gear in driving relationship with said planet pinion*.

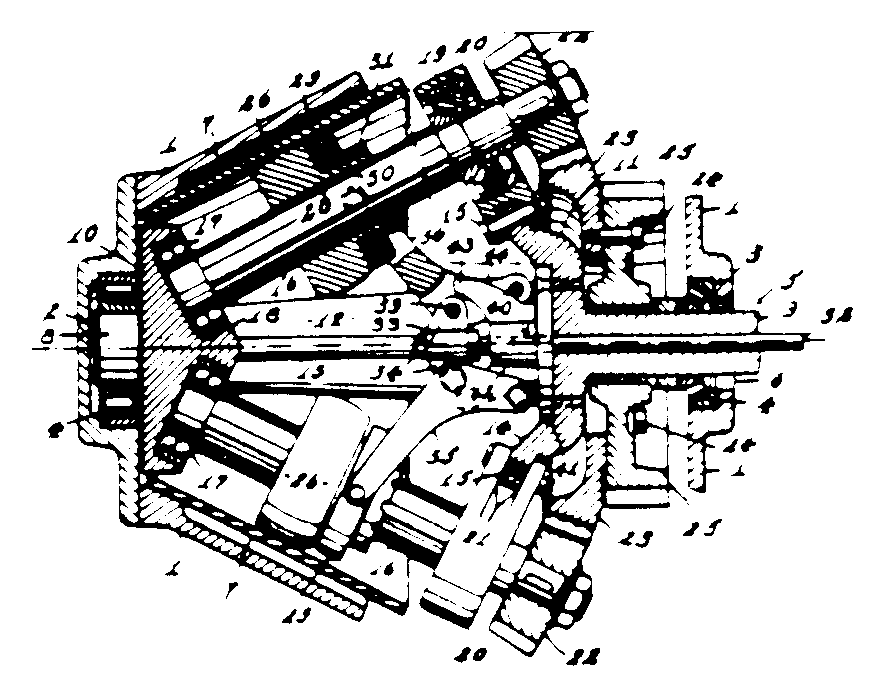

Image 1 for class 475 subclass 190

SEE OR SEARCH THIS CLASS, SUBCLASS:

9,197, 230+, 251+, 273+, 306+, and 336, for related subject matter.

[List of Patents for class 475 subclass 191]    191Planet pinion is member having axis fixed or adjustable to position perpendicular to axis of input or output gear:
 This subclass is indented under subclass 190.  Subject matter wherein said angular relationship is a right angle and wherein said planet pinion* is either fixed or adjustable to said right angle position.

Image 1 for class 475 subclass 191


[List of Patents for class 475 subclass 192]    192Pinion engages facing concave surfaces (e.g., mounted in torus.):
 This subclass is indented under subclass 191.  Subject matter wherein a pair of gears in driving relationship with said planet pinion* include concave surfaces facing each other to define a cavity for said planet pinion*.

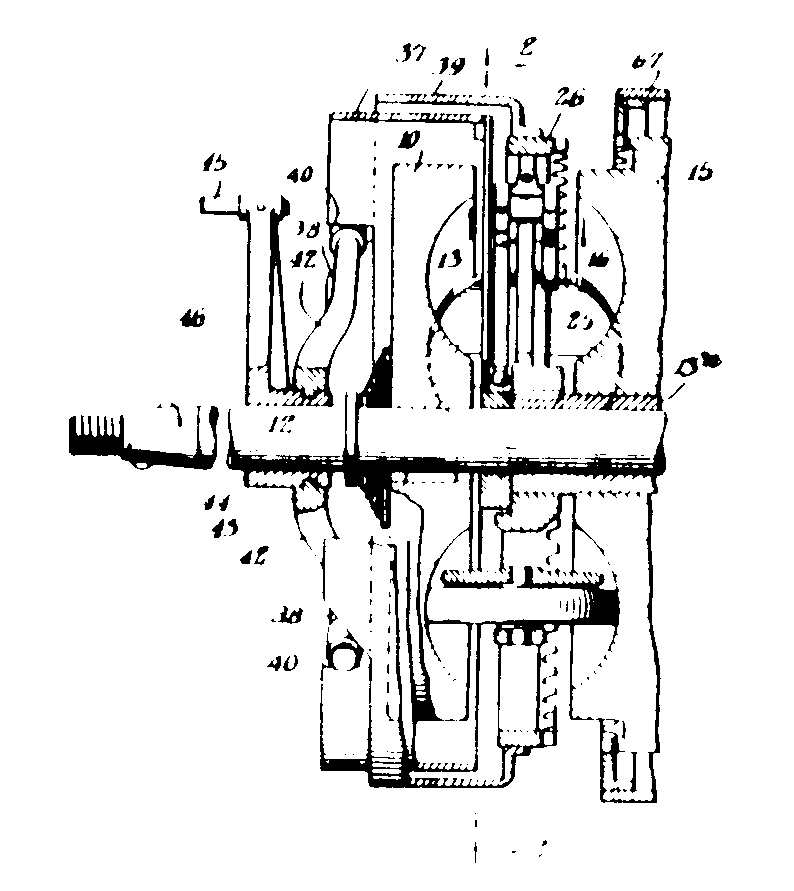

Image 1 for class 475 subclass 192


[List of Patents for class 475 subclass 193]    193Conical or frusto-conical planet pinion:
 This subclass is indented under subclass 190.  Subject matter wherein said planet pinion* is in the shape of a cone or the frustum of a cone.

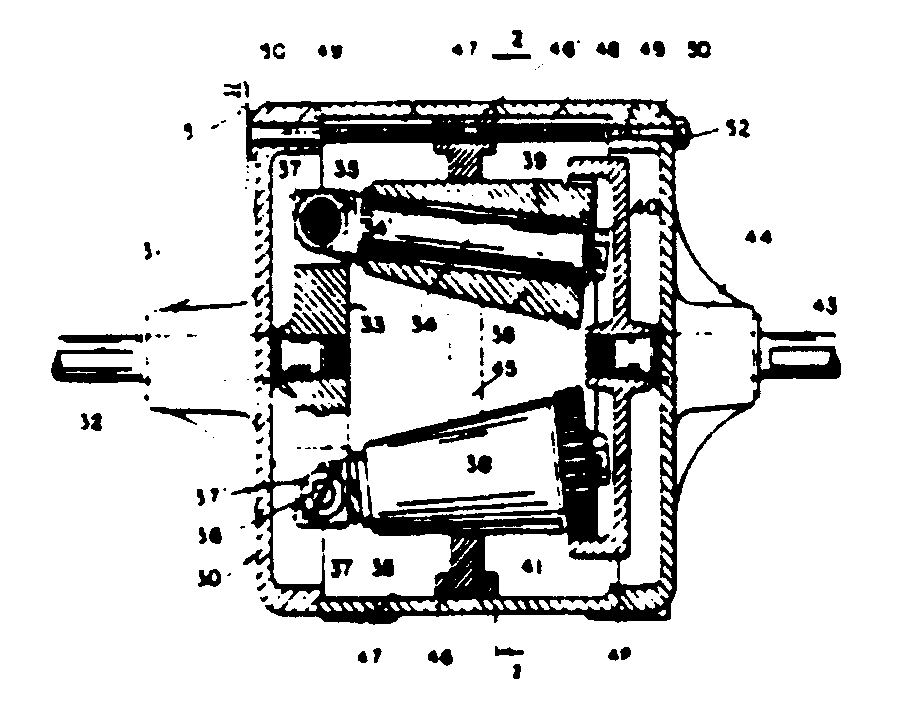

Image 1 for class 475 subclass 193


[List of Patents for class 475 subclass 194]    194Torque responsive means to increase contact pressure:
 This subclass is indented under subclass 193.  Subject matter including means for sensing resistance to movement or change in resistance to movement of a load device* or of a member in a drive train*; and, in response to such sensed resistance or change of resistance to movement, said means acts to increase pressure of frictional contact between said planet pinion* and a mating gear.

SEE OR SEARCH THIS CLASS, SUBCLASS:

195,for related subject matter.

[List of Patents for class 475 subclass 195]    195Torque responsive means to increase contact pressure:
 This subclass is indented under subclass 183.  Subject matter including means for sensing resistance to movement or change in resistance to movement of a load device* or of a member in a drive train*; and, in response to such sensed resistance or change of resistance to movement, said means acts to increase pressure of frictional contact between said planet pinion* and a mating gear.

SEE OR SEARCH THIS CLASS, SUBCLASS:

194,for related subject matter.

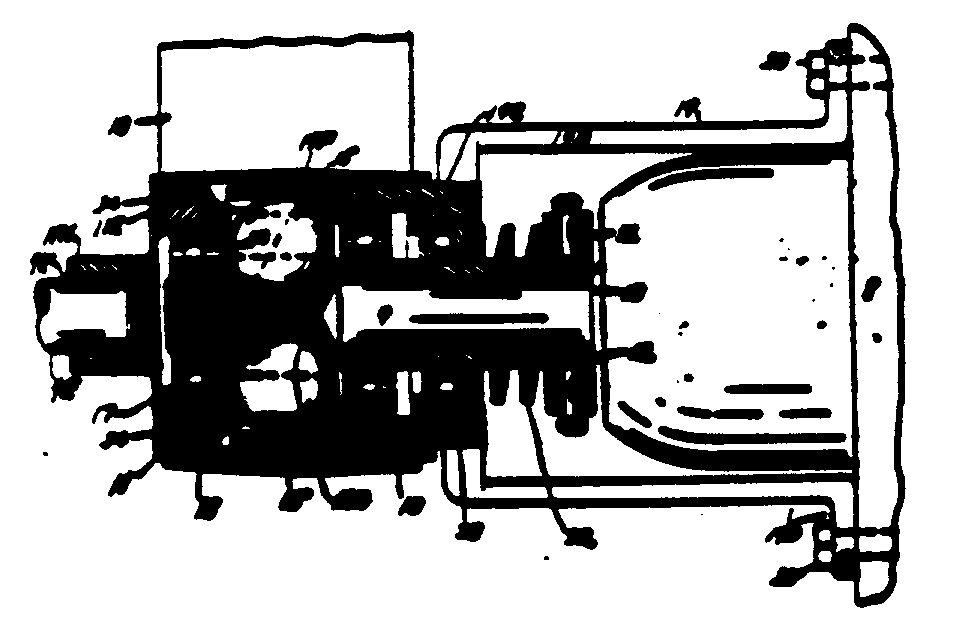

[List of Patents for class 475 subclass 196]    196Planet pinion is ball:
 This subclass is indented under subclass 183.  Subject matter wherein said planet pinion* is a spherical element.

SEE OR SEARCH THIS CLASS, SUBCLASS:

189,for a spherical planet pinion in a variable ratio transmission.

[List of Patents for class 475 subclass 197]    197Planet pinion rotatable about axis at angle to axis of input or output gear:
 This subclass is indented under subclass 183.  Subject matter wherein said planet pinion* is mounted for rotation about an axis which is angularly related with respect to the rotational axis of a gear in driving relationship with said planet pinion*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

9,190+, 230+, 251+, 273+, 306+, and 336, for related subject matter.

[List of Patents for class 475 subclass 198]    198VARIABLE SPEED OR DIRECTION TRANSMISSION COMBINED WITH DIFFERENTIAL:
 This subclass is indented under the class definition.  Subject matter wherein a differential transmission* is associated with another transmission capable of speed ratio* change or capable of reversing the direction of relative rotation between input and output shafts of said other transmission.

SEE OR SEARCH THIS CLASS, SUBCLASS:

220+,for differential planetary gearing.

SEE OR SEARCH CLASS:

74Machine Element or Mechanism,   for variable speed or direction transmissions.
474Endless Belt Power Transmission Systems or Components,   for non-planetary belt or chain gearing.

[List of Patents for class 475 subclass 199]    199Condition responsive:
 This subclass is indented under subclass 198.  Subject matter wherein said speed ratio* change or said direction reversal is condition responsive*.

Image 1 for class 475 subclass 199

SEE OR SEARCH THIS CLASS, SUBCLASS:

254+,and see the search notes therein for related subject matter.

[List of Patents for class 475 subclass 200]    200Differential is beneath prime mover or transmission:
 This subclass is indented under subclass 198.  Subject matter wherein significance is attributed to locating said differential transmission* at a position below a power source* or under said other transmission.

[List of Patents for class 475 subclass 201]    201Differential is between prime mover and transmission in the path of power flow:
 This subclass is indented under subclass 198.  Subject matter wherein said differential transmission* is positioned relative to said other transmission and a power source* so that power flows in a direction from said power source* through said differential transmission* to said other transmission.

SEE OR SEARCH THIS CLASS, SUBCLASS:

18+,for this arrangement in a steering by driving combination.

[List of Patents for class 475 subclass 202]    202With universal joint in drive train:
 This subclass is indented under subclass 198.  Subject matter including connecting means between two shaft elements in a drive train*, said connecting means permitting rotation to be transmitted from one element to the other when the axes of said elements are misaligned or angularly related.

SEE OR SEARCH THIS CLASS, SUBCLASS:

464,Rotary Shafts Gudgeons, Housings, and Flexible Couplings for Rotary, for universal joints in general.

[List of Patents for class 475 subclass 203]    203Plural selectively driveable gears surround differential:
 This subclass is indented under subclass 198.  Subject matter wherein input power to said differential transmission* is selectively supplied by either of two gears which encircle the external periphery of said differential transmission.

[List of Patents for class 475 subclass 204]    204Variable speed or direction transmission is planetary:
 This subclass is indented under subclass 198.  Subject matter wherein said other transmission is a planetary gear transmission as defined in the class definition.

SEE OR SEARCH THIS CLASS, SUBCLASS:

71,for this combination together with a fluid drive.

[List of Patents for class 475 subclass 205]    205Plural planetary units combined with differential:
 This subclass is indented under subclass 204.  Subject matter and further including a second planetary gear transmission.

SEE OR SEARCH THIS CLASS, SUBCLASS:

71,for this combination together with a fluid drive.

[List of Patents for class 475 subclass 206]    206Transmission output shaft parallel to differential output shafts:
 This subclass is indented under subclass 198.  Subject matter wherein the axis of the output shaft of said other transmission extends in a direction parallel to the axis of output shafts of said differential transmission*.

[List of Patents for class 475 subclass 207]    207NONPLANETARY VARIABLE SPEED OR DIRECTION TRANSMISSION COMBINED WITH PLANETARY TRANSMISSION:
 This subclass is indented under the class definition.  Subject matter which includes a power transmitting mechanism, other than a planetary gear transmission, having an input and an output shaft, and means capable of speed ratio* change between said shafts or capable of changing the direction of relative rotation of said shafts.

SEE OR SEARCH THIS CLASS, SUBCLASS:

52,and 66, for this combination with a fluid drive.
80+,for a transmission of the type found therein combined with a change speed non-planetary transmission.
198+,for a change speed or direction transmission combined with a differential*.

SEE OR SEARCH CLASS:

74Machine Element or Mechanism,   for nonplanetary variable speed gearing.

[List of Patents for class 475 subclass 208]    208Condition responsive:
 This subclass is indented under subclass 207.  Subject matter and further including a control which is condition responsive*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

254,and see the search notes therein for related subject matter.

[List of Patents for class 475 subclass 209]    209Interrelated control of in series transmissions:
 This subclass is indented under subclass 207.  Subject matter wherein a planetary gear transmission has first control means, and said power transmitting mechanism other than the planetary gear transmission has second control means; and wherein operation of one of said first or second control means affects the operation of the other of said control means.

[List of Patents for class 475 subclass 210]    210Nonplanetary transmission is belt or chain gearing:
 This subclass is indented under subclass 207.  Subject matter wherein said power transmitting mechanism includes a flexible endless member in a drive train*.

SEE OR SEARCH CLASS:

474Endless Belt Power Transmission Systems or Components,   for nonplanetary belt or chain gearing.

[List of Patents for class 475 subclass 211]    211Plural power paths to planetary gearing:
 This subclass is indented under subclass 210.  Subject matter wherein said power transmitting mechanism has at least two power output members leading therefrom, said power output members being connected to different elements of a planetary gear transmission to provide rotary input to either or both of said elements of said planetary transmission.

SEE OR SEARCH THIS CLASS, SUBCLASS:

329+,and see the search notes therein for related subject matter.

[List of Patents for class 475 subclass 212]    212Nonplanetary transmission is chain gearing:
 This subclass is indented under subclass 211.  Subject matter wherein said power transmitting mechanism comprises an endless member formed of rigid links.

[List of Patents for class 475 subclass 213]    213Nonplanetary transmission is chain gearing:
 This subclass is indented under subclass 210.  Subject matter wherein said power transmitting mechanism comprises an endless member formed of rigid links.

[List of Patents for class 475 subclass 214]    214Nonplanetary transmission is friction gearing:
 This subclass is indented under subclass 207.  Subject matter wherein said power transmitting mechanism includes a gear which receives or transmits rotary motion to a mating gear by frictional contact.

SEE OR SEARCH CLASS:

476Friction Gear Transmission Systems or Components,   for nonplanetary friction gearing, per se.

[List of Patents for class 475 subclass 215]    215Plural power paths to planetary gearing:
 This subclass is indented under subclass 214.  Subject matter wherein said power transmitting mechanism has at least two power output members leading therefrom, said power output members being connected to different elements of a planetary gear transmission to provide rotary input to either or both of said elements of said planetary gear transmission.

SEE OR SEARCH THIS CLASS, SUBCLASS:

329+,and see the search notes therein for related subject matter.

[List of Patents for class 475 subclass 216]    216Friction gear engages facing concave surfaces:
 This subclass is indented under subclass 215.  Subject matter wherein said power transmitting mechanism includes a gear between two members having facing concave surfaces.

input; output; control means; regime change inhibit

input; output; control means; regime change inhibit


[List of Patents for class 475 subclass 217]    217Nonplanetary transmission is disc and wheel:
 This subclass is indented under subclass 215.  Subject matter wherein one of said gears is in the form of a plate having a friction drive face, and the other said gear is generally cylindrical and has a friction drive surface on the rim thereof in contact with said face; said cylindrical gear being mounted for rotation about an axis generally perpendicular to a rotational axis of said plate, and the point of contact of said face with said rim being adjustable in a radial direction with respect to the axis of the plate to vary the speed ratio*.

[List of Patents for class 475 subclass 218]    218Plural power paths to planetary gearing:
 This subclass is indented under subclass 207.  Subject matter wherein said power transmitting mechanism has at least two power output members leading therefrom, said power output members being connected to different elements of a planetary gear transmission to provide rotary input to either or both of said elements of said planetary gear transmission.

SEE OR SEARCH THIS CLASS, SUBCLASS:

80+,for a transmission of the kind found therein combined with change speed nonplanetary transmission.
329+,and see the search notes therein for related subject matter.

[List of Patents for class 475 subclass 219]    219Plural planetary units:
 This subclass is indented under subclass 207.  Subject matter which includes at least two planetary gear transmissions.

SEE OR SEARCH THIS CLASS, SUBCLASS:

52,and 66, for related art.
80+,for a transmission of the type found therein combined with a change speed nonplanetary transmission.

[List of Patents for class 475 subclass 220]    220DIFFERENTIAL PLANETARY GEARING:
 This subclass is indented under the class definition.  Subject matter which includes a differential transmission* in a drive train*.

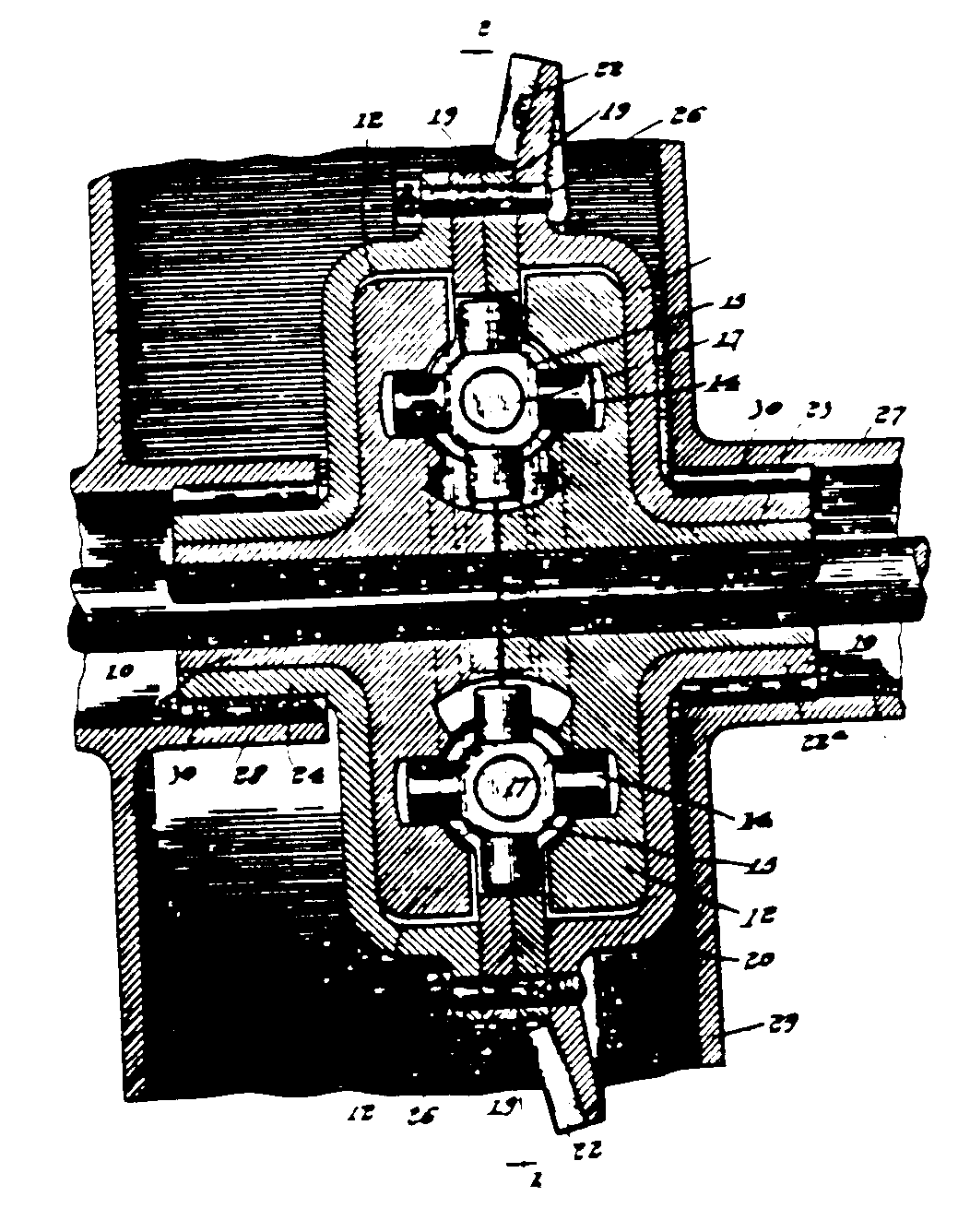

Image 1 for class 475 subclass 220

SEE OR SEARCH THIS CLASS, SUBCLASS:

6,15, 18+, 71, 84+, 150, 160, 174, 184, and 198+ for other differential planetary gearing or combinations therewith.

[List of Patents for class 475 subclass 221]    221Differential or nondifferential planetary combined with differential (e.g., two differentials):
 This subclass is indented under subclass 220.  Subject matter which includes at least two differential transmissions* or which includes a differential transmission* and another planetary gear transmission.

SEE OR SEARCH THIS CLASS, SUBCLASS:

198+,for a variable speed or direction transmission combined with a differential.

SEE OR SEARCH CLASS:

180Motor Vehicles,   subclasses 233+ for four wheel drive vehicles which may include plural differentials.

[List of Patents for class 475 subclass 222]    222With universal joint in drive train:
 This subclass is indented under subclass 220.  Subject matter including connecting means between two shaft elements in said drive train*, said connecting means permitting rotation to be transmitted from one element to the other when the axes of said elements are misaligned or angularly related.

SEE OR SEARCH THIS CLASS, SUBCLASS:

202,and 346+, for related subject matter.

[List of Patents for class 475 subclass 223]    223Including means to selectively apply rotational power to only one output:
 This subclass is indented under subclass 220.  Subject matter including means to disconnect one output from said differential transmission* while driving the other output, or including means to apply a brake* to one of said outputs while driving the other output.

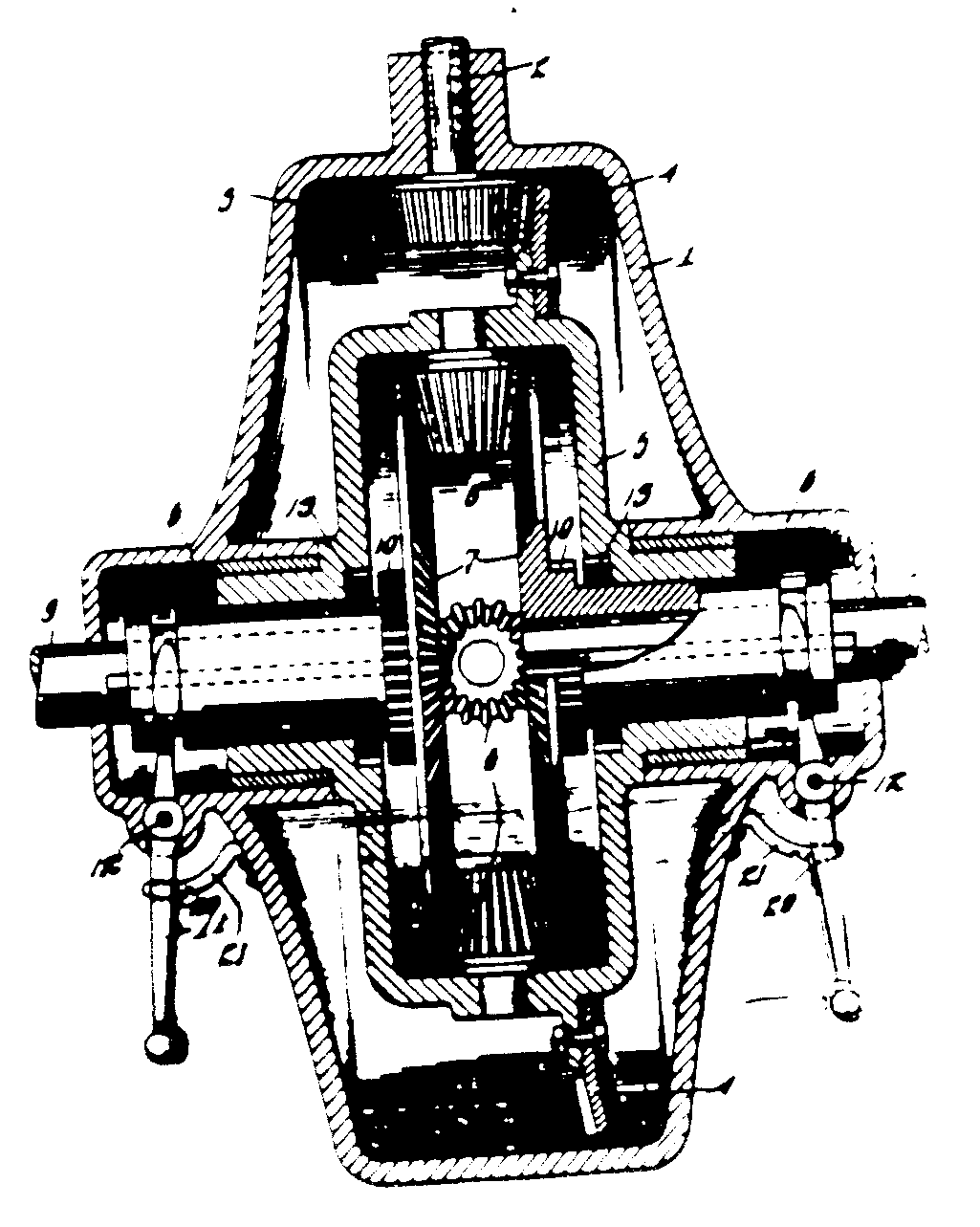

Image 1 for class 475 subclass 223


[List of Patents for class 475 subclass 224]    224By braking other output:
 This subclass is indented under subclass 223.  Subject matter including means to apply a brake* to one of said outputs while driving the other output.

[List of Patents for class 475 subclass 225]    225With additional gearset between differential output and load:
 This subclass is indented under subclass 220.  Subject matter including nonplanetary gearing between an output of said differential transmission and a load device*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

343,and see the search notes therein for related subject matter.

[List of Patents for class 475 subclass 226]    226Planet pinion is worm gear:
 This subclass is indented under subclass 220.  Subject matter wherein a planet pinion* in said differential transmission* is a worm gear*.

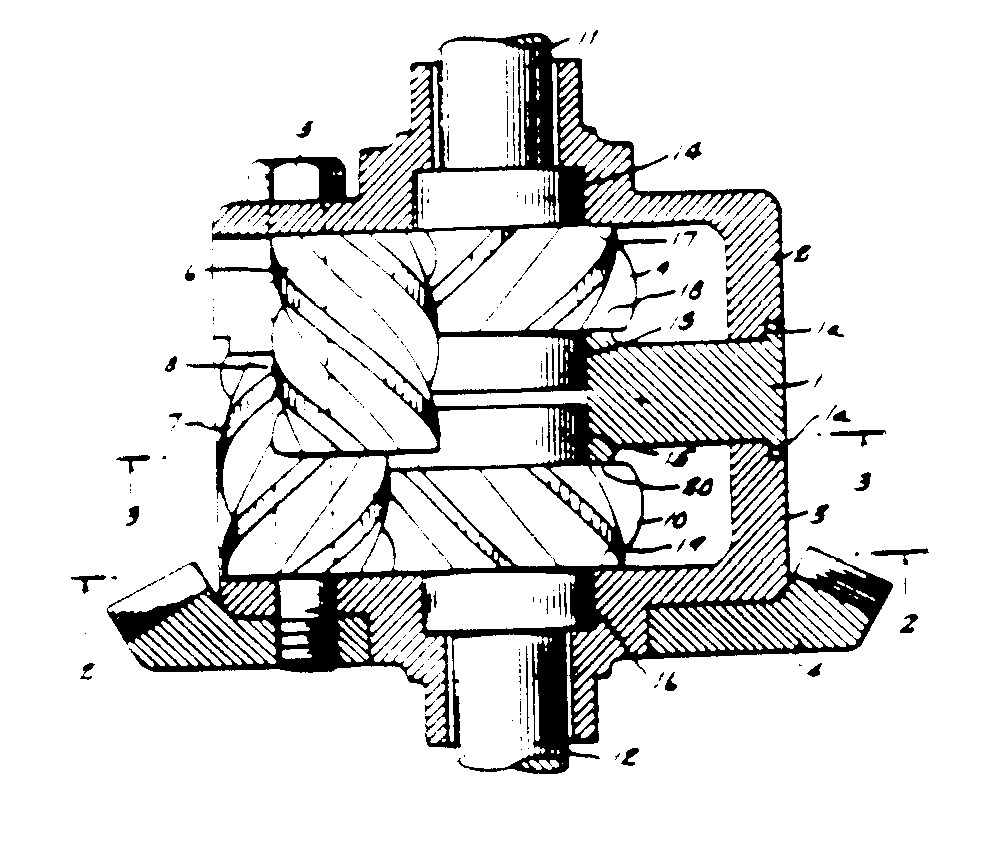

Image 1 for class 475 subclass 226

SEE OR SEARCH THIS CLASS, SUBCLASS:

7,304 and 333, for related subject matter.

[List of Patents for class 475 subclass 227]    227And spur gear on pinion:
 This subclass is indented under subclass 226.  Subject matter wherein said planet pinion* also includes a spur gear*.

Image 1 for class 475 subclass 227


[List of Patents for class 475 subclass 228]    228Worm drive on input shaft:
 This subclass is indented under subclass 220.  Subject matter wherein input power to said differential transmission* is supplied by a worm gear*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

7,for related subject matter.

[List of Patents for class 475 subclass 229]    229And roller bearing supporting worm from casing:
 This subclass is indented under subclass 228.  Subject matter wherein said worm gear* is supported for rotation by ball bearings or cylindrical bearings positioned around the axis of said worm gear.

Image 1 for class 475 subclass 229


[List of Patents for class 475 subclass 230]    230Bevel gear differential:
 This subclass is indented under subclass 220.  Subject matter wherein said differential gearing* is formed by bevel gears*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

9,190+, 197, 273+, 306+, and 336, for related subject matter.

[List of Patents for class 475 subclass 231]    231With means to limit overspeed of one output (e.g., lock-up clutch):
 This subclass is indented under subclass 230.  Subject matter including means to restrict the amount the rotational velocity of one of the output members of said differential transmission* may exceed the rotational velocity of the other of said output members.

SEE OR SEARCH THIS CLASS, SUBCLASS:

86+,for fluid actuated clutches* in differentials*
150,for electric or magnetic controlled differentials*
249+,for related subject matter.

[List of Patents for class 475 subclass 232]    232Centrifugal actuator:
 This subclass is indented under subclass 231.  Subject matter wherein said means for restricting said rotational velocity includes an element movable outwardly in response to inertial force caused by rotation of a part in said differential transmission*.

[List of Patents for class 475 subclass 233]    233Lock-up clutch between pinion and pinion carrier:
 This subclass is indented under subclass 231.  Subject matter wherein said means includes an element for directly locking a planet pinion* to a cage carrying said pinion or to a supporting pin for said pinion.

SEE OR SEARCH THIS CLASS, SUBCLASS:

91,108, 109+, and 305, for related subject matter.

[List of Patents for class 475 subclass 234]    234By axial movement of output gear:
 This subclass is indented under subclass 231.  Subject matter wherein said restricting means is operated by movement of one said output members in a direction parallel to its axis of rotation.

[List of Patents for class 475 subclass 235]    235With spring bias on gear or clutch:
 This subclass is indented under subclass 234.  Subject matter including resilient means providing a force bias on said output gear, or on a clutch* therefor, in a direction parallel to its rotational axis.

SEE OR SEARCH THIS CLASS, SUBCLASS:

240+,for related subject matter.

[List of Patents for class 475 subclass 236]    236Particular gear shape or tooth interaction limits overspeed:
 This subclass is indented under subclass 231.  Subject matter wherein significance is attributed to a special shape of a gear tooth or to a special interaction between gear teeth to provide said restriction.

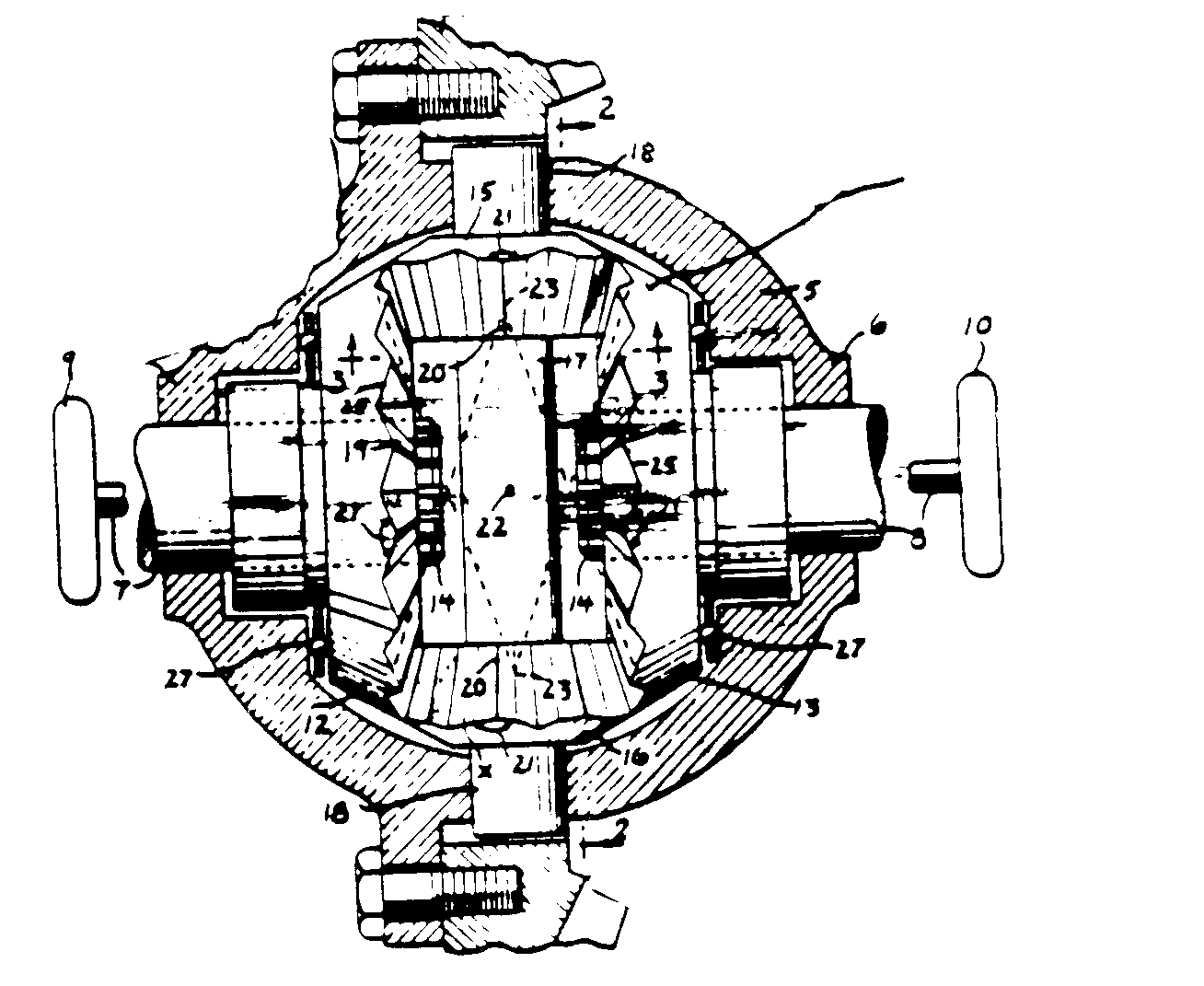

particular angle of gear teeth causes lock-up

particular angle of gear teeth causes lock-up


[List of Patents for class 475 subclass 237]    237Manual actuator:
 This subclass is indented under subclass 231.  Subject matter wherein said restricting means includes a member selectively actuatable by human force.

SEE OR SEARCH THIS CLASS, SUBCLASS:

250,for related subject matter.

[List of Patents for class 475 subclass 238]    238Friction clutch:
 This subclass is indented under subclass 237.  Subject matter wherein said restricting means comprises a clutch* in which pressure and resultant friction between faces of two relatively movable parts causes the parts to have common movement.

[List of Patents for class 475 subclass 239]    239Plate clutch:
 This subclass is indented under subclass 238.  Subject matter in which said relatively movable parts are in the form of discs.

[List of Patents for class 475 subclass 240]    240Spring bias on overspeed limiting means:
 This subclass is indented under subclass 231.  Subject matter wherein said restricting means include a resilient member urging a part thereof in one direction.

SEE OR SEARCH THIS CLASS, SUBCLASS:

235,for related subject matter.

[List of Patents for class 475 subclass 241]    241Helically coiled spring:
 This subclass is indented under subclass 240.  Subject matter wherein said resilient member is a wire coiled in the shape of a helix.

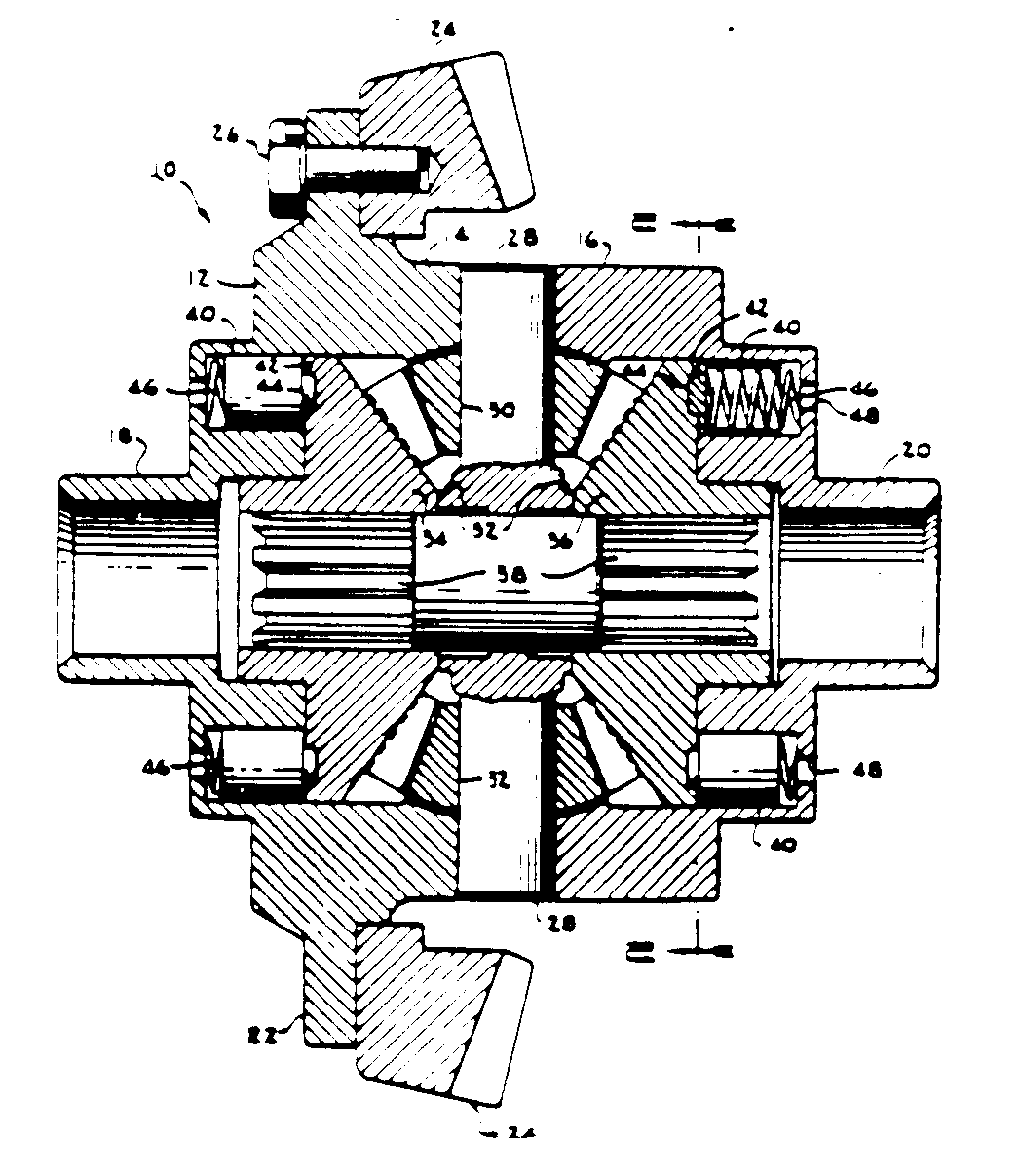

Image 1 for class 475 subclass 241


[List of Patents for class 475 subclass 242]    242Separate planet pinions or separate tooth set on same pinion for each output:
 This subclass is indented under subclass 230.  Subject matter wherein a separate planet pinion* is provided in said differential gearing* for each output thereof; or wherein a planet pinion has first and second tooth sets thereon, the first of said tooth sets engaging one of said outputs, and the second of said tooth sets engaging the other of said outputs.

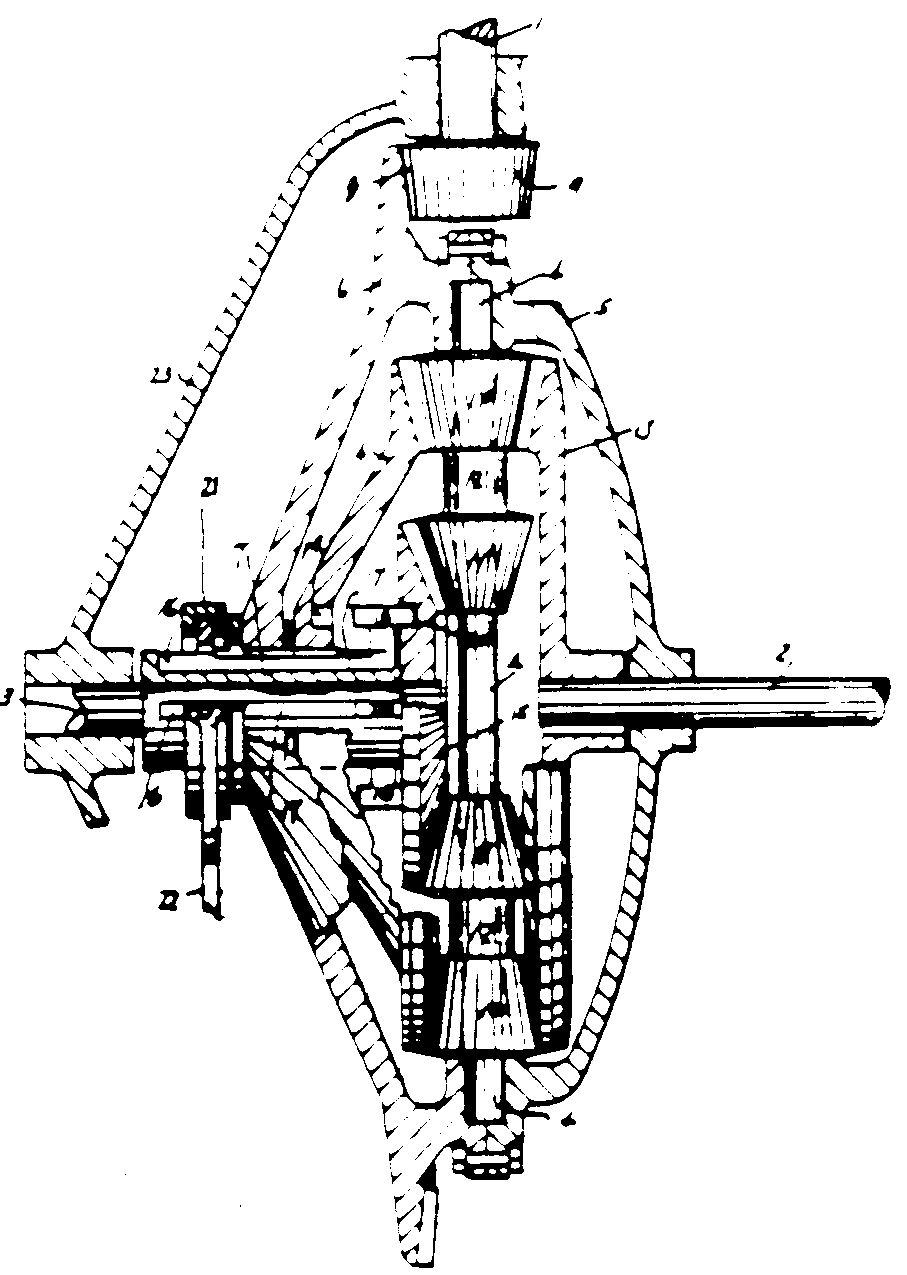

Image 1 for class 475 subclass 242


[List of Patents for class 475 subclass 243]    243Output gear rotatable relative to axial support shaft:
 This subclass is indented under subclass 230.  Subject matter wherein one of the output gears of said differential transmission* is rotatable relative to a shaft upon which the gear is mounted.

[List of Patents for class 475 subclass 244]    244Support shaft coupled to other output gear:
 This subclass is indented under subclass 243.  Subject matter wherein said shaft is connected to another of the output gears for joint rotation therewith.

[List of Patents for class 475 subclass 245]    245With roller bearing between output gear and shaft:
 This subclass is indented under subclass 243.  Subject matter wherein said output gear is supported for rotation on said shaft by ball-bearings or cylindrical bearings positioned around the axis of said shaft.

[List of Patents for class 475 subclass 246]    246With roller bearing between gear and its support:
 This subclass is indented under subclass 230.  Subject matter wherein at least one of said bevel gears* is supported for rotation by ball bearings or by cylindrical bearings surrounding the rotational axis of the bevel gear.

SEE OR SEARCH THIS CLASS, SUBCLASS:

253,and 348, for related subject matter.

[List of Patents for class 475 subclass 247]    247Ball bearing:
 This subclass is indented under subclass 246.  Subject matter wherein said bearings are in the shape of a round ball.

[List of Patents for class 475 subclass 248]    248Spur gear differential:
 This subclass is indented under subclass 220.  Subject matter wherein said differential gearing* is formed of spur gear*.

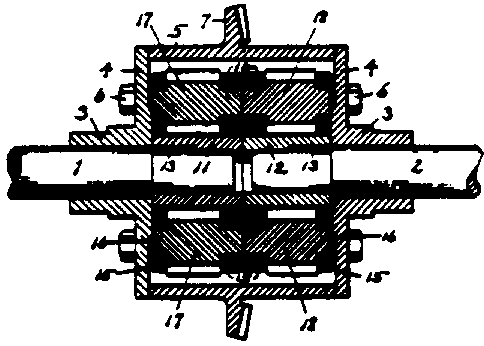

Image 1 for class 475 subclass 248


[List of Patents for class 475 subclass 249]    249With means to limit overspeed of one output:
 This subclass is indented under subclass 248.  Subject matter including means to restrict the amount the rotational velocity of one of the output members of said differential transmission* may exceed the rotational velocity of the other of said output members.

SEE OR SEARCH THIS CLASS, SUBCLASS:

84+,for fluid actuated clutches* in differentials*
150,for electric or magnetic controlled differentials*
231+,for related subjected matter.

[List of Patents for class 475 subclass 250]    250Manual actuator:
 This subclass is indented under subclass 249.  Subject matter wherein said restricting means includes a member selectively actuatable by human force.

SEE OR SEARCH THIS CLASS, SUBCLASS:

237+,for related subject matter.

[List of Patents for class 475 subclass 251]    251Pinion axis at angle intersecting axis of output:
 This subclass is indented under subclass 248.  Subject matter wherein the axis of rotation* of a planet pinion* in said differential gearing* extends at an angle with respect to the rotational axis of an output member of said differential gearing.

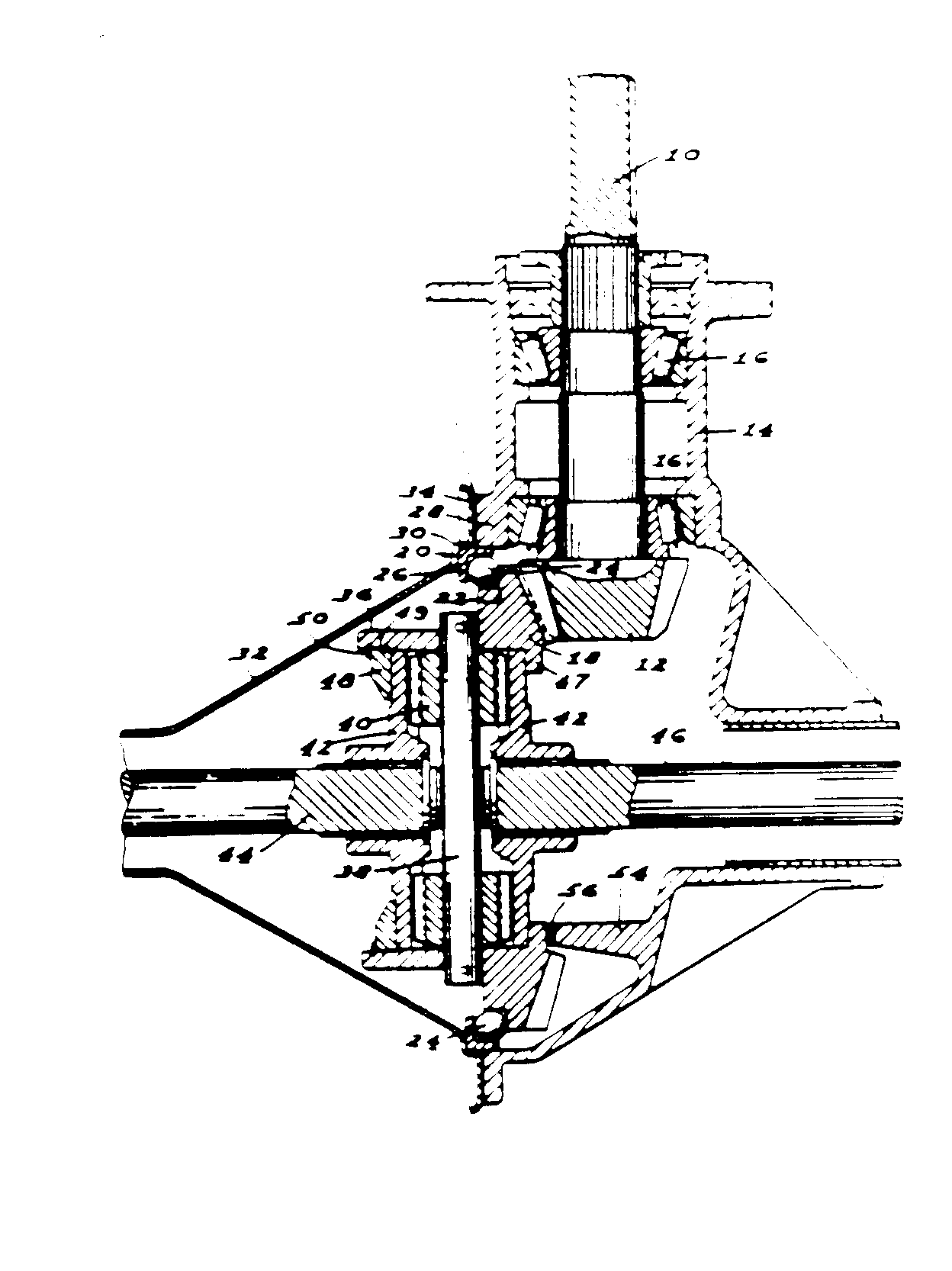

Image 1 for class 475 subclass 251

SEE OR SEARCH THIS CLASS, SUBCLASS:

190+,197, 273+, 306+, and 336, for related subject matter.

[List of Patents for class 475 subclass 252]    252Intermeshing planet pinions:
 This subclass is indented under subclass 248.  Subject matter wherein said differential gearing* includes a plurality of planet pinions* having gear teeth which intermesh with each other.

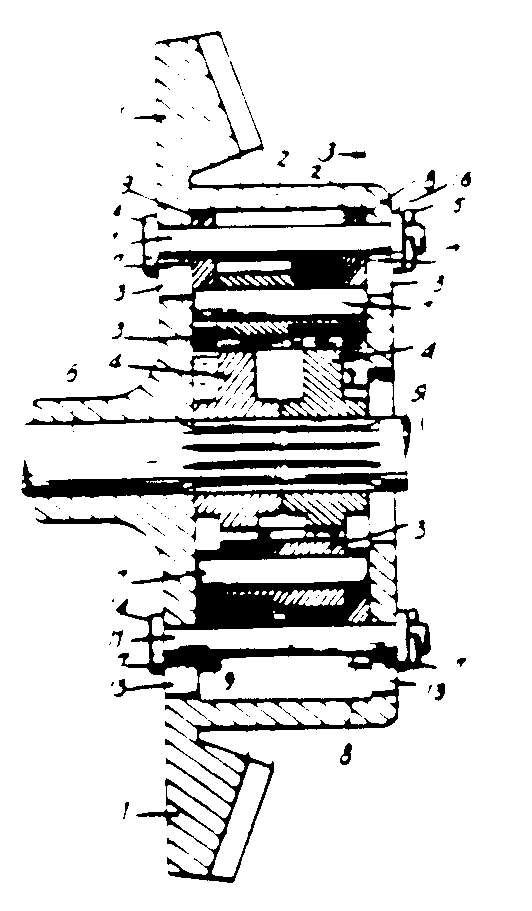

Image 1 for class 475 subclass 252


[List of Patents for class 475 subclass 253]    253With roller bearing between gear and its support:
 This subclass is indented under subclass 248.  wherein at least one of said spur gears* is supported for rotation by ball bearings or by cylindrical bearings surrounding the rotational axis of said spur gear.

SEE OR SEARCH THIS CLASS, SUBCLASS:

246,and 348, for related subject matter.

[List of Patents for class 475 subclass 254]    254CONDITION RESPONSIVE CONTROL:
 This subclass is indented under the class definition.  Subject matter together with a condition responsive* transmission regulating means.

SEE OR SEARCH THIS CLASS, SUBCLASS:

2,19, 42, 43, 47, 51, 60, 76, 94, 117, 118, 125, 153, 186, 199, 208, and 232, for various transmission combinations including condition responsive* control.

SEE OR SEARCH CLASS:

477Interrelated Power Delivery Controls, Including Engine Control,   for condition responsive transmission control also including motor control.

[List of Patents for class 475 subclass 255]    255Eccentrically weighted planet:
 This subclass is indented under subclass 254.  Subject matter wherein a planet pinion* includes an additional mass carried thereby at a location spaced from its axis.

SEE OR SEARCH THIS CLASS, SUBCLASS:

112,for a similar combination but using fluid as the eccentric weight.

[List of Patents for class 475 subclass 256]    256Downshift responsive to high speed limit:
 This subclass is indented under subclass 254.  Subject matter wherein a planetary transmission is regulated such that the attainment of an undesirable fast speed is prevented by changing the speed ratio* to rotate an output member* at a lower velocity.

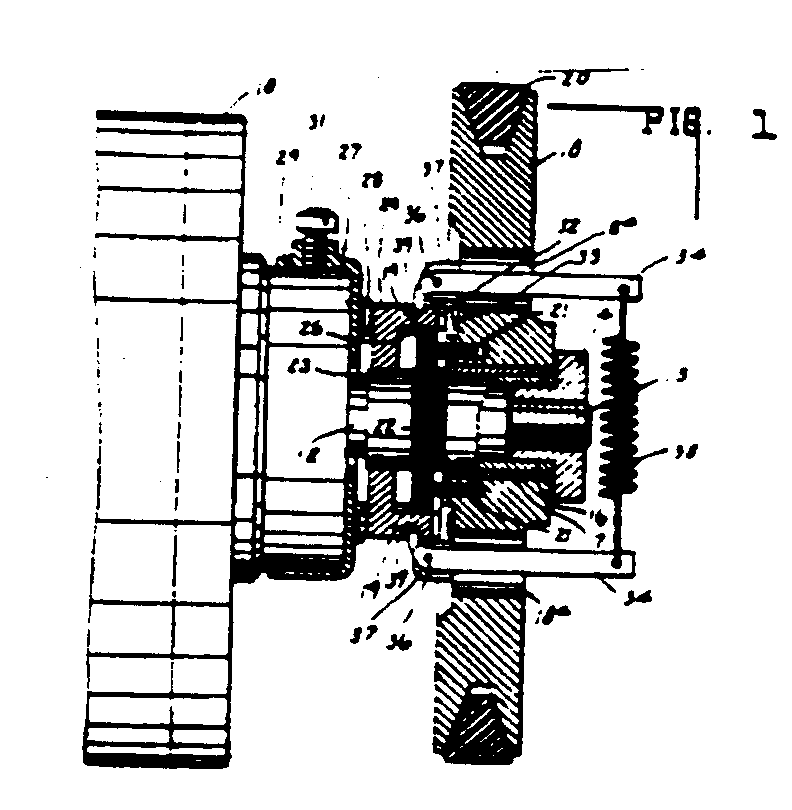

flyweight

flyweight


[List of Patents for class 475 subclass 257]    257Speed responsive control adjusted or opposed by torque:
 This subclass is indented under subclass 254.  Subject matter wherein a planetary transmission is regulated in response to the velocity of one of its parts but such regulation is modified by the rotary effort exerted by a transmission part.

[List of Patents for class 475 subclass 258]    258Centrifugally controlled clutch or brake:
 This subclass is indented under subclass 254.  7Subject matter wherein a clutch* or brake* is utilized to change the speed ratio* of a planetary transmission and the operation of such clutch* or brake* is controlled by the velocity of a transmission part as measured by the centrifugal force of a mass rotating with said part.

[List of Patents for class 475 subclass 259]    259One-way clutch or brake:
 This subclass is indented under subclass 258.  Subject matter wherein the clutch* or brake* controlled is a one-way clutch* or a one-way brake*.

[List of Patents for class 475 subclass 260]    260Centrifugal brake control:
 This subclass is indented under subclass 258.  Subject matter wherein the device controlled is a brake*.

[List of Patents for class 475 subclass 261]    261Positive clutch:
 This subclass is indented under subclass 258.  Subject matter wherein two parts of a controlled clutch* each include teeth-like elements thereon that mesh when the clutch is engaged so that torque is delivered positively, as opposed to frictionally, from one part to the other.

[List of Patents for class 475 subclass 262]    262Axially engaged friction clutch:
 This subclass is indented under subclass 258.  Subject matter wherein a controlled clutch* has two parts with frictional drive faces and the two parts of the controlled clutch* are moved, one relative to the other, in the direction of the transmission axis to engage or disengage their frictional surfaces.

[List of Patents for class 475 subclass 263]    263Overload release:
 This subclass is indented under subclass 254.  Subject matter including means to sense when torque to an output member* exceeds a predetermined value; and, in response to such sensing, interrupt the flow of power through a drive train* power path.

SEE OR SEARCH THIS CLASS, SUBCLASS:

192,Clutches and Power-Stop Control, subclasses 56+, 129+ and 150 for related art.
464,Rotary Shafts, Gudgeons, Housings, and Flexible Couplings for Rotary Shafts, subclasses 30+ for an overload release coupling in a drive train.

[List of Patents for class 475 subclass 264]    264Spring applied friction drive establishing means:
 This subclass is indented under subclass 263.  Subject matter wherein a coupling, clutch* or brake* is utilized to establish a speed ratio* in a planetary transmission, such coupling, clutch* or brake* being of a non-positive, friction type and being engaged by a spring and disengaged in response to torque.
(1) Note. In disengaging the coupling, clutch* or brake* a second coupling, clutch* or brake* may or may not be engaged.

SEE OR SEARCH THIS CLASS, SUBCLASS:

140+,for a spring applied and fluid released clutch* or brake*
301,for a clutch* or brake* consisting of a helical spring.

[List of Patents for class 475 subclass 265]    265Drive establishing means is friction brake:
 This subclass is indented under subclass 264.  Subject matter wherein the speed ratio is established by a spring engaged brake*.

[List of Patents for class 475 subclass 266]    266Stepped, torque responsive ratio change:
 This subclass is indented under subclass 254.  Subject matter wherein a plurality of distinct speed ratios* are effected by the use of a plurality of clutches* or brakes* and the change from one ratio to another is in response to the turning effort of a part of a transmission.

Image 1 for class 475 subclass 266

SEE OR SEARCH THIS CLASS, SUBCLASS:

12,for a stepped ratio change in response to the change in direction of an input member*.

[List of Patents for class 475 subclass 267]    267With flywheel or centrifugal weight control:
 This subclass is indented under subclass 254.  Subject matter wherein a planetary transmission is controlled in response to (1) the affect thereon of the inertia of a separate mass driven by a transmission part, or (2) the radially acting force produced in response to the speed of a transmission part by a separate mass driven by said part and spaced from the rotary axis of such part.

SEE OR SEARCH THIS CLASS, SUBCLASS:

255,for eccentrically weighted planet pinions* and 258+ for centrifugally controlled clutch* or brake*.

SEE OR SEARCH CLASS:

180Motor Vehicles,   subclass 165 for the use of a flywheel in a power delivery system together with significant vehicle structure.

[List of Patents for class 475 subclass 268]    268With planet axis at angle to axis of mating gear (e.g., bevel gears):
 This subclass is indented under subclass 267.  Subject matter wherein a planet pinion* axis extends at an angle with respect to the rotational axis of a gear that meshes with said planet pinion.

[List of Patents for class 475 subclass 269]    269WITH MEANS TO VARY DRIVE RATIO OR DISCONNECT DRIVE (E.G., BRAKE OR CLUTCH):
 This subclass is indented under the class definition.  Subject matter which includes a ratio-changing device to provide at least two different speed ratios*; or wherein means are provided to disconnect the flow of power to an output member* while an input member* continues to rotate.

SEE OR SEARCH THIS CLASS, SUBCLASS:

91+,for fluid-resistance type clutches* and brakes*.
116+,for fluid control of clutches* and brakes*.
149+,for electrical control of clutches* and brakes*.

[List of Patents for class 475 subclass 270]    270Manual force provides reaction during drive:
 This subclass is indented under subclass 269.  Subject matter wherein a reaction force in a planetary gear transmission is provided by human force limiting or preventing rotation of an element in the transmission while another element in the transmission provides rotation to an output member*.

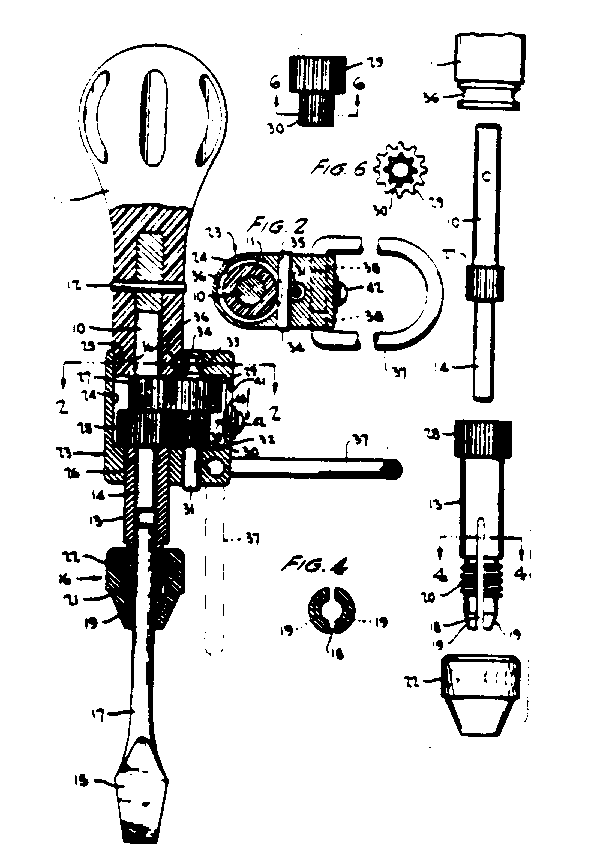

Image 1 for class 475 subclass 270


[List of Patents for class 475 subclass 271]    271Plural elements selectively braked:
 This subclass is indented under subclass 269.  Subject matter wherein an assemblage which comprises a planetary gear transmission or a plurality of planetary gear transmissions has at least two elements thereof which are provided with a brake*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

173,for a transmission including an eccentric type planetary gear set having plural planetary elements braked.

[List of Patents for class 475 subclass 272]    272With preselection:
 This subclass is indented under subclass 271.  Subject matter including a first manual controller actuatable to select a desired speed ratio* and a second manual controller effective to engage the said desired speed ratio*.

SEE OR SEARCH CLASS:

477Interrelated Power Delivery Controls, Including Engine Control,   wherein a second manual controller may be a motor control, such as an accelerator pedal.

[List of Patents for class 475 subclass 273]    273Axis of planet pinion at angle to axis of mating gear (e.g., bevel gears):
 This subclass is indented under subclass 271.  Subject matter wherein the planetary gear transmission includes a planet pinion* having a rotational axis extending at an angle with respect to the rotational axis of an intermeshing gear.

SEE OR SEARCH THIS CLASS, SUBCLASS:

9,190+, 197, 230+, 251+, 306+, and 336, for related subject matter.

[List of Patents for class 475 subclass 274]    274And additional planetary gearset having axis of pinion parallel to axis of mating gear:
 This subclass is indented under subclass 273.  Subject matter which includes another planetary gear transmission which has a planet pinion* with a rotational axis extending in a direction parallel to a rotational axis of an intermeshing gear.

[List of Patents for class 475 subclass 275]    275Transmission includes three relatively rotatable sun gears:
 This subclass is indented under subclass 271.  Subject matter wherein said assemblage includes at least three sun gears* which are relatively rotatable.

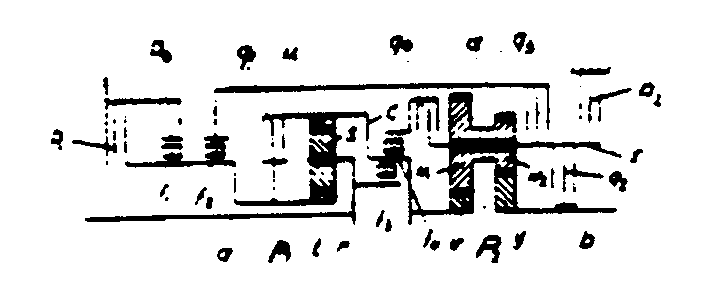

Image 1 for class 475 subclass 275

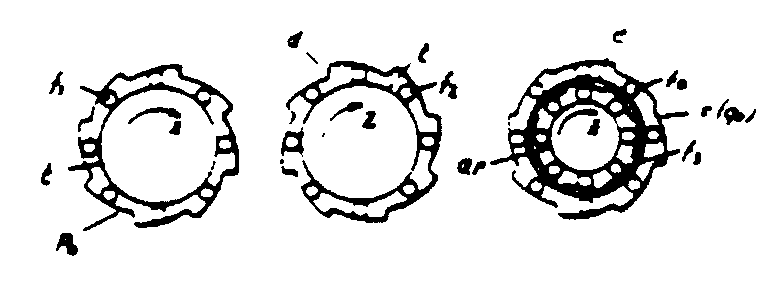

Image 2 for class 475 subclass 275


[List of Patents for class 475 subclass 276]    276With brake for sun, carrier and orbit:
 This subclass is indented under subclass 275.  Subject matter wherein one of said elements provided with a brake* is one of said sun gears*; and two other of said elements provided with a brake are a planet carrier* and an orbit gear*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

54,for this combination with a fluid drive in one of plural paths.

[List of Patents for class 475 subclass 277]    277With brake for plural sun gears:
 This subclass is indented under subclass 275.  Subject matter wherein at least two of said sun gears* are provided with a brake*.

[List of Patents for class 475 subclass 278]    278And brake for carrier:
 This subclass is indented under subclass 277.  Subject matter which further includes a brake* for a planet carrier*.

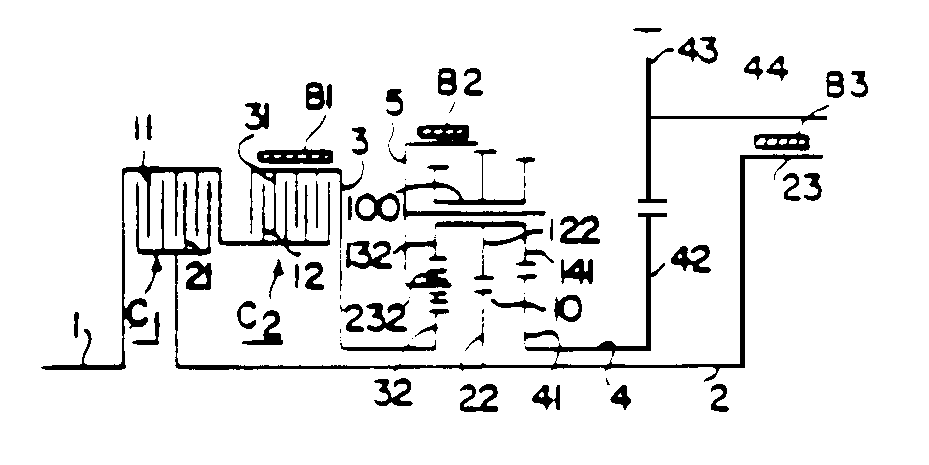

Image 1 for class 475 subclass 278

SEE OR SEARCH THIS CLASS, SUBCLASS:

56,for this combination with a fluid drive in one of plural paths.

[List of Patents for class 475 subclass 279]    279With brake for plural orbits:
 This subclass is indented under subclass 275.  Subject matter wherein at least two orbit gears* are provided with a brake*.

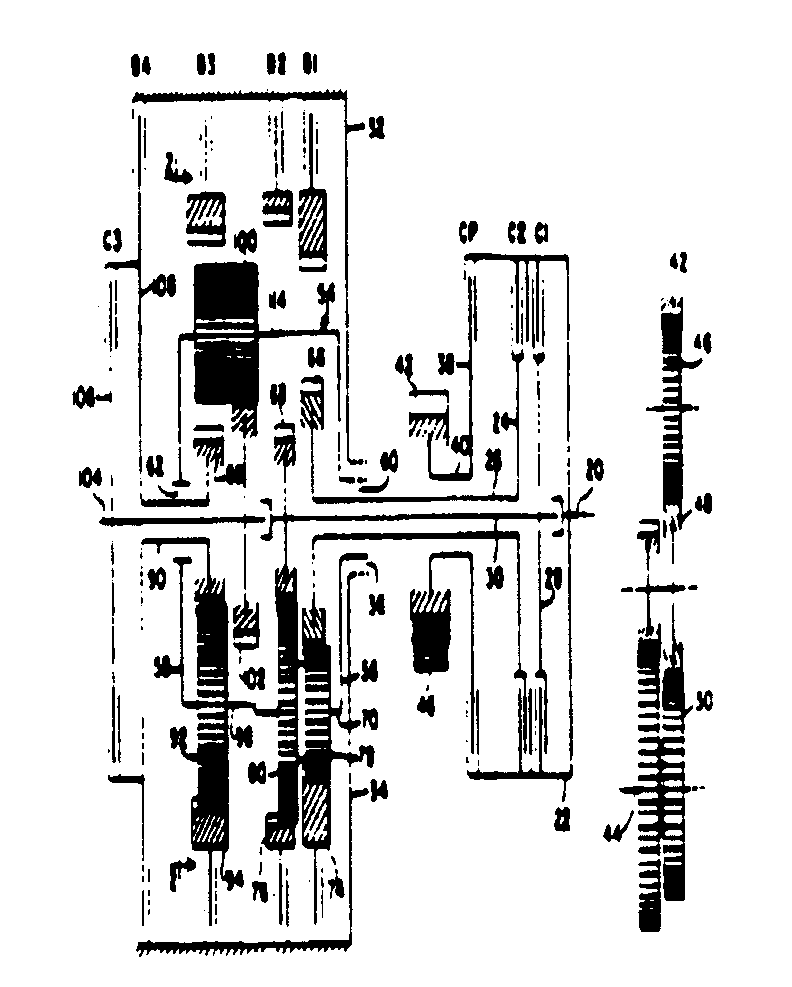

Image 1 for class 475 subclass 279

SEE OR SEARCH THIS CLASS, SUBCLASS:

58,for this combination with a fluid drive in one of plural paths.

[List of Patents for class 475 subclass 280]    280Brake for sun, carrier and orbit:
 This subclass is indented under subclass 271.  Subject matter wherein said elements which are provided with a brake*, a sun gear*, a planet carrier* and an orbit gear*.

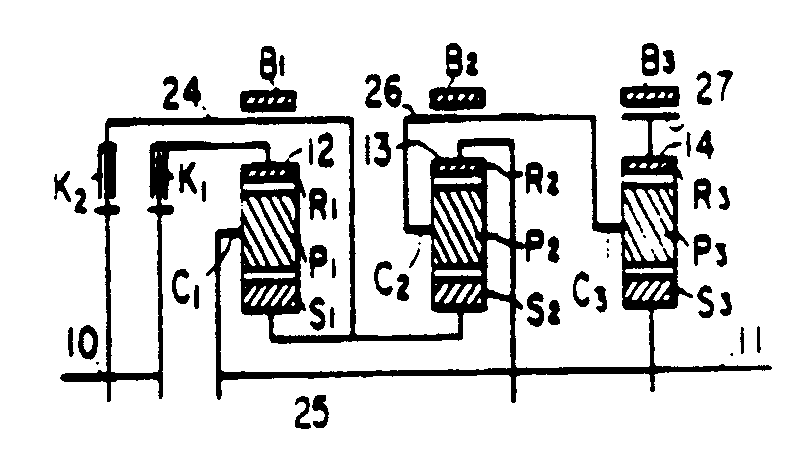

Image 1 for class 475 subclass 280

SEE OR SEARCH THIS CLASS, SUBCLASS:

54,for this combination with a fluid drive in one of plural paths.

[List of Patents for class 475 subclass 281]    281Including one-way clutch or brake:
 This subclass is indented under subclass 280.  Subject matter wherein one-way clutch* or a one-way brake* is in a drive train* including said assemblage.

[List of Patents for class 475 subclass 282]    282Brake for sun and orbit:
 This subclass is indented under subclass 271.  Subject matter wherein said elements which are provided with a brake* are a sun gear* and an orbit gear*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

55,for this combination with a fluid drive in one of plural paths.

[List of Patents for class 475 subclass 283]    283Including one-way clutch or brake:
 This subclass is indented under subclass 282.  Subject matter wherein a one-way clutch* or a one-way brake* is in a drive train* including said assemblage.

[List of Patents for class 475 subclass 284]    284Brake for sun and carrier:
 This subclass is indented under subclass 271.  Subject matter wherein said elements which are provided with a brake* are a sun gear* and a planet carrier*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

56,for this combination with a fluid drive in one of plural paths.

[List of Patents for class 475 subclass 285]    285Including one-way clutch or brake:
 This subclass is indented under subclass 284.  Subject matter wherein a one-way clutch* or a one-way brake* is in a drive including said assemblage.

[List of Patents for class 475 subclass 286]    286Brake for orbit and carrier:
 This subclass is indented under subclass 271.  Subject matter wherein said elements which are provided with a brake* are an orbit gear* and a planet carrier*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

57,for this combination with a fluid drive in one of plural paths.

[List of Patents for class 475 subclass 287]    287Including one-way clutch or brake:
 This subclass is indented under subclass 286.  Subject matter wherein a one-way clutch* or a one-way brake* is in a drive train* including said assemblage.

[List of Patents for class 475 subclass 288]    288Plural suns braked:
 This subclass is indented under subclass 271.  Subject matter wherein said elements which are provided with a brake* are at least two sun gears*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

47,for this combination with a fluid drive in one of plural paths.

[List of Patents for class 475 subclass 289]    289Including one-way clutch or brake:
 This subclass is indented under subclass 288.  Subject matter wherein a one-way clutch* or a one-way brake* is in a drive train* including said assemblage.

[List of Patents for class 475 subclass 290]    290Plural orbits braked:
 This subclass is indented under subclass 271.  Subject matter wherein said elements which are provided with a brake* are at least two orbit gears*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

58,for this combination with a fluid drive in one of plural paths.

[List of Patents for class 475 subclass 291]    291Including one-way clutch or brake:
 This subclass is indented under subclass 290.  Subject matter wherein a one-way clutch* or a one-way brake* is in a drive train* including said assemblage.

[List of Patents for class 475 subclass 292]    292Including one-way clutch or brake:
 This subclass is indented under subclass 271.  Subject matter wherein a one-way clutch* or a one-way brake* is in a drive train including said assemblage.

[List of Patents for class 475 subclass 293]    293Speed responsive clutch or brake:
 This subclass is indented under subclass 269.  Subject matter wherein a drive train* includes a clutch* having mechanism for controlling the coupling of two parts in response to the velocity of one of the parts; or which includes a brake* which controls a moving part in response to its velocity.
(1) Note. Patents in this subclass are directed to a speed responsive brake* or clutch* in a drive train in advance of, or after a planetary gear transmission.

SEE OR SEARCH THIS CLASS, SUBCLASS:

254+,and see the search notes therein for condition responsive control of a planetary gear transmission.

SEE OR SEARCH CLASS:

192Clutches and Power-Stop Control,   subclasses 3.51+ for a combination of transmission control and clutch control; and 215+ for a combination of transmission control and brake.

[List of Patents for class 475 subclass 294]    294Ratio shift initiated by reverse rotation of input shaft:
 This subclass is indented under subclass 269.  Subject matter wherein an input shaft is rotated in a first direction during both of said ratios*; and wherein means are provided for operating said ratio changing device by limited movement of said input shaft in a direction opposite to said first direction.

SEE OR SEARCH CLASS:

192Clutches and Power-Stop Control,   subclasses 217.1+ for related subject matter combined with a back-pedaling brake.

[List of Patents for class 475 subclass 295]    295Plural outputs:
 This subclass is indented under subclass 269.  Subject matter which includes means to drive at least two load devices*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

332,and see the search notes therein for related subject matter.

[List of Patents for class 475 subclass 296]    296Plural drive ratios other than unity:
 This subclass is indented under subclass 269.  Subject matter wherein said different speed ratios are two overdrives*, or two underdrives*, or an underdrive* and an overdrive*.

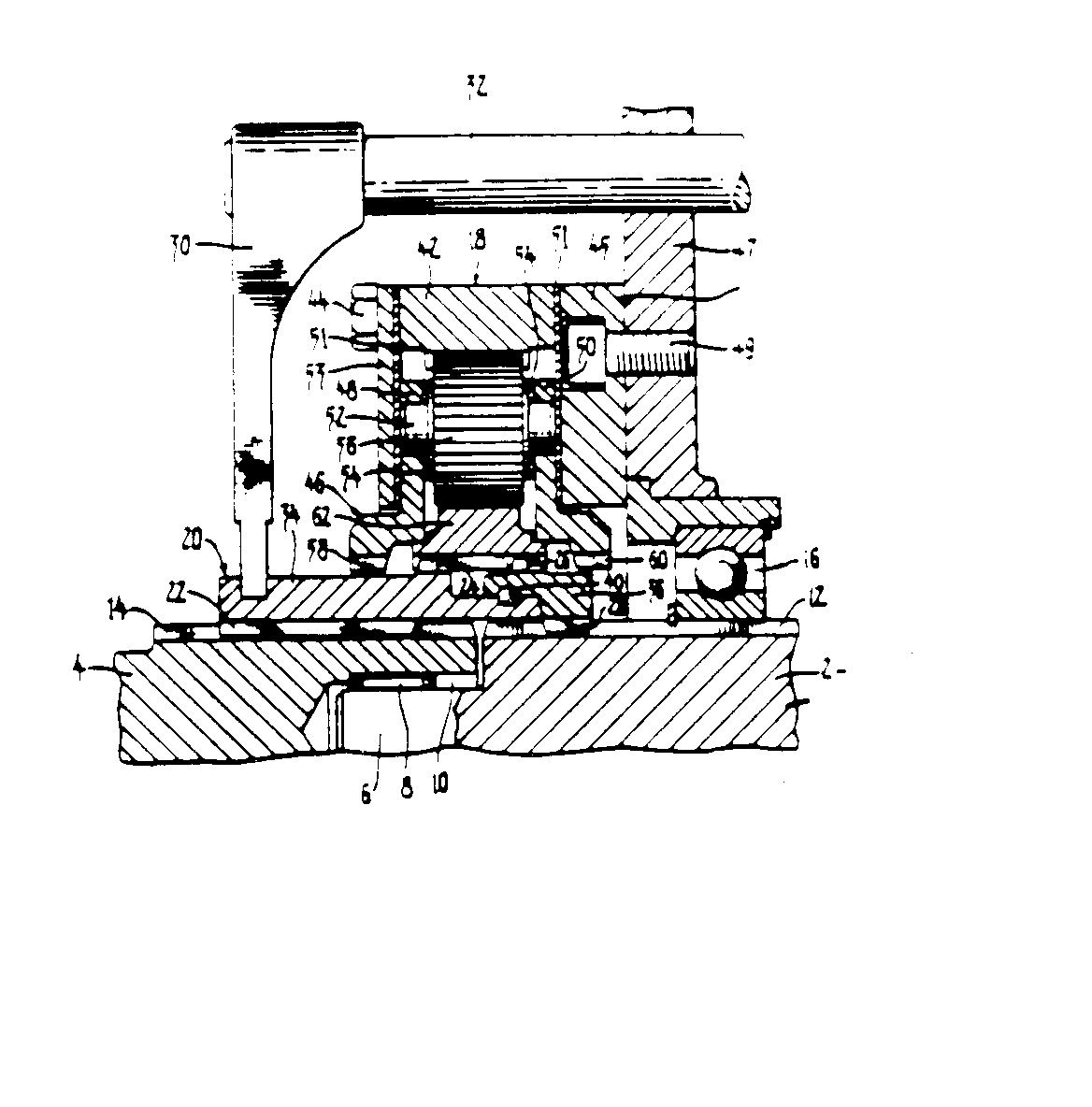

ring gear fixed to frame; output; input

ring gear fixed to frame; output; input

SEE OR SEARCH THIS CLASS, SUBCLASS:

271+,for plural drive ratios obtained by selectively braking plural elements.

[List of Patents for class 475 subclass 297]    297Including one-way clutch or brake:
 This subclass is indented under subclass 296.  Subject matter wherein a one-way clutch* or a one-way brake* is included in said ratio changing device.

[List of Patents for class 475 subclass 298]    298Gear shiftable axially to disconnect or vary ratio:
 This subclass is indented under subclass 269.  Subject matter wherein said ratio changing device or said disconnecting means includes mechanism operable to move a gear of a planetary gear transmission in a direction parallel to the axis of rotation of the gear.

[List of Patents for class 475 subclass 299]    299Orbit shiftable relative to sun and carrier:
 This subclass is indented under subclass 298.  Subject matter wherein an orbit gear* is movable axially with respect to a stationary sun gear* and planet carrier*.

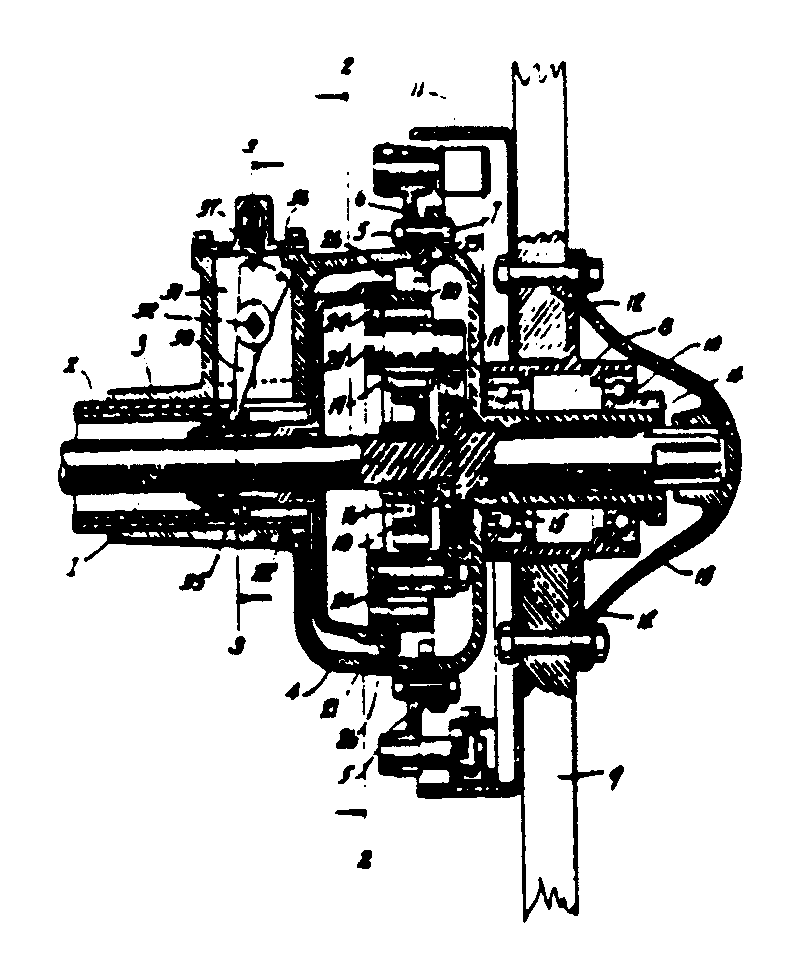

Image 1 for class 475 subclass 299


[List of Patents for class 475 subclass 300]    300Sun shiftable relative to orbit and carrier:
 This subclass is indented under subclass 298.  Subject matter wherein a sun gear* is movable axially with respect to a relatively stationary orbit gear* and planet carrier*.

[List of Patents for class 475 subclass 301]    301Brake or clutch on surface of helically coiled member:
 This subclass is indented under subclass 269.  Subject matter wherein a helically coiled resilient device has a frictional surface which expands or contracts into engagement with two relatively movable members to function as a clutch*, or which expand or contracts into engagement with a moveable and stationary member to function as a brake*.

SEE OR SEARCH CLASS:

188Brakes,   for, per se.
192Clutches and Power-Stop Control,   subclass 41 for this type clutch.

[List of Patents for class 475 subclass 302]    302Nonplanetary gearing combined with planetary:
 This subclass is indented under subclass 269.  Subject matter wherein a part of a drive train* leading to or from a planetary gear transmission includes nonplanetary gearing associated therewith.

SEE OR SEARCH THIS CLASS, SUBCLASS:

343,and see the search notes therein for related subject matter.

[List of Patents for class 475 subclass 303]    303With synchronizing clutch or brake:
 This subclass is indented under subclass 269.  Subject matter wherein a clutch* includes friction members to couple relatively moving parts to gradually achieve common rotation prior to positive coupling by intermeshing parts; or wherein a brake* includes friction members to gradually couple a rotating part to a stationary part prior to positive coupling by intermeshing parts.

SEE OR SEARCH THIS CLASS, SUBCLASS:

67,and see the search notes therein for related subject matter.

[List of Patents for class 475 subclass 304]    304Planet pinion is worm gear:
 This subclass is indented under subclass 269.  Subject matter including a planetary gear transmission in which a planet pinion is a worm gear*.

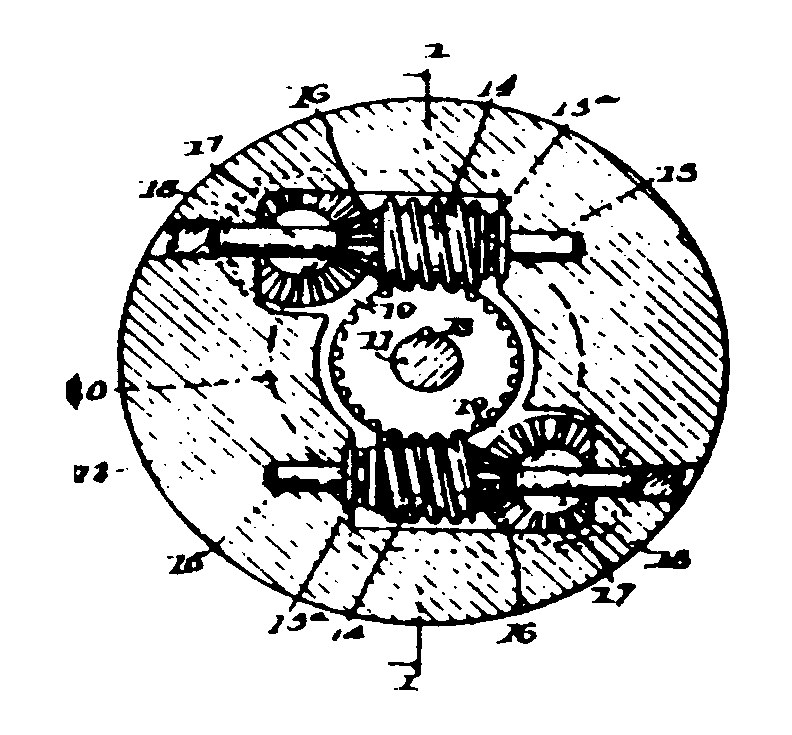

Image 1 for class 475 subclass 304

SEE OR SEARCH THIS CLASS, SUBCLASS:

7,226+, and 333, for related subject matter.

[List of Patents for class 475 subclass 305]    305Including releasable clutch directly between planet pinion and carrier:
 This subclass is indented under subclass 269.  Subject matter including a clutch* acting between a planet pinion* and a planet carrier*.

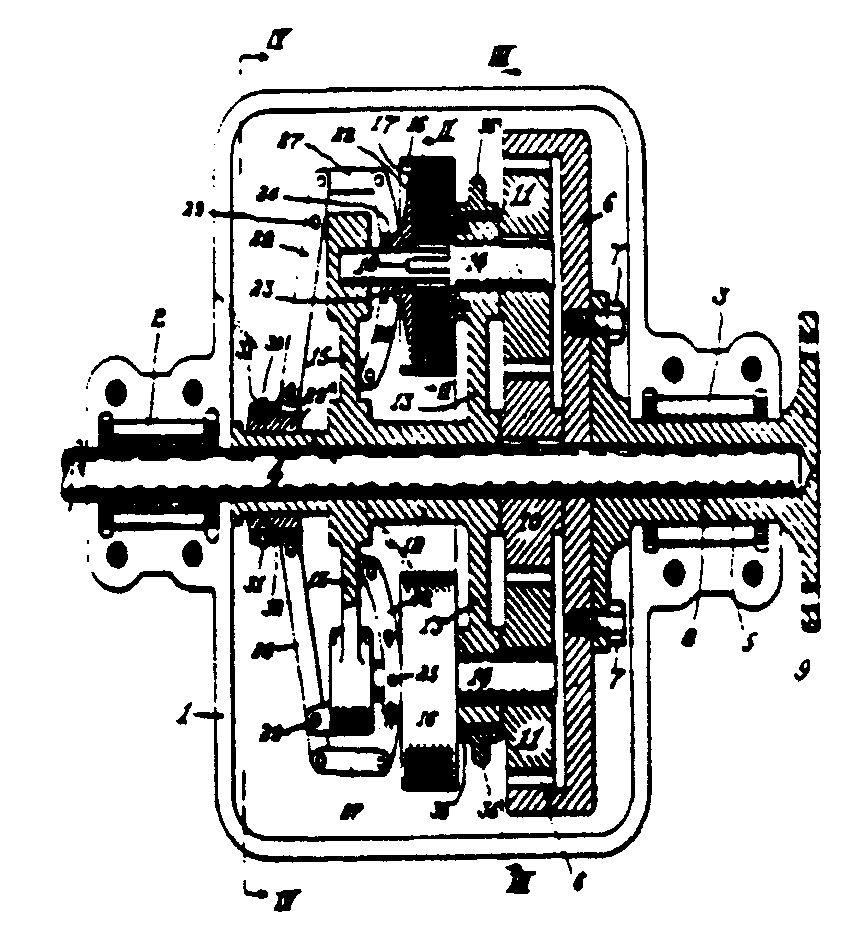

Image 1 for class 475 subclass 305

SEE OR SEARCH THIS CLASS, SUBCLASS:

96,108, 109+, and 233, for related subject matter.

[List of Patents for class 475 subclass 306]    306Brake for planetary transmission having axis of planet pinion at angle to axis of mating gear (e.g., bevel gears):
 This subclass is indented under subclass 269.  Subject matter wherein a drive train* includes a planetary gear transmission which comprises a planet pinion* having a rotational axis extending at an angle with respect to the rotational axis of an intermeshing gear; and wherein one of said speed ratios* is provided by applying a brake* to one element of said planetary gear transmission.

SEE OR SEARCH THIS CLASS, SUBCLASS:

9,190+, 197, 230+, 251, 273+, and 336, for related subject matter.

[List of Patents for class 475 subclass 307]    307Including one-way clutch or brake:
 This subclass is indented under subclass 306.  Subject matter wherein said drive train* is provided with a one-way clutch* or a one-way brake*.

[List of Patents for class 475 subclass 308]    308And lock-up clutch:
 This subclass is indented under subclass 306.  Subject matter wherein of another said speed ratios is a unitary drive* which is provided by engaging a clutch*.

[List of Patents for class 475 subclass 309]    309Friction clutch:
 This subclass is indented under subclass 308.  Subject matter wherein said clutch* is of a type in which pressure and resultant friction between faces of two relatively movable parts causes the parts to have common movement.

[List of Patents for class 475 subclass 310]    310Plate clutch:
 This subclass is indented under subclass 309.  Subject matter in which said relatively moveable parts are in the form of discs.

[List of Patents for class 475 subclass 311]    311Sun braked:
 This subclass is indented under subclass 269.  Subject matter wherein a drive train* includes a planetary gear transmission, and wherein one of said speed ratios* is provided by applying a brake* to a sun gear* of said planetary gear transmission.

[List of Patents for class 475 subclass 312]    312Including one-way clutch or brake:
 This subclass is indented under subclass 311.  Subject matter wherein said drive-train* is provided with one-way clutch* or a one-way brake.

[List of Patents for class 475 subclass 313]    313Intermeshing planet pinions on single carrier:
 This subclass is indented under subclass 311.  Subject matter wherein said planetary gear transmission includes a planet carrier* for a plurality of planet pinions*, said planet pinions* having gear teeth which intermesh with each other.

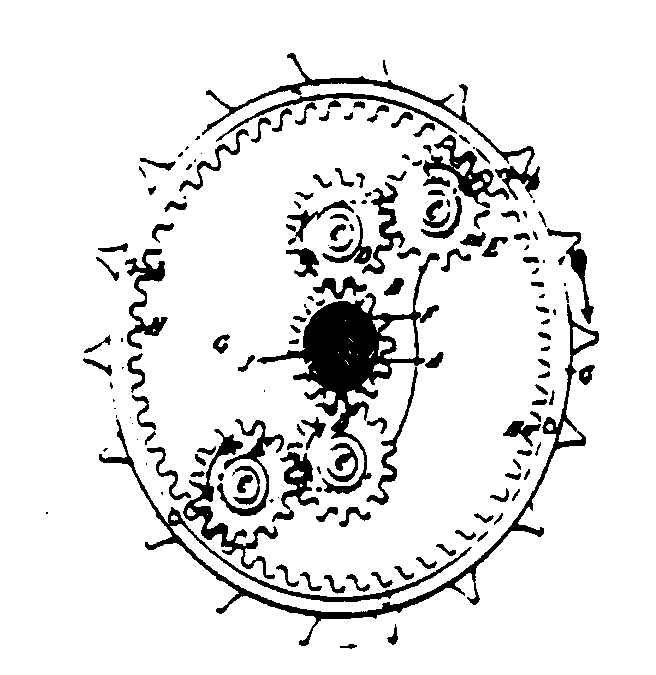

Image 1 for class 475 subclass 313


[List of Patents for class 475 subclass 314]    314And lock-up clutch:
 This subclass is indented under subclass 311.  Subject matter wherein another of said speed ratios* is a unitary drive* which is provided by engaging a clutch*.

[List of Patents for class 475 subclass 315]    315Friction clutch:
 This subclass is indented under subclass 314.  Subject matter wherein said clutch* is of a type in which pressure and resultant friction between faces of two relatively moveable parts causes the parts to have common movement.

[List of Patents for class 475 subclass 316]    316Plate clutch:
 This subclass is indented under subclass 315.  Subject matter in which said relatively movable parts are in the form of discs.

[List of Patents for class 475 subclass 317]    317Orbit braked:
 This subclass is indented under subclass 269.  Subject matter wherein a drive train* includes a planetary gear transmission, and wherein one of said speed ratios* is provided by applying a brake* to an orbit gear* of said planetary gear transmission.

[List of Patents for class 475 subclass 318]    318Including one-way clutch or brake:
 This subclass is indented under subclass 317.  Subject matter wherein said drive-train* is provided with a one-way clutch* or a one-way brake*.

[List of Patents for class 475 subclass 319]    319Intermeshing planet pinion on single carrier:
 This subclass is indented under subclass 317.  Subject matter wherein said planetary gear transmission includes a planet carrier* for a plurality of planet pinions* said planet pinions* having gear teeth which intermesh with each other.

[List of Patents for class 475 subclass 320]    320And lock-up clutch:
 This subclass is indented under subclass 317.  Subject matter wherein another of said speed ratios* is a unitary drive* which is provided by engaging a clutch*.

[List of Patents for class 475 subclass 321]    321Friction clutch:
 This subclass is indented under subclass 320.  Subject matter wherein said clutch* is of a type in which pressure and resultant friction between faces of two relatively moveable parts causes the parts to have common movement.

[List of Patents for class 475 subclass 322]    322Plate clutch:
 This subclass is indented under subclass 321.  Subject matter in which said relatively movable parts are in the form of discs.

[List of Patents for class 475 subclass 323]    323Carrier braked:
 Subject matter under 269 wherein a drive train* includes a planetary gear transmission, and wherein one of said speed ratios* is provided by applying a brake* to a planet carrier* of said planetary gear transmission.

[List of Patents for class 475 subclass 324]    324Including one-way clutch or brake:
 This subclass is indented under subclass 323.  Subject matter wherein said drive train* is provided with a one-way clutch* or a one-way brake*.

[List of Patents for class 475 subclass 325]    325Intermeshing planet pinions on single carrier:
 This subclass is indented under subclass 323.  Subject matter wherein said planetary gear transmission includes a planet carrier* for a plurality of planet pinions*, said planet pinion*, having gear teeth which intermesh with each other.

[List of Patents for class 475 subclass 326]    326And lock-up clutch:
 This subclass is indented under subclass 323.  Subject matter wherein another of said speed ratios is a unitary drive* which is provided by engaging a clutch*.

[List of Patents for class 475 subclass 327]    327Friction clutch:
 This subclass is indented under subclass 326.  Subject matter wherein said clutch* is of a type in which pressure and resultant friction between faces of two relatively moveable parts cause the parts to have common movement.

[List of Patents for class 475 subclass 328]    328Plate clutch:
 This subclass is indented under subclass 327.  Subject matter in which said relatively moveable parts are in the form of discs.

[List of Patents for class 475 subclass 329]    329PLURAL POWER PATHS TO PLANETARY GEARING:
 This subclass is indented under the class definition.  Subject matter wherein rotational force from a power source* is split into at least two paths prior to reaching a planetary gear transmission; one of said paths providing rotational input power to a first element of the planetary gear transmission, and the other of said paths providing rotational input power to a second element of said planetary gear transmission.

SEE OR SEARCH THIS CLASS, SUBCLASS:

1+,18+, 35+, 47+, 72+, 171, 211+, 215+, and 218, for related subject matter.
343,for similar art where there may be plural power paths extending from the planetary transmission.

[List of Patents for class 475 subclass 330]    330Plural planetary units:
 This subclass is indented under subclass 329.  Subject matter which includes at least two planetary gear transmissions.

[List of Patents for class 475 subclass 331]    331PLANETARY GEARING OR ELEMENT:
 This subclass is indented under the class definition.  Subject matter including a planetary gear transmission or a device particularly adapted to be used with said planetary gear transmission.

[List of Patents for class 475 subclass 332]    332Plural outputs:
 This subclass is indented under subclass 331.  Subject matter including means to drive at least two load devices*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

6,15, 18+, 74, 174, 184, 220+, and 295, for related subject matter.

SEE OR SEARCH CLASS:

74Machine Element or Mechanism,   subclasses 11+ and 665+ for other plural output transmissions.
180Motor Vehicles,   subclasses 53.1+ for power take-offs including significant vehicle structure.

[List of Patents for class 475 subclass 333]    333Planet pinion is worm gear:
 This subclass is indented under subclass 331.  Subject matter wherein a planet pinion* of said planetary gear transmission is a worm gear*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

7,226+ and 304, for related subject matter.

[List of Patents for class 475 subclass 334]    334Floating support annulus in rolling contact with planet pinion:
 This subclass is indented under subclass 331.  Subject matter which includes a ring surrounding the rotational axis of a planet carrier* and free to move with respect to said carrier; said ring contacting a smooth surface on a plurality of planet pinions* spaced about said planet carrier to aid in supporting said planet pinions.

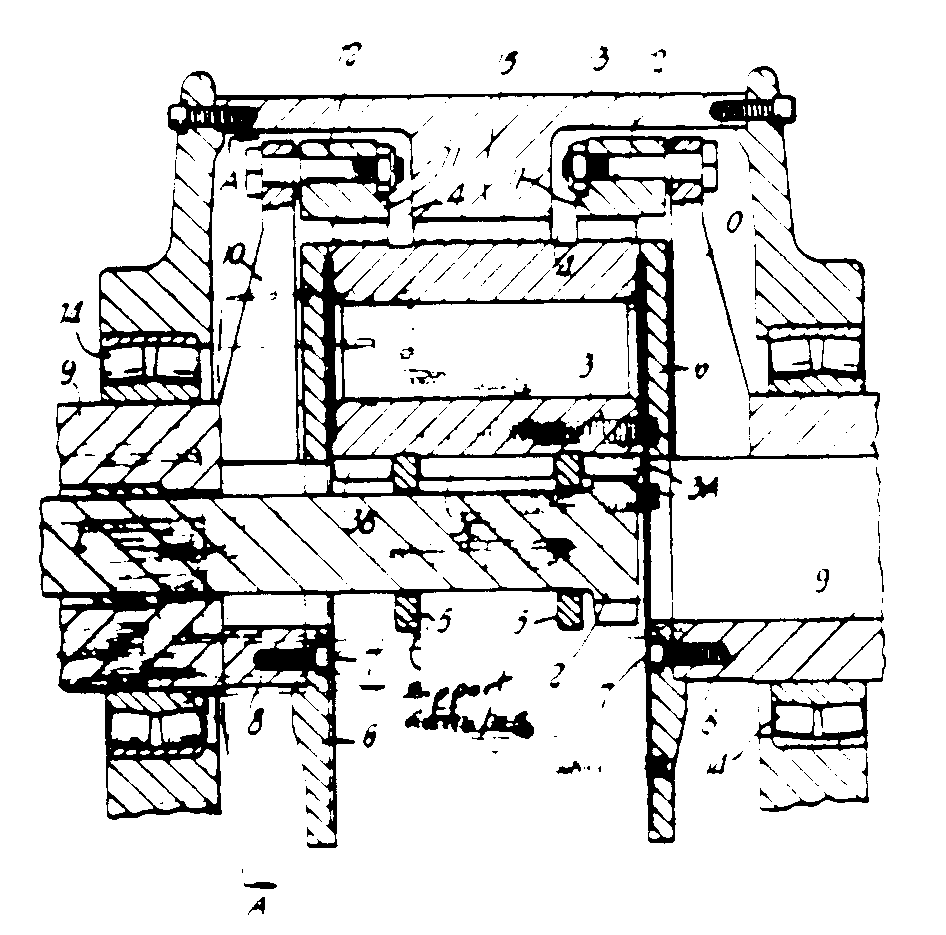

Image 1 for class 475 subclass 334


[List of Patents for class 475 subclass 335]    335Toothed planet pinion has smooth bearing surface engaging raceway on sun or orbit gear:
 This subclass is indented under subclass 331.  Subject matter including a planet pinion* having gear teeth which intermesh with gear teeth on a sun gear* or on an orbit gear*; said planet pinion* being also provided with a smooth circular surface for engagement with a mating smooth circular surface on said sun gear* or orbit gear* to guide said planet pinion* in its travel path about said sun gear* or orbit gear*.

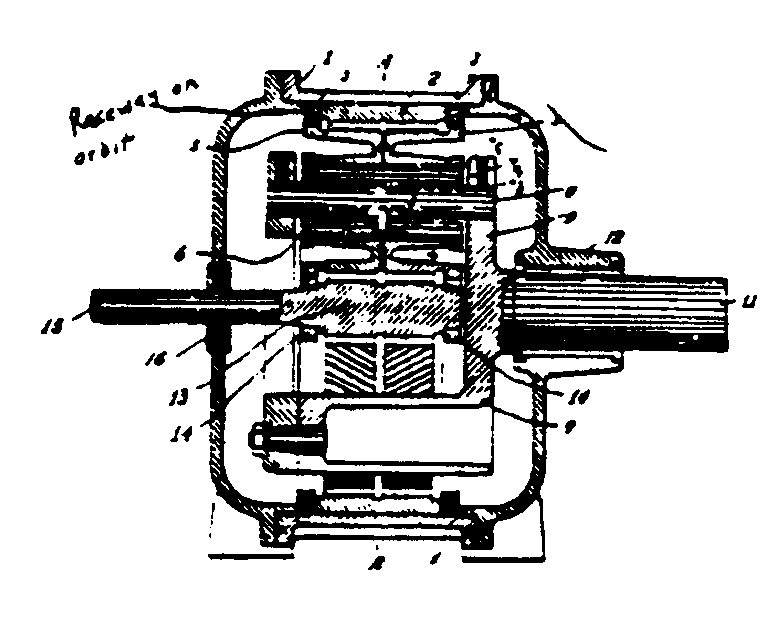

Image 1 for class 475 subclass 335


[List of Patents for class 475 subclass 336]    336Axis of planet pinion at angle intersecting rotational axis of mating gear (e.g., bevel gears):
 This subclass is indented under subclass 331.  Subject matter wherein said planetary gear transmission includes a planet pinion* having a rotational axis which extends at an angle of with respect to the rotational axis of a gear which meshes with said planet pinion.

SEE OR SEARCH THIS CLASS, SUBCLASS:

9,190+, 197, 230+, 251, 273+, and 306+, for related subject matter.

[List of Patents for class 475 subclass 337]    337Plural planet carriers in series move at different speeds:
 This subclass is indented under subclass 331.  Subject matter including a plurality of planet carriers*, the output power of one of said planet carriers providing input power to the other of said planet carriers; and wherein the rotational velocity of one of said planet carriers is different than the other.

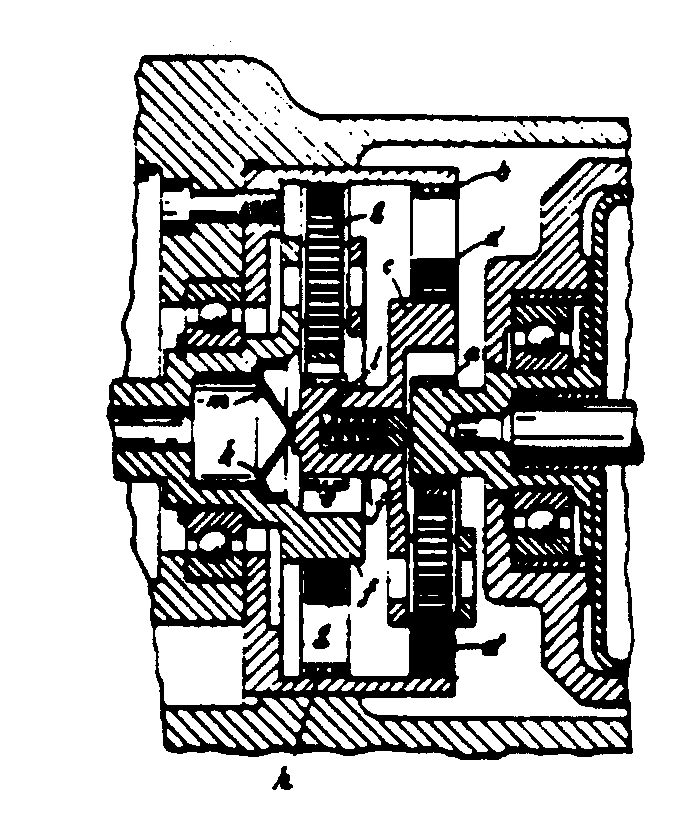

Image 1 for class 475 subclass 337


[List of Patents for class 475 subclass 338]    338Coaxial teeth around planet pinion engage axially spaced relatively rotatable gears:
 This subclass is indented under subclass 331.  Subject matter wherein a planet pinion* has an elongated set of gear teeth or plural axially spaced sets of gear teeth; said teeth of said planet pinion meshing with at least two gears rotatable with respect to each other and spaced from each other in a direction parallel to the rotational axis of the gears.

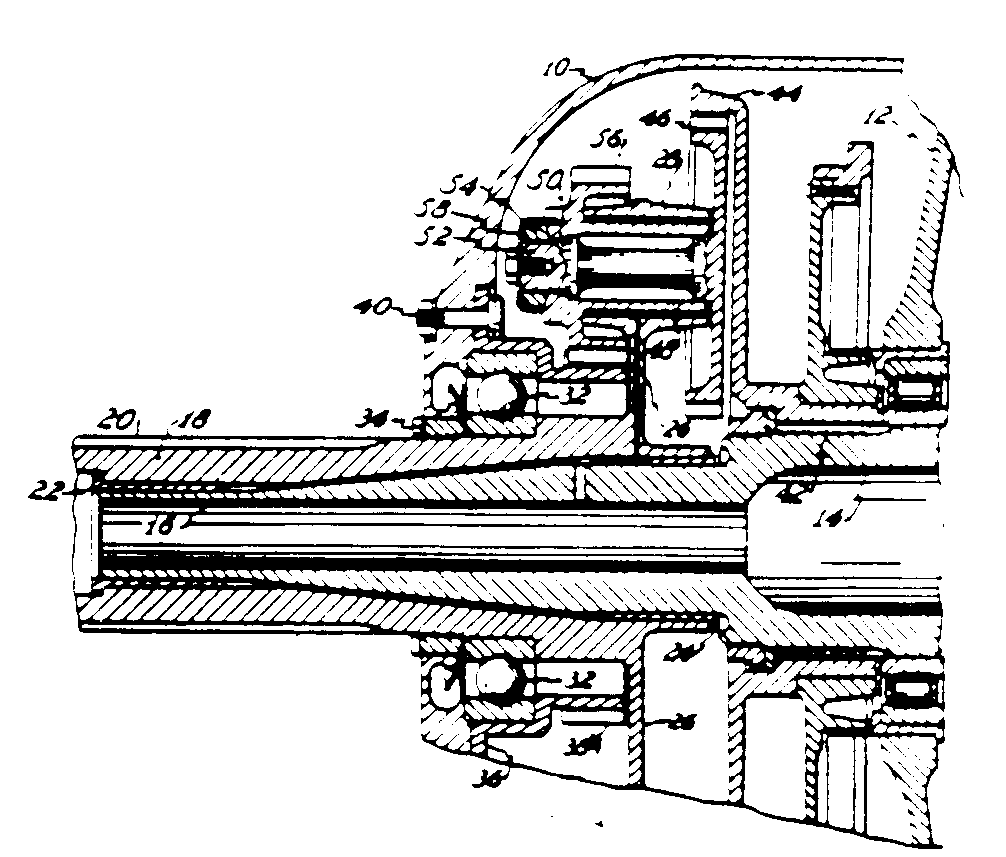

Image 1 for class 475 subclass 338

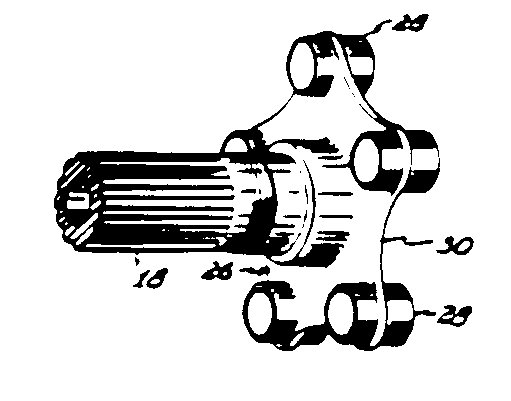

Image 2 for class 475 subclass 338


[List of Patents for class 475 subclass 339]    339Engage plural relatively rotatable sun gears:
 This subclass is indented under subclass 338.  Subject matter wherein said two gears are sun gears*.

Image 1 for class 475 subclass 339


[List of Patents for class 475 subclass 340]    340And orbit gear:
 This subclass is indented under subclass 339.  Subject matter which also includes an orbit gear* meshing with said planet pinion*.

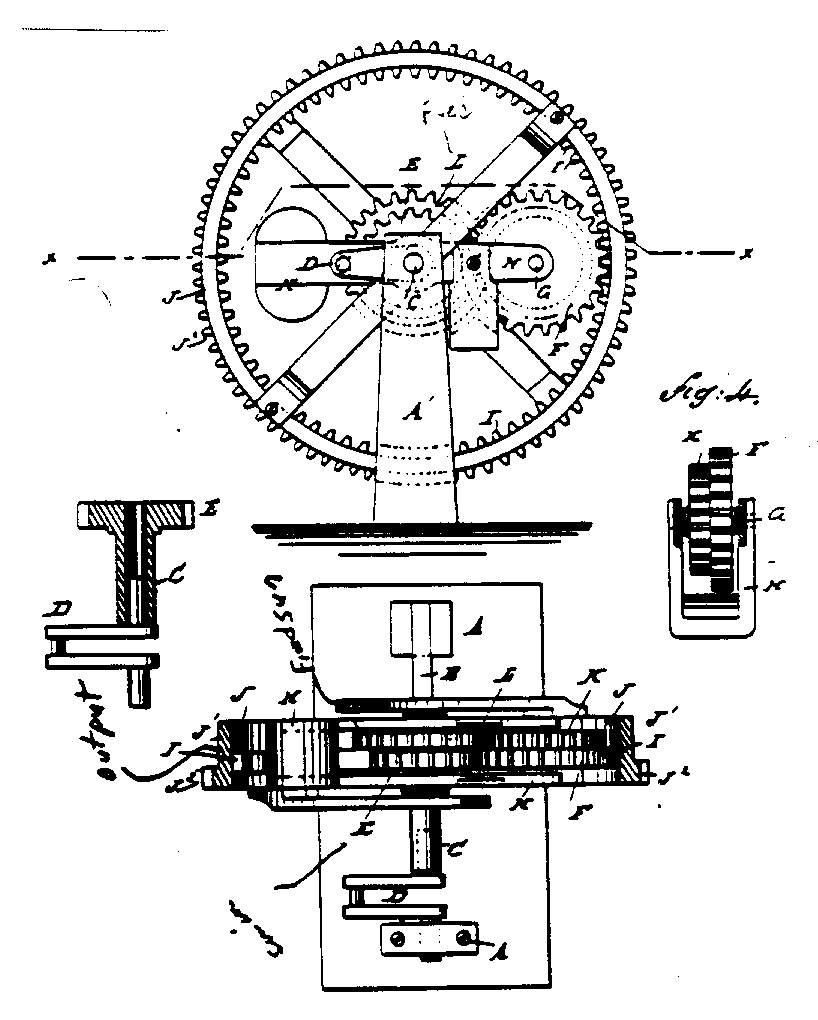

Image 1 for class 475 subclass 340


[List of Patents for class 475 subclass 341]    341Engage plural relatively rotatable orbit gears:
 This subclass is indented under subclass 338.  Subject matter wherein said two gears are orbit gears*.

[List of Patents for class 475 subclass 342]    342And sun gear:
 This subclass is indented under subclass 341.  Subject matter which also includes a sun gear* meshing with said planet pinion*.

[List of Patents for class 475 subclass 343]    343Nonplanetary gearing combined with planetary:
 This subclass is indented under subclass 331.  Subject matter wherein a part of a drive train* leading to or from said planetary gear transmission includes non-planetary gearing associated therewith.

SEE OR SEARCH THIS CLASS, SUBCLASS:

52,66, 198+, 207+, 225, and 302, for related subject matter.
329+,for this combination where there is provided two power paths to the planetary transmission.

[List of Patents for class 475 subclass 344]    344Particular gear tooth feature:
 This subclass is indented under subclass 331.  Subject matter wherein significance is attributed to the shape of a gear tooth, or to the material from which a gear tooth is formed.

oblique teeth

oblique teeth

SEE OR SEARCH THIS CLASS, SUBCLASS:

180,for related subject matter.

SEE OR SEARCH CLASS:

74Machine Element or Mechanism,   subclasses 457+ for related subject matter.

[List of Patents for class 475 subclass 345]    345Nonmetallic or resilient:
 This subclass is indented under subclass 344.  Subject matter wherein said gear tooth is formed of a flexible material or of a material other than metal.

SEE OR SEARCH THIS CLASS, SUBCLASS:

180,for related subject matter.

[List of Patents for class 475 subclass 346]    346Floating or flexible coupling or support:
 This subclass is indented under subclass 331.  Subject matter wherein one of the gears in said planetary gear transmission is moveable in an axial or radial, nonrotary, direction with respect to another of the gears to accommodate proper alignment of the gears; or which include connecting means between two shaft elements in a drive train* which permits a limited amount of relative movement between said shaft elements or permits rotation of said shaft elements when they are misaligned or angularly related; or which provides a flexible support for said planetary gear transmission; or which provides a resilient connection between a gear and its supporting or driving member.

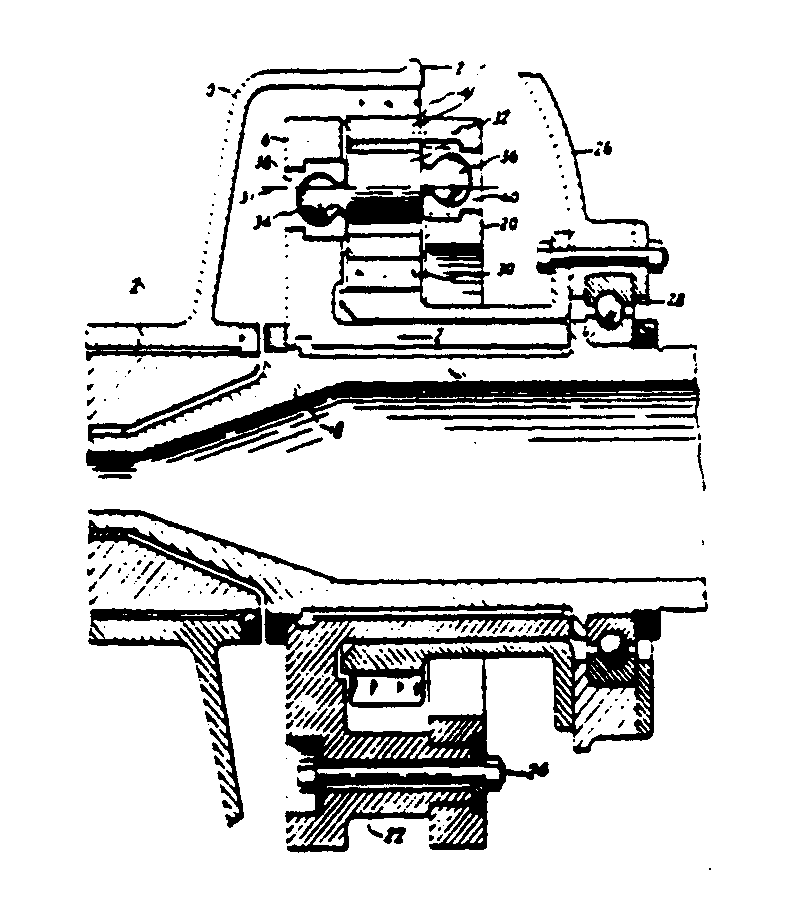

 floating planet

floating planet

SEE OR SEARCH THIS CLASS, SUBCLASS:

202,and 222, for related subject matter.

SEE OR SEARCH CLASS:

464Rotary Shafts Gudgeons Housing,   and Flexible Couplings for Rotary Shafts etc., for flexible couplings, per se.

[List of Patents for class 475 subclass 347]    347Resilient member:
 This subclass is indented under subclass 346.  Subject matter which provides a resilient connection between a gear and its supporting or driving member.

SEE OR SEARCH THIS CLASS, SUBCLASS:

92,for planetary reaction element having a fluid damper.

[List of Patents for class 475 subclass 348]    348Planet pinion supported by roller bearings:
 This subclass is indented under subclass 331.  Subject matter wherein a planet pinion* is supported for rotation by ball bearings or by cylindrical bearings surrounding the axis of the planet pinion.

SEE OR SEARCH THIS CLASS, SUBCLASS:

246+,and 253, for related subject matter.

[List of Patents for class 475 subclass 349]    349With manual input:
 This subclass is indented under subclass 331.  Subject matter wherein a power source* for driving said planetary gear transmission is human force.

SEE OR SEARCH THIS CLASS, SUBCLASS:

3+,for related subject matter.


CROSS-REFERENCE ART COLLECTIONS

[List of Patents for class 475 subclass 900]    900BRAKE FOR INPUT OR OUTPUT SHAFT:
 This subclass is indented under the class definition.  A collection of patents relating to structure for applying a brake* to an input member* or to an output member*.

SEE OR SEARCH THIS CLASS, SUBCLASS:

18+,and 224, for output shaft brakes* used in steering by driving combinations.
68,and 175, for brakes* in combination with the drives of those subclasses.
113,for fluid brakes* that may act on an input member*, or output member.

SEE OR SEARCH CLASS:

188Brakes,   for brakes in general.
192Clutches and Power-Stop Control,   subclasses 215+ for combined transmission control and brake.
477Interrelated Power Delivery Controls, Including Engine Control,   for interrelated control between an engine and a transmission, clutch, or brake.

[List of Patents for class 475 subclass 901]    901PARTICULAR MATERIAL:
 This subclass is indented under the class definition.  A collection of patents wherein significance is attributed to a special kind of material used in a planetary gear transmission.

SEE OR SEARCH THIS CLASS, SUBCLASS:

85,180, and 344+, for related subject matter.

[List of Patents for class 475 subclass 902]    902Nonmetallic:
 This subclass is indented under subclass 901.  A collection of patents wherein the material is a material other than metal.

SEE OR SEARCH THIS CLASS, SUBCLASS:

85,180 and 344+, for related subject matter.

[List of Patents for class 475 subclass 903]    903STACKED PLANETARY GEARING:
 This subclass is indented under the class definition.  A collection of patents relating to structure wherein first and second sun gears* are arranged so that the second sun gear is located radially outwardly from the first sun gear; and both sun gears are in a common plane bisecting the rotational axis of the sun gears.

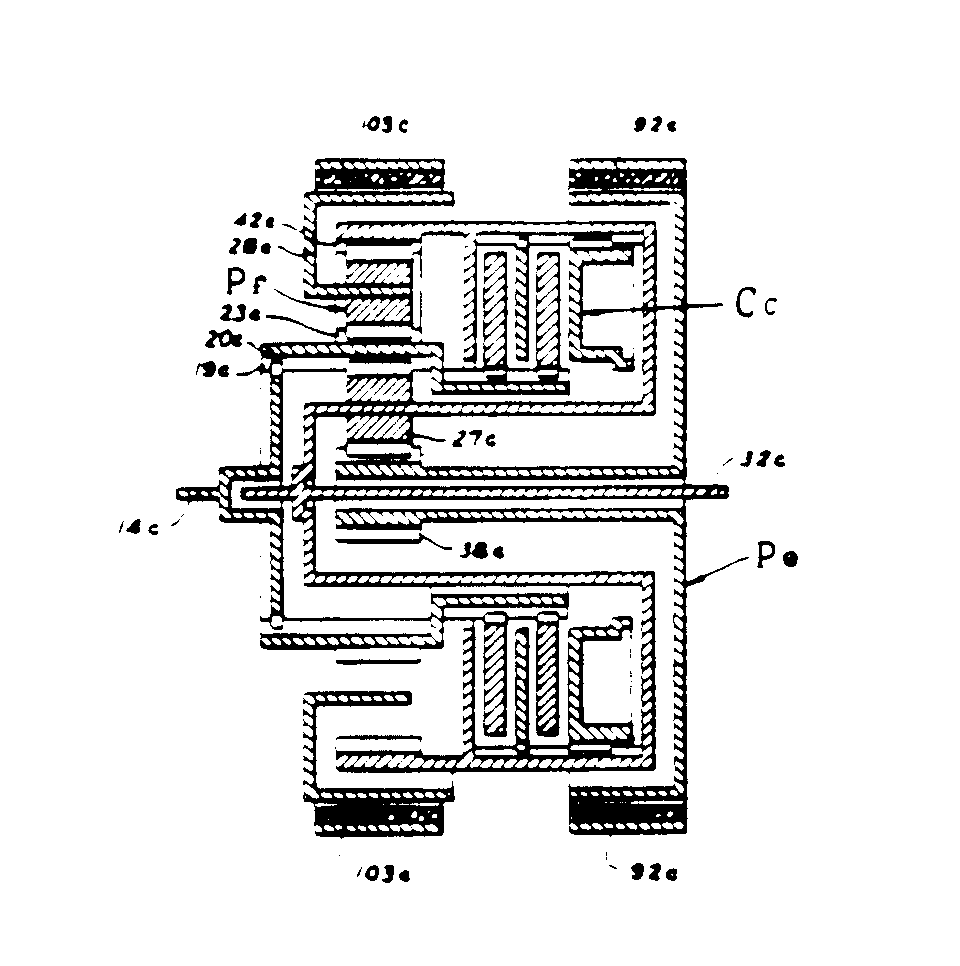

Image 1 for class 475 subclass 903


[List of Patents for class 475 subclass 904]    904PARTICULAR MATHEMATICAL EQUATION:
 This subclass is indented under the class definition.  A collection of patents wherein significance is attributed to using a mathematical equation to compute a structural or operational feature of planetary gear transmission.


This page is produced by the Office of Classification Support (Office of Patent Classification) for the Reference Tools Project.

Please send questions and comments to usptoinfo@uspto.gov .

Note: The Patent and Trademark Depository Library Program (PTDLP) administers a nationwide network of public, state and academic libraries designated as Patent and Trademark Depository Libraries authorized by 35 U.S.C. 13 to: Disseminate Patent and Trademark Information Support Diverse Intellectual Property Needs of the Public. PTDL Contact Information

Note: For information/comments on electronic information products, such as purchasing USPTO data, or to discuss system requirements for magnetic tape products, contact:

     Information Products Division -- U.S. Patent and Trademark Office Information Products Division Contact Information
     Or, browse their on-line catalog.

KEY: e Biz=online business system fees=fees forms=formshelp=help laws and regs=laws/regulations definition=definition (glossary)

The Inventors Assistance Center is available to help you on patent matters.Send questions about USPTO programs and services to the USPTO Contact Center (UCC). You can suggest USPTO webpages or material you would like featured on this section by E-mail to the webmaster@uspto.gov. While we cannot promise to accommodate all requests, your suggestions will be considered and may lead to other improvements on the website.


|.HOME | SITE INDEX| SEARCH | eBUSINESS | HELP | PRIVACY POLICY
