SECTION I - CLASS DEFINITION

This class provides for design patents claiming ornamental designs for:

1. China, Glassware, Serving Vessel, or Tray

2. Beverage or Liquid Serving and Dispensing

3. Measured or Sequential Dispenser

4. Condiment Dispenser, Coaster, or Caddy

5. Holder or Storage Receptacle

6. Place Setting, Table Service Utensil, or Handle Therefor

7. Warming or Cooking

8. Processing, Preparing, or Handling

9. Element or Attachment

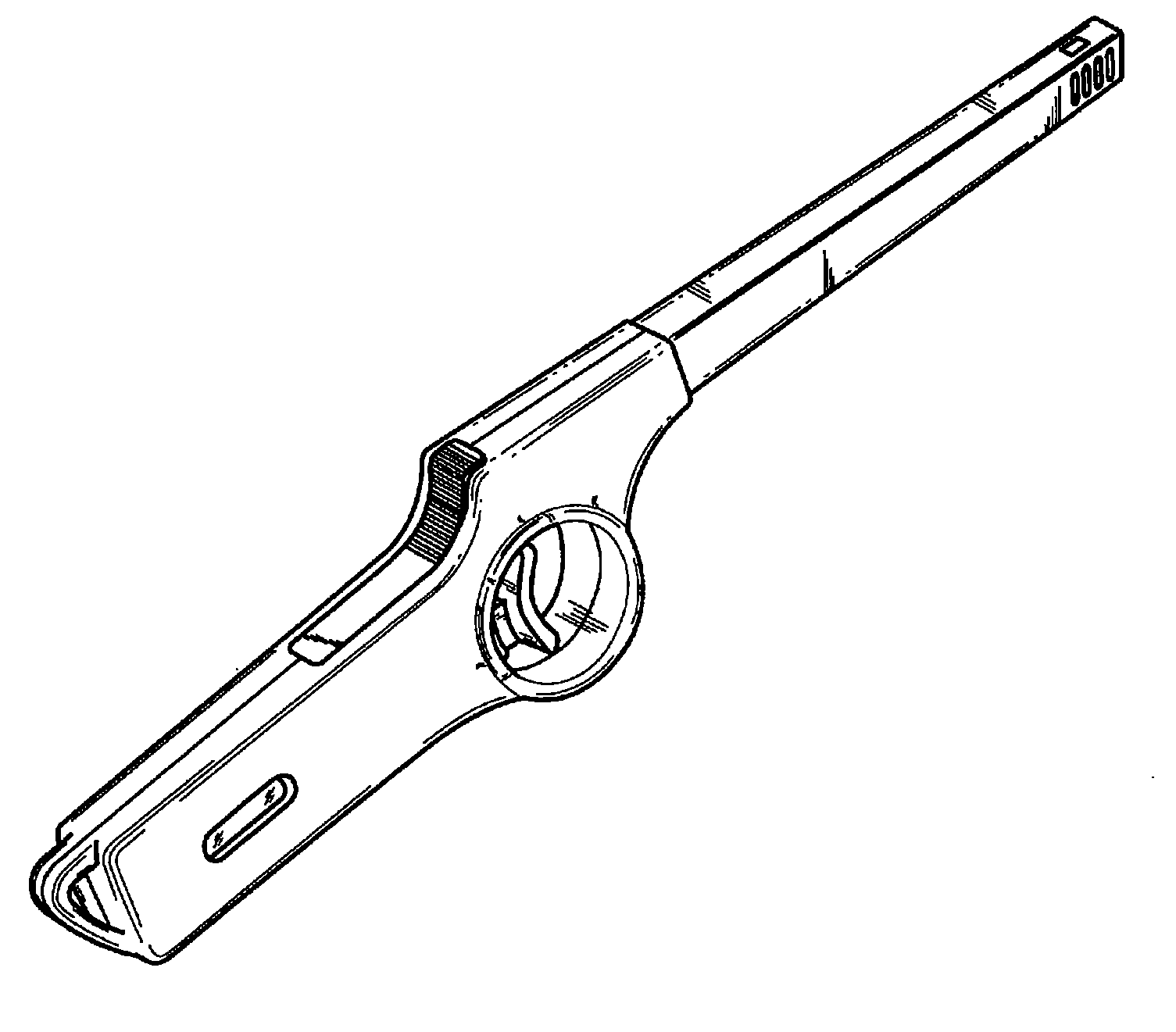

10. Fire Starter or Igniter

11. Miscellaneous

(1) Note. Design in this class is classified by both full-line and broken-line disclosure.

SECTION II - REFERENCES TO OTHER CLASSES

SEE OR SEARCH CLASS:

D3Travel Goods and Personal Belongings,   subclass 202 for canteen or body attached beverage container, subclasses 273-303 for fully enclosed travel-type beverage service case, subclasses 304-314 for basket, and subclasses 315-317 for generic carrier or caddy.
D4Brushware,   subclass 118 for scraper combined with brush.
D6Furnishings,   subclasses 396 through 490for food display unit; subclasses 406.1-406.6 for lap tray, table, or desk; subclass 408 for sequential dispenser for dishes; subclasses 449-490 for wire dish rack; subclass 515 for measuring dispenser for powdered or granular material; subclasses 531 and 534 for bathroom-type cup holder; and subclasses 613-616 for place mat.
D8Tools and Hardware,   subclasses 33 through 43for bottle or can opener; subclass 93 for knife sharpener attachment for food processor; subclasses 98-100 for sculpting tool, knife, or spatula; and subclasses 307-312 for handle or knob for stove.
D9Packages and Containers for Goods,   subclasses 424 through 429for packaging tray and subclasses 523-528 for bottle or decanter.
D10Measuring, Testing, or Signalling Instrument,   subclasses 46.2 and 46.3 for measuring implement.
D11Jewelry, Symbolic Insignia, and Ornaments,   subclasses 143 through 156for vase.
D12Transportation,   subclasses 419 and 420 for vehicle-type cup holder and subclass 425 for vehicle specific food service tray.
D15Machines Not Elsewhere Specified,   subclass 82 for ice cream freezer and subclass 89 for refrigerator crisper drawer.
D20Sales and Advertising Equipment,   subclasses 1 through 9for vending machine and subclass 5 for vending machine for bottle, can, or carton.
D21Games, Toys, and Sports Goods,   subclasses 523 through 527for toy appliances.
D22Arms, Pyrotechnics, Hunting and Fishing Equipment,   subclass 136 for minnow bucket or pail and subclass 118 for machete or hunting knife.
D23Environmental Heating and Cooling; Fluid Handling and Sanitary Equipment,   subclass 201 for display-type beverage fountain and subclasses 238-243 for faucet-type fixture.
D24Medical and Laboratory Equipment,   subclasses 197 through 199for nursing bottle and holder and subclass 224 for medical therapy-type liquid dispenser or vessel.
D27Tobacco and Smokers’ Supplies,   subclass 109 for ashtray combined with coaster and subclasses 173-179 for match or matchbook holder.
D28Cosmetic Products and Toilet Articles,   subclass 63 for brush or sponge for corporal use and subclass 64 for toothpick holder.
D29Equipment for Safety, Protection, and Rescue,   subclasses 125 through 130for fire extinguisher or element thereof.
D32Washing, Cleaning, or Drying Machine,   subclasses 2 through 13for washing or cleaning machine and subclass 74 for crumb collector.
D34Material or Article Handling Equipment,   subclass 3 for trash compactor.

SUBCLASSES

[List of Patents for class D7 subclass 213]    213MISCELLANEOUS:
 This subclass is indented under the class definition.  Design under the Class Definition for subject matter pertaining to this class not elsewhere provided for.

SEE OR SEARCH CLASS:

D28Cosmetic Products and Toilet Articles,   subclass 63 for brush or sponge for corporal use.
D29Equipment for Safety, Protection, and Rescue,   subclass 119 for pot holder.
D34Material or Article Handling Equipment,   subclass 3 for trash compactor.

[List of Patents for class D7 subclass 300]    300BEVERAGE OR LIQUID SERVING OR DISPENSING:
 This subclass is indented under the class definition.  Design under the Class Definition for vessel for setting out fluids for consumption such as siphon bottle, coffeemaker, drinking fountain, pitcher, teapot, drink machine, beer keg or the like.
(1) Note. Classified by full-line disclosure.
(2) Note. Includes casing; excludes element.
(3) Note. Excludes element.

SEE OR SEARCH THIS CLASS, SUBCLASS:

300.1,for cocktail shaker.
387through 415, for element or attachment.
412through 415, for bowl or vessel specifically designed for blender.
510through 511, for sports bottle.
590through 599, for condiment dispenser, caster or caddy.
598,for cruet, decanter, or pitcher for condiment.
605,for insulated storage receptacle (e.g., vacuum bottle).

SEE OR SEARCH CLASS:

D3Travel Goods and Personal Belongings,   subclass 202 for canteen or body attached beverage container and subclasses 304-314 for industrial-type beverage container carrier or holder.
D20Sales and Advertising Equipment,   subclass 5 for vending machine for bottle, can, or carton.
D23Environmental Heating and Cooling; Fluid Handling and Sanitary Equipment,   subclass 201 for display-type beverage fountain.
D24Medical and Laboratory Equipment,   subclasses 197 through 199for nursing bottle and holder and subclass 224 for medical therapy-type liquid dispenser or vessel.

[List of Patents for class D7 subclass 300.1]    300.1Shaker or siphon bottle:
 This subclass is indented under subclass 300.  Design for pressurized beverage receptacle with a narrow neck or container used to shake or mix a beverage.

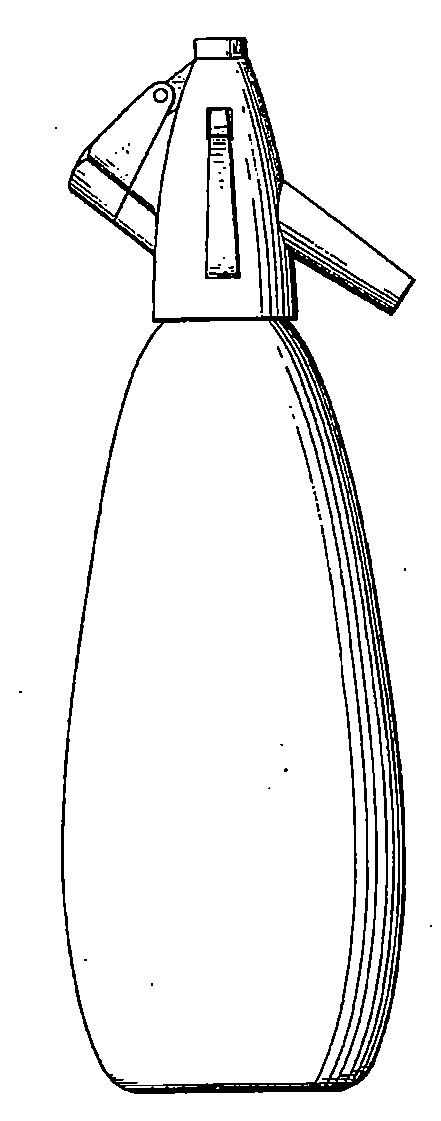

Example of a siphon type bottle.

Example of a siphon type bottle.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclasses 516 through 575for bottle, jug, jar, or can.
220Receptacles,   subclass 568 for cocktail shaker.

[List of Patents for class D7 subclass 300.2]    300.2Stirrer or straw:
 This subclass is indented under subclass 300.  Design for slender rod for mixing beverage or a slender hollow tube used to suck beverage.

SEE OR SEARCH THIS CLASS, SUBCLASS:

507,for drinking vessel combined with diverse article.
635,for stirrer, straw or toothpick holder or storage receptacle.
643,for spoon combined with straw.
683,for cocktail pick.

SEE OR SEARCH CLASS:

215Bottles and Jars,   subclass 388 for drinking device with straw or drinking tube.
220Receptacles,   subclass 705 for drinking device with straw.
239Environmental Heating and Cooling; Fluid Handling and Equipment,   subclass 33 for straws.

[List of Patents for class D7 subclass 301]    301Simulative:
 This subclass is indented under subclass 300.  Design that includes an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.
(1) Note. Includes barrel simulation.

Example of a design for a serving a beverage with a simulativeappearance.

Example of a design for a serving a beverage with a simulativeappearance.

SEE OR SEARCH THIS CLASS, SUBCLASS:

514through 521, for simulative drinking vessel.
599,for simulative cruet, decanter or pitcher for condiment.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclasses 307 through 336for simulative package or container.

[List of Patents for class D7 subclass 302]    302Handheld:
 This subclass is indented under subclass 301.  Design that includes an appendage for ease in lifting.

Example of a handheld design for serving a beverage witha simulative appearance.

Example of a handheld design for serving a beverage witha simulative appearance.

SEE OR SEARCH THIS CLASS, SUBCLASS:

600,for simulative cruet, decanter or pitcher for condiment with carrying handle.

[List of Patents for class D7 subclass 303]    303With rim-mounted pouring lip:
 This subclass is indented under subclass 302.  Design that includes a top edge with a flow director.

Example of a handheld design for serving a beverage witha simulative appearance and a rim-mounted pouring lip.

Example of a handheld design for serving a beverage witha simulative appearance and a rim-mounted pouring lip.

SEE OR SEARCH THIS CLASS, SUBCLASS:

598,for simulative cruet, decanter or pitcher for condiment.

[List of Patents for class D7 subclass 304]    304Upwardly directed beverage stream with catch basin:
 This subclass is indented under subclass 300.  Design with dispensing spout that sends the flow in an upward direction such as a drinking fountain.

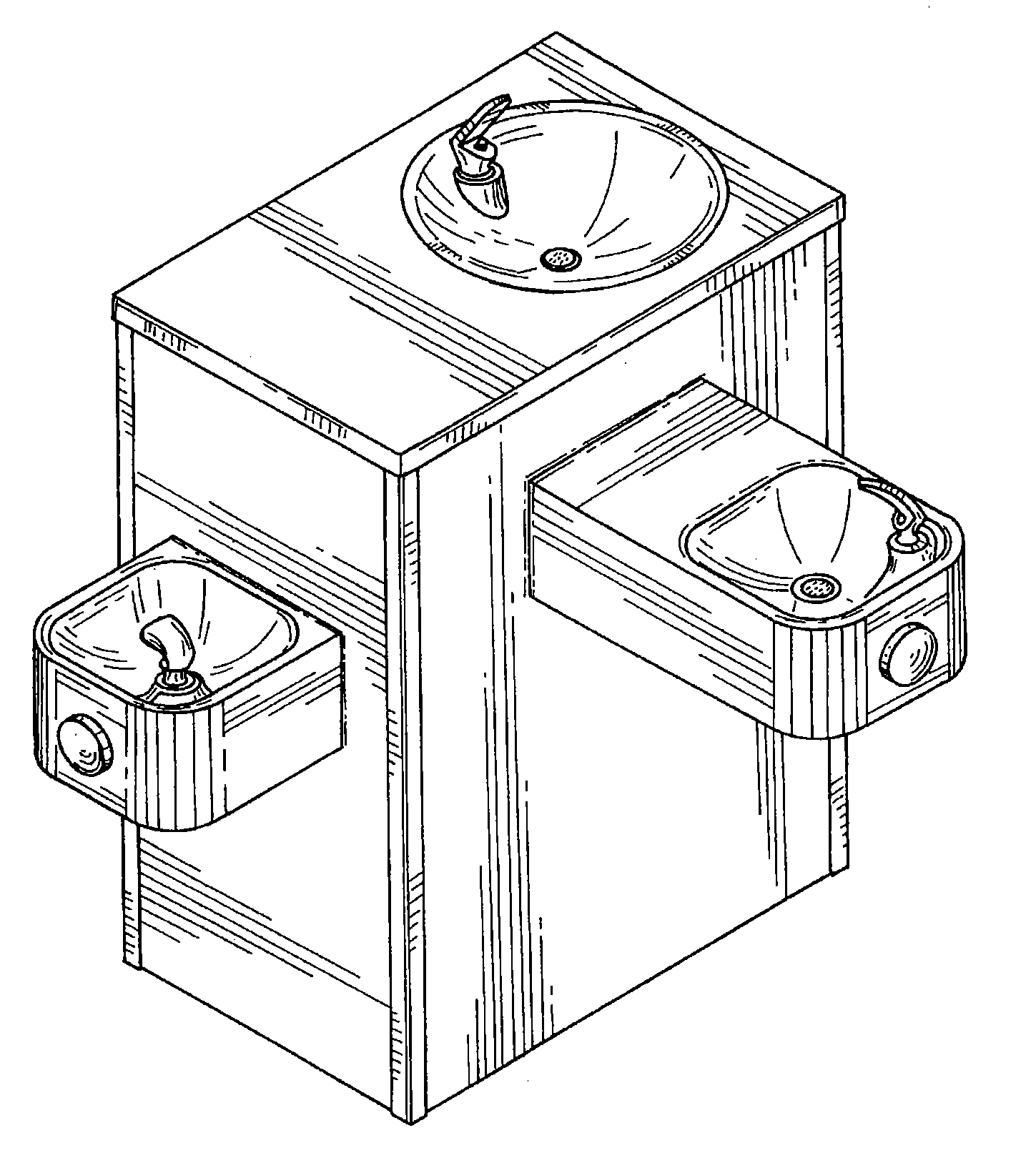

Example of a design with an upwardly directed beveragestream with catch basin.

Example of a design with an upwardly directed beveragestream with catch basin.

SEE OR SEARCH CLASS:

D23Environmental Heating and Cooling; Fluid Handling and Sanitary Equipment,   subclass 201 for water fountain.
239Fluid Sprinkling Spraying and Diffusing,   subclasses 24 through 33for drinking fountain.

[List of Patents for class D7 subclass 305]    305Combined with diverse article:
 This subclass is indented under subclass 300.  Design that includes has an additional feature or features such as a cup, condiment dispenser, grinder, clock, or the like.

Example of a design combined with a diverse article.

Example of a design combined with a diverse article.

SEE OR SEARCH THIS CLASS, SUBCLASS:

309through 311, for coffee maker including combined with coffeepot or cappuccino machine.
373,for coffee grinder.

[List of Patents for class D7 subclass 306]    306Console or floor type:
 This subclass is indented under subclass 300.  Design for a valve type beverage dispenser that rests on the ground.

Example of a console or floor type beverage dispenser.

Example of a console or floor type beverage dispenser.

SEE OR SEARCH CLASS:

99Foods and Beverages: Apparatus,   subclass 275 for beverage.
222Dispensing,   subclass 129.1 for cabinet-type dispenser for single mixed drinks.

[List of Patents for class D7 subclass 307]    307Provision for plural valve:
 This subclass is indented under subclass 306.  Design that has more than one spout, spigot, or stream director.

Example of a console type beverage dispenser with pluralvalve.

Example of a console type beverage dispenser with pluralvalve.

SEE OR SEARCH CLASS:

99Foods and Beverages: Apparatus,   subclass 275 for beverage.
222Dispensing,   subclass 129.1 for cabinet-type dispenser for single mixed drinks.
D20Sales and Advertising Equipment,   subclass 4 for vending machine with multiple diverse article or plural component such as a beverage or food vending machine.

[List of Patents for class D7 subclass 308]    308Provision for plural valve:
 This subclass is indented under subclass 300.  Design that has more than one spout, spigot, or stream director.
(1) Note. Most items in this subclass are tabletop type.

Example of a console type beverage dispenser with pluralvalve.

Example of a console type beverage dispenser with pluralvalve.

SEE OR SEARCH CLASS:

99Foods and Beverages: Apparatus,   subclass 275 for beverage.
222Dispensing,   subclass 129.1 for cabinet-type dispenser for single mixed drinks.

[List of Patents for class D7 subclass 309]    309Automatic drip or pressure brewing type, or having decanter-warming surface:
 This subclass is indented under subclass 300.  Design for coffee machine.
(1) Note. Includes cappuccino machine.

Example of a drip type beverage dispenser with a decanter-warmingsurface.

Example of a drip type beverage dispenser with a decanter-warmingsurface.

SEE OR SEARCH CLASS:

99Foods and Beverages: Apparatus,   subclass 292 for pressure vacuum; subclass 293 steamer or condenser type, subclasses 275-323.3 for beverage maker.
222Dispensing,   subclasses 129.1 through 129.4for cabinet-type dispenser for single mixed drinks.

[List of Patents for class D7 subclass 310]    310Superimposed components:
 This subclass is indented under subclass 300.  Design where the elements of the machine are stacked on top of each other such as a vacuum or drip type coffee maker.

SEE OR SEARCH CLASS:

99Foods and Beverages: Apparatus,   subclass 292 for pressure vacuum; subclass 293 steamer or condenser type, subclass 275-323.3 for beverage maker.
219Electric Heating,   subclass 432 for vessel separable from stand.
222Dispensing,   subclasses 129.1 through 129.4for cabinet-type dispenser for single mixed drinks.

[List of Patents for class D7 subclass 311]    311With Support or Overflow Tray for Receiving vessel:
 This subclass is indented under subclass 300.  Design that shows a receptacle for misdirected beverage drippings.

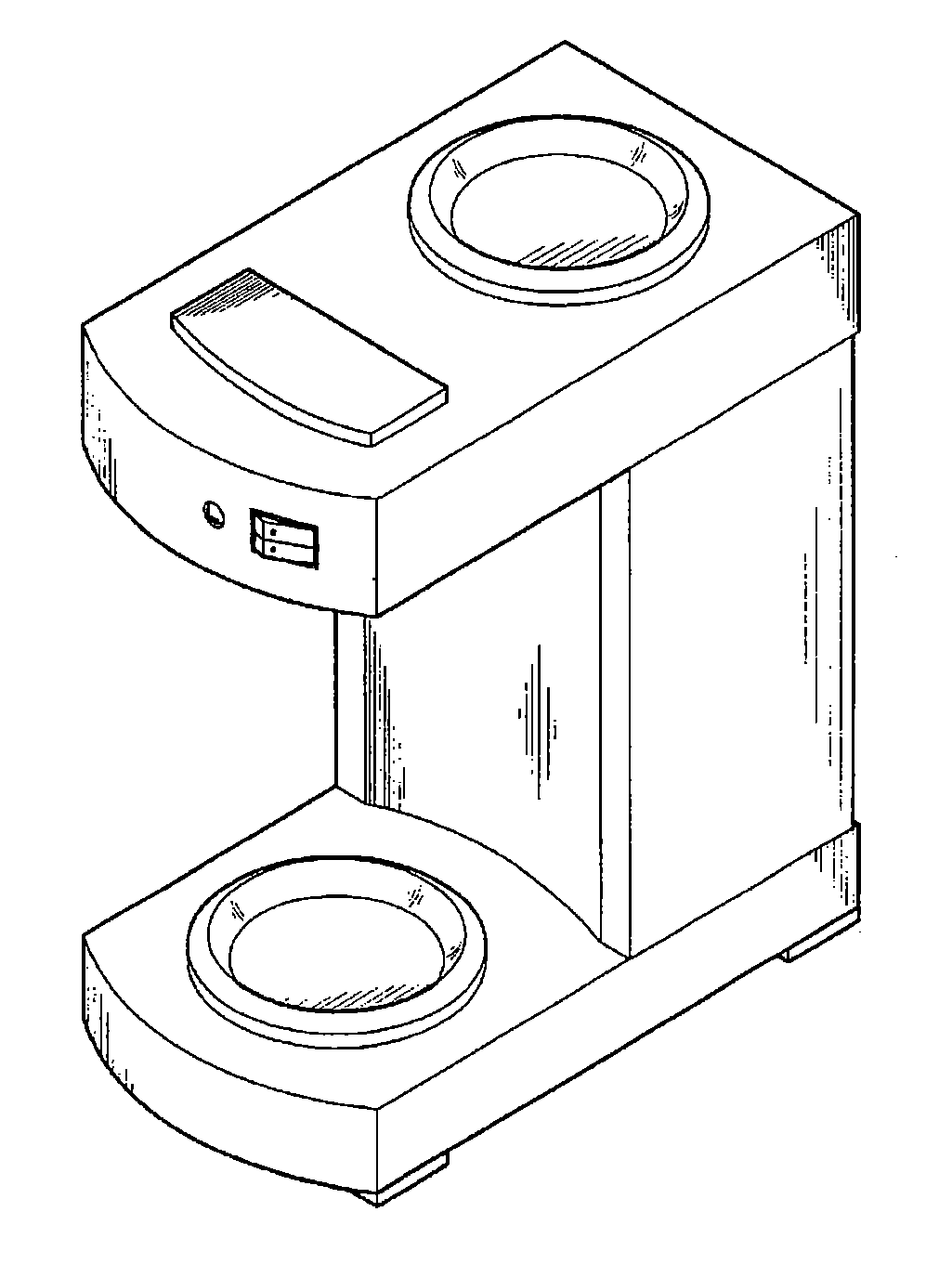

Example of a beverage dispenser with a support or overflowtray for receiving vessel.

Example of a beverage dispenser with a support or overflowtray for receiving vessel.


[List of Patents for class D7 subclass 312]    312Provided with flow director:
 This subclass is indented under subclass 300.  Design that includes a means for beverage liquid focus such as a spout or the like.

SEE OR SEARCH THIS CLASS, SUBCLASS:

354through 361, for cooking vessel.
589,for measured or sequential dispenser.
590through 600, for condiment dispenser.

SEE OR SEARCH CLASS:

D10Measuring, Testing, or Signaling Instruments,   subclass 46.2 for measuring cup/spoon.
99Foods and Beverages: Apparatus,   subclass 279 for infusers.

[List of Patents for class D7 subclass 313]    313Tap or valve actuated:
 This subclass is indented under subclass 312.  Design includes a spout with an on or off switch type mechanism.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 325 barrel simulating.
D23Environmental Heating and Cooling; Fluid Handling and Sanitary Equipment,   subclass 205 for cylindrical storage tank.
D34Material or Article Handling Equipment,   subclass 39 for barrel, cask, or drum.
220Receptacles,   subclass 592.19 for keg or barrel.
222Dispensing,   subclass 146.4 for dispensing device with cooling means.

[List of Patents for class D7 subclass 314]    314Pivotally mounted for pouring:
 This subclass is indented under subclass 312.  Design where the spout or cover can rotate or turn.

SEE OR SEARCH THIS CLASS, SUBCLASS:

320,for handle that pivots.

[List of Patents for class D7 subclass 315]    315Plural:
 This subclass is indented under subclass 312.  Design that includes more than one flow director or spout.

SEE OR SEARCH THIS CLASS, SUBCLASS:

513,for drinking vessel with plural cavity.

[List of Patents for class D7 subclass 316]    316Rim-mounted pouring lip:
 This subclass is indented under subclass 312.  Design where the spout is attached along the top edge of the beverage server.

Example of a design with a rim-mounted pouring lip.

Example of a design with a rim-mounted pouring lip.

SEE OR SEARCH THIS CLASS, SUBCLASS:

598,for cruet, decanter, or pitcher type condiment dispenser.

SEE OR SEARCH CLASS:

99Foods and Beverages: Apparatus,   subclass 323.3 for hot beverage means.
D10Measuring, Testing, or Signaling Instruments,   subclass 46.2 for measuring cup or spoon.

[List of Patents for class D7 subclass 317]    317With closure:
 This subclass is indented under subclass 316.  Design that shows a lid or cover.

Example of a design with rim-mounted pouring lip with closure.

Example of a design with rim-mounted pouring lip with closure.

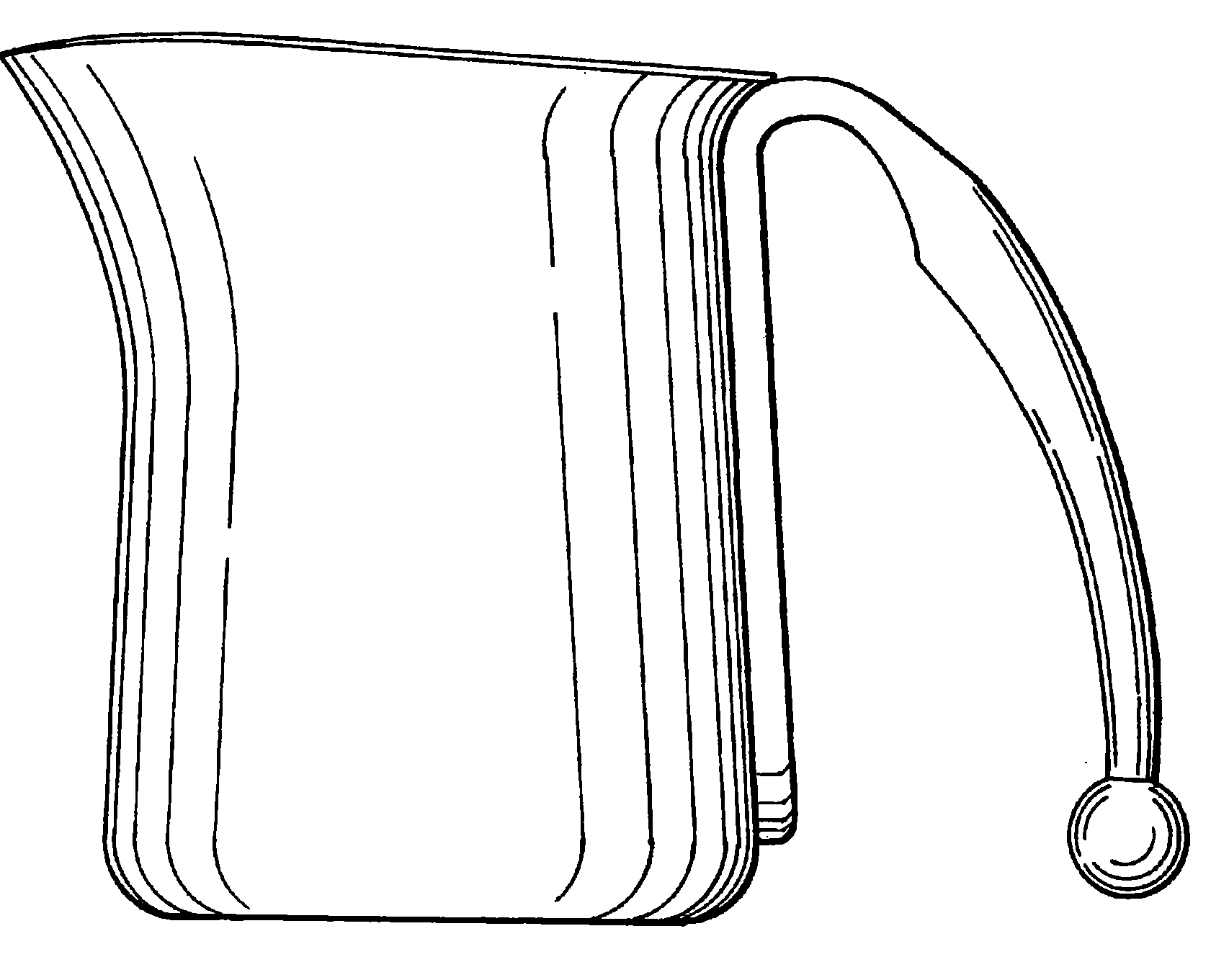

[List of Patents for class D7 subclass 318]    318With handle:
 This subclass is indented under subclass 316.  Design that shows a hand gripping means.

Example of a design for a liquid dispenser with rim-mountedpouring lip and handle.

Example of a design for a liquid dispenser with rim-mountedpouring lip and handle.

SEE OR SEARCH CLASS:

210Liquid Purification or Separation,   subclass 282 for removable cartridge or hand-manipulated container.
D10Measuring, Testing, or Signaling Instruments,   subclass 46.2 for measuring cup or spoon.

[List of Patents for class D7 subclass 319]    319Plural attachment points or with finger opening:
 This subclass is indented under subclass 318.  Design with a hand gripping means that is a closed loop type or with hole for fingers.

Example of a design for a liquid dispenser with rim-mountedpouring lip and handle attaching plural at points.

Example of a design for a liquid dispenser with rim-mountedpouring lip and handle attaching plural at points.

SEE OR SEARCH CLASS:

D10Measuring, Testing, or Signaling Instruments,   subclass 46.2 for measuring cup or spoon.

[List of Patents for class D7 subclass 320]    320With pivoted handle or provision therefore:
 This subclass is indented under subclass 312.  Design that shows a gripping means that turns or rotates.

Example of a design for a liquid dispenser with a pivotedhandle.

Example of a design for a liquid dispenser with a pivotedhandle.


[List of Patents for class D7 subclass 321]    321With Closure:
 This subclass is indented under subclass 312.  Design that shows a lid.

[List of Patents for class D7 subclass 322]    322Latch or lever operated:
 This subclass is indented under subclass 321.  Design with mechanism to lift lid or cover.

Example of a design for a liquid dispenser with a lever operatedclosure.

Example of a design for a liquid dispenser with a lever operatedclosure.


[List of Patents for class D7 subclass 323]    323WARMING OR COOKING:
 This subclass is indented under the class definition.  Design to prepare food by heating.
(1) Note. Classified by full-line disclosure.
(2) Note. Excludes element.

SEE OR SEARCH THIS CLASS, SUBCLASS:

402through 411, for element.

[List of Patents for class D7 subclass 324]    324Solar:
 This subclass is indented under subclass 323.  Design that includes a heating device dependent upon energy from the sun.

[List of Patents for class D7 subclass 325]    325Popcorn:
 This subclass is indented under subclass 323.  Design for cooking or popping kernels of corn or similar type food.

SEE OR SEARCH THIS CLASS, SUBCLASS:

376,for coating machine.

[List of Patents for class D7 subclass 326]    326Bottle or baby food warmer:
 This subclass is indented under subclass 323.  Design for heating food or nursing liquid for infant.

SEE OR SEARCH CLASS:

D24Medical and Laboratory Equipment,   subclasses 197 through 199for nursing bottle or container.

[List of Patents for class D7 subclass 327]    327Invertible or convertible:
 This subclass is indented under subclass 323.  Design that can be converted or adapted for another use or intended to be turned upside down for use.

[List of Patents for class D7 subclass 328]    328Radiant toaster:
 This subclass is indented under subclass 323.  Design for mechanical device that glows or emits heat for toasting slices of bread or similar food product.

SEE OR SEARCH THIS CLASS, SUBCLASS:

350.1through 350.4, for counter top toaster oven.
601,for toast holder.

[List of Patents for class D7 subclass 329]    329Combined:
 This subclass is indented under subclass 328.  Design that includes a design for another article.

[List of Patents for class D7 subclass 330]    330Top loading:
 This subclass is indented under subclass 328.  Design the provides for food product to be inserted from above.

[List of Patents for class D7 subclass 331]    331Vertically disposed heating element:
 This subclass is indented under subclass 323.  Design showing the warming coils aligned in a top to bottom direction.

[List of Patents for class D7 subclass 332]    332Solid or liquid fuel outdoor type:
 This subclass is indented under subclass 323.  Design intended for use outside and adapted to burn charcoal or light fuel such as a grill or barbecue.

[List of Patents for class D7 subclass 333]    333Masonry type:
 This subclass is indented under subclass 332.  Design constructed of stonework or brickwork or similar block type material.

[List of Patents for class D7 subclass 334]    334Mobile unit:
 This subclass is indented under subclass 332.  Design showing wheels or the like.

SEE OR SEARCH CLASS:

D12Transportation,   subclasses 500 through 603for wheel or tire.
D21Games, Toys, and Sports Goods,   subclass 563 for toy wheel.

[List of Patents for class D7 subclass 335]    335Unitary vertical support column:
 This subclass is indented under subclass 332.  Design with a single shaft type, bearing member.

[List of Patents for class D7 subclass 336]    336Cantilevered cooking service:
 This subclass is indented under subclass 335.  Design with the grill surface projects from the body of the design.

[List of Patents for class D7 subclass 337]    337Table top type:
 This subclass is indented under subclass 332.  Design that may be portable or for use on a flat surface such as a table.

SEE OR SEARCH THIS CLASS, SUBCLASS:

350.1through 350.4, for counter top toaster oven.
351,for microwave oven.
363,for griddles.
366,for chafing dish with heat source.
367,for hot plate.

[List of Patents for class D7 subclass 338]    338With rotating or conveying feature:
 This subclass is indented under subclass 323.  Design with a grill or cooking device that turns or oscillates food.

[List of Patents for class D7 subclass 339]    339Freestanding or built-in type:
 This subclass is indented under subclass 323.  Design that is self-contained or is designed to be inserted into wall or other support type structure.

SEE OR SEARCH CLASS:

D21Games, Toys, and Sports Goods,   subclass 524 for toy stove.

[List of Patents for class D7 subclass 340]    340Combined oven and surface unit:
 This subclass is indented under subclass 339.  Design that includes both an open cooking area and an enclosed baking area or unit.

SEE OR SEARCH THIS CLASS, SUBCLASS:

350.1through 350.4, for counter top oven.
351,for microwave oven.

SEE OR SEARCH CLASS:

D21Games, Toys, and Sports Goods,   subclass 524 for combined toy-cooking appliance.

[List of Patents for class D7 subclass 341]    341Cantilevered shelf or warming oven over burner area:
 This subclass is indented under subclass 340.  Design that shows a support or enclosed baking chamber or compartment that projects above an open cooking surface.

[List of Patents for class D7 subclass 342]    342Simulative of baroque motif:
 This subclass is indented under subclass 340.  Design that includes ornamentation that resembles other objects or shows rich and irregular type decorative ornamentation.

[List of Patents for class D7 subclass 343]    343Animate:
 This subclass is indented under subclass 342.  Design that shows a representation of an animal or part of an animal.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 310 for animal motif or animal shaped packages and containers.
D21Games, Toys, and Sports Goods,   subclasses 596 through 657for toy animal figure.

[List of Patents for class D7 subclass 344]    344Alpha or numeric motif:
 This subclass is indented under subclass 342.  Design that shows a representation of a number or a letter.

SEE OR SEARCH CLASS:

D18Printing and Office Machinery,   subclasses 24 through 33for type or type face.

[List of Patents for class D7 subclass 345]    345Simulative:
 This subclass is indented under subclass 342.  Design that includes ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 346]    346Surface unit:
 This subclass is indented under subclass 339.  Design showing an open or unenclosed cooking area only.
(1) Note. Includes range top surface.

SEE OR SEARCH THIS CLASS, SUBCLASS:

362through 367, for hot plate.
407through 408, for burner, grill or element thereof.

SEE OR SEARCH CLASS:

D21Games, Toys, and Sports Goods,   subclasses 523 through 524for combined toy-cooking appliance.

[List of Patents for class D7 subclass 347]    347With enclosed cooking or warming area:
 This subclass is indented under subclass 339.  Design that enclosed an oven or warming chamber.

[List of Patents for class D7 subclass 348]    348Oven:
 This subclass is indented under subclass 347.  Design with a chamber or enclosed compartment for heating, baking or roasting food.

SEE OR SEARCH CLASS:

D21Games, Toys, and Sports Goods,   subclass 524 for combined toy oven.

[List of Patents for class D7 subclass 349]    349Wall mounted type:
 This subclass is indented under subclass 348.  Design intended for attaching to a vertical structure.

[List of Patents for class D7 subclass 350.1]    350.1Countertop unit having door or opening:
 This subclass is indented under subclass 323.  Design for small oven with an enclosed chamber for baking, broiling, toasting or roasting food for use on a level surface.

SEE OR SEARCH THIS CLASS, SUBCLASS:

339through 351, for freestanding cooking or baking unit.

[List of Patents for class D7 subclass 350.2]    350.2Bread mixing and baking type:
 This subclass is indented under subclass 350.1.  Design for appliance that mixes ingredients for bread batter or dough and cooks product.

SEE OR SEARCH THIS CLASS, SUBCLASS:

376through 380, for batter or dough mixer.

SEE OR SEARCH CLASS:

99Foods and Beverages: Apparatus,   subclasses 341 , 348, 359, 467, and 468.
126Stoves and Furnaces,   subclasses 19 , 21, and 275.
219Electric Heating,   subclasses 391 , 400, and 402.

[List of Patents for class D7 subclass 350.3]    350.3Convection oven type:
 This subclass is indented under subclass 350.1.  Design for appliance that cooks or bakes by heat transfer by the circulation or the fluid motion of hot air current.

SEE OR SEARCH THIS CLASS, SUBCLASS:

348,for freestanding convection oven.

SEE OR SEARCH CLASS:

99Foods and Beverages: Apparatus,   subclasses 341 , 348, 359, 467, 468 and 474.
126Stoves and Furnaces,   subclasses 19 , 21, and 275.
219Electric Heating,   subclasses 391 , 400, and 402.

[List of Patents for class D7 subclass 350.4]    350.4Side mounted door:
 This subclass is indented under subclass 350.1.  Design that includes a moveable closure on the surface that joins the top and bottom.

SEE OR SEARCH CLASS:

126Stoves and Furnaces,   subclasses 19 , 21, and 275.
219Electric Heating,   appropriate subclasses.

[List of Patents for class D7 subclass 351]    351Microwave:
 This subclass is indented under subclass 350.4.  Design for counter-top appliance for cooking food with high frequency electromagnetic waves.

SEE OR SEARCH CLASS:

219Electric Heating,   subclass 678 for microwave heating device.

[List of Patents for class D7 subclass 352]    352Opposed heated surfaces:
 This subclass is indented under subclass 323.  Design for cooking areas that face or are positioned adjacent with one another.

[List of Patents for class D7 subclass 353]    353Plural lid:
 This subclass is indented under subclass 352.  Design showing more than one removable top or cover member.

[List of Patents for class D7 subclass 354]    354Vessel:
 This subclass is indented under subclass 323.  Design for pot or pan for cooking.

SEE OR SEARCH CLASS:

D21Games, Toys, and Sports Goods,   subclass 525 for combined toy pot or pan.

[List of Patents for class D7 subclass 355]    355With integral spaced heat source:
 This subclass is indented under subclass 354.  Design with a built-in warming or energy source.

[List of Patents for class D7 subclass 356]    356Superposed vessels:
 This subclass is indented under subclass 354.  Design that includes plural pots that fit into one another or nest together such as a double boiler.

[List of Patents for class D7 subclass 357]    357Plural cooking cell or compartment:
 This subclass is indented under subclass 354.  Design with a cooking area that is separated or divided into more than one area for heating food.

[List of Patents for class D7 subclass 358]    358Pressure cooker:
 This subclass is indented under subclass 354.  Design that provides a sealed, airtight compartment where food is cooked under steam or high atmospheric compression.

[List of Patents for class D7 subclass 359]    359Textured irregular or convex cooking surface:
 This subclass is indented under subclass 354.  Design that shows a non-smooth or rounded cooking surface.

[List of Patents for class D7 subclass 360]    360Plural grip or provision therefor:
 This subclass is indented under subclass 354.  Design that shows more than one handle or holding member or provides for the attachment of same.

[List of Patents for class D7 subclass 361]    361Singular handle or provision therefor:
 This subclass is indented under subclass 354.  Design that shows one grip member.

[List of Patents for class D7 subclass 362]    362Heat source or planar heated surface:
 Design under 323 that shows an energy source other than charcoal for cooking on a flat warming surface.

SEE OR SEARCH THIS CLASS, SUBCLASS:

354,for heat source with vessel.

[List of Patents for class D7 subclass 363]    363Planar:
 This subclass is indented under subclass 362.  Design that shows a flat heating source such as a griddle or warming surface.

[List of Patents for class D7 subclass 364]    364Plural:
 This subclass is indented under subclass 362.  Design showing more than one heating surface.

[List of Patents for class D7 subclass 365]    365With spaced heater element or provision therefor:
 This subclass is indented under subclass 362.  Design showing a space between the cooking surface and the heat source.

[List of Patents for class D7 subclass 366]    366Chafing dish type:
 This subclass is indented under subclass 365.  Design for a cooking vessel raised and supported above a heating element that may be used on a dining table or serving area.

[List of Patents for class D7 subclass 367]    367Hot plate type or having support feet:
 This subclass is indented under subclass 362.  Design for a tabletop cooking device.

[List of Patents for class D7 subclass 368]    368PROCESSING, PREPARING OR HANDLING:
 This subclass is indented under the class definition.  Design for implement or tool to process or prepare food.
(1) Note. Classified by both full-line and broken-line disclosure.

SEE OR SEARCH THIS CLASS, SUBCLASS:

601through 641, for holder or storage receptacle.
642through 664, for place setting or table service utensil.

SEE OR SEARCH CLASS:

D4Brushware,   subclass 118 for scraper combined with brush.
D8Tools and Hardware,   subclasses 33 through 43for bottle or can opener and subclasses 307-312 for handle or knob for stove.
D21Games, Toys, and Sports Goods,   subclasses 523 through 527for toy appliances.
D23Environmental Heating and Cooling; Fluid Handling and Sanitary Equipment,   subclasses 238 through 243for faucet-type fixture.
D24Medical and Laboratory Equipment,   subclass 220 for pharmaceutical muddler or pestle.
D32Washing, Cleaning, or Drying Machine,   subclasses 2 through 13for washing or cleaning machine and subclass 74 for crumb collector.

[List of Patents for class D7 subclass 369]    369Separating:
 This subclass is indented under subclass 368.  Design for disuniting or isolating parts or types of food.

[List of Patents for class D7 subclass 370]    370Dairy:
 This subclass is indented under subclass 369.  Design relating to milk or cream products.

SEE OR SEARCH CLASS:

D32Washing, Cleaning or Drying Machine,   subclass 54 for paint mixer.

[List of Patents for class D7 subclass 371]    371Churn:
 This subclass is indented under subclass 370.  Design for vessel or device in which cream and milk product is agitated to make butter or the like.

[List of Patents for class D7 subclass 372]    372Grinding or crushing:
 This subclass is indented under subclass 368.  Design for powered device for squeezing or milling food products such as spices or the like.

SEE OR SEARCH THIS CLASS, SUBCLASS:

665through 666, for juicer or garlic press.
679,for hand operated grinder or mill.
680,for nutcracker.

[List of Patents for class D7 subclass 373]    373Coffee:
 This subclass is indented under subclass 372.  Design for powered grinder or mill for crushing coffee beans.

[List of Patents for class D7 subclass 374]    374Ice:
 This subclass is indented under subclass 372.  Design for power grinder or mill for crushing frozen water.

SEE OR SEARCH THIS CLASS, SUBCLASS:

682,for cracking type hammer.

[List of Patents for class D7 subclass 375]    375Waste disposal:
 This subclass is indented under subclass 372.  Design for powered device for grinding food waste such as a garbage disposal unit.

[List of Patents for class D7 subclass 376]    376Mixing:
 This subclass is indented under subclass 368.  Design for powered device for stirring or processing food.

[List of Patents for class D7 subclass 377]    377Homogenizer or emulsifier:
 This subclass is indented under subclass 376.  Design for emulsifying the fat particles in dairy products or the like.

[List of Patents for class D7 subclass 378]    378Blender:
 This subclass is indented under subclass 376.  Design for emulsifying food into small particles or grinding solid food into a liquid state.

SEE OR SEARCH THIS CLASS, SUBCLASS:

386,for blender base or motor enclosure.

SEE OR SEARCH CLASS:

D21Games, Toys, and Sports Goods,   subclass 523 for combined toy appliance.

[List of Patents for class D7 subclass 379]    379Provision for depending beater:
 This subclass is indented under subclass 376.  Design that includes whip or mixing members suspended from the motor.

[List of Patents for class D7 subclass 380]    380Hand operated:
 This subclass is indented under subclass 376.  Design for powered mixer that is held in the human hand when in use.

[List of Patents for class D7 subclass 381]    381Cutting, slicing or piercing:
 This subclass is indented under subclass 368.  Design for powered device used to slice or cut.

SEE OR SEARCH THIS CLASS, SUBCLASS:

372,for abrasive type vegetable peeler.

[List of Patents for class D7 subclass 382]    382Tenderizer:
 This subclass is indented under subclass 381.  Design specific for piercing meat and making it soft and tender.

[List of Patents for class D7 subclass 383]    383Rotating blade:
 This subclass is indented under subclass 381.  Design that includes a cutting knife-edge that operated with a circular motion.

[List of Patents for class D7 subclass 384]    384Processor:
 This subclass is indented under subclass 383.  Design for device that processes multiple tasks in for food preparation.

[List of Patents for class D7 subclass 385]    385Reciprocating blade or saw type:
 This subclass is indented under subclass 381.  Design that shows a cutting blade that oscillates bask and forth.
(1) Note. Includes bread-slicing machine.

[List of Patents for class D7 subclass 386]    386Power base unit:
 This subclass is indented under subclass 386.  Design for motor or power base element for processing, preparing or food handling machine.

[List of Patents for class D7 subclass 387]    387ELEMENT OR ATTACHMENT:
 This subclass is indented under the class definition.  Design directed to parts or accessories for designs classified in subclasses 500-386 as shown in the class schedule.
(1) Note. Classified by both full-line and broken-line disclosure.

SEE OR SEARCH THIS CLASS, SUBCLASS:

300through 322, for beverage or liquid serving article casing.
323through 367, for warming or cooking article casing.
368through 386, for processing, preparing or handling article casing.
589,for measured or sequential dispenser casing.
590,for condiment dispenser casing.
601through 641, for holder or food storage receptacle.

SEE OR SEARCH CLASS:

99Foods and Beverages: Apparatus,   subclass 433 for pie rim clamp or guard.
D8Tools and Hardware,   subclass 93 for knife sharpener attachment for food processor.

[List of Patents for class D7 subclass 388]    388Insulating or supporting stand or mat:
 This subclass is indented under subclass 387.  Design for trivet, stove mat or protective pad used in the preparation or serving of food.

Example of a design for an insulating stand.

Example of a design for an insulating stand.

SEE OR SEARCH THIS CLASS, SUBCLASS:

602,for holder for food or beverage or container therefor.
624through 625, for beverage coaster or sheath.

SEE OR SEARCH CLASS:

99Foods and Beverages: Apparatus,   subclass 450 for support or support with perforations.
108Horizontally Supported Planar Surfaces,   subclass 156 for independent legs support surface.
219Electric Heating,   subclass 732 for stand or handle for cookware.
248Supports,   subclass 346.1 for supporting base.
D6Furnishings,   subclass 403 for support for flowerpot or flower arrangement.
D27Tobacco and Smokers’ Supplies,   subclass 126 for ashtray with coaster or glass holder.

[List of Patents for class D7 subclass 389]    389Simulative:
 This subclass is indented under subclass 388.  Design that includes ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

SEE OR SEARCH THIS CLASS, SUBCLASS:

624.1through 624.3, for simulative coaster or sheath.

[List of Patents for class D7 subclass 390]    390Toaster:
 This subclass is indented under subclass 387.  Design for heating or crisping sliced bread or similar type pastry.

[List of Patents for class D7 subclass 391]    391Utensil cover:
 This subclass is indented under subclass 387.  Design for lid or top used with tools for food preparation.

[List of Patents for class D7 subclass 392]    392Dispensing:
 This subclass is indented under subclass 391.  Design for lid for utensil for pouring beverage or liquid for drinking such as a coffee pot or pitcher.

SEE OR SEARCH THIS CLASS, SUBCLASS:

312through 322, for warming of cooking device that includes a lid.

[List of Patents for class D7 subclass 392.1]    392.1For china, glassware or serving vessel:
 This subclass is indented under subclass 391.  Design for lid or cover for container used to dispense or present food or beverage.
(1) Note. Includes cover for food storage container, coffee cup, juice cup and the like.

SEE OR SEARCH THIS CLASS, SUBCLASS:

538through 542, for lid for covered china, glassware, serving vessel or tray.
629,for holder or storage receptacle with closure.
900,for beverage cup lid.

SEE OR SEARCH CLASS:

215Bottles and Jars,   subclass 200 for closures
D9Packages and Containers for Goods,   subclasses 435 through 454for closure, cover or pouring attachment.
D24Medical or Laboratory Equipment,   subclass 199 for holder or cover for nursing bottle or container.

[List of Patents for class D7 subclass 393]    393Handle or knob:
 This subclass is indented under subclass 387.  Design for member used to for hold a cooking vessel, serving container, pitcher or utensil.

SEE OR SEARCH THIS CLASS, SUBCLASS:

354through 361, for cooking vessel or container.
533,for beverage cup with handle.
538through 542, for lid for covered china, glassware, serving vessel or tray.
543through 546, for china or serving vessel with hand or finger holding means.
547,for china or serving vessel with handle coming from center.
629,for holder or storage receptacle with closure.
683through 696, for hand operated food-processing tool.

SEE OR SEARCH CLASS:

220Receptacles,   subclass 752 for handle, component or handle adjunct.

[List of Patents for class D7 subclass 394]    394Provides finger pass-through:
 This subclass is indented under subclass 393.  Design for bail or loop-type handle with opening for hand or fingers to grip such as a handle for a coffee cup.

SEE OR SEARCH THIS CLASS, SUBCLASS:

536,for beverage cup with closed loop handle.
548,for china or serving vessel with handles having hole for fingers.

[List of Patents for class D7 subclass 395]    395Attaches at end of in-line elongated axis:
 This subclass is indented under subclass 393.  Design with handle member that extends from its long axis.

SEE OR SEARCH THIS CLASS, SUBCLASS:

354through 361, for cooking vessel or container.
683through 696, for hand operated food processing tool.

[List of Patents for class D7 subclass 396]    396Percolator knob:
 This subclass is indented under subclass 393.  Design for finial type projection usually located at the top of a coffee pot that operated by forcing boiling water through ground coffee beans.

SEE OR SEARCH THIS CLASS, SUBCLASS:

310,for drip type coffee pot.

[List of Patents for class D7 subclass 396.1]    396.1China, glassware, serving vessel or tray:
 This subclass is indented under subclass 387.  Design for element or part of dish or food-holding container used to set out food for consumption or carrying type food holding container.

[List of Patents for class D7 subclass 396.2]    396.2Drinking vessel:
 This subclass is indented under subclass 396.1.  Design for element or attachment for open container for liquid beverage such as a glass, cup, goblet, mug or the like.

SEE OR SEARCH THIS CLASS, SUBCLASS:

300.2,for straw.
511,for drink container with lid.
512,for collapsible drink container.
524through 528, for goblet.
533through 536, for mug with handle.
624.1through 6264.3, for beverage coaster or sheath.

SEE OR SEARCH CLASS:

220Receptacles,   subclass 703 for drinking devices; subclass 592.16, for a beverage; subclass 592.17 drinking vessel.
229Envelopes, Wrappers, and Paperboard Boxes,   subclass 400 for paper cup.
215Bottles and Jars,   subclass 387 , for drinking device; Dig. 7 for drinking cup.
D3Travel Goods and Personal Belongings,   subclass 202 for flask or canteen.
D9Packages and Containers for Goods,   subclasses 516 through 575for bottle, jug, jar or can.

[List of Patents for class D7 subclass 396.3]    396.3Mustache guard:
 This subclass is indented under subclass 396.2.  Design for element of a drinking vessel that includes protection upper lip hair.

SEE OR SEARCH CLASS:

220Receptacles,   subclass 710.5 for mustache guard for drinking container, subclass 716 for sanitary lip guard for drinking container.
D24Medical and Laboratory Equipment,   subclass 105 for prophylactic article.
D29Equipment for Safety, Protection and Rescue,   subclass 108 for protective covering for face, mouth or ear.

[List of Patents for class D7 subclass 396.4]    396.4Decal or surface pattern:
 This subclass is indented under subclass 396.1.  Design for transfer type ornamentation or decalcomania for china, glassware or serving tray or the like.

Example of a design for a surface pattern.

Example of a design for a surface pattern.

(1) Note. If the edge or the serving vessel is shown either in full or in broken lines, the design is classified with the actual item per se.

SEE OR SEARCH THIS CLASS, SUBCLASS:

514,for simulative drinking vessel.

SEE OR SEARCH CLASS:

D20Sales and Advertising Equipment,   subclass 11 for decalcomania.

[List of Patents for class D7 subclass 396.5]    396.5Border:
 This subclass is indented under subclass 396.4.  Design specific to outer edge or a plate, dish or tray.

Example of a design for a decal for border.

Example of a design for a decal for border.


[List of Patents for class D7 subclass 396.6]    396.6Base or foot:
 This subclass is indented under subclass 396.1.  Design for bottom or under support of a dish or food-holding container used to set out food for consumption or carrying type food tray.

SEE OR SEARCH THIS CLASS, SUBCLASS:

558,for serving vessel with columnar support or footed base.
602through 630, for food or beverage holder or storage container.
619.1through 619.2, for beverage container.

SEE OR SEARCH CLASS:

215Bottles and Jars,   subclass 379 for container with footed suport.

[List of Patents for class D7 subclass 397]    397Serving or dispensing type:
 This subclass is indented under subclass 387.  Design for element or part for beverage distribution machine such as a water fountain or beer machine.

[List of Patents for class D7 subclass 398]    398Tap, valve or spout:
 Design under 397 for spigot for portion of beverage dispenser where the liquid pours.

SEE OR SEARCH CLASS:

222Dispensing,   subclass 566 for nozzle, spot and pouring device.
D23Environmental Heating and Cooling; Fluid Handling, and Sanitary Equipment,   subclass 238 for faucet fixture, and subclass for 255 spout.

[List of Patents for class D7 subclass 399]    399Coffee or tea maker:
 This subclass is indented under subclass 397.  Design specific to aromatic type beverage such as a coffee or teapot.

[List of Patents for class D7 subclass 400]    400Filter or holder therefor:
 This subclass is indented under subclass 399.  Design for porous article or strainer through which coffee or tea is passed in order to remove particulates.

SEE OR SEARCH THIS CLASS, SUBCLASS:

647,for utensil with pierced bowl.
667,for sifter or strainer.

SEE OR SEARCH CLASS:

210Liquid Purification or Separation,   subclass 348 for filter.
D23Environmental Heating and Cooling; Fluid Handling and Sanitary Equipment,   subclass 209 for filter or strainer.

[List of Patents for class D7 subclass 401]    401Upper bowl:
 This subclass is indented under subclass 399.  Design for the top vessel of a coffee or tea maker.

SEE OR SEARCH THIS CLASS, SUBCLASS:

312through 322, for decanter with flow director.

[List of Patents for class D7 subclass 401.1]    401.1Condiment dispenser, caster or caddy:
 This subclass is indented under subclass 387.  Design for element or part of sauce, relish, spice or food seasoning container or carrier.

SEE OR SEARCH THIS CLASS, SUBCLASS:

505,for plural or distinct articles of china, glassware, serving vessel or tray.
553.1through 553.8, for compartmented trays.
590through 600, for condiment dispenser, caster or caddy.

[List of Patents for class D7 subclass 401.2]    401.2Place setting, table service utensil or handle therefor:
 This subclass is indented under subclass 387.  Design for element or attachment for tableware or utensil used to serve or handle food.

SEE OR SEARCH THIS CLASS, SUBCLASS:

635,for cutlery support, chop stick support or spoon rest.

[List of Patents for class D7 subclass 402]    402Warming or cooking:
 This subclass is indented under subclass 387.  Design for element or attachment for food heating device.
(1) Note. Includes part of microwave turntable.

SEE OR SEARCH THIS CLASS, SUBCLASS:

409,for broiler pay insert or food holder.

[List of Patents for class D7 subclass 403]    403Base, stand or leg:
 This subclass is indented under subclass 402.  Design for under support for a food warming or cooking device.

[List of Patents for class D7 subclass 404]    404Fuel tank or bottle support:
 This subclass is indented under subclass 403.  Design for holding a container for heating a food-serving vessel.

[List of Patents for class D7 subclass 405]    405Door or panel:
 This subclass is indented under subclass 403.  Design for a movable structure type panel.

[List of Patents for class D7 subclass 406]    406Backsplash, control panel, or shelf unit:
 This subclass is indented under subclass 402.  Design for protective rear edge, guard, and button area or support surface.

[List of Patents for class D7 subclass 407]    407Burner, liner or element thereof:
 This subclass is indented under subclass 402.  Design for gas or electric burner or part thereof.

SEE OR SEARCH THIS CLASS, SUBCLASS:

324,for solar heating device.

[List of Patents for class D7 subclass 408]    408Grid or grate:
 This subclass is indented under subclass 407.  Design for rigid support to hold vessel during heating or cooking.

[List of Patents for class D7 subclass 409]    409Grid, grille, holder or insert:
 This subclass is indented under subclass 402.  Design for rigid support to hold food during heating or cooking.

[List of Patents for class D7 subclass 410]    410Waffle:
 This subclass is indented under subclass 409.  Design for cooking light, crisp battercake type food.

[List of Patents for class D7 subclass 411]    411Toast:
 This subclass is indented under subclass 410.  Design for cooking sliced bread or similar type food.

[List of Patents for class D7 subclass 412]    412Processing, preparing or handling:
 This subclass is indented under subclass 387.  Design for device used to prepare or mix food.

[List of Patents for class D7 subclass 413]    413Blender container:
 This subclass is indented under subclass 412.  Design for enclosure used for power appliance used to combine or mix food.

[List of Patents for class D7 subclass 414]    414Grinder or crusher:
 This subclass is indented under subclass 411.  Design for milling, pressing or squeezing food.

[List of Patents for class D7 subclass 415]    415Liquid:
 This subclass is indented under subclass 413.  Design specific to fluid type food.

[List of Patents for class D7 subclass 416]    416FIRE STARTER OR IGNITER:
 This subclass is indented under the class definition.  Design for setting fire or to cause a heat source to burn.
(1) Note. Classified by full-line disclosure and broken line disclosure.

SEE OR SEARCH CLASS:

126Stoves and Furnaces,   subclass 401 for tool having fuel burner, subclass 25b for igniting tool, subclasses 229 for liquid gaseous fuel tool heater.
431Combustion,   subclass 91 for projector and igniter liquid, subclass 254 for electrical and mechanical igniter, subclass 345 for flame holder having attached handle.
D27Tobacco and Smokers’ Supplies,   subclass 130 for tobacco lighter, subclasses 139-161 for igniter subclasses 173-175 for match or matchbook holder.
D29Equipment for Safety, Protection and Rescue,   subclasses 125 through 130for fire extinguisher or element thereof.

Example of a design for a fire starter or igniter.

Example of a design for a fire starter or igniter.


[List of Patents for class D7 subclass 417]    417Container type:
 This subclass is indented under subclass 416.  Design for holding solid cooking fuel such as a charcoal bucket.

Example of a design for charcoal type container.

Example of a design for charcoal type container.

SEE OR SEARCH CLASS:

126Stoves and Furnaces,   subclass 25 R for summer stove.
D23Environmental, Heating and Cooling; Fluid Handling and Sanitary Equipment,   subclass 336 for heater with circular housing, subclass 410 for coal scuttle or wood holder.
D32Washing, Cleaning, or Drying Machine,   subclass 53 for bucket or pail.

[List of Patents for class D7 subclass 500]    500CHINA, GLASSWARE, SERVING VESSEL OR TRAY:
 This subclass is indented under the class definition.  Design for dishes and food holding containers used to set out food for consumption or carrying-type food tray.
(1) Note. Includes dish-type cooking vessels such as microwave safe ceramic, glass, plastic, or other nonmetallic plates and casseroles.

SEE OR SEARCH THIS CLASS, SUBCLASS:

300.1,for cocktail shaker.
312,for pouring vessel.
354,for cooking vessel.
412through 415, for bowl or vessel specifically designed for mixer or blender.
589,for sequential or measured food dispenser.
590,for condiment dispenser or carrier and relish-type dish.
601through 641, for food storage or handling container.
603,and 604, for ice serving or wine chilling bucket.
610,for cake or pie storage container.

SEE OR SEARCH CLASS:

D6Furnishings,   subclasses 406.1 through 406.6for lap tray, table, or desk.
D9Packages and Containers for Goods,   subclasses 424 through 429for packaging tray.
D11Jewelry, Symbolic Insignia, and Ornaments,   subclasses 143 through 156for vase.
D24Medical and Laboratory Equipment,   subclass 224 for medical-type vessel (e.g., test tube).
D27Tobacco and Smokers’ Supplies,   subclass 126 for ashtray combined with coaster.
D28Cosmetic Products and Toilet Articles,   subclass 61 for manicure or pedicure kit, rack, stand or tray, subclass 73 for holder for cosmetic products.

[List of Patents for class D7 subclass 501]    501Lazy susan type:
 This subclass is indented under subclass 500.  Design for rotating or revolving tray for serving food or condiments.

Example of a design for a lazy susan.

Example of a design for a lazy susan.

SEE OR SEARCH THIS CLASS, SUBCLASS:

553.6,for round or oval compartmented tray.
554.1,for round or oval tray.
590,for condiment dispenser, caster or caddy.
600.2,for rotating holder or rack.

[List of Patents for class D7 subclass 502]    502Butter container:
 This subclass is indented under subclass 500.  Design designated for holding a soft, processed emulsion of butterfat used as a spread or in cooking.
(1) Note. Design should be designated as a butter container or the like.

SEE OR SEARCH THIS CLASS, SUBCLASS:

589,for sequential butter dispenser.
670,for butter applicator.

[List of Patents for class D7 subclass 503]    503Egg cup:
 This subclass is indented under subclass 500.  Design designated as a serving type holder for an ovoid-shape, thin-shelled food.

Example of a design for an egg cup.

Example of a design for an egg cup.

(1) Note. Design should be designated as an eggcup or the like.

SEE OR SEARCH THIS CLASS, SUBCLASS:

611,for egg storage receptacle.

SEE OR SEARCH CLASS:

99Foods and Beverages: Apparatus,   subclass 440 for ball or egg shaped article 497-499 and subclass 582 for egg separators.
211Supports: Racks,   subclass 14 for ball or egg type support
220Receptacles,   subclass 508 for egg carrier.
D9Packages and Containers for Goods,   subclasses 341 through 348for egg carton, subclass 456 for design for egg tray or carton.

[List of Patents for class D7 subclass 504]    504Taco holder:
 This subclass is indented under subclass 500.  Design designated as a serving type vessel for folded type tortilla.

[List of Patents for class D7 subclass 505]    505Plural distinct articles or combined:
 This subclass is indented under subclass 500.  Design for set or partial set of dishware combined with teapot, cup and saucer, etc.

Example of design for combined or set of dishware.

Example of design for combined or set of dishware.

SEE OR SEARCH THIS CLASS, SUBCLASS:

507,for a drinking vessel with a plate, etc.
538,for bowl with lid.
598,for cream and sugar container with caddy.

SEE OR SEARCH CLASS:

206Special Receptacle or Package,   subclass 216 for combined or convertible receptacle.
220Receptacles,   subclass 574.1 for tableware with eating aid; subclass 23.83, for arrangements of plural receptacles.
D27Tobacco and Smokers’ Supplies,   subclass 109 for simulative ash receiving snuffer or support combined with coaster or glass holder.

[List of Patents for class D7 subclass 506]    506Simulative in form:
 This subclass is indented under subclass 505.  Design that includes an ornamental feature or features that show a three-dimensional representation of another article.
(1) Note. The search for a toy that simulates the appearance of another object should also include the appropriate Design Class and subclass(es) for the actual object.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 307 for simulative in form or motif.
D27Tobacco and Smokers’ Supplies,   subclass 109 for simulative ash receiving snuffer or support with coaster or glass holder.

[List of Patents for class D7 subclass 507]    507Drinking vessel with diverse article:
 This subclass is indented under subclass 505.  Design for glass or cup for beverage that includes another article.
(1) Note. Includes drinking containers combined with straw, cup holder, saucer, spoon, etc.

SEE OR SEARCH THIS CLASS, SUBCLASS:

300.2,for stirrer or straw.
511,for drinking vessel with lid
608,for drinking cup combined with vacuum bottle.
619,for holder for a beverage container only.

SEE OR SEARCH CLASS:

206Special Receptacle or Package,   subclass 217 for combined or convertible receptacle that includes a drinking vessel.
215Bottles and Jars,   subclass 387 for drinking device; subclass 388 for drinking device with straw or drinking tube.
219Electric Heating,   subclasses 432 through 433for beverage holder with heating element.
220Receptacles,   subclass 705 for drinking device with straw; subclass 735 for drink container combined with tool or implement holder.
229Envelopes, Wrappers,   and Paperboard Boxes subclass 401 for paper cup with spoon.
362Illumination,   subclass 101 for liquid container with light, subclass 154 for container with light.
D3Travel Goods, Personal Belongings, and Storage or Carrying Articles,   subclass 202 for flask or canteen.

[List of Patents for class D7 subclass 508]    508With nutcracker:
 This subclass is indented under subclass 505.  Design combined with tool to open hard shell or seed type food such as a pecan or walnut.

SEE OR SEARCH THIS CLASS, SUBCLASS:

680,for nutcracker.

[List of Patents for class D7 subclass 509]    509Drinking vessel:
 This subclass is indented under subclass 500.  Design for open container for liquid beverage such as a glass, cup, goblet, mug or the like.

SEE OR SEARCH THIS CLASS, SUBCLASS:

511,for drink container with lid.
512,for collapsible drink container.
524through 528, for goblet.
533through 536, for mug with handle.

SEE OR SEARCH CLASS:

215Bottles and Jars,   subclass 387 , for drinking device; Dig. 7 for drinking cup.
220Receptacles,   subclass 703 for drinking devices; subclass 592.16, for a beverage; subclass 592.17 drinking vessel.
229Envelopes, Wrappers, and Paperboard Boxes,   subclass 400 for paper cup.
D3Travel Goods and Personal Belongings,   subclass 202 for flask or canteen.
D9Packages and Containers for Goods,   subclasses 516 through 575for bottle, jug, jar or can.

[List of Patents for class D7 subclass 510]    510With anti-spill feature or closure:
 This subclass is indented under subclass 509.  Design for beverage container that includes an overflow or tipping prevention means.

SEE OR SEARCH THIS CLASS, SUBCLASS:

392.1,for cover for china glassware or serving vessel.
900,for beverage cup lid.

SEE OR SEARCH CLASS:

215Bottles and Jars,   subclass 11.6 for nursing bottle with cover.
220Receptacles,   subclass 711 , for removable closure having specific drinking means.
D3Travel Goods and Personal Belongings,   subclass 202 for canteen or flask.
D9Packages and Containers for Goods,   subclasses 516 through 575for bottle, jug, jar or can.
D24Medical and Laboratory Equipment,   subclass 197 for nursing bottle or container.

[List of Patents for class D7 subclass 511]    511Closure:
 This subclass is indented under subclass 510.  Design that includes cover, lid or top for a drinking vessel.

SEE OR SEARCH THIS CLASS, SUBCLASS:

392.1,for cover for china glassware or serving vessel.
900,for beverage cup lid.

SEE OR SEARCH CLASS:

215Bottles and Jars,   subclass 200 , for closures.
229Envelopes, Wrappers, and Paperboard Boxes,   subclass, 404 for paper cup with closure.
D9Packages and Containers for Goods,   subclasses 516 through 575for bottle, jug, jar or can.

[List of Patents for class D7 subclass 512]    512Collapsible:
 This subclass is indented under subclass 509.  Design that includes a provision for being compacted or folded into a reduced size.

Example of a design for a collapsible drinking vessel.

Example of a design for a collapsible drinking vessel.

SEE OR SEARCH CLASS:

206Special Receptacle or Package,   subclass 218 , for collapsible drinking vessel.
220Receptacles,   subclass 907 for collapsible beverage can.
229Envelopes, Wrappers, and Paperboard Boxes,   subclass 405 for collapsible cup.
D9Packages and Containers for Goods,   subclass 301 for bellows type, subclass 302 for collapsible tube.

[List of Patents for class D7 subclass 513]    513Plural cavity:
 This subclass is indented under subclass 509.  Design with more than one hollow or area for beverage.

SEE OR SEARCH CLASS:

220Receptacles,   subclass 507 for cells.

[List of Patents for class D7 subclass 514]    514Simulative:
 This subclass is indented under subclass 509.  Design that includes ornamental appearance of another article as surface ornamentation or in three-dimensional representation.
(1) Note. Leaf, plume or scroll excluded.

SEE OR SEARCH THIS CLASS, SUBCLASS:

619.1,for simulative beverage cup holder.
624.1,for simulative coaster or sheath.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 307 for simulative packages and containers in form or motif.

[List of Patents for class D7 subclass 515]    515In form:
 This subclass is indented under subclass 514.  Design that shows a three-dimensional representation of another article.

[List of Patents for class D7 subclass 516]    516Animate:
 This subclass is indented under subclass 515.  Design that shows a three-dimensional representation of an animal.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 310 for animal motif or animal shaped packages and containers.

[List of Patents for class D7 subclass 517]    517Human:
 This subclass is indented under subclass 516.  Design that shows a three-dimensional representation of a human being.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 311 for human motif or human shaped packages and containers.
D21Games, Toys, and Sports Goods,   subclasses 576 through 567for doll or toy animal figure.

[List of Patents for class D7 subclass 518]    518Flower, bud, fruit or vegetable:
 This subclass is indented under subclass 515.  Design that shows a three-dimensional representation of a plant blossom or ripe plant product.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 335 for packages or containers that include plant life motif; subclass 336 for packages or containers that include flower motif.

[List of Patents for class D7 subclass 519]    519Animate:
 This subclass is indented under subclass 514.  Design with an ornamental feature or features that show a representation of an animal.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 310 for packages or container with an animal motif.

[List of Patents for class D7 subclass 520]    520Human:
 This subclass is indented under subclass 519.  Design that shows a representation of a human being.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 311 for human motif or human shaped packages and containers.
D21Games, Toys, and Sports Goods,   subclasses 576 through 567for doll or toy animal figure.

[List of Patents for class D7 subclass 521]    521Flower, Bud, Fruit, or Vegetable:
 This subclass is indented under subclass 514.  Design that includes an ornamental feature or features that represent a plant blossom or ripe plant product.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 335 for packages or containers that include plant life motif; subclass 336 for packages or containers that include flower motif.

[List of Patents for class D7 subclass 522]    522Goblet:
 This subclass is indented under subclass 521.  Design for stemmed drinking vessel such as a wine glass, brandy snuffer, etc.

SEE OR SEARCH THIS CLASS, SUBCLASS:

524,for goblet.

[List of Patents for class D7 subclass 523]    523Three or more repeats or uniform configuration, about axis:
 This subclass is indented under subclass 509.  Design for multi-sided symmetrical drinking vessel or smooth surfaced round-in-plan drinking vessel.

Example of a design for a glass with three or more repeatsabout an axis.

Example of a design for a glass with three or more repeatsabout an axis.

SEE OR SEARCH CLASS:

215Bottles and Jars,   subclass 387 , for drinking device; Digest. 7 for drinking cup.
220Receptacles,   subclass 703 for drinking devices; subclass 592.16, for beverage container; subclass 592.17 for drinking vessel.
229Envelopes, Wrappers, and Paperboard Boxes,   subclass 400 for paper cup.

[List of Patents for class D7 subclass 524]    524Goblet:
 This subclass is indented under subclass 523.  Design for a stemmed drinking vessel such as a wine glass, brandy snifter, etc.

SEE OR SEARCH THIS CLASS, SUBCLASS:

522,for goblet the includes flower, bud, fruit or vegetable motif.

[List of Patents for class D7 subclass 525]    525Helical or sinuous detail:
 This subclass is indented under subclass 524.  Design with spiral or curvilinear surface design.

[List of Patents for class D7 subclass 526]    526Incised V- shaped grooves defining pattern:
 This subclass is indented under subclass 524.  Design with "V" shape repeating design or cut glass type detail.
(1) Note. Each wall of the "V" must repeat or be a mirror image of the opposite wall.

[List of Patents for class D7 subclass 527]    527Straight vertical ribs or grooves, with planar surfaces:
 This subclass is indented under subclass 524.  Design with repeating vertical stripes in raised, indented or flush surface.

[List of Patents for class D7 subclass 528]    528Repeating circumferential ribs or grooves:
 This subclass is indented under subclass 524.  Design with repeating horizontal stripes in raised, indented or flush surface.

[List of Patents for class D7 subclass 529]    529Helical or sinuous detail:
 This subclass is indented under subclass 523.  Design with spiral or curvilinear surface design.

[List of Patents for class D7 subclass 530]    530Incised V- shaped grooves defining pattern:
 This subclass is indented under subclass 523.  Design with "V" shape repeating design or cut glass type detail.

Example of a design for a glass with incised V-shaped or cutglass type pattern.

Example of a design for a glass with incised V-shaped or cutglass type pattern.

(1) Note. Each wall of the "V" must repeat or be a mirror image of the opposite wall.

SEE OR SEARCH THIS CLASS, SUBCLASS:

524,for goblet with incised v-shaped grooves.

[List of Patents for class D7 subclass 531]    531Straight vertical ribs or grooves, with planar surfaces:
 This subclass is indented under subclass 523.  Design with repeating vertical stripes in raised, indented or flush surface.

Example of a design for a glass with straight vertical ribs.<emphasis    emph = " >

Example of a design for a glass with straight vertical ribs.


[List of Patents for class D7 subclass 532]    532Repeating circumferential ribs or grooves:
 This subclass is indented under subclass 523.  Design with repeating horizontal stripes in raised, indented or flush surface.

[List of Patents for class D7 subclass 533]    533With handle:
 This subclass is indented under subclass 509.  Design that includes means or member for being hand held.

SEE OR SEARCH THIS CLASS, SUBCLASS:

622,for a beverage container holder with handle.

SEE OR SEARCH CLASS:

220Receptacles,   subclass 710.5 for drinking device with handle.
229Envelopes, Wrappers, and Paperboard Boxes,   402 for paper cup with handle.

[List of Patents for class D7 subclass 534]    534Plural:
 This subclass is indented under subclass 533.  Design with more than one holding means or handle.

[List of Patents for class D7 subclass 535]    535Asymmetrical:
 This subclass is indented under subclass 533.  Design with a hand holding means that lacks symmetry.

[List of Patents for class D7 subclass 536]    536Closed loop:
 This subclass is indented under subclass 533.  Design with a hand holding means with two attachment points for finger pass through.

[List of Patents for class D7 subclass 537]    537Goblet:
 This subclass is indented under subclass 509.  Design for a stemmed drinking vessel such as a wine glass, brandy snifter.
(1) Note. Includes asymmetrical shape.

SEE OR SEARCH THIS CLASS, SUBCLASS:

522,for goblet that includes flower, bud, fruit or vegetable motif.
524through 528, for goblet with three or more repeats.

[List of Patents for class D7 subclass 538]    538Covered:
 This subclass is indented under subclass 500.  Design with lid or top.

SEE OR SEARCH THIS CLASS, SUBCLASS:

312through 322, for vessel with pouring or pouring control feature.
317through 321, for pitcher and hot beverage pot with lid.
354through 358, for cooking vessel.
387through 415, for element or attachment.
392.1,for utensil cover for china, glassware or serving vessel.
510,through 511, for covered drinking glass.
601,for holder or storage receptacle for food or drink.
602,for holder or container for food and beverages.
612,for canister or cookie jar.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclasses 424 through 432for molded or vacuum formed disposable packaging.

[List of Patents for class D7 subclass 539]    539Simulative:
 This subclass is indented under subclass 538.  Design that includes an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.
(1) Note. Excludes leaf, plume or scroll.

SEE OR SEARCH THIS CLASS, SUBCLASS:

622,for handled sheath or cover for drinking vessel.

[List of Patents for class D7 subclass 540]    540Three or more repeats, or uniform configuration, about axis:
 This subclass is indented under subclass 538.  Design with a uniform appearance of all sides or shows the same design reproduced on three or more facets.

Example of a design for a food server with three or more repeatsabout axis.

Example of a design for a food server with three or more repeatsabout axis.


[List of Patents for class D7 subclass 541]    541Compartmented or with division:
 This subclass is indented under subclass 538.  Design with plural partitioned sections or depressed areas.

Example of a design for a food server with compartments.

Example of a design for a food server with compartments.

SEE OR SEARCH THIS CLASS, SUBCLASS:

629,for food or beverage holder with closure.

SEE OR SEARCH CLASS:

220Receptacles,   subclass 575 for compartmented dish for table.

[List of Patents for class D7 subclass 542]    542Symmetrical on two axes:
 This subclass is indented under subclass 538.  Design showing a mirror image on each quadrant from the centerline.

[List of Patents for class D7 subclass 543]    543With handle, finger grip, or opposed carrying flanges:
 This subclass is indented under subclass 500.  Design with holding means for the human hand or finger.

Example of a design for a food server with a handle or fingergrip or carrying flange.

Example of a design for a food server with a handle or fingergrip or carrying flange.

SEE OR SEARCH THIS CLASS, SUBCLASS:

360,for cooking vessel with plural grip.
361,for single handle or provision therefore.
393through 395, for handle or knob.
552.1,for tray with attaching arm or handle.
622,for handled sheath or cover for drinking vessel.
701through 708, for food holder or storage receptacle with provision for multiple container or compartment.

[List of Patents for class D7 subclass 544]    544Simulative:
 This subclass is indented under subclass 543.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

Example of a design for a simulative type food server.

Example of a design for a simulative type food server.

(1) Note. Excludes leaf, plume or scroll.

[List of Patents for class D7 subclass 545]    545Symmetrical on two axes:
 This subclass is indented under subclass 543.  Design showing a mirror image on each quadrant from the centerline.

Example of a design for a symmetric food server.

Example of a design for a symmetric food server.

SEE OR SEARCH THIS CLASS, SUBCLASS:

360,for cooking vessel with plural grip.
361,for cooking vessel with single handle or provision therefore.
393through 395, for handle.
552.1,for tray with attaching arm or handle.

[List of Patents for class D7 subclass 546]    546Compartmented, or with perforation or collar forming restraint for food or container:
 This subclass is indented under subclass 545.  Design with partitioned sections or areas that may include a raised edge or encircling member.

Example of a design for a compartmented food server.

Example of a design for a compartmented food server.

SEE OR SEARCH THIS CLASS, SUBCLASS:

357,for vessel with plural compartment.
360,for cooking vessel with plural grip.
701through 708, for food holder or storage receptacle with provision for multiple container or compartment.

SEE OR SEARCH CLASS:

220Receptacles,   subclasses 500 through 507for compartmented container; subclass 575 for compartmented dish.

[List of Patents for class D7 subclass 547]    547Centrally disposed handle:
 This subclass is indented under subclass 545.  Design with a hand or finger gripping means coming from the center.

Example of a design for a food server with a centrally disposedhandle.

Example of a design for a food server with a centrally disposedhandle.

SEE OR SEARCH THIS CLASS, SUBCLASS:

501,for lazy susan.
600,for condiment dispenser with carrying handle.
706,for a multiple container holder with a centrally disposed handle.

[List of Patents for class D7 subclass 548]    548Handle having plural attachment points or with finger opening:
 This subclass is indented under subclass 545.  Design with a hand or finger gripping means that is a closed loop type or with hole for fingers.

Example of a design for a food server with handles showingplural attachment points.

Example of a design for a food server with handles showingplural attachment points.

SEE OR SEARCH THIS CLASS, SUBCLASS:

360,for cooking vessel with plural grip.
361,for single handle or provision therefore.
393through 395, for handle or knob.
552.1,for tray with attaching arm or handle.

[List of Patents for class D7 subclass 549]    549Compartmented or with perforation or collar forming restraint for food or container:
 This subclass is indented under subclass 543.  Design with a hand or finger gripping means with partitioned sections or with a flange to hold food in place.

SEE OR SEARCH THIS CLASS, SUBCLASS:

357,for cooking vessel with plural compartment.
360,for cooking vessel with plural grip.
553.1through 553.8, for compartmented tray.

SEE OR SEARCH CLASS:

206Special Receptacle or Package,   subclass 561 for tray with partition, subclass 562, with aperture for article, subclass 564, with recess or groove for article.
220Receptacles,   subclasses 500 through 507for compartmented container.
D9Packages and Containers for Goods,   subclasses 341 through 348for containers that are compartmented or having distinct support area for plural articles.

[List of Patents for class D7 subclass 550.1]    550.1Tray:
 This subclass is indented under subclass 500.  Design includes generally shallow receptacle for serving food.

Example of a design for a tray.

Example of a design for a tray.

(1) Note. Design should be designated as a "tray" to be classified in this subclass.

SEE OR SEARCH THIS CLASS, SUBCLASS:

354,for vessel, e.g., cooking container, pan, etc.
387through 415, for element or attachment.
505through 508, for tray combined with additional serving vessel.
543,for serving vessel with handle.
590through 600, for condiment caster or caddy or carrier for cup.
701through 708, for compartmented beverage carrier.

SEE OR SEARCH CLASS:

206Special Receptacle or Package,   subclass 557 for tray type.
220Receptacles,   subclass 574 for table dish.
D3Travel Goods, Personal Belongings, and Storage or Carrying Articles,   subclass 201 for carrier for container, subclass 304 for open top bin, tray or basket.
D6Furnishings,   subclasses 406.3 through 406.6for lap tray.
D9Packages and Containers for Goods,   subclasses 414 through 433for box or packaging container.
D19Office Supplies, Artists’, and Teachers’ Materials,   subclass 92 for desk tray.
D28Cosmetic Products and Toilet Articles,   subclass 61 for tray for manicure or pedicure.

[List of Patents for class D7 subclass 551.1]    551.1Simulative:
 This subclass is indented under subclass 550.1.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation

SEE OR SEARCH THIS CLASS, SUBCLASS:

387through 415, for element or attachment.
505through 508, for tray combined with additional serving vessel.
544,for simulative china or serving vessel with holding means for the human hand or finger.
556,or simulative-compartmented container.
590through 600, for condiment caster or caddy or carrier for cup.
702,or simulative holder.
701through 708, for compartmented beverage carrier.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclasses 307 through 336for simulative packages and containers.

[List of Patents for class D7 subclass 551.2]    551.2Plant Life:
 This subclass is indented under subclass 551.1.  Design that includes an ornamental feature or features that represent a plant blossom or ripe plant product such as fruit or vegetable.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 329 for edible article or tobacco product, subclass 335 for plant life, subclass 336 for flower.

[List of Patents for class D7 subclass 551.3]    551.3Animate:
 This subclass is indented under subclass 551.1.  Design with an ornamental feature or features that show a representation of an animal.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclasses 310 through 318for container that simulates animal life.

[List of Patents for class D7 subclass 552.1]    552.1Including attaching arm or handle:
 This subclass is indented under subclass 550.1.  Design includes holding or gripping means.

SEE OR SEARCH THIS CLASS, SUBCLASS:

543through 548, for serving vessel with handle.
600,for condiment dispenser with carrying handle.
705,for a holder or storage receptacle with a distinct handle or grip.

SEE OR SEARCH CLASS:

D6Furnishings,   subclass 406.2 for over-bed table type bed tray including unitary or pivot support.

[List of Patents for class D7 subclass 552.2]    552.2Including legs or raised support:
 This subclass is indented under subclass 550.1.  Design that includes vertical supports to elevate surface.

Example of a design for a tray with legs or raised support.

Example of a design for a tray with legs or raised support.

SEE OR SEARCH CLASS:

108Horizontally Supported Planar Surfaces,   subclass 25 with receptacle.
D6Furnishings,   subclass 406.5 for lap tray with legs or raised support.
D12Transportation,   subclass 415 for console for vehicle.

[List of Patents for class D7 subclass 553.1]    553.1Compartmented:
 This subclass is indented under subclass 550.1.  Design for tray that includes flat receptacles with partitions.

Example of a design for a compartmented tray.

Example of a design for a compartmented tray.

SEE OR SEARCH THIS CLASS, SUBCLASS:

357,for a cooking vessel with plural compartments.
541,for compartmented covered containers.
546,for symmetrical compartmented containers with handles.
549,for compartmented container with handle.
555,for compartmented china or serving vessel.
701through 708.1, for holder for multiple container or with plural compartment.

SEE OR SEARCH CLASS:

108Horizontally Supported Planar Surfaces,   subclass 25 with receptacle.
220Receptacles,   subclass 575 for compartmented table dish, subclass 500 for compartmented container.
206Special Receptacle or Package,   subclass 561 for tray with partition, subclass 521.15 for divisible container.
D9Packages and Containers for Goods,   subclasses 341 through 348for containers that are compartmented or having distinct support area for plural articles.
D12Transportation,   subclass 415 for console for vehicle.
D28Cosmetic Products and Toilet Articles,   subclass 61 for manicure or pedicure rack, stand or tray, subclass 73 for holder for cosmetic products.
D30Animal Husbandry,   subclass 130 for compartmented bowl or dish.

[List of Patents for class D7 subclass 553.2]    553.2Rectangular perimeter:
 This subclass is indented under subclass 553.1.  Design that has four sides and four right angles:

Example of a design for a compartmented tray with a rectangularperimeter.

Example of a design for a compartmented tray with a rectangularperimeter.

SEE OR SEARCH THIS CLASS, SUBCLASS:

554.1,for rectangular tray that is not compartmented.

[List of Patents for class D7 subclass 553.3]    553.3Symmetrical:
 This subclass is indented under subclass 553.2.  Design that shows identical halves if divided through the center.

Example of a design for a compartmented tray with a rectangularperimeter that is symmetrical.

Example of a design for a compartmented tray with a rectangularperimeter that is symmetrical.


[List of Patents for class D7 subclass 553.4]    553.4Including circular compartment:
 This subclass is indented under subclass 553.3.  Design having round recesses, usually for drinking cups, bowls or plates.

Example of a design for a compartmented tray with a rectangularperimeter that is symmetrical and shows a circular compartment.

Example of a design for a compartmented tray with a rectangularperimeter that is symmetrical and shows a circular compartment.

(1) Note. This is a compartmented rectangular tray that is symmetrical with circular compartments.

[List of Patents for class D7 subclass 553.5]    553.5Including circular compartment:
 This subclass is indented under subclass 553.2.  Design having round recesses, usually for drinking cups, bowls or plates.

Example of a design for a compartmented tray with a rectangularperimeter that shows a circular compartment.

Example of a design for a compartmented tray with a rectangularperimeter that shows a circular compartment.

(1) Note. This is a compartmented rectangular tray with circular compartment that is not symmetrical.

[List of Patents for class D7 subclass 553.6]    553.6Round or oval perimeter:
 This subclass is indented under subclass 553.1.  Design having a circular or elliptical outside circumference.

Example of a design for a compartmented tray with a roundperimeter.

Example of a design for a compartmented tray with a roundperimeter.

SEE OR SEARCH CLASS:

220Receptacles,   subclass 506 for compartmented container with substantially concentric compartments.

[List of Patents for class D7 subclass 553.7]    553.7Symmetrical:
 This subclass is indented under subclass 553.1.  Design that shows identical halves if divided through the center.

Example of a design for a symmetric compartmented tray.

Example of a design for a symmetric compartmented tray.


[List of Patents for class D7 subclass 553.8]    553.8Including circular compartment:
 This subclass is indented under subclass 553.7.  Design having round recesses, usually for drinking cups, bowls or plates.

Example of a design for a symmetric compartmented traythat includes a circular compartment.

Example of a design for a symmetric compartmented traythat includes a circular compartment.

(1) Note. This is a symmetrical compartmented tray that has interior circular compartments.

[List of Patents for class D7 subclass 554.1]    554.1Three or more repeats or uniform configuration about axis:
 This subclass is indented under subclass 550.1.  Design having a multi-sided symmetrical perimeter where sections are similar to one another.

Example of a design for a tray with three or more repeatsabout axis.

Example of a design for a tray with three or more repeatsabout axis.

SEE OR SEARCH THIS CLASS, SUBCLASS:

554.1,for round or oval perimeter.
584,for china or serving vessel with three or more repeats.
540,for covered china, or serving vessel with three or more repeats.

SEE OR SEARCH CLASS:

220Receptacles,   subclass 574 for table dish.

[List of Patents for class D7 subclass 554.2]    554.2Round or oval Perimeter:
 This subclass is indented under subclass 550.1.  Design having a circular or elliptical shape.

Example of a design for a tray with an oval perimeter.

Example of a design for a tray with an oval perimeter.

SEE OR SEARCH THIS CLASS, SUBCLASS:

584,for china or serving vessel with three or more repeats.

SEE OR SEARCH CLASS:

220Receptacles,   subclass 574 for table dish.

[List of Patents for class D7 subclass 554.3]    554.3Rectangular perimeter:
 This subclass is indented under subclass 550.1.  Design that has four sides and four right angles.

SEE OR SEARCH CLASS:

D6Furnishings,   subclass 406.6 for rectangular lap or bed type work surface.

[List of Patents for class D7 subclass 554.4]    554.4Symmetrical:
 This subclass is indented under subclass 550.1.  Design that shows identical halves if divided through he center.

Example of a design for a symmetrical tray.

Example of a design for a symmetrical tray.


[List of Patents for class D7 subclass 555]    555Compartmented or with vertical division:
 This subclass is indented under subclass 500.  Design includes china or serving vessel with plural partitioned sections or areas.

Example of a design for a compartmented food server.

Example of a design for a compartmented food server.

SEE OR SEARCH THIS CLASS, SUBCLASS:

357,for a cooking vessel with plural compartment.
387through 415, for element or attachment.
541,for compartmented covered container.
546,for symmetrical compartmented containers with handles.
548,for compartmented container with handle.
553.1,for compartmented tray.
701through 708.1, for compartmented beverage carrier or holder for container with plural compartments.

SEE OR SEARCH CLASS:

206Special Receptacle or Package,   subclass 561 for tray with partition, subclass 521.15 for divisible container.
220Receptacles,   subclass 575 for compartmented table dish, subclass 500 for compartmented container.
D9Packages and Containers for Goods,   subclasses 341 through 348for containers that are compartmented or having distinct support area for plural articles.
D28Cosmetic Products and Toilet Articles,   subclass 61 for manicure or pedicure rack, stand or tray, subclass 73 for holder for cosmetic products.
D30Animal Husbandry,   subclass 130 for compartmented bowl or dish.

[List of Patents for class D7 subclass 556]    556Simulative:
 This subclass is indented under subclass 555.  Design that includes an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

Example of a design for a compartmented tray with a simulativeconfiguration.

Example of a design for a compartmented tray with a simulativeconfiguration.

(1) Note. Excludes leaf, plume or scroll.

SEE OR SEARCH THIS CLASS, SUBCLASS:

551.1,for simulative tray.
619.1,for simulative beverage cup holder.

[List of Patents for class D7 subclass 557]    557Three or more repeats or uniform configuration about axis:
 Design under 555 having a multi-sided or round symmetrical perimeter.

[List of Patents for class D7 subclass 558]    558Columnar support, or footed base:
 This subclass is indented under subclass 500.  Design includes china or serving vessel with legs or raised bottom portion such as a compote or the like.

Example of a design for a food server with a columnar support.

Example of a design for a food server with a columnar support.

SEE OR SEARCH THIS CLASS, SUBCLASS:

610,for cake or pie holder.

[List of Patents for class D7 subclass 559]    559Simulative:
 This subclass is indented under subclass 558.  Design that includes an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

Example of a design for a food server with simulative ornamentation.

Example of a design for a food server with simulative ornamentation.

(1) Note. Excludes leaf, plume or scroll.

[List of Patents for class D7 subclass 560]    560Ornamentation on exterior surface:
 This subclass is indented under subclass 500.  Design includes serving vessel with decoration on outside area.

Example of a design for a food server with ornamentationon an exterior surface.

Example of a design for a food server with ornamentationon an exterior surface.


[List of Patents for class D7 subclass 561]    561Incised V-shaped grooves defining pattern:
 This subclass is indented under subclass 560.  Design includes wedge shaped cuts to make a textured design such as a cut glass type pattern.

Example of a design for a food server with V-shaped grooves.

Example of a design for a food server with V-shaped grooves.

(1) Note. Each wall of the "V" must repeat or be a mirror image of the opposite wall.

SEE OR SEARCH THIS CLASS, SUBCLASS:

526,for goblet with V-shaped grooves.
530,for drinking glass with V-shaped grooves.

[List of Patents for class D7 subclass 562]    562Three or more repeats, or uniform configuration, about axis:
 This subclass is indented under subclass 561.  Design having a multi-sided symmetrical perimeter or round circumference.

Example of a design for a food server with three or more repeatsabout axis.

Example of a design for a food server with three or more repeatsabout axis.

SEE OR SEARCH THIS CLASS, SUBCLASS:

526,for goblet with V-shaped grooves.
530,for drinking glass with V-shaped grooves.

[List of Patents for class D7 subclass 563]    563Simulative:
 This subclass is indented under subclass 562.  Design that includes an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

Example of a design for a food server with simulative ornamentationon an exterior surface.

Example of a design for a food server with simulative ornamentationon an exterior surface.

(1) Note. Excludes leaf, plume or scroll.

[List of Patents for class D7 subclass 564]    564Simulative:
 This subclass is indented under subclass 560.  Design that includes an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

Example of a design for a food server with simulative ornamentationon an exterior surface.

Example of a design for a food server with simulative ornamentationon an exterior surface.

(1) Note. Excludes leaf, plume or scroll.

SEE OR SEARCH THIS CLASS, SUBCLASS:

352through 353, for waffle iron.
409through 411, for food support, per se, such as broiler pan insert.
538,for similar articles having a cover.

[List of Patents for class D7 subclass 565]    565Three or more repeats, or uniform configuration, about axis:
 This subclass is indented under subclass 560.  Design having a multi-sided symmetrical perimeter or round circumference.

Example of a design for a food server with ornamentationon an exterior surface with three or more repeats about axis.<emphasis    emph = " >

Example of a design for a food server with ornamentationon an exterior surface with three or more repeats about axis.


[List of Patents for class D7 subclass 566]    566Scalloped, fluted or irregular periphery in top plan:
 This subclass is indented under subclass 500.  Design that has uneven edges or series of repeating actuate edges.

Example of a design for a food server that shows an irregularperiphery in top plan.

Example of a design for a food server that shows an irregularperiphery in top plan.

(1) Note. Excludes regular geometric shape such as triangular, polygonal, etc.

[List of Patents for class D7 subclass 567]    567Simulative:
 This subclass is indented under subclass 566.  Design that includes an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

Example of a design for a food server that shows an irregularperiphery in top plan and simulative ornamentation.

Example of a design for a food server that shows an irregularperiphery in top plan and simulative ornamentation.

(1) Note. Excludes leaf, plume or scroll.

[List of Patents for class D7 subclass 568]    568Three or more repeats, or uniform configuration, about axis:
 This subclass is indented under subclass 567.  Design having a multi-sided symmetrical perimeter or round circumference.

Example of a design for a food server with a scalloped peripheryin top plan and simulative ornamentation and three or more repeatsabout axis.

Example of a design for a food server with a scalloped peripheryin top plan and simulative ornamentation and three or more repeatsabout axis.


[List of Patents for class D7 subclass 569]    569Animate:
 This subclass is indented under subclass 567.  Design with an ornamental feature or features that show a representation of an animal in two or three-dimensional representation.

Example of a design for a food server with an irregular peripheryin top plan and simulative ornamentation that shows an animal.

Example of a design for a food server with an irregular peripheryin top plan and simulative ornamentation that shows an animal.


[List of Patents for class D7 subclass 570]    570Three or more repeats, or uniform configuration, about axis:
 This subclass is indented under subclass 566.  Design having a multi-sided symmetrical perimeter or round circumference.

Example of a design for a food server with a fluted peripheryin top plan and three or more repeats about axis.

Example of a design for a food server with a fluted peripheryin top plan and three or more repeats about axis.


[List of Patents for class D7 subclass 571]    571Simulative:
 This subclass is indented under subclass 566.  Design that includes an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.
(1) Note. Excludes leaf, plume or scroll.

[List of Patents for class D7 subclass 572]    572Three or more repeats, or uniform configuration, about axis:
 This subclass is indented under subclass 571.  Design having a multi-sided symmetrical perimeter or round circumference.

Example of a design for a food server with simulative ornamentationand three or more repeats about axis.

Example of a design for a food server with simulative ornamentationand three or more repeats about axis.


[List of Patents for class D7 subclass 573]    573Animate:
 This subclass is indented under subclass 567.  Design with an ornamental feature or features that show a representation of an animal in two or three-dimensional representation.

Example of a design for a food server with simulative ornamentationthat shows an animal.

Example of a design for a food server with simulative ornamentationthat shows an animal.

SEE OR SEARCH CLASS:

D27Tobacco and Smokers Supplies,   subclass 113 for animate simulation.

[List of Patents for class D7 subclass 574]    574Ribbon or bow:
 This subclass is indented under subclass 572.  Design that includes representation of decoration in the shape of strips of colored material formed into shapes usually with two or more loops.

Example of a design for a food server with simulative ornamentationthat shows a ribbon or bow.

Example of a design for a food server with simulative ornamentationthat shows a ribbon or bow.


[List of Patents for class D7 subclass 575]    575Garland or festoon:
 This subclass is indented under subclass 572.  Design with a ornamental feature or features that show a swag or length of flowers or plant life.

[List of Patents for class D7 subclass 576]    576Flower, bud fruit or vegetable:
 This subclass is indented under subclass 572.  Design that includes an ornamental feature or features that represent a plant blossom or ripe plant product.

Example of a design for a food server with simulative ornamentationthat shows a flower.

Example of a design for a food server with simulative ornamentationthat shows a flower.

SEE OR SEARCH CLASS:

D27Tobacco and Smokers Supplies,   subclass 119 for plant life simulation.

[List of Patents for class D7 subclass 577]    577With container:
 This subclass is indented under subclass 576.  Design that includes a holder such as a basket or cornucopia or the like.

Example of a design for a food server with simulative ornamentationthat shows a flower and a container.

Example of a design for a food server with simulative ornamentationthat shows a flower and a container.


[List of Patents for class D7 subclass 578]    578Animate:
 This subclass is indented under subclass 571.  Design with an ornamental feature or features that show a representation of an animal in two or three-dimensional representation.

Example of a design for a food server with simulative ornamentationthat shows an animal.

Example of a design for a food server with simulative ornamentationthat shows an animal.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 310 for container with animal motif or form.
D27Tobacco and Smokers’ Supplies,   subclass 113 for animate simulation.

[List of Patents for class D7 subclass 579]    579Human:
 This subclass is indented under subclass 578.  Design that includes a feature or features that represent a human being.

Example of a design for a food server with simulative ornamentationthat shows a human being.

Example of a design for a food server with simulative ornamentationthat shows a human being.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclasses 311 through 316for container with humanoid motif or form or component thereof.
D27Tobacco and Smokers’ Supplies,   subclass 114 for humanoid simulation.

[List of Patents for class D7 subclass 580]    580Architectural or geographic:
 This subclass is indented under subclass 571.  Design that includes representation of buildings, cityscape or landscape or parts thereof.

Example of a design for a food server with simulative ornamentationthat shows a architectural type ornament .

Example of a design for a food server with simulative ornamentationthat shows a architectural type ornament .

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 322 for container with building motif or component thereof.
D27Tobacco and Smokers’ Supplies,   subclass 117 for architectural simulation.

[List of Patents for class D7 subclass 581]    581Ribbon or bow:
 This subclass is indented under subclass 571.  Design that includes representation of decoration in the shape of strips of colored material formed into shapes usually with two or more loops

Example of a design for a food server with simulative ornamentationthat includes a ribbon or bow.

Example of a design for a food server with simulative ornamentationthat includes a ribbon or bow.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 334 for container with bow form or motif.

[List of Patents for class D7 subclass 582]    582Flower, bud, fruit or vegetable:
 This subclass is indented under subclass 571.  Design that includes an ornamental feature or features that represent a plant blossom or ripe plant product.

Example of a design for a food server with simulative ornamentationthat shows a flower.

Example of a design for a food server with simulative ornamentationthat shows a flower.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclasses 335 through 336for container with plant or flower form or motif.
D27Tobacco and Smokers’ Supplies,   subclass 119 for plant life simulation.

[List of Patents for class D7 subclass 583]    583With container:
 This subclass is indented under subclass 582.  Design that includes additonal ornamental features such as a basket or cornucopia or the like.

[List of Patents for class D7 subclass 584]    584Three or more repeats or uniform configuration, about axis:
 This subclass is indented under subclass 500.  Design having a multi-sided symmetrical perimeter or round circumference.

Example of a design or a food server that is circular.

Example of a design or a food server that is circular.

SEE OR SEARCH THIS CLASS, SUBCLASS:

554.1,for tray with three or more repeats or uniform configuration about axis.
554.2,for round or oval tray.

SEE OR SEARCH CLASS:

220Receptacles,   subclass 574 for table dish.
D30Animal Husbandry,   subclass 127 for bowl or dish type.

[List of Patents for class D7 subclass 585]    585Peripheral or border pattern:
 This subclass is indented under subclass 585.  Design includes decoration along the outside edge.

Example of a design for a food server with a peripheral orborder pattern.

Example of a design for a food server with a peripheral orborder pattern.

SEE OR SEARCH THIS CLASS, SUBCLASS:

396.4,for decal or surface patter.
396.5,for border pattern.

[List of Patents for class D7 subclass 586]    586Symmetrical on two axes:
 This subclass is indented under subclass 500.  Design showing a mirror image of each quadrant from the centerline.

SEE OR SEARCH THIS CLASS, SUBCLASS:

542,for covered serving vessel that is symmetrical on two axes.
545,for serving vessel with handle that is symmetrical on two axes.

[List of Patents for class D7 subclass 587]    587Bilaterally symmetrical:
 This subclass is indented under subclass 500.  Design showing mirror image on either side of either centerline.

Example of a design for a food server   that shows bilateralsymmetry.

Example of a design for a food server that shows bilateralsymmetry.


[List of Patents for class D7 subclass 588]    588Peripheral or border pattern:
 This subclass is indented under subclass 500.  Design that includes decoration along the outside edge.

Example of a design for a food server that shows a peripheralor border pattern.

Example of a design for a food server that shows a peripheralor border pattern.

SEE OR SEARCH THIS CLASS, SUBCLASS:

396.4,for decal or surface pattern.
396.5,for border pattern.

[List of Patents for class D7 subclass 589]    589MEASURED OR SEQUENTIAL DISPENSER:
 This subclass is indented under the class definition.  Design under the Class Definition for vessel that includes marks or indications for food quantity or article that sets-out food product in a particular order.
(1) Note. Includes lever or knob actuation.

SEE OR SEARCH THIS CLASS, SUBCLASS:

300through 322, for beverage dispenser.
590through 600, for condiment dispenser or caddy.
631through 634, for napkin dispenser.
635,and 636, for straw or toothpick dispenser.

SEE OR SEARCH CLASS:

D3Travel Goods and Personal Belongings,   subclass 202 for canteen or body attached beverage container and subclasses 304-314 for industrial-type beverage carrier or holder.
D6Furnishings,   subclasses 512 through 522for generic dispensers.
D10Measured, Testing, or Signaling Instruments,   subclass 46.2 for measuring cup or spoon.
D20Sales and Advertising Equipment,   subclass 5 for vending machine for bottle, can, or carton.
D23Environmental Heating and Cooling; Fluid Handling and Sanitary Equipment,   subclass 201 for display-type beverage fountain.
D24Medical and Laboratory Equipment,   subclasses 197 through 199for nursing bottle and holder and subclass 224 for medical therapy-type liquid dispenser.
D28Cosmetic Products and Toilet Articles,   subclass 63 for toothpick holder.

[List of Patents for class D7 subclass 590]    590CONDIMENT DISPENSER, CASTER OR CADDY:
 This subclass is indented under the class definition.  Design under the Class Definition for holder or carrying means for food seasonings.
(1) Note. Includes casing or body.
(2) Note. Includes relish dish.

SEE OR SEARCH THIS CLASS, SUBCLASS:

500through 588, for sugar bowl and other serving vessels including compartmented bowls and trays.
590through 600, for condiment dispenser or caddy.
631through 634, for napkin dispenser.
635through 636, for straw or toothpick dispenser.
670,for butter applicator.
679,for hand operated grinder or mill.
701through 708, for bottle holder or spice rack.

SEE OR SEARCH CLASS:

211Supports: Racks,   subclass 77 for relatable receptacle support for bottle or jar.
D3Travel Goods and Personal Belongings,   subclasses 315 through 317for generic carrier or caddy.
D28Cosmetic Products and Toilet Articles,   subclass 63 for toothpick holder.

[List of Patents for class D7 subclass 591]    591Shaker type:
 This subclass is indented under subclass 590.  Design for condiment holder or dispenser that is agitated or briskly moved up and down to release contents.

SEE OR SEARCH THIS CLASS, SUBCLASS:

300.1,for shaker or siphon bottle.

SEE OR SEARCH CLASS:

222Dispensing,   subclasses 142.1 through 142.9and 480 for shaker type containers.
D9Packages and Containers for Goods,   subclasses 509 through 515for shaker type disposable packaging.

[List of Patents for class D7 subclass 592]    592Combined with support:
 This subclass is indented under subclass 591.  Design that includes a stand or rack.

[List of Patents for class D7 subclass 593]    593Simulative:
 This subclass is indented under subclass 592.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 594]    594Simulative:
 This subclass is indented under subclass 591.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 595]    595Animate:
 This subclass is indented under subclass 594.  Design that includes a feature or features that represent an animal.

[List of Patents for class D7 subclass 596]    596Plural cell or outlet:
 This subclass is indented under subclass 591.  Design that is divided into two or more areas for holding different types of condiments or includes plural release openings.

[List of Patents for class D7 subclass 597]    597Three or more repeats, or uniform configuration, about axis:
 This subclass is indented under subclass 591.  Design with a uniform appearance on all sides, or a shows the same design three or more times.

[List of Patents for class D7 subclass 598]    598Cruet, decanter or pitcher type:
 This subclass is indented under subclass 590.  Design with an appearance of a bottle or jar that includes a pouring feature.
(1) Note. Includes combination of sugar container and creamer with stand.

SEE OR SEARCH THIS CLASS, SUBCLASS:

316through 317, for beverage server with rim mounted pouring lip.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclasses 544 through 547for disposable decanter type packaging.

[List of Patents for class D7 subclass 599]    599Simulative:
 This subclass is indented under subclass 590.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

Example of a design  for a condiment dispenser with a simulativeconfiguration.

Example of a design for a condiment dispenser with a simulativeconfiguration.

SEE OR SEARCH THIS CLASS, SUBCLASS:

302through 303, for simulative beverage server or dispenser.

[List of Patents for class D7 subclass 600]    600With carrying handle:
 This subclass is indented under subclass 590.  Design with a feature for holding or support by the human hand.

SEE OR SEARCH THIS CLASS, SUBCLASS:

318through 319, for beverage server with rim mounted pouring lip with handle.

[List of Patents for class D7 subclass 600.1]    600.1Holder or rack:
 This subclass is indented under subclass 590.  Design for condiment container support or stand only.

Example of a design for a condiment type holder or rack.

Example of a design for a condiment type holder or rack.

SEE OR SEARCH CLASS:

211Supports: Racks,   subclasses 41.1 through 41.9for plate rack; subclasses 74-77, for bottle rack.

[List of Patents for class D7 subclass 600.2]    600.2Rotating:
 This subclass is indented under subclass 600.1.  Design that turns or spins on an axis.

Example of a design for a condiment holder that rotates.

Example of a design for a condiment holder that rotates.

SEE OR SEARCH THIS CLASS, SUBCLASS:

501,for lazy susan type.

[List of Patents for class D7 subclass 600.3]    600.3Horizontal axis:
 This subclass is indented under subclass 600.2.  Design wherein the axis is in a horizontal plane.

Example of a design for a condiment holder that rotates ona horizontal axis.

Example of a design for a condiment holder that rotates ona horizontal axis.


[List of Patents for class D7 subclass 600.4]    600.4Tiered:
 This subclass is indented under subclass 600.1.  Design with holding or sport areas in a series of rows, ranked or placed atop one another.

Example of a design for a tiered type condiment  holder.

Example of a design for a tiered type condiment holder.


[List of Patents for class D7 subclass 601]    601HOLDER OR STORAGE RECEPTACLE:
 This subclass is indented under the class definition.  Design for reusable container for temporary food preservation.
(1) Note. Classified by both full-line and broken-line disclosure.
(2) Note. Includes holder for lid or cover for pot or pan.

SEE OR SEARCH THIS CLASS, SUBCLASS:

387through 415, for element or attachment.
590through 600, for condiment dispenser or caddy.
631through 634, for napkin dispenser.
635through 636, for straw or toothpick dispenser.

SEE OR SEARCH CLASS:

220Receptacles,   subclass 737 for container holder.
D3Travel Goods and Personal Belongings,   subclasses 304 through 314for basket.
D6Furnishings,   subclasses 449 through 490for wire dish rack; subclasses 531 and 534, for bathroom type cup holder.
D9Packages and Containers for Goods,   subclasses 424 through 429for packaging tray; subclasses 523-528 for bottle or decanter.
D12Transportation,   subclasses 419 through 420for vehicle type cup holder; subclass 425, for vehicle specific food service tray.
D15Machines Not Elsewhere Specified,   subclass 82 for ice cream freezer; subclass 89, for refrigerator crisper drawer.
D22Arms, Pyrotechnics, Hunting and Fishing Equipment,   subclass 22 for minnow bucket or pail.
D28Cosmetic Products and Toilet Articles,   subclass 63 for toothpick holder.

[List of Patents for class D7 subclass 602]    602Of food, beverage or container therefore:
 This subclass is indented under subclass 601.  Design for edible products for human consumption.

SEE OR SEARCH THIS CLASS, SUBCLASS:

388,for insulated or supporting stand.
396.1through 396.6, for element or attachment for china or serving vessel
538through 549, for bowl or container with cover and grip or handle.
589,for sequential or measured food dispenser.
590,for condiment caster.

SEE OR SEARCH CLASS:

220Receptacles,   subclass 915.1 for food container.

[List of Patents for class D7 subclass 603]    603Ice serving or wine chilling bucket:
 This subclass is indented under subclass 602.  Design for holding chips or small pieces of frozen water or for chilling an individual bottle or beverage container placed inside.

[List of Patents for class D7 subclass 604]    604Simulative:
 This subclass is indented under subclass 603.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 605]    605Insulated type:
 This subclass is indented under subclass 602.  Design with feature to keep the temperature of the contents even or constant.
(1) Note. Includes vacuum bottle, insulated jug, and cooler.

SEE OR SEARCH THIS CLASS, SUBCLASS:

312through 322, for similar container with flow directing sport or serving dispenser.

SEE OR SEARCH CLASS:

62Refrigeration,   subclass 371 , 372, 457.1-457.7, for cooler type holders.
220Receptacles,   subclasses 592.16 through 592.28,915.1 and 915.2 for coolers.
D3Travel Goods and Personal Belongings,   subclass 202 for canteen or handles flask, subclasses 273-302 for enclosed storage container such as suitcase or tool box.
D15Machines Not Elsewhere Specified,   subclasses 79 through 88for refrigerator or freezer.

[List of Patents for class D7 subclass 606]    606Simulative:
 This subclass is indented under subclass 605.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 607]    607Flaccid walls:
 This subclass is indented under subclass 605.  Design with flexible side members.

SEE OR SEARCH THIS CLASS, SUBCLASS:

619,for beverage container.
624.2,for sheath.

SEE OR SEARCH CLASS:

383Flexible Bags,   subclass 110 for insulated type.

[List of Patents for class D7 subclass 608]    608Circular in cross-section:
 This subclass is indented under subclass 605.  Design that shows a round configuration if horizontally sliced in half.

SEE OR SEARCH CLASS:

215Bottles and Jars,   subclasses 12.1 through 13.1for multi layer barrier structures.

[List of Patents for class D7 subclass 609]    609Breadbox type:
 This subclass is indented under subclass 602.  Design for holding bakery type products such as loaf or loaves of bread, rolls or the like.

SEE OR SEARCH THIS CLASS, SUBCLASS:

701through 708, for breadbox combined with diverse type storage compartment.

[List of Patents for class D7 subclass 610]    610Cake or pie type:
 This subclass is indented under subclass 602.  Design for sweet baked food products such as tart or pastry type dessert.

SEE OR SEARCH THIS CLASS, SUBCLASS:

558,for serving vessel with columnar support or footed base.

[List of Patents for class D7 subclass 611]    611Egg type:
 This subclass is indented under subclass 602.  Design for ovoid shape food product with a hard shell.

SEE OR SEARCH THIS CLASS, SUBCLASS:

503,for eggcup.

SEE OR SEARCH CLASS:

99Foods and Beverages: Apparatus,   subclass 440 for ball or egg shaped article.
211Supports: Racks,   subclass 14 for special article for ball or egg type.

[List of Patents for class D7 subclass 612]    612Canister or cookie jar type:
 This subclass is indented under subclass 602.  Design for box or can-type cylinder for holding dry cooking ingredients or crackers or flat crisp cakes or tarts.

SEE OR SEARCH THIS CLASS, SUBCLASS:

538through 541, for covered containers.

[List of Patents for class D7 subclass 613]    613Simulative:
 This subclass is indented under subclass 612.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 614]    614Plural Cell:
 This subclass is indented under subclass 612.  Design with plural interior compartments or storage areas.

SEE OR SEARCH THIS CLASS, SUBCLASS:

541,for compartmented covered containers.

[List of Patents for class D7 subclass 615]    615Three or more repeats, or uniform configuration about axis:
 This subclass is indented under subclass 612.  Design with a uniform appearance on all sides, or shows the same design reproduced on three or more facets.

[List of Patents for class D7 subclass 619.1]    619.1Beverage container:
 This subclass is indented under subclass 602.  Design for holding a bottle, cup or similar container for a liquid for drinking.

Example of a design for a holder for a beverage containteror bottle.

Example of a design for a holder for a beverage containteror bottle.

(1) Note. Includes draining stand for food container.

SEE OR SEARCH THIS CLASS, SUBCLASS:

312through 322, for pouring vessel or serving pitcher.
396.2,for element or attachment for a drinking vessel.
507,for drinking vessel with diverse article.
509through 537, for drinking vessel.
553.1through 553.8, for compartmented tray.

SEE OR SEARCH CLASS:

211Supports: Racks,   subclasses 74 through 77for bottle or jar rack.
220Receptacles,   subclasses 737 through 743for container holder, 738 for disposable cup holder.
248Supports,   subclasses 309.1 through 316.8for article holding means.
D3Travel Goods and Personal Belongings and Storage or Carrying Articles,   subclass 202 for canteen or flask.
D12Transportation,   subclass 415 for console for vehicle.

[List of Patents for class D7 subclass 619.2]    619.2Simulative:
 This subclass is indented under subclass 619.1.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

Example of a design for a holder for a beverage containershowing  simulative ornamentation.

Example of a design for a holder for a beverage containershowing simulative ornamentation.

SEE OR SEARCH THIS CLASS, SUBCLASS:

514through 521, for simulative drinking vessel.

[List of Patents for class D7 subclass 620]    620Provision for attachment to other surface:
 This subclass is indented under subclass 619.1.  Design that includes a clamp, hook or arm for gripping another surface such as a table or wall.

SEE OR SEARCH THIS CLASS, SUBCLASS:

552.1,for tray with attaching arm or handle.

SEE OR SEARCH CLASS:

D12Transportation,   subclasses 419 and 420 for beverage holder for use in a vehicle.

[List of Patents for class D7 subclass 621]    621Pivoted or gimbals amount:
 This subclass is indented under subclass 619.1.  Design that suspends the holder between two axes permitting swinging or turning to an upright position.

[List of Patents for class D7 subclass 622]    622With finger grip or handle:
 This subclass is indented under subclass 619.1.  Design with means or member for being hand held.
(1) Note. Includes handle, per se, which is directly attachable to a container.

SEE OR SEARCH THIS CLASS, SUBCLASS:

533through 536, for a drinking vessel with handle.

SEE OR SEARCH CLASS:

294Handling: Hand and Hoist-Line Implements,   subclasses 27.1 through 34for receptacle lifters.
D3Travel Goods, Personal Belongings, and Storage or Carrying Articles,   subclass 316 for carrier for cylindrical article.

[List of Patents for class D7 subclass 623]    623Simulative:
 This subclass is indented under subclass 622.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

SEE OR SEARCH CLASS:

D27Tobacco and Smokers’ Supplies,   subclass 109 for simulative ash receiver, snuffer or support with coaster or glass holder.

[List of Patents for class D7 subclass 624.1]    624.1Coaster or sheath:
 This subclass is indented under subclass 619.1.  Design for protective or insulating support type disc, plate or mat placed beneath a beverage container or an insulated type covering that encircles the sides of a beverage container.

Example of a design for a  coaster type holder for a beveragecontainer.

Example of a design for a coaster type holder for a beveragecontainer.

SEE OR SEARCH CLASS:

248Supports,   subclass 346.11 for coaster or caster cup.
D24Medical and Laboratory Equipment,   subclass 199 for holder or cover for a nursing bottle.
D27Tobacco and Smokers’ Supplies,   subclass 109 for simulative ash receiver, snuffer or support with coaster or glass holder.

[List of Patents for class D7 subclass 624.2]    624.2Sheath:
 This subclass is indented under subclass 624.1.  Design for an insulated type covering that encircles the sides of a beverage container.

Example of a design for a sheath type holder for a beveragecontainer.

Example of a design for a sheath type holder for a beveragecontainer.

SEE OR SEARCH THIS CLASS, SUBCLASS:

607through 608, for insulated type food holder with flaccid walls.

SEE OR SEARCH CLASS:

D24Medical and Laboratory Equipment,   subclass 199 for holder or cover for a nursing bottle.

[List of Patents for class D7 subclass 624.3]    624.3Including closure:
 This subclass is indented under subclass 624.2.  Design that shows a vest type covering that opens or tightens around a beverage container

Example of a design for a sheath type holder for a beveragecontainer that includes a closure.

Example of a design for a sheath type holder for a beveragecontainer that includes a closure.


[List of Patents for class D7 subclass 625]    625Simulative:
 This subclass is indented under subclass 624.1.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 628]    628Simulative:
 This subclass is indented under subclass 602.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 629]    629With closure:
 This subclass is indented under subclass 602.  Design that includes a lid.

SEE OR SEARCH THIS CLASS, SUBCLASS:

538through 549, for covered china or serving vessel.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclasses 424 through 432for molded or vacuum formed disposable packaging.
220Receptacles,   subclasses 780 through 795for containers with closures.

[List of Patents for class D7 subclass 630]    630Three or more repeats, or uniform configuration, about axis:
 This subclass is indented under subclass 602.  Design with a uniform appearance on all sides, or a shows the same design three or more times.

[List of Patents for class D7 subclass 631]    631Of napkin:
 This subclass is indented under subclass 601.  Design for small piece of cloth or absorbent paper used at a dining table to protect clothing or to wipe the lips and fingers.

SEE OR SEARCH THIS CLASS, SUBCLASS:

590through 600, for napkin holder in combination with condiment dispenser or holder.

SEE OR SEARCH CLASS:

D6Furnishings,   subclasses 518 through 523for facial tissue dispenser; subclass 595 for napkin, per se.

[List of Patents for class D7 subclass 632]    632Combined with holder for diverse article:
 This subclass is indented under subclass 631.  Design combined with a diverse article.

[List of Patents for class D7 subclass 633]    633Ring or clip:
 This subclass is indented under subclass 631.  Design with a circular or round configuration or with a clasp or grip.

[List of Patents for class D7 subclass 634]    634Simulative:
 This subclass is indented under subclass 631.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 635]    635Of stirrer, straw or toothpick:
 This subclass is indented under subclass 601.  Design for slender rod for mixing liquid, a slender, hollow tube for sucking liquid or a stick like instrument for removing particles of food from between the teeth.

SEE OR SEARCH THIS CLASS, SUBCLASS:

589,for sequential type dispenser for straw or toothpick.

SEE OR SEARCH CLASS:

D28Cosmetic Products and Toilet Articles,   subclass 65 for toothpick.

[List of Patents for class D7 subclass 636]    636Simulative:
 This subclass is indented under subclass 635.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 637]    637Of processing, preparing or handling implement, or place setting utensil:
 This subclass is indented under subclass 601.  Design for one-piece type cooking, serving tool such as knife, fork and the like.
(1) Note. Includes chopstick, spoon rest and holder for cutlery including electric food processor blades and the like.

SEE OR SEARCH THIS CLASS, SUBCLASS:

601,for pot lid holder.

SEE OR SEARCH CLASS:

206Special Receptacle or Package,   subclasses 557 through 567for tray type holder.
211Supports: Racks,   subclass 70.6 for tool, subclass 70.7 for cutlery.

[List of Patents for class D7 subclass 638]    638Combined:
 This subclass is indented under subclass 637.  Design that includes a provision for spice container or containers, cutting board or the like.

[List of Patents for class D7 subclass 639]    639Simulative:
 This subclass is indented under subclass 637.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 640]    640Three or more repeats, or uniform configuration, about axis:
 This subclass is indented under subclass 637.  Design with a round or uniform appearance on all sides, or a shows the same design three or more times.

[List of Patents for class D7 subclass 641]    641Bilaterally symmetrical:
 This subclass is indented under subclass 637.  Design that is substantially the same in appearance on all four axis.

[List of Patents for class D7 subclass 642]    642PLACE SETTING, TABLE SERVICE UTENSIL OR HANDLE THEREFOR:
 This subclass is indented under the class definition.  Design for tableware or utensil to eat or serve or handle food.
(1) Note. Classified by full-line disclosure and broken line disclosure.
(2) Note. Includes chopsticks.
(3) Note. Includes element.

SEE OR SEARCH THIS CLASS, SUBCLASS:

368through 386, for food preparation tool.

SEE OR SEARCH CLASS:

D6Furnishings,   subclasses 613 through 616for place mat.
D22Arms, Pyrotechnics, Hunting and Fishing Equipment,   subclass 118 for machete or hunting knife.

[List of Patents for class D7 subclass 643]    643Combined:
 This subclass is indented under subclass 642.  Design for table utensil that includes another article.

SEE OR SEARCH THIS CLASS, SUBCLASS:

300.2,for straw or food pick.

[List of Patents for class D7 subclass 644]    644Opposed:
 This subclass is indented under subclass 643.  Design showing a table utensil at one end and different article at the other end.

[List of Patents for class D7 subclass 645]    645Plural distinct pieces:
 This subclass is indented under subclass 642.  Design consisting of more than one utensil such as a knife, fork and spoon.

SEE OR SEARCH THIS CLASS, SUBCLASS:

643through 644, for combination or integral form of fork and spoon.

[List of Patents for class D7 subclass 646]    646Powered:
 This subclass is indented under subclass 642.  Design that includes an energy type device.
(1) Note. Includes power handle per se.

[List of Patents for class D7 subclass 647]    647Pierced bowl:
 This subclass is indented under subclass 642.  Design that shows opening or perforation in the food bearing area.
(1) Note. Excludes fork prong.

SEE OR SEARCH THIS CLASS, SUBCLASS:

400,for tea strainer.
667,for sifter or strainer.
691,for ladle.
692,for perforated scoop or ladle (spatula).

SEE OR SEARCH CLASS:

30Cutlery,   subclass 325 for perforated spoon.

[List of Patents for class D7 subclass 648]    648Loop or finger encircling handle:
 This subclass is indented under subclass 642.  Design that shows a gripping member that wraps about the hand, thumb or finger.

SEE OR SEARCH CLASS:

30Cutlery,   subclasses 322 through 323for fork, subclasses 324-328 for spoon.
D21Games, Toys, and Sports Goods,   subclass 408 for rattle with loop grip.

[List of Patents for class D7 subclass 649]    649Knife or blade:
 This subclass is indented under subclass 642.  Design for cutting instrument for use with tableware.

SEE OR SEARCH THIS CLASS, SUBCLASS:

688,for scraping or spreading spatula.
693through 696, for special purpose cutting tool such as a vegetable peeler, shelling knife or the like.

SEE OR SEARCH CLASS:

D32Washing, Cleaning, or Drying Machine,   subclass 46 for scraper.

[List of Patents for class D7 subclass 650]    650Serrated edge:
 This subclass is indented under subclass 649.  Design that shows a row of small, sharp projections or saw-toothed projections along the cutting area.

[List of Patents for class D7 subclass 651]    651Simulative:
 This subclass is indented under subclass 649.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.
(1) Note. Excludes leaf, plume or scroll.

[List of Patents for class D7 subclass 652]    652Asymmetrical in top plan:
 This subclass is indented under subclass 649.  Design having no balance or symmetry if viewed from the top or bottom.

[List of Patents for class D7 subclass 653]    653Fork or spoon:
 This subclass is indented under subclass 642.  Design with prongs or a shallow bowl at one end.

SEE OR SEARCH THIS CLASS, SUBCLASS:

683,for carving fork.

[List of Patents for class D7 subclass 654]    654Simulative:
 This subclass is indented under subclass 653.  Design with an ornamental appearance of an other article as surface ornamentation or in three-dimensional representation.
(1) Note. Excludes leaf, plume or scroll.

[List of Patents for class D7 subclass 655]    655Vehicle:
 This subclass is indented under subclass 654.  Design with an ornamental feature or features that show a representation of a means of transportation such as a automobile, train, airplane or the like a in two or in three-dimensional representation.

[List of Patents for class D7 subclass 656]    656Animate:
 This subclass is indented under subclass 654.  Design with an ornamental feature or features that show a representation of an animal as surface ornamentation or in three-dimensional representation.

SEE OR SEARCH CLASS:

D21Games, Toys, and Sports Goods,   subclasses 584 through 657for animate type doll figure.

[List of Patents for class D7 subclass 657]    657Human:
 This subclass is indented under subclass 556.  Design with an ornamental feature or features that show a representation of a human being as surface ornamentation or in three-dimensional representation

SEE OR SEARCH CLASS:

D21Games, Toys, and Sports Goods,   subclasses 621 through 648for human type doll figure.

[List of Patents for class D7 subclass 658]    658Architectural or geographic:
 This subclass is indented under subclass 654.  Design that includes representation of buildings, cityscape or landscape or parts thereof as surface ornamentation or in three-dimensional representation

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclass 322 for container with building motif or component thereof.
D25Building Units and Construction Elements,   subclasses 1 through 34for building type structure

[List of Patents for class D7 subclass 659]    659Fruit, vegetable or seed pod:
 This subclass is indented under subclass 654.  Design that shows a representation of a ripe plant product or ovule as surface ornamentation or in three-dimensional representation.

SEE OR SEARCH CLASS:

D5Textile or Paper Yard Goods; Sheet Material,   subclass 36 for fruit, nut seedpod or vegetable type ornamentation.

[List of Patents for class D7 subclass 660]    660Flower or bud:
 This subclass is indented under subclass 654.  Design that shows a representation of a plant blossom or developing foliage as surface ornamentation or in three-dimensional representation.

SEE OR SEARCH CLASS:

D5Textile or Paper Yard Goods; Sheet Material,   subclasses 37 through 39for flower type ornamentation.

[List of Patents for class D7 subclass 661]    661Asymmetrical:
 This subclass is indented under subclass 660.  Design having no balance or symmetry if viewed from the top or bottom.

[List of Patents for class D7 subclass 662]    662Asymmetrical in front elevation:
 This subclass is indented under subclass 653.  Design having no balance or symmetry if viewed from the forward part or surface.

[List of Patents for class D7 subclass 663]    663In form:
 This subclass is indented under subclass 662.  Design showing no balance or symmetry with a three-dimensional form.

[List of Patents for class D7 subclass 664]    664Handle of distinct or plural materials:
 This subclass is indented under subclass 653.  Design that shows a gripping member with an unusual or more than one material of fabrication.

[List of Patents for class D7 subclass 665]    665Squeezer or extractor:
 This subclass is indented under subclass 368.  Design for kitchen tool used to press or release juice or liquid from a food product.
(1) Note. Includes salad spinner.
(2) Note. Includes squeezer or extractor attachment for kitchen machine.

SEE OR SEARCH THIS CLASS, SUBCLASS:

669,for baster or injector.
680,for nutcracker.

SEE OR SEARCH CLASS:

100Presses,   subclass 110 for presses with wheels or guides.

[List of Patents for class D7 subclass 666]    666Pivoted jaws or lever operated:
 This subclass is indented under subclass 365.  Design for pliers-like kitchen tool that includes a lever used for liquid extraction.
(1) Note. Includes garlic press.
(2) Note. Includes squeezer or extractor attachment for kitchen machine.

SEE OR SEARCH THIS CLASS, SUBCLASS:

669,for baster or injector.
680,for nutcracker.

SEE OR SEARCH CLASS:

100Presses,   subclasses 234 and 235 for pliers type.

[List of Patents for class D7 subclass 667]    667Sifter or strainer:
 This subclass is indented under subclass 368.  Design for sieve or device for separating large particles from small ones such as a colander or the like.

SEE OR SEARCH THIS CLASS, SUBCLASS:

400,for tea strainer.
647,for utensil with pierced bowl.

SEE OR SEARCH CLASS:

210Liquid Purification or Separation,   subclasses 464 through 469for portable receptacle draining type.

[List of Patents for class D7 subclass 668]    668Relative movement of parts while performing function or provision therefore:
 This subclass is indented under subclass 667.  Design that includes parts that move during operation or the provision for the same.

[List of Patents for class D7 subclass 669]    669Hand operated:
 This subclass is indented under subclass 368.  Design for manual use.
(1) Note. Battery operated excluded.
(2) Note. Includes baster.

SEE OR SEARCH THIS CLASS, SUBCLASS:

369through 371, for separating type appliance such as dairy churn.
380,for hand operated mixer.
642through 664, for hand utensil.

[List of Patents for class D7 subclass 670]    670Butter applicator:
 This subclass is indented under subclass 669.  Design for spreading emulsion churned from cream or substitute therefore.

SEE OR SEARCH THIS CLASS, SUBCLASS:

502,for butter dish or serving container.

[List of Patents for class D7 subclass 671]    671Ice pick:
 This subclass is indented under subclass 669.  Design for tool for cracking or chipping frozen water.

SEE OR SEARCH CLASS:

30Cutlery,   subclasses 164.5 through 168.9for ice pick.

[List of Patents for class D7 subclass 672]    672Mold, cutting die, branding implement, or article for measured cutting:
 Design under 669 for forming food product into a specific shape, embossing a design into the surface of a food product or for slicing food into uniform size pieces.

SEE OR SEARCH THIS CLASS, SUBCLASS:

381through 385, for food cutting machine.
354,for baking pan.
410,for waffle iron type mold.
693,for generic vegetable cuter that does not provide for a specific shape or uniform thickness.

SEE OR SEARCH CLASS:

30Cutlery,   for hand held slicer, cutters.

[List of Patents for class D7 subclass 673]    673Slicer or guide therefore:
 This subclass is indented under subclass 672.  Design for cutting food to provide measured or uniform size pieces.
(1) Note. Includes bagel or bread, apple or egg slicer.

SEE OR SEARCH THIS CLASS, SUBCLASS:

381,cutting, slicing or piercing tool.
693through 696, for cutting, peeling, shelling or coring tool.

[List of Patents for class D7 subclass 674]    674Pivoted cooperating components:
 This subclass is indented under subclass 672.  Design for that includes plural parts or elements that move in conjunction with one another, such as a hamburger press or tortilla maker.

[List of Patents for class D7 subclass 675]    675Simulative:
 This subclass is indented under subclass 672.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 676]    676Animate:
 This subclass is indented under subclass 675.  Design that includes a feature or features that represent an animal.

[List of Patents for class D7 subclass 677]    677Three or more repeats, or uniform configuration, about axis:
 This subclass is indented under subclass 672.  Design with a uniform appearance on all sides, or reproduces the same design three or more times.

[List of Patents for class D7 subclass 678]    678Grater:
 This subclass is indented under subclass 669.  Design for implement with sharp-edged slits or elements on which to shred food.

SEE OR SEARCH CLASS:

241Solid Material Comminution or Disintegration,   subclasses 273.1 -273.4 for grater.

[List of Patents for class D7 subclass 679]    679Mill or grinder:
 This subclass is indented under subclass 669.  Design for device that reduces food into juice, pulp or fine particles by crushing or pressing.

SEE OR SEARCH THIS CLASS, SUBCLASS:

372through 375, for powered mill or grinder.
665,for squeezer or extractor.

SEE OR SEARCH CLASS:

241Solid Material Comminution or Disintegration,   subclasses 168 through 169.2for hand support mill or grinder.

[List of Patents for class D7 subclass 680]    680Nutcracker:
 This subclass is indented under subclass 669.  Design for tool for cracking the hard shell of a seed or nut.

SEE OR SEARCH THIS CLASS, SUBCLASS:

500through 588, for nut serving vessel combined with nutcracker

SEE OR SEARCH CLASS:

30Cutlery,   subclasses 120.1 through 120.5,for shell openers.

[List of Patents for class D7 subclass 681]    681Ice cream type:
 This subclass is indented under subclass 669.  Design for scooping or dispensing sweet, smooth frozen dessert or snack.

[List of Patents for class D7 subclass 682]    682Pounding or mashing:
 This subclass is indented under subclass 669.  Design for tenderizing, striking or crushing food.

SEE OR SEARCH THIS CLASS, SUBCLASS:

665,for squeezer such as a garlic press.

[List of Patents for class D7 subclass 683]    683Clamping or piercing food holder:
 This subclass is indented under subclass 669.  Design for tool to puncture or secure food such as corn or cocktail pick or meat fork.
(1) Note. Includes tongs.
(2) Note. Includes cocktail pick.

SEE OR SEARCH THIS CLASS, SUBCLASS:

665,for squeezer or extractor such as a tea bag squeezer.
669,for substance injector.
670,for ice pick.

SEE OR SEARCH CLASS:

294Handling: Hand and Hoist-Line Implements,   subclasses 99.1 and 99.2 for resilient jaws; subclasses 118 and 119 crossed lever.

[List of Patents for class D7 subclass 684]    684Simulative:
 This subclass is indented under subclass 683.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 685]    685Clamping:
 This subclass is indented under subclass 684.  Design that includes a provision for bracing or gripping food.

[List of Patents for class D7 subclass 686]    686Clamping:
 This subclass is indented under subclass 683.  Design that includes a provision for bracing or gripping food.

[List of Patents for class D7 subclass 687]    687Pivot point between jaws and handle:
 This subclass is indented under subclass 686.  Design for pliers or jaw type holding or clamping means.

[List of Patents for class D7 subclass 688]    688Lifting, stirring, turning or spreading:
 This subclass is indented under subclass 669.  Design for handling, mixing, moving or distributing food such as a spatula, ladle, whisk or spoon.
(1) Note. Includes plate or pan lifter, squeegee or spatula type scraper.

SEE OR SEARCH THIS CLASS, SUBCLASS:

693,for abrasive or cutting type scraper.

SEE OR SEARCH CLASS:

294Handling; Hand and Hoist-Line Implements,   subclasses 7 and 8 for pancake turner.

[List of Patents for class D7 subclass 689]    689Simulative:
 This subclass is indented under subclass 688.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 690]    690Wire:
 This subclass is indented under subclass 688.  Design that shows the appearance of metallic strands or filaments.

SEE OR SEARCH CLASS:

366Agitating,   subclasses 129 and 130 for operator supported mixer.

[List of Patents for class D7 subclass 691]    691Scoop or ladle:
 This subclass is indented under subclass 688.  Design for bowl-shape utensil used for scooping or serving.

SEE OR SEARCH THIS CLASS, SUBCLASS:

647,for slotted spoon.
681,for ice-cream scoop.

[List of Patents for class D7 subclass 692]    692Perforated:
 This subclass is indented under subclass 688.  Design that includes holes or slots.

SEE OR SEARCH THIS CLASS, SUBCLASS:

647,for slotted spoon.

[List of Patents for class D7 subclass 693]    693Cutting, peeling, shelling or coring:
 This subclass is indented under subclass 669.  Design for tool for chopping, mincing, separating food.

SEE OR SEARCH THIS CLASS, SUBCLASS:

649through 652, for general-purpose flat bladed knife.

SEE OR SEARCH CLASS:

30Cutlery,   subclass 279.6 for peeler.

[List of Patents for class D7 subclass 694]    694Rotary blade:
 This subclass is indented under subclass 693.  Design that includes a circular blade such as a pizza or pastry cutter.

[List of Patents for class D7 subclass 695]    695Shielded edge, or opposed facing edges:
 This subclass is indented under subclass 693.  Design with protected blades or cutting blades that face one another such as a vegetable peeler, corer or cheese slicer.

[List of Patents for class D7 subclass 696]    696Serrated or sinuous edge:
 This subclass is indented under subclass 693.  Design that has a jagged, saw-toothed or wavy cutting edge.

[List of Patents for class D7 subclass 697]    697Roller:
 This subclass is indented under subclass 669.  Design that includes a smooth cylinder to press food such as a rolling pin.

SEE OR SEARCH CLASS:

492Roll or Roller,   subclasses 13 and 14 for rolling pin.

[List of Patents for class D7 subclass 698]    698Cutting or kneading board:
 This subclass is indented under subclass 669.  Design for accessory for supporting food during slicing, folding, stretching or pressing by hand.

[List of Patents for class D7 subclass 699]    699Simulative:
 This subclass is indented under subclass 698.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 700]    700Funnel:
 This subclass is indented under subclass 669.  Design for conical shaped utensil having a small hole or narrow tube at the apex used to channel the flow of a food product as, for example, into a small-mouthed container.

SEE OR SEARCH CLASS:

141Fluent Material Handling With Receiver or Coacting Means,   subclasses 297 through 300for funnel.
D15Machines Not Elsewhere Specified,   subclasses 150 -151 for oil or service station type funnel.
D23Environmental Heating and Cooling; Fluid Handling and Sanitary Equipment,   subclass 200 for generic type funnel.

[List of Patents for class D7 subclass 701]    701Provision for multiple container or plural compartment:
 This subclass is indented under subclass 602.  Design for holder or rack for plural bottles, cups, glasses and the like.
(1) Note. Includes wine rack.
(2) Note. Includes draining rack or stand for plural food container.

SEE OR SEARCH THIS CLASS, SUBCLASS:

507,for drinking vessel combined with diverse article.
546,for symmetrical compartmented container with handle.
549,for compartmented container with handle.
553.1through 553.8, for compartmented tray.
619.1through 625, for holder for beverage container.

SEE OR SEARCH CLASS:

211Supports: Racks,   for pertinent subclass(es) as determined by schedule review.
D6Furnishings,   subclasses 457 through 469for and 512-574 for generic rack or display furniture.
D12Transportation,   subclass 415 for console for vehicle.

[List of Patents for class D7 subclass 702]    702Simulative:
 This subclass is indented under subclass 701.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.

[List of Patents for class D7 subclass 703]    703Enclosed:
 This subclass is indented under subclass 701.  Design with a cover or lid that must be opened to retrieve contents.

[List of Patents for class D7 subclass 704]    704Primarily of wire material:
 This subclass is indented under subclass 701.  Design that shows the appearance of metallic stand or filament.

SEE OR SEARCH CLASS:

220Receptacles,   subclass 743 for wire container holder.

[List of Patents for class D7 subclass 705]    705With distinct handle or grip:
 This subclass is indented under subclass 701.  Design with holding or carrying means for the human hand or fingers.

[List of Patents for class D7 subclass 706]    706Centrally disposed:
 This subclass is indented under subclass 705.  Design with the handle positioned in the top center.

[List of Patents for class D7 subclass 707]    707Three or more repeats, or uniform configuration, about axis:
 This subclass is indented under subclass 701.  Design with a uniform appearance on all sides, or a shows the same design three or more times.

[List of Patents for class D7 subclass 708]    708Symmetrical on two axis:
 This subclass is indented under subclass 701.  Design where one side is a mirror image of the other.

[List of Patents for class D7 subclass 708.1]    708.1Clip type:
 This subclass is indented under subclass 701.  Design for support of a dish that includes a gripping or clasp type element.

Example of a design for a clip type holder a beverage container.

Example of a design for a clip type holder a beverage container.

SEE OR SEARCH THIS CLASS, SUBCLASS:

550.1through 557, for tray with provision for cup.

[List of Patents for class D7 subclass 709]    709With centrally disposed pass-through handle:
 This subclass is indented under subclass 602.  Design for lunch-box type or picnic-basket type container that includes a bale type handle placed in the top center of the design.

SEE OR SEARCH CLASS:

206Special Receptacle or Package,   subclasses 541 through 549for camp or lunch box.

[List of Patents for class D7 subclass 710]    710Simulative:
 This subclass is indented under subclass 709.  Design with an ornamental appearance of another article as surface ornamentation or in three-dimensional representation.


CROSS-REFERENCE ART COLLECTIONS

[List of Patents for class D7 subclass 900]    900BEVERAGE CUP LID:
 This subclass is indented under the class definition.  Subject matter under this subclass is a collection of design and utility patent cross references that are titled or show designs for beverage cup lids. Since this subject matter varies widely in both scope and appearance, it does not lend itself to a classic array of subclasses.

SEE OR SEARCH THIS CLASS, SUBCLASS:

392.1,for cover for china, glassware or serving vessel.

SEE OR SEARCH CLASS:

D9Packages and Containers for Goods,   subclasses 435 through 454for closure, cover or pouring attachment.

[List of Patents for class D7 subclass 901]    901SPORT BALL SIMULATION:
 This subclass is indented under the class definition.  Subject matter under this subclass is a collection of design and utility patent cross references that are titled or show designs that simulate sport-type ball. Since this subject matter varies widely in both scope and appearance, it does not lend itself to a classic array of subclasses.

SEE OR SEARCH THIS CLASS, SUBCLASS:

514through 515, for simulative drinking vessel.

SEE OR SEARCH CLASS:

D9Packages and Containers for Foods,   subclass 307 for simulative container.
D21Games, Toys, and Sports Goods,   subclasses 707 through 714for sport type projectile.
