Class 526 provides for all processes of preparing polymers
from only ethylenically unsaturated monomers and for all products
thereof when such products and processes are not provided in higher
subclasses in the Class 260 schedule hierarchy.
In addition, Class 526 provides for certain polymerization
processes which are applicable to any type of reactant or monomer.
SECTION II - LINES WITH OTHER CLASSES AND WITHIN THIS CLASS
A. The following rules apply to claim classification in the
area encompassing subclasses 72 through 352.2 of this class.
(1) For purposes of clarification in this schedule, subclasses
59-238 will be deemed to be process subclasses, and subclasses 239-352.2
will be indicated as being product subclasses.
(2) Patents that claim a product and process, wherein both
the product and the process are specifically provided for in the
schedule, are classified in the process area (59-238) and cross-referenced
to the product area (239-352.2).
(3) Patents that claim a provided for process (59-238) and
a nonprovided for process (other than 89) but where the monomers
being polymerized are provided (239- 352.2) are classified in the
process area (59-238) and cross-referenced into the product area
on the basis of the first appearing monomer in the schedule that
is being polymerized (239-352.2).
(4) Patents that claim both a provided for (239-352.2) product
and a process of polymerizing (59-238) and wherein the product is
claimed in process terms are classified on the basis of the process
(59-238) and cross-referenced to the first appearing monomer in
the schedule utilized in preparing the polymer.
(5) Patents that claim a product solely in process terms are
classified on the basis of the process (59-238) when said process
is provided in the schedule and cross-referenced to the first appearing
monomer in the schedule utilized in preparing the polymer.
(6) Patents that claim a product in process terms and wherein
the process is not provided in subclasses (59-238) are classified
on the basis of the first appearing monomer in the schedule utilized
in preparing the polymer.
(7) Patents that claim a polymerizable composition or the
preparation of a polymerizable composition are classified on the
basis of the first apearing monomer (239-352.2) in the schedule
that is part of the polymerizable composition.
(8) Patents that claim a polymer only are classified on the
basis of the first appearing monomer in the schedule (239-352.2)
that has been polymerized in preparing the polymer.
(9) Patents that claim merely vulcanizing, curing, or cross-linking
of a polymer proper for this area, without the presence of a specified
vulcanizing, curing, or cross-linking agent, or the amount of the
chemical agent or the vulcanized, cured or cross-linked product
of such a reaction are classified on the basis of the first appearing monomer
in the schedule (239-352.2) that has been polymerized in preparing
the polymer.
(10) Patents that claim a polymer which is the result of a
degradation of a polymer proper for this area (239-352.2) and wherein
the degradation has been effected in the absence of any chemical
agent are classified on the basis of the initial first appearing
monomer in the schedule (239-352.2) that has been polymerized in
preparing the previously-formed polymer that is degraded.
(11) Each product subclass, subclasses 239-352.2 unless specifically
limites in its title, includes homopolymers and interpolymers.
(12) "Interpolymerized" as used throughout
the product area subclasses 239-352.2 includes all combinations
of the necessary monomers as required in the definition of the particular
subclass in combination with any other monomer not provided for
in a higher subclass of the schedule.
(13) A monomer for purposes of this subclass is a material
which occurs in a polymer as a repeating unit and is present in
at least three units and as used herein "monomer" is
meant to exclude catalyst residues, chain transfer agents, etc;
however, a nonethylenic carbohydrate or nonethylenic protein which
is present during polymerization of an ethylenic monomer and which
is described as chemically bonded to the polymer is proper subject matter
for Class 527, subclasses 313+.
(14) This subclass provides for processes wherein an ethylenically
unsaturated monomer is undergoing polymerization and concurrently
therewith is reacting with a second ethylenic material, which second
ethylenic material does not enter into the polymer backbone, e.g.,
polymerizing acrylic acid in the presence of allyl alcohol so that
the final polymer is a polymerized acrylic acid having ester groups
which are derived from the unsaturated alcohol.
(15) The sole requirement for the products of this subclass
is that the polymerization reaction involve only ethylenic unsaturated
monomers. Note, however, that the actual polymerization mechanism
need not involve the ethylenically unsaturated group (e.g., polymerization
of a glycidyl methylacrylate may involve the double bond in one
instance and in another instance may involve the ring opening of
the epoxy group, etc.).
(16) The treatment of a liquid polymer derived from an unsaturated
monomer which is to be further polymerized is regarded as involving
polymerization rather than as an after-treatment of a polymeric
polymer and is therefore classified in this area as against the
chemical after-treatment area, Class 525, subclasses 326.1+.
(17) In subclasses 239-352.2 each indent of a specific form
of "from monomer" only refers to species of that type
monomer and not to other monomers that may be interpolymerized therewith.
When other monomers which are not species of the "from
monomers" are to be taken into account the subclass has
been identified as "interpolymerized."
B. The following are lines relating to special subclasses:
(1) Subclasses 218.1+, 219.3+, 219.6
(1)
Note. A patent which recites a polymerization process which
utilizes (a) a material proper for subclasses 218.1+ in
combination with either a specified or nonspecified amount of "hydrocarbon
or halohydrocarbon" will not be classified in subclass
219.3 or its indents, but will be found in 219.6 or 218.1+;
proper, however, for subclass 219.3 or its indents is the situation
wherein when either the hydrocarbon or halohydrocarbon is defined
in some degree (e.g., dihalogenated, dibrominated, contains specified
chain length, boiling or freezing point range, etc.); (b) a "free
radical" catalyst with either a specified or nonspecified amount
of "hydrocarbon or halohydrocarbon" will be classified
with the polymer providing this was the only remaining basis for
classification.
This subclass is indented under Class 520, subclass
1. Subject matter wherein a process parameter is determined
and some polymerization process parameter is altered in response
to the determination.
(1)
Note. A test or measurement performed by a human being with
a subsequent control operation is proper herein.
(2)
Note. Treating a material to a certain condition without
a defined inanimate measurement, test, inspection, or control (e.g.,
temperature, pH, etc.) is not proper subject matter for this subclass
and classification of such a process will be accorded on some other
basis.
This subclass is indented under subclass 59. Subject matter wherein a polymerization process parameter
is altered in response to the composition or composition property
and wherein the composition property is other than density, per
se.
(1)
Note. Included within the definition of composition or composition
property is the determination of the identity of a component or
the relative amount of a component in a stream, electrical conductivity,
redox, potential, pH measurement, molecular weight, melt index, optical
properties, etc.
This subclass is indented under subclass 59. Processes wherein a polymerization process parameter is
altered in response to a determination of temperature or pressure.
This subclass is indented under Class 520, subclass
1. Subject matter wherein the polymerization reaction takes
place in (1) a reactor of specified material; or (2) a reactor part
is of a specified material; or (3)wherein the reactor or part of
the reactor has been treated in some manner.
(1)
Note. Specified material includes a recitation that the reactor
material be free from certain specified material.
(2)
Note. Included herein but not limited to the enumerated examples
are stainless steel and glass-lined reactors, reactor parts such
as titanium stirrers, and reactors that have been subjected to a
specified wash or the application of a coating material.
This subclass is indented under Class 520, subclass
1. Subject matter wherein heat exchange or reduction of particle
size of a polymerizing polymer is effected by direct contact of
said polymerizing polymer with an inert-solid mass which solid is
not an internal part of the polymerization apparatus or of the processing
apparatus.
(1)
Note. "Inert-solid mass" includes steel shot
and ceramic rollers.
(2)
Note. This subclass does not include indirect cooling or heating
(e.g., cooling outside of reactor so as to cool reactor contents,
etc.).
for mixing, agitating, etc. of a polymerizing polymer
utilizing a stirrer or some other means which means or stirrer is
part of the apparatus or processing equipment.
This subclass is indented under Class 520, subclass
1. Subject matter wherein polymerization is effected in a loop
or tubular reactor.
(1)
Note. A loop reactor for purposes of this subclass is an
apparatus wherein polymerization material is circulated in a continuous
path within a single or multicoiled or spiraled structure which
has at least one inlet and outlet means and at least one reaction
zone.
(2)
Note. A tubular reactor for purposes of this subclass is
an apparatus wherein polymerizable material flows in an essentially
linear direction in a tube or series of interconnected tubes, which tube
or tubes are of small diameter in relation to their length and wherein
each tube has at least one inlet and outlet means and one or more
polymerization reaction zones.
This subclass is indented under Class 520, subclass
1. Subject matter wherein polymerization is effected in at
least two or more physically distinct zones, (e.g., regions, stages,
etc.) said zones being part of a single reactor which has a plurality
of such physically distinct zones or such zones may be part of separate
polymerization reactors which are interconnected at some point.
(1)
Note. For the most part patents herein relate to advancement
of polymerizing materials from one zone to another so as to effect
a progressive degree of polymerization and which are usually advanced
until the degree of polymerization is brought to the desired state.
This subclass is indented under subclass 65. Subject matter wherein material (e.g., monomer, catalyst,
etc.) is added to a zone containing polymerizable material therein,
said polymerizable material being in a state undergoing active polymerization
and wherein said material is added in a sequential or incremental manner.
(1)
Note. "Sequential or incremental" addition
requires (1) the addition of material involving a halting, interruption,
or pausing in the addition of the same material followed by a resumption
of addition; or (2) the addition of materials to a polymerization
zone followed by the addition of materials distinct from the previous
material, or (3) the addition of disproportionate amounts of materials
so that the addition of one is completed prior to the completion
of the addition of the other material.
This subclass is indented under Class 520, subclass
1. Subject matter wherein a portion of material is removed
from a zone wherein material is undergoing polymerization and the removed
material either with something added to it, removed from it, or
the removed material, per se, is added to a zone wherein an active polymerization
is occurring.
This subclass is indented under subclass 67. Subject matter wherein monomer is removed from and recycled
back to an ongoing polymerization reaction zone.
(1)
Note. The removal herein need only involve a monomer. For
instance, removing material containing monomer admixed with diluent
and the recycling of both would be proper herein.
This subclass is indented under subclass 67. Subject matter wherein a catalyst or catalyst constituent
is removed from and recycled back to an ongoing polymerization zone.
(1)
Note. The removal herein need not solely involve a catalyst
or catalyst constituent. For instance, removing a catalyst admixed
with a diluent and the recycling of both would be proper herein.
This subclass is indented under subclass 67. Subject matter wherein a diluent or diluent component is
removed from and recycled back to an ongoing polymerization zone.
This subclass is indented under Class 520, subclass
1. Subject matter wherein only nonpolymerizable material is
removed during the polymerization reaction.
(1)
Note. Excluded from this subclass is the removal of polymerized
materials admixed with nonpolymerized or nonpolymerizable material.
This subclass is indented under Class 520, subclass
1. Subject matter involving polymers derived from ethylenically
unsaturated monomers only and processes of polymerizing same; polymerizing
compositions containing ethylenically unsaturated monomers only
and processes of preparing polymerizable compositions.
(1)
Note. This subclass provides for processes wherein an ethylenically
unsaturated monomer is undergoing polymerization and concurrently
therewith is reacting with a second ethylenic material, which second
ethylenic material does not enter into the polymer backbone, e.g.,
polymerizing acrylic acid in the presence of allyl alcohol so that
the final polymer is a polymerized acrylic acid having ester groups
which are derived from the unsaturated alcohol.
(2)
Note. The sole requirement for the products of this subclass
is that the polymerization reaction involve only ethylenic unsaturated
monomers. Note, however, that the actual polymerization mechanism
need not involve the ethylenically unsaturated group (e.g., polymerization of
a glycidyl methylacrylate may involve the double bond in one instance
and in another instance may involve the ring opening of the epoxy
group, etc.).
(3)
Note. This subclass and its indents provide for processes
for adding material to an ongoing polymerization process or where
preformed liquid polymers are further polymerized so as to form
a final polymerized product.
Synthetic Resins or Natural Rubbers,
subclasses 242+ , for products resulting from or involving a polymer derived
from only ethylenic monomers reacted with an ethylenically unsaturated
reactant, or for products resulting from or involving a polymer derived
from at least only ethylenic monomers reacted in the presence of an
ethylenically unsaturated monomer. Subclasses 242+ also
provides for the processes of preparing products properly classifiable
within the subclass.
Synthetic Resins or Natural Rubbers,
subclasses 480+ for processes of treating a polymer not involving
a chemical modification of the polymer, by the addition of a material
thereto and for chemically modifying materials other than the ethylenic
polymer. Subclasses 480+ also provide for the processes
of admixing with a broadly claimed nonreactant material.
This subclass is indented under subclass 72. Subject matter wherein the polymerization reaction is effected
using at least two different pressures or at least two different
temperatures.
(1)
Note. The temperature or pressure must be increased or decreased
under controlled conditions so that the temperature or pressure
is maintained for a definite period of time prior to the raising
or lowering of the temperature or pressure.
(2)
Note. The mere recitation of a range of temperatures or pressures
is not considered sufficient to be considered as being different
temperatures or pressures.
This subclass is indented under subclass 72. Subject matter wherein material that would normally form
during a polymerization reaction and which would clog or foul the
polymerization equipment is removed from or is prevented or inhibited
from forming by the use of a nonpolymerizable material, which material is
other than a hydrocarbon or halogenated hydrocarbon used in solvent
or diluent amount.
(1)
Note. Included herein but not limited to the specific examples
are patents which specifically claim the use of materials to remove
or inhibit forming of fouling materials by solvents, surfactant
surface treatments during polymerization, or maintaining a fluid
film between the polymerization equipment and the polymerizing materials.
for processes of polymerizing in a specific diluent
or solvent wherein reaction buildup is alleviated by the inherent
use of a solvating material; and for processes of polymerizing in
a hydrocarbon or halogenated hydrocarbon diluent together with a
specific material wherein the hydrocarbon or halogenated hydrocarbon
may prevent fouling of the reactor.
This subclass is indented under subclass 72. Subject matter which includes the chemical synthesis of
a monomer or a prepolymer and subsequent polymerization thereof.
(1)
Note. A prepolymer for purposes of the subclass is a low-molecular-weight-polymeric
material prepared from a single source product and which is regarded as
an intermediate reactant rather than as a final product and which
is further polymerizable by a continuation of the same reaction
as used in preparing said prepolymer.
(2)
Note. Included herein are processes involving dimerization
or trimerization of monomer.
This subclass is indented under subclass 75. Subject matter wherein the monomer or prepolymer is derived
from a petroleum fraction.
(1)
Note. Included herein are processes of recovering hydrocarbon
materials from a crude-natural source followed by a chemical reaction
(e.g., dimerization, etc.) and subsequent final polymerization.
This subclass is indented under subclass 72. Subject matter which includes the step of purifying the
ethylenic monomer.
(1)
Note. Purification for this subclass may be for any number
of reasons (e.g., removing impurities which inhibit polymerization,
removing impurities which may be undesirable in the final polymer, etc.).
(2)
Note. Included in this subclass are processes involving physical
treatments (e.g., distillation, sorbent extraction, etc.) as well
a processes involving chemical interaction of the impurity or undesired
constituents.
This subclass is indented under subclass 72. Subject matter wherein material which is added to a zone,
said zone containing material therein which is undergoing polymerization,
and the addition of the material is other than by the continuous
addition of the material contained in the initial change.
(1)
Note. For purposes herein, addition proper for this subclass
involves any of the following (1) the addition of material to a
polymerization zone and continuing the polymerization without any
subsequent addition, or (2) the addition of materials to a polymerization
zone followed by the addition of materials distinct from the previous
material either in whole-amount or in the addition of the same material
in different concentration, or (3) the addition of material to terminate
polymerization, or (4) the addition of material with the addition
involving a halting, interruption, pausing, or suspending of adding
material at any time during the polymerization reaction or (5) the
addition of a material to a zone wherein all of the other necessary
materials are present except the one being added.
This subclass is indented under subclass 78. Subject matter wherein the material is added in an incremental
or sequential manner.
(1)
Note. "Sequential or incremental" addition
requires (1) the addition of material involving a halting interruption,
or pausing in the addition of the same material followed by a resumption
of addition; or (2) the addition of materials to a polymerization
zone followed by the addition of material distinct from the previous materials;
or (3) the addition of disproportionate amounts of material so that the
addition of one is completed prior to the completion of the addition
of the other material.
This subclass is indented under subclass 78. Subject matter wherein the added material terminates or
retards the polymerization reaction (e.g., polymerization inhibitor,
terminator, chain-transfer agent, short-stopper, etc.).
This subclass is indented under subclass 82. Subject matter wherein the added terminating or inhibiting
material contains a nitrogen-containing compound.
This subclass is indented under subclass 82. Subject matter wherein the added terminating or retarding
material contains an oxygen-containing compound.
(1)
Note. This subclass includes the use of water, per se, as
a retarding or terminating agent.
This subclass is indented under subclass 72. Subject matter wherein the polymerization process involves
specific mixing, stirring, agitating, or the movement of material.
(1)
Note. Specified for purposes of this subclass requires the
naming of a movement-imparting rotor, stirrer, impeller or any other
device in terms of its specified dimension, design, size, or shape thereof,
or requires the recitation of a reactor of a design to facilitate
movement or agitation; or requires a positive recitation in the
claims as to velocity or designated time of mixing, said time being
either continuous or intermittent.
This subclass is indented under subclass 72. Subject matter wherein an ethylenically unsaturated monomer
is polymerized in the presence of a specified material.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains at
least one transition metal atom.
(1)
Note. "Transition metal" for purposes of this
subclass is limited to elements of atomic numbers 21-29, 39-47,
57-79, and 89 and higher and does not include Zn, Cd, and Hg. "Nontransition
metal" as used throughout this schedule is intended to
include all metals other than the transition metals.
(2)
Note.
(a)
Nontransition metal atom-to-carbon bond as used throughout
this schedule includes all compounds that contain at least one carbon
atom bonded to at least one nontransition metal atom.
(b)
Nontransition metal hydride as used through this schedule
includes all compounds that contain at least one hydrogen atom bonded
to at least one nontransition metal.
(c)
Included within the scope of compounds encompassed by the
definition of 2(a) and 2(b) above are those compounds having two
or more nontransition metal atoms wherein additionally one of said
atoms is bonded to a carbon or hydrogen atom and wherein one of said
nontransition metal atoms is not bonded to a hydrogen or carbon
atom.
(3)
Note.
(a)
Metal borohydrides (e.g., LiBH4, Ti(BH4)3,
etc.) are classified as if they are hydrides of boron and of the
metal atom.
(b)
Mixed metal hydrides (e.g., NaA1H4, (CaALH4)2,
etc.) are classified as if they are hydrides of aluminum and of
the other metal.
(c)
In those instances where a carbon atom has replaced at least
one or more hydrogen atoms of compounds as elaborated in 3(a) above,
then classification is made as if these compounds are alternatively
bonded to a boron atom and to a metal, and in those cases wherein
a carbon atom has replaced at least one or more hydrogen atoms of
compounds as elaborated in 3(b) above, then classification is made
as if these compounds are alternatively bonded to either one of
the metal atoms.
This subclass is indented under subclass 90. Subject matter wherein transition material is in contact
with water during the polymerization reaction.
(1)
Note. The amount of water present during the polymerization
reaction is of no significance (e.g., diluent, catalyst, activator,
etc)..
(2)
Note. Water of hydration, per se, is not considered as being
water for this subclass.
(3)
Note. The use of a catalyst system or other material which
has been prepared in the presence of water is not proper for this
subclass unless it is understood that free water remains after the
material has been formed.
This subclass is indented under subclass 91. Subject matter wherein the transition metal atom is bonded
to at least one carbon atom; or wherein the transition metal material
is in admixture with a compound that contains at least one metal
atom bonded to a carbon atom.
This subclass is indented under subclass 91. Subject matter wherein at least one atom is a Group VIII
metal (i.e., Fe, Co, Ni, Ru, Rh, Pd, Os, Ir, Pt).
This subclass is indented under subclass 93. Subject matter wherein (1) the transition metal atom exists
as a part of a sulfur-containing organic compound; or (2) the transition
metal material is in admixture with an organic sulfur-containing
compound.
This subclass is indented under subclass 90. Subject matter wherein the specified material contains a
transition metal atom as part of a binary compound solely composed
of a single transition metal and oxygen.
(1)
Note. Included herein are supports for active ingredients
wherein the support may be an oxide of a transition metal (e.g.,
thoria, titania, etc.).
(2)
Note. Excluded from this subclass are the peroxides of a
transition metal.
(3)
Note. This subclass includes reaction products or reaction
mixtures of transition metal oxides wherein the surface of the transition
metal oxide may be modified (e.g., TiO2 chemically
bonded to TiCl4 on its surface) but wherein
the material is still regarded as being in oxide form.
This subclass is indented under subclass 95. Subject matter wherein the specified material contains at
least two transition metal atoms, one of said transitional metal
atoms being in elemental form or as part of a nonbinary oxide compound.
This subclass is indented under subclass 96. Subject matter wherein the specified material contains a
nontransition metal in elemental form, or in the form of a hydride,
or as a compound wherein the nontransition metal is bonded directly
to a carbon atom.
This subclass is indented under subclass 95. Subject matter wherein the specified material contains elemental
halogen or a nonmetal halogen-containing compound.
This subclass is indented under subclass 95. Subject matter wherein the specified material contains at
least one aluminum compound having an aluminum atom bonded to halogen,
and wherein said same aluminum atom is not bonded to a carbon or
hydrogen atom.
This subclass is indented under subclass 95. Subject matter wherein the specified material contains at
least one nonmetallic, organic, nitrogen, oxygen, sulfur or phosphorus-containing
compound.
This subclass is indented under subclass 95. Subject matter wherein the specified material consists of
at least two transition metal oxides, at least two of said transition
metal oxides being other than oxides of Ti, Zr, Hf, or Th.
(1)
Note. Proper for this subclass are ternary systems containing
three transitional metal oxides wherein one of the oxides is of
Ti, Zr, Hf or Th and wherein the other two oxides are not of those
transition metals.
This subclass is indented under subclass 95. Subject matter wherein the specified material contains an
elemental nontransitional heavy metal or a compound of a nontransition
heavy metal.
This subclass is indented under subclass 95. Subject matter wherein the specified material contains an
oxide of a Group VIII metal, i.e., Fe, Co, Ni, Ru, Rh, Pd, Os, Ir,
Pt.
This subclass is indented under subclass 104. Subject matter wherein the specified material contains an
elemental nonheavy metal, or contains a hydride of a nonheavy metal,
or contains a compound having a nonheavy metal to carbon bond.
for processes of polymerizing in a reactor wherein
one of the reactor surfaces which contacts the polymerizing material
is a transition metal in elemental form.
This subclass is indented under subclass 108. Subject matter wherein the specified material contains an
elemental transition metal in admixture with a compound that contains
an -O-O-group.
This subclass is indented under subclass 108. Subject matter wherein the specified material contains an
elemental transition metal which is in admixture with a nontransition
metal, or is in admixture with a hydride of a nontransition metal,
or is in admixture with a compound of a nontransition metal wherein
a nontransition metal atom is directly bonded to a carbon atom.
This subclass is indented under subclass 110. Subject matter wherein the specified material contains at
least one nonmetallic material which contains a nitrogen, oxygen,
sulfur or phosphorus atom.
(1)
Note. Excluded from this area is the use of nitrogen or air
as merely carrier or blanket gases.
This subclass is indented under subclass 108. Subject matter wherein the specified material contains an
elemental transition metal which is in admixture with a transition
metal compound.

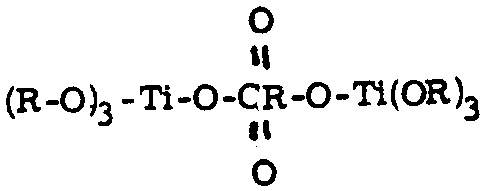

This subclass is indented under subclass 90. Subject matter wherein the specified material contains (1)
two compounds having diverse transition metal atoms; or (2) a single
compound having at least two diverse transition metal atoms therein,
e.g.,
This subclass is indented under subclass 113. Subject matter wherein the specified material contains a
nontransition metal in elemental form, or contains a hydride of
a nontransition metal, or contains a compound of a nontransition
metal wherein a nontransition metal atom is directly bonded to a
carbon atom.
This subclass is indented under subclass 114. Subject matter wherein at least one of the transition atoms
present is a Group VIII element, i.e., Fe, Co, Ni, Ru, Rh, Pd, Os,
Ir, Pt.
This subclass is indented under subclass 114. Subject matter wherein at least one of the transition metal
atoms present is a Group IVB atom and wherein at least one of the
different transition metal atoms present is a Group VB atom (e.g.,
TiCl4 and VOCL3, etc.).
(1)
Note. A Group IV atom is Ti, Zr, Hf. A Group VB atom is V,
Nb, Ta.
This subclass is indented under subclass 113. Subject matter wherein at least one of the transition metal
atoms present is a Group VIII element, i.e., Fe, Co, Ni, Ru, Rh,
Pd, Os, Ir, Pt.
This subclass is indented under subclass 90. Subject matter wherein the specified material contains at
least two different transition metal compounds, each of said compounds
containing the same transition metal atom.
(1)
Note. Excluded from this subclass are compositions containing
two or more distinct compounds of the same transition elements when
such compositions are the result of a reaction wherein a part of
the original transition metal compound is converted to a different
compound form (e.g., partial reduction of TiCl4 with
AlR3) to form a mixture of TiCl4 and
TiCl3, etc. However, a patent claim wherein
TiCl4 and TiCl3 are separately added would
be proper herein.
This subclass is indented under subclass 118. Subject matter wherein the specified material contains a
nontransition metal in elemental form, or contains a hydride of
a nontransition metal, or contains a compound of a nontransition
metal wherein a nontransition metal atom is directly bonded to a
carbon atom.
This subclass is indented under subclass 90. Subject matter wherein (1) the specified material contains
a transition metal compound which is in admixture with a compound
containing a heavy metal atom and which heavy metal is other than
a heavy metal atom directly bonded to a carbon atom or to a hydrogen atom;
or (2) wherein a transition metal containing compound additionally
contains at least one heavy metal atom in the same molecule, which
heavy metal atom is not directly bonded to a hydrogen or carbon
atom (e.g., mercuric tungstate, or a mixture of NiCl2 and
ZnCl2, etc.).
This subclass is indented under subclass 120. Subject matter wherein the specified material contains a
nontransition metal in elemental form, or contains a hydride of
a nontransition metal, or contains a compound of a nontransition
metal wherein a nontransition metal atom is directly bonded to a
carbon atom.
(1)
Note. Included in this subclass are compounds which may contain
two heavy metal atoms and wherein one of the metal atoms may be
attached to a carbon or hydrogen atom and wherein the other heavy
metal atom is not attached to a hydrogen or carbon atom.
This subclass is indented under subclass 90. Subject matter wherein the specified material contains a
transition metal compound which is in admixture with a Group IA
or IIA metal compound, which compound is other than a Group IA or
Group IIA metal hydride or compound containing a Group IA or Group
IIA metal atom bonded directly to a carbon atom; or wherein a transition
metal-containing compound additionally contains at least one Group IA
or Group IIA metal atom in the same molecule, which Group IA or
Group IIA metal atom is not bonded directly to a hydrogen or carbon atom
(e.g., Ca(NR2)2, NaNH2,
etc.).
(1)
Note. Included in this subclass are compounds which may contain
two alkali metal atoms and wherein one of the alkali metal atoms
may be attached to a carbon or hydrogen atom and wherein the other
alkali metal atom is not attached to a carbon or hydrogen atom (e.g.,
NaCH2CH2ONa, etc.).
This subclass is indented under subclass 123.1. Subject matter wherein the specified material contains a
nontransition metal in elemental form, or contains a hydride of
a nontransition metal, or contains a compound of a nontransition
metal wherein the nontransition metal is directly bonded to a carbon
atom.
(1)
Note. Examples of substances provided for herein as contained
in the specified material are lithium metal, MgH2, Al(C2H5)3,
and C2H5MgCl.
This subclass is indented under subclass 124.1. Subject matter wherein the specified material contains a
magnesium compound having no carbon to magnesium or hydrogen to
magnesium bonds.
(1)
Note. Examples of substances provided for herein as contained
in the specified material are MgCl2, MgO, and Mg(OC2H5)2.
This subclass is indented under subclass 124.2. Subject matter wherein an additional specified material
is present (i.e., there are four or more specified materials present).
(1)
Note. This subclass provides, inter alia, for the combination
of TiCl4, MgCl2, Al(CH3)3 and
an additional specified material such as Al(C2H5)3,
PCl3 or alcohol.
(2)
Note. Material such as MgmTi(OR) mXp[ED]q wherein
R is hydrocarbon, X is halogen and ED is a specified material such
as a carboxylic acid ester will be considered to represent a mixture
of specified materials rather than a unitary compound. In this particular
mixture, ED represents the additional specified material which satisfies
the requirement of this subclass.
(3)
Note. For purpose of this and indented subclasses, materials
such as MgCl2°2H2O
are generally regarded as constituting two specified materials (i.e., MgCl2 and
H2O). See Search This Class, Subclass, infra.
This subclass is indented under subclass 124.3. Subject matter wherein there is present (1) two different
magnesium compounds neither of which contains a carbon to magnesium
or a hydrogen to magnesium bond, or (2) a Group IA metal or nonmagnesium
Group IIA metal compound, neither of which contains a bond between
carbon or hydrogen and the Group IA or Group IIA metal.
(1)
Note. An example of (1), supra,
is the combination of MgCl2 and Mg(OC2H5)2.
An example of (2), supra, is MgCl2
KCl 6H2O.
This subclass is indented under subclass 124.3. Subject matter wherein the additional specified material
is an inorganic compound that contains oxygen and silicon or oxygen
and aluminum.
(1)
Note. Examples of additional specified materials provided
for herein are SiO2, Al2O3,
and H3Si-O-SiH3.
This subclass is indented under subclass 124.5. Subject matter wherein an organic material that contains
boron, silicon, nitrogen, phosphorus or chalcogen is present and
does not contain metal.
(1)
Note. Examples of material provided for herein are B(C2H5)3,
ethyl acetate, CH3SiHCl2,
etc.
(2)
Note. Chalcogen is defined as oxygen, sulfur, selenium, or
tellurium.
This subclass is indented under subclass 124.3. Subject matter wherein there are present plural nontransition
elemental metals, hydrides thereof, or compounds of a nontransition
metal wherein the nontransition metal is bonded directly
to a carbon atom or to a hydrogen atom, or mixtures thereof.
(1)
Note. Examples of combinations provided for herein are: (1)
lithium metal and Al(C2H5)3,
(2) MgH2 and C2H5MgCl,
(3) Mg(C2H5)2 and Mg(CH3)2,
(4) lithium metal and calcium metal.
This subclass is indented under subclass 124.7. Subject matter wherein an organic material that contains
boron, silicon, nitrogen, phosphorus or chalcogen is present and
does not contain metal.
(1)
Note. Chalcogen is defined as oxygen, sulfur, selenium, or
tellurium.
This subclass is indented under subclass 124.3. Subject matter wherein the additional specified material
is an organic material that contains boron, silicon, nitrogen, phosphorus
or chalcogen and does not contain metal.
(1)
Note. Chalcogen is defined as oxygen, sulfur, selenium, or
tellurium.
This subclass is indented under subclass 124.9. Subject matter wherein an organic aluminum compound which
is devoid of any bonds between the aluminum and carbon or hydrogen atoms
is present.
(1)
Note. Examples of compounds provided for herein are Al(OC2H5)3 and Al[N(C2H5)2]2Cl.
This subclass is indented under subclass 124.9. Subject matter wherein a compound which contains only (1)
carbon, hydrogen and halogen atoms, or (2) carbon and halogen atoms
is present.
(1)
Note. Examples of compounds provided for herein are CCl4 and
CHCl3.
This subclass is indented under subclass 124.9. Subject matter wherein an organic material which contains
boron or silicon but does not contain metal is present.
(1)
Note. Examples of materials provided for herein are B(OC2H5)3,
Si(C2H5)4, and
Si(CH3)Cl3.
This subclass is indented under subclass 124.9. Subject matter wherein there are at least two different
organic materials present, each contains nitrogen, phosphorus or
chalcogen and does not contain metal.
(1)
Note. Examples of combinations of materials provided for herein
are (1) P(OC2H5)3 and
C2H5OH, and (2) CH3OH
and C2H5OH.
(2)
Note. Chalcogen is defined as oxygen, sulfur, selenium, or
tellurium.
This subclass is indented under subclass 124.3. Subject matter wherein the additional specified material
is a compound which contains only (1) carbon, hydrogen and halogen
atoms, or (2) carbon and halogen atoms.
(1)
Note. Examples of compounds provided for herein are CCl4 and
CHCl3.
This subclass is indented under subclass 124.3. Subject matter wherein the additional specified material
is an inorganic material having no bonds between hydrogen and metal.
This subclass is indented under subclass 90. Subject matter wherein the specified material contains a
transition metal compound which is in admixture with a silicon-containing
material, or wherein the transition metal compound additionally
contains at least one silicon atom therein.
(1)
Note. Included herein are those processes that claim the
use of silica.
This subclass is indented under subclass 126. Subject matter wherein the specified material contains a
nontransition metal in elemental form, or contains a hydride of
a nontransition metal, or contains a compound of a nontransition
metal wherein a nontransition metal atom is directly bonded to a
carbon atom.
This subclass is indented under subclass 127. Subject matter wherein the silicon-containing material is
an inorganic oxygen-containing compound, e.g., H3Si-O-SiH3,
etc.
This subclass is indented under subclass 126. Subject matter wherein a the silicon-containing material
is an inorganic oxygen-containing compound, e.g., SiO2,
H3Si-O-SiH3, etc.
This subclass is indented under subclass 90. Subject matter wherein the specified material contains a
transition-metal compound which is in admixture with a boron-containing
material, or wherein the transition-metal compound, additionally,
contains at least one boron atom therein.
This subclass is indented under subclass 131. Subject matter wherein the specified material contains a
nontransition metal in elemental form, or contains a hydride of
a nontransition metal, or contains a compound of a nontransition
metal wherein a nontransition metal atom is directly bonded to a
carbon atom, e.g., transition-metal compound and LiBH4,
etc.
This subclass is indented under subclass 132. Subject matter wherein the boron compound contains at least
one halogen atom, e.g., B3N3H3Cl3 (trichloroborazole),
etc.
This subclass is indented under subclass 131. Subject matter wherein the boron compound contains a boron
to hydrogen bond, or a boron to carbon bond (e.g., Ti(BH4)3,
TiCl4 and B(C2H5)3,
etc.).
This subclass is indented under subclass 90. Subject matter wherein the specified material contains a
transition metal compound in admixture with at least one nonmetal-containing
material having at least one atom of nitrogen, phosphorus, oxygen,
sulfur, selenium, tellurium, or halogen.
(1)
Note. Nitrogen gas, per se, is not a basis for classification
herein. Such claims are classified elsewhere on some other basis.
(2)
Note. Patents which disclose air but do not specifically
claim air as a needed component of the composition are excluded
herefrom and will be classified elsewhere on some other basis.
This subclass is indented under subclass 135. Subject matter wherein the specified material contains a
nontransition metal in elemental form, or contains a hydride of
a nontransition metal, or contains a compound of a nontransition
metal wherein a nontransition metal atom is directly bonded to a
carbon atom.
This subclass is indented under subclass 136. Subject matter wherein the nonmetal material is elemental
halogen or is a nonmetallic-inorganic-halogen-containing compound.
This subclass is indented under subclass 136. Subject matter wherein the nonmetal material is elemental
oxygen or is a nonmetallic inorganic-oxygen-containing compound.
This subclass is indented under subclass 136. Subject matter wherein the nonmetal material is an organic
compound containing at least one phosphorus atom.
This subclass is indented under subclass 136. Subject matter wherein the nonmetal material is an organic
compound containing at least one nitrogen atom.
This subclass is indented under subclass 142. Subject matter wherein the nonmetal oxygen compound contains
at least a halogen atom in the same molecule as the oxygen atom.
This subclass is indented under subclass 136. Subject matter wherein the nonmetal material is an organic
compound containing at least one halogen atom.
This subclass is indented under subclass 135. Subject matter wherein the nonmetal material is elemental
phosphorus or is a phosphorus-containing compound.
This subclass is indented under subclass 90. Subject matter wherein the specified material contains a
transition metal compound (1) in admixture with two or more diverse
elemental nontransition metals; or (2) in admixture with at least
two different nontransition metal hydride compounds; or (3) in admixture
with at least two different nontransition metals to carbon-bonded
compounds; or (4) in admixture with a nontransition elemental metal
and a nontransition metal hydride compound or a nontransition metal-to-carbon-bonded
compound; or (5) is in admixture witha nontransition metal hydride
compoundand a nontransition metal-to-carbon-bonded compound.
(1)
Note. Different for purposes herein regards to the compounds
of a nontransition metal bonded to hydrogen or carbon is meant to
include the same nontransition metal existing in different compounds,
e.g., one being the hydride and the other containing a nontransition metal
to carbon bonds, or even two different compounds of the same nontransition
metal each bonded to carbon, but in different compounds, or in different hydride
forms.
This subclass is indented under subclass 148. Subject matter wherein the specified material contains an
atom of a Group VA (As, Sb, Bi)metal in elemental form, or contains
a hydride of a Group VA metal, or contains a compound of a Group
VA metal wherein the Group VA metal is directly bonded to a carbon atom.
This subclass is indented under subclass 148. Subject matter wherein the specified material contains an
atom of a Group IVA (Ge, Sn, Pb)metal in elemental form, or contains
a hydride of a Group IV metal, or contains a compound of a Group
IVA metal wherein the Group IVA metal atom is directly bonded to
a carbon atom.
This subclass is indented under subclass 148. Subject matter wherein the specified material contains an
atom of a Group IIIA (Al, Ga, In, Tl) metal in elemental form, or
contains a hydride of a Group IIIA metal, or contains a compound
of a Group IIIA metal wherein the Group IIIA metal is directly bonded
to a carbon atom.
This subclass is indented under subclass 151. Subject matter wherein in addition to the Group IIIA material
the specified material contains at least one Group IA element in
elemental form, or contains a hydride of a Group IA metal, or contains
a compound of a Group IA metal wherein the Group IA metal is directly bonded
to a carbon atom.
This subclass is indented under subclass 151. Subject matter wherein the specified material contains (1)
two or more Group IIIA metals in elemental form, two or more Group
IIIA metal hydrides, or two or more compounds which contain a carbon
to Group IIIA metal bond; or (2) a mixture composed of at least
two of any of the Group IIIA materials noted in (1).
This subclass is indented under subclass 90. Subject matter wherein (1) the specific material contains
a transition metal compound which is in admixture with a compound
of aluminum, which aluminium compound is other than the hydride
or other than a compound wherein an aluminum atom is directly bonded
to a carbon atom, or (2) wherein a transition metal-containing compound
additionally contains at least one aluminum atom in the same molecule, which
aluminum atom is not directly bonded to a hydrogen or carbon atom.
This subclass is indented under subclass 154. Subject matter wherein the specified material contains a
nontransition metal in elemental form, or contains a hydride of
a nontransition metal, or contains a compound of a nontransition
metal wherein the nontransition metal atom is directly bonded to
a carbon atom.
This subclass is indented under subclass 155. Subject matter wherein the specified material contains an
inorganic oxygen-containing compound of aluminum.
This subclass is indented under subclass 157. Subject matter wherein the transition metal compound contains
at least one atom of a Group IVA metal (i.e., Ti, Zr, Hf).
This subclass is indented under subclass 90. Subject matter wherein the specified material contains a
nontransition metal in elemental form, or contains a hydride of
a nontransition metal, or contains a compound of a nontransition
metal wherein the nontransition metal atom is directly bonded to
a carbon atom (e.g., TiCl4 and LiAlH4,
etc.).
This subclass is indented under subclass 159. Subject matter wherein a transition metal atom is bonded
to a carbon atom (e.g., Ti(CR3)3, tetra
lithium ferrocenyl, etc.).
This subclass is indented under subclass 159. Subject matter wherein a transition metal compound contains
at least one atom of phosphorus, sulfur, or nitrogen, in the same
molecule as the transition metal atom (e.g., titanium nitride, MoS2,
ferric hydrosulfate, etc.).
This subclass is indented under subclass 159. Subject matter wherein at least one carbon atom is directly
bonded to a nontransition metal atom and the molecule contains in
addition at least one ethylenic unsaturated moiety.
This subclass is indented under subclass 159. Subject matter wherein at least one nontransition metal
is bonded to a hydrogen or carbon atom and the same molecule contains
in addition at least one atom of phosphorus, nitrogen or sulfur;
e.g., AlH3.N(CH3)3,
H2Al.N(CH3)2.
This subclass is indented under subclass 159. Subject matter wherein the transition metal of the transition
metal compound is a Group IB, IIIB, or VIIB atom, or has an atomic
number of 58-71, or 90 and higher.
This subclass is indented under subclass 159. Subject matter wherein a nontransition metal compound which
has at least one nontransition metal to carbon contains (1) at least
two atoms of the same nontransition metal; or (2) at least two diverse
nontransition atoms, (e.g., Sb(C2H5)4ClAl2(C2H5)6,
LiAlR4, etc.).
(1)
Note. Included herein are those compounds that contains a
repeat unit (e.g., (CH2AlR)n,
etc.).
This subclass is indented under subclass 159. Subject matter wherein a group IVA or Group VA metal atom
is directly bonded to an atom of hydrogen or carbon.
This subclass is indented under subclass 159. Subject matter wherein in addition to the nontransition
metal compound there is also present elemental carbon.
This subclass is indented under subclass 159. Subject matter wherein at least one monomer is other than
a hydrocarbon.
(1)
Note. This subclass includes the interpolymerized product
of a hydrocarbon monomer and a nonhydrocarbon monomer as well as
homopolymeric products of nonhydrocarbon monomers.
This subclass is indented under subclass 90. Subject matter wherein the specified material contains at
least one transition metal atom bonded to a carbon atom.
This subclass is indented under subclass 90. Subject matter wherein the transition metal compound contains
at least one atom of phosphorus, sulfur, nitrogen, or oxygen chemically combined
therewith.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains an
elemental alkali metal, and alkali metal hydride, or a compound
containing an alkali metal bonded to a carbon atom.
(1)
Note. Alkali metal is limited to the elements of Group IA
and as such is limited to Li, Na, K, Rb, Cs, and Fr.
through 182, which may include compounds wherein
the alkali metal is bonded to a carbon or hydrogen atom and in the
same molecule there is also present at least one of the necessary elements
required under the definitions of these subclasses.
This subclass is indented under subclass 173. Subject matter wherein the specified material contains two
or more different alkali metals in elemental or compound form and
at least one of the alkali metals is a free alkali metal, alkali metal
hydride, or a compound containing an alkali metal atom bonded to
a carbon atom.
(1)
Note. Included herein are compounds which contain two diverse
alkali metals in a single compound or alloy.
This subclass is indented under subclass 173. Subject matter wherein the specified material contains (1)
an elemental alkali metal admixed with a compound of the same alkali
metal; or (2) wherein an alkali metal hydride or compound containing
an alkali metal-to-carbon bond is admixed with another compound
of the same alkali metal (e.g., Na and sodium t-dodecyl mercaptide,
or butyl lithium, and LiH, etc.).
This subclass is indented under subclass 173. Subject matter wherein the specified additive contains oxygen.
(1)
Note. This subclass includes only specified compositions wherein
there is a desired and intentional contact between air and the Group
IA material and does include the use of air as a blanket or carrier
gas.
This subclass is indented under subclass 183. Subject matter wherein the carbon to metal bonded compound
is in admixture with a compound that contains a -O-O- group or in
admixture with free oxygen.
(1)
Note. This subclass includes only specified compositions wherein
there is a desired and intentional contact between air and the compound
having a carbon atom bonded to a metal atom and does not include
the use of air as a blanket or carrier gas.
This subclass is indented under subclass 183. Subject matter wherein the specified material contains a
compound wherein an atom of aluminum is bonded to a carbon atom.
This subclass is indented under subclass 185. Subject matter wherein the specified material contains at
least one atom of aluminum not bonded to a carbon atom.
for a specified material containing a Group IA metal
atom in elemental form, Group IA hydride, or compound containing
a Group IA metal bonded to a carbon atom.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains at
least a heavy metal atom as part of an organic compound.
for a specified additive containing a heavy metal
atom and at least one atom of an elemental Group IA metal, hydride
thereof, or carbon atom bonded to a Group IA metal atom.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains at
least one atom of phosphorus in an organic compound.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains silicon,
tellurium, selenium, or a Group VIIIA atom.
(1)
Note. This subclass includes use of clays and diatomaceous
earths as part of a specified material.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains a
compound of boron which boron compound is other than (1) boron trihalide,
per se; or (2) boron trihalide complexed with a nonmetal organic
moiety.
for a polymerization process in the presence of
boron trihalide, per se, or boron trihalide complexed with a nonmetal
organic moiety, e.g., boron trihalide-etherate complex, etc.
This subclass is indented under subclass 195. Subject matter wherein the boron compound contains at least
one boron atom bonded to a carbon or hydrogen atom.
This subclass is indented under subclass 196. Processes wherein the boron compound is in admixture with
free oxygen or with a compound that contains an -O-O- group.
(1)
Note. This subclass includes only specified compositions wherein
there is a desired and intentional contact between air and the boron
compound and does not include the use of air as a blanket or carrier
gas.
This subclass is indented under subclass 196. Subject matter wherein the boron compound contains at least
one atom of phosphorus, sulfur, or nitrogen in the same molecule;
or wherein the boron compound is in admixture with an elemental
form of phosphorus or sulfur; or wherein the boron compound is in admixture
with a compound form of phosphorus, sulfur, or nitrogen.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains a
protein or a protein-reaction product, e.g., gelatin, silk, etc.
(1)
Note. A protein reaction product requires at the minimum the
presence of a peptide group, i.e., an amide group between the amino
radical of one amino acid and the carboxyl radical of another amino
acid.
This subclass is indented under subclass 89. Processes wherein the specified material contains a carbohydrate
or reaction product thereof, e.g., cellulose, starch, etc.
(1)
Note. A carbohydrate "reaction product" requires
that the basic carbohydrate skeleton not be destroyed.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains at
least one distinct normally solid preformed polymer which has been
derived from at least one ethylenically unsaturated material.
(1)
Note. Polymers proper for this subclass must be either distinct
from the polymers formed either in the nature or amounts of individual
monomers therein, or in the manner in which they are formed.
Synthetic Resins or Natural Rubbers,
subclasses 50+ , for a process of polymerizing an ethylenically
unsaturated monomer in the presence of a solid preformed polymer
wherein the intent is to form a resinous composition containing
the previously formed polymer or wherein the preformed polymer reacts
with the ethylenic monomer to form a modified previously formed
solid polymer.
This subclass is indented under subclass 201. Subject matter wherein the preformed normally solid polymer
contains at least one free hydroxyl group or nonheavy metal salt
thereof.
(1)
Note. The preformed polymer intended primarily for this subclass,
but not limited thereto, is of the type that has been formed by
the hydrolysis or after-treatment of a preformed polyvinyl acetate polymer
and is known generally as polyvinyl alcohol.
This subclass is indented under subclass 201. Subject matter wherein the preformed normally solid polymer
is derived from at least one ethylenically unsaturated polycarboxylic
acid.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains a
compound which has one or more carbon atoms covalently bonded in
a closed ring with at least one atom of oxygen, sulfur, or nitrogen
and which has no other atoms in the ring.
This subclass is indented under subclass 204. Subject matter wherein the ring containing compound has
at least one atom of sulfur and nitrogen in a single closed ring.
This subclass is indented under subclass 89. Subject matter wherein (1) the polymerization reaction is
conducted in the presence of a halogenated hydrocarbon wherein at
least one halogen atom is not chlorine or (2) wherein the polymerization
is conducted in the presence of a halogenated hydrocarbon and water.
(1)
Note. A halogenated hydrocarbon is a compound (1) solely composed
of halogen and carbon atoms; or (2) of halogen, carbon, and hydrogen
atoms.
This subclass is indented under subclass 89. Subject matter wherein the specified additive contains water
and a compound solely composed of carbon and hydrogen.
This subclass is indented under subclass 89. Subject matter wherein the polymerization reaction is conducted
in the presence of at least one compound which contains at least
one oxygen atom bonded to two discrete organic radicals and having
the general formula, i.e., -C-O-C-.
(1)
Note. This subclass includes ethers derived from phenols.
(2)
Note. This subclass does not include nonmetallic ether complexes
of a boron trihalide or of an aluminum trihalide.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains a
hydroxyl group bonded to carbon or wherein the hydrogen atom of
a hydroxyl group has been replaced by a metal.
for a process of polymerizing in the presence of
an alcohol or alcoholate complex of boron trihalide or aluminum
trihalide (e.g., BF3-alcoholate, etc.).
This subclass is indented under subclass 210. Subject matter wherein the hydroxyl-containing compound
contains at least one atom of nitrogen or sulfur therein.
(1)
Note. This subclass includes a sulfur or nitrogen salt of
an alcohol group.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains at
least one compound which has a carboxylic acid group, salt, ester,
or anhydride thereof.
(1)
Note. This subclass includes oxalic acid, formic acid and
derivatives thereof.
for a polymerization process in the presence of
a compound wherein the hydrogen atom of a carboxylic acid group
has been replaced by a heavy metal atom.
Synthetic Resins or Natural Rubbers,
subclasses 1+ , for a resin composition containing a fat, fatty
oil acid or salt thereof as an additive, or for a fat, fatty oil,
fatty oil acid or salt thereof which is capable of reacting with
or is part of a resinous material.
This subclass is indented under subclass 213. Subject matter wherein the specified material contains (1)
a halogen or sulfur substituted carboxylic acid; or (2) an ester,
salt, or anhydride of a sulfuror halogen substituted carboxylic acid.
This subclass is indented under subclass 213. Subject matter wherein the specified material contains
(1) a nitrogen-containing carboxylic acid; or (2) an ester, salt
or anhydride of a nitrogen-containing carboxylic acid.
This subclass is indented under subclass 213. Subject matter wherein the specified material contains a
carboxylic acid which is devoid of any aromatic or cycloaliphatic
group, or contains an ester, salt, or anhydride of a carboxylic acid
whch is devoid of any aromatic or cycloaliphatic group.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains an
organic compound having at least one nitrogen atom.
This subclass is indented under subclass 217. Subject matter wherein the specified material contains at
least two atoms of nitrogen which are bonded to each other by a
single or double bond (e.g., 1, 1-dimethylhydrazine, p-dimethylaminoazobenzene,
etc.).
This subclass is indented under subclass 218.1. Subject matter wherein the organic nitrogen containing compound
having the -N-N or N=N group has at least one atom of sulfur
or oxygen chemically bound therein.
This subclass is indented under subclass 218.1. Subject matter wherein the compound containing either the
N=N or N-N group also contains either a carbocyclic group,
e.g., benzene, cyclopropyl or cyclohexyl group, etc. or an element
other than C, H, or N, e.g., the hydrochloride salt of 2, 2"-diguanyl-2,
2" -azopropane, etc.
This subclass is indented under subclass 218.1. Subject matter wherein the N=N or N-N group-containing
compound is part of a catalyst system, i.e., admixed with another
catalyst, co-catalyst or accelerator (e.g., 1, 1-dimethylhydrazine
and hydrogen peroxide, azobisisobutyronitrile and benzoyl peroxide, etc.).
(1)
Note. Included herein also are those systems wherein a monomer
is first complexed with a catalyst and the complexed monomer is
copolymerized in the presence of a free radical initiator with at least
one other monomer, e.g., zinc chloride-acrylonitrile complex copolymerized
in the presence of benzoylperoxide with 2-methyl-1-pentene, etc.
This subclass is indented under subclass 218.1. Subject matter wherein the polymerization process uses a
specified material in addition to one containing an N=N
or N-N group, e.g., an admixture of azobisisobutyronitrile dissolved in
benzene or toluene, etc.
(1)
Note. See the Class Definition, Lines With Other Classes and
Within This Class, section II. B, for a discussion of the lines
between this subclass and other subclasses in this Ccass. A patent
which recites a polymerization process which utilizes (a) a material
proper for subclasses 218.1+ in combination with either
a specified or nonspecified amount of "hydrocarbon or halohydrocarbon" will
not be classified in subclass 219.3 or its indents, but will be
found in 219.6 or 218.1+; proper, however, for subclass
219.3 or its indents is the situation wherein when either the hydrocarbon
or halohydrocarbon is defined in some degree (e.g., dihalogenated,
dibrominated, contains specified chain length, boiling or freezing
point range, etc.); (b) a "free radical" catalyst
with either a specified or nonspecified amount of "hydrocarbon
or halohydrocarbon" will be classified with the polymer
providing this was the only remaining basis for classification.
This subclass is indented under subclass 219.3. Subject matter wherein the polymerization process uses a
halogenated hydrocarbon in addition to the compound containing the
N=N or N-N group, e.g., azobisisobutyronitrile in admixture
with ethylene dichloride, etc.
for the limitations set out in using a halogenated
hydrocarbon.
(1)
Note. See the Class Definition, Lines with Other Classes and Within
This Class, section II. B, for a discussion of limitations regarding "halogen
hydrocarbon" as a basis of classification.
This subclass is indented under subclass 219.3. Subject matter wherein the polymerization process uses water
in addition to the compound containing the N=Nor N-N group,
e.g., an aqueous emulsion polymerization process using azobisisobutyronitrile
catalyst, etc.
This subclass is indented under subclass 218.1. Subject matter wherein the compound which contains the N=N
or N-N group is azobisisobutyronitrile (AIBN)or the same compound described
in chemically equivalent terms, i.e., 2, 2-azobisisobutyronitrile,
2, 2-azobis(2-methylpropionitrile), alpha, alpha - azodisobutyronitrile,
dinitrile azoisobutyrate, azodisobutyric acid nitrile, etc.
Synthetic Resins or Natural Rubbers, Glossary,
subclasses 50+ for a process of utilizing AIBN both to polymerize
a monomer as well as to foam the resulting polymer.
This subclass is indented under subclass 217. Subject matter wherein the nitrogen containing organic compound
has at least one atom of sulfur or oxygen chemically bound therein.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains at
least one compound having a heavy metal atom therein.
for a polymerization processs in the presence of
an organoaluminum compound which may also contain a heavy metal
therein, or in presence of a composition of an organoaluminum compound
and an elemental or compound form of a heavy metal.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains an
organic compound having at least one sulfur atom therein.
This subclass is indented under subclass 222. Subject matter wherein the organic sulfur compound contains
at least one -S-S- or O-O group or chemically bound therewith.
This subclass is indented under subclass 222. Subject matter wherein the organic sulfur compound contains
at least one hexvalent sulfur atom (e.g., sulfonic acids, sulfonates,
organo sulfates, etc.).
This subclass is indented under subclass 89. Subject matter wherein the specified material contains a
compound of aluminum which aluminum compound is other than (1) aluminum trihalide,
per se; or (2) aluminum trihalide complexed with a nonmetal organic
moiety.
This subclass is indented under subclass 89. Subject matter the specified material contains a compound
having at least one -O-O- group.
(1)
Note. Processes wherein a known peroxide is formed in situ
by the reaction of a peroxide and another compound are classified
on the basis of the peroxide that is utilized to form the in situ
peroxide and cross-reference to the in situ formed peroxide.
This subclass is indented under subclass 227. Subject matter wherein the specified material contains two
or more distinct compounds having an -O-O- group therein.
This subclass is indented under subclass 227. Subject matter wherein the -O-O- group-containing compound
is inorganic in nature (e.g., sodium persulfate, percarbonates,
etc.).
This subclass is indented under subclass 229. Subject matter wherein the -O-O- group is part of a sulfur-free
inorganic nitrogen- or halogen-containing compound, or wherein an
inorganic compound containing the -O-O- group is in admixture with
a sulfur-free nitrogen, halogen, or phosphorus compound.
This subclass is indented under subclass 227. Subject matter wherein the -O-O- group-containing compound
contains a carbon ring which is other than an aryl, or contains
an ethylenically unsaturated group.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains elemental
phosphorus or an inorganic compound containing phosphorus therein.
for an elemental alkali metal atom admixed with
a phosphorus-containing material, and for a Group IA hydride or
Group IA organometallic compound containing a phosphorus.
This subclass is indented under subclass 89. Subject matter wherein the specified material is elemental
sulfur or an inorganic compound containing sulfur therein.
This subclass is indented under subclass 89. Subject matter wherein the specified material contains (1)
elemental halogen; or (2) a boron halide or nonmetallic organic
complex thereof; or (3) a hydrogen halide; or (4) an aluminum trihalide
or a nonmetallic organic complex thereof; or (5) a compound containing
only halogen atoms; or (6) a metallic halide other than transition
metal, aluminum or a nontransition heavy metal.
This subclass is indented under subclass 237. Subject matter wherein at least one monomer is other than
a hydrocarbon.
(1)
Note. This subclass includes the inter-polymerization of
a hydrocarbon monomer and a nonhydrocarbon monomer as well as homopolymers
of nonhydrocarbon monomers.
This subclass is indented under subclass 72. Subject matter wherein at least one ethylenic monomer has
chemically bonded thereto a protein or biologically active polypeptide,
or wherein said protein or biologically active polypeptide has been
modified so as to introduce ethylenic unsaturation.
Synthetic Resins or Natural Rubbers,
subclasses 100+ and 200+ for solid polymers containing
chemically reacted protein material and wherein there is also at
least one nonethylenically unsaturated reactant.
This subclass is indented under subclass 72. Subject matter wherein at least one ethylenic monomer has
chemically bonded thereto a carbohydrate or derivative, or tannin
or derivative; or wherein said carbohydrate or tannin or derivative
has been modified so as to introduce ethylenic unsaturation therein.
This subclass is indented under subclass 72. Subject matter wherein at least one ethylenic monomer has
chemically bonded thereto a natural resin or derivative thereof;
or wherein an ethylenically unsaturated natural resin is copolymerized
with an additional ethylenic monomer.
(1)
Note. Resin copolymerized with another ethylenic monomer which
is not a natural resin or natural resin derivative is classified
herein. Also, rosin copolymerized with another ethylenic monomer which
is a natural resin having synthetically introduced ethylenic unsaturation is
classified herein.
Synthetic Resins or Natural Rubbers, Lines With
Other Classes and Within This Class, section II. B, for a further elaboration of the
subject matter relating to natural resin or derivatives thereof.
Chemistry: Natural Resins or Derivatives; Peptides
or Proteins; Lignins or Reaction Products Thereof,
subclasses 200+ for nonsolid polymeric or nonpolymeric) reaction
products of natural resins or derivatives with unsaturated terpenes
and/or unsaturated polycarboxylic acids, halides, or anhydrides.
This subclass is indented under subclass 245. Subject matter wherein the alcohol portion of the carboxylic
ester moiety contains at least one ether group, e.g., - -O - R
- O - R , etc.
(1)
Note. This subclass includes ethers derived from aromatic
alcohols.
This subclass is indented under subclass 242. Subject matter wherein the fluorine monomer contains at
least one halogen atom which is other than fluorine (e.g., trichlorofluoroethylene,
etc.).
This subclass is indented under subclass 242. Subject matter wherein the fluorine monomer contains (1)
atoms only of carbon, fluorine and hydrogen; or (2) atoms only of
carbon and fluorine.
This subclass is indented under subclass 250. Subject matter wherein the fluorine monomer contains at
least two moieties wherein a carbon atom is bonded to another carbon
atom by a double or triple bond.
This subclass is indented under subclass 72. Subject matter wherein an unsaturated monomer contains one
or more carbon atoms covalently bonded in a ring system with at
least one hetero atom of oxygen, nitrogen, sulfur, selenium, or
tellurium and there are no other atoms in the ring, with the proviso
that at least one of the atoms in the ring is sulfur.
This subclass is indented under subclass 256. Subject matter wherein at least one hetero ring contains
as hetero atoms therein at least one sulfur atom and at least one
atom of oxygen, nitrogen, selenium, or tellurium.
This subclass is indented under subclass 72. Subject matter wherein an unsaturated monomer contains one
or more carbon atoms covalently bonded in a ring system with at
least one hetero atom or oxygen, nitrogen, selenium or tellurium
and there are no other atoms in the ring, with the proviso that
at least one of the hetero atoms is nitrogen.
This subclass is indented under subclass 258. Subject matter wherein the monomer contains a fused or bridged
ring system, and wherein at least one atom thereof is nitrogen.
for a monomer containing nitrogen atom which is
part of a bridged or fused ring compound and wherein the nitrogen
atom is extracyclic to the ring system and for a more thorough definition
of what is meant by a fused or bridged ring system.
This subclass is indented under subclass 258. Subject matter wherein the ring system contains five or
six atoms and at least one of the atoms besides carbon and nitrogen,
is oxygen.
This subclass is indented under subclass 258. Subject matter wherein at least one nitrogen heterocyclic
ring contains an imide group.
(1)
Note. An imide for purposes of this subclass denotes a heterocyclic
ring, i.e., illustrated below, wherein n is 1 or more and wherein
x is 1 or more.
This subclass is indented under subclass 258. Subject matter wherein the nitrogen atom of a ring system
is bonded either directly or indirectly to an extracyclic unsaturated
group.
(1)
Note. This subclass includes only directly bonded unsaturated
groups as in C= C-or only indirectly unsaturated bonded
groups as in CH2=C - C - and is not
meant to include unsaturated groups which are bonded to nonnitrogen
ring atoms, e.g.,
(2)
Note. Extracyclic as used herein is meant to exclude those
compounds wherein the heterocyclic nitrogen compound contains unsaturation
solely in the ring. The extracyclic unsaturation as required for this
subclass can exist in a ring compound which is bonded to the nitrogen atom
of the ring either directly or indirectly.
for a nitrogen-containing heterocyclic monomer wherein
the ethylenic unsaturation is linked indirectly to the nitrogen
atom in a ring through other atoms in the heterocyclic ring system.
This subclass is indented under subclass 263. Subject matter wherein the nitrogen ring system contains
only carbon atoms and a single nitrogen atom in the ring and wherein
said N atom is bonded to a carbon atom in the ring which is doubly
bonded to an extracyclic oxygen atom ( N) and there are no oxygen,
sulfur, selenium, or tellurium atoms doubly bonded directly to any
other carbon atoms of the ring system, e.g.,
This subclass is indented under subclass 258. Subject matter wherein the nitrogen-containing ring contains
six atoms and wherein only one of the atoms is nitrogen.
This subclass is indented under subclass 72. Subject matter wherein an unsaturated monomer contains at
least one or more carbon atoms covalently bonded in a ring system
with at least one hetero atom of oxygen, selenium or tellurium and
there are no other atoms in the ring, with the proviso that at least
one of the hetero atoms is oxygen.
This subclass is indented under subclass 266. Subject matter wherein the interpolymer is formed from at
least two monomers, one of said monomers being a coumarone type
material and the other monomer is of the indene type.
(1)
Note. The polymers herein need not contain coumarone, per
se, and indene, per se. It is sufficient for this subclass if derivatives
of these compounds are polymerized. Derivatives are considered as being
those products wherein the hydrogen atoms of these compounds have been
replaced by other functional groups.
(2)
Note. Patents herein generally apply to those resins that
are obtained by polymerizing mixtures of material containing coumarone
and indene which have been obtained in coal-tar refining.
This subclass is indented under subclass 266. Subject matter wherein a bridged or fused ring monomer contains
an oxygen atom adjoining two carbons in the same bridged or fused
ring system, with the proviso that the adjoined carbon atoms are
not double bonded to oxygen, selenium, or tellurium, e.g.,
, or
, etc.
(1)
Note. A bridged or fused ring system for purposes of this
subclass requires that a ring system be attached at two different carbon
atoms of its nuclear skeleton to an atom or chain of atoms which
when taken together with the nuclear carbon atoms forms an additional
ring structure.
This subclass is indented under subclass 266. Subject matter wherein the unsaturated monomer has at least
one heterocyclic ring which contains as ring atoms thereof a -OO-
group (i.e., cyclic carbonate).
This subclass is indented under subclass 266. Subject matter wherein an unsaturated monomer contains at
least one hetero oxygen in a hetero ring containing five atoms.
This subclass is indented under subclass 270. Subject matter wherein the 5-membered ring contains two
carbonyl groups bonded to the same oxygen atom so as to form a hetero
ring with the bonded oxygen atom, e.g.,
This subclass is indented under subclass 271. Subject matter wherein the 5-membered oxygen-containing
ring is interpolymerized with at least one unsaturated monomer which
is solely composed of hydrogen and carbon atoms.
(1)
Note. This subclass includes interpolymers and other interpolymers
wherein other unsaturated monomers, in addition to a hydrocarbon
monomer, are polymerized with the unsaturated heterocyclic oxygen-containing
compound.
This subclass is indented under subclass 266. Subject matter wherein the unsaturated monomer contains
at least one hetero oxygen atom in a ring containing three atoms.
This subclass is indented under subclass 72. Subject matter wherein a single carboxyclic ring is attached
at two different carbon atoms of its nuclear skeleton to a methylene
carbon atom, or substituted methylene group, or chain of methylene
carbon atoms, or substituted methylene carbon atoms, which carbon
atom or chain of carbon atoms when taken together with the attached
nuclear carbon atoms of the carbocyclic ring forms an additional
ring structure (e.g., polycyclic terpenes, etc.).
(1)
Note. A bridged monomer for purposes of this subclass requires
that two separate and discrete methylene groups, or substituted
methylene groups, or chain of methylene carbon atoms, or substituted
methylene carbon atoms be present in a molecule, one of said methylene groups
or chain thereof being those nuclear carbon atoms between the two different
attached carbon atoms of the original nuclear carbon atoms of the
carbocyclic ring, and the second methylene group or chain thereof
being those carbon atoms that are joined to the original nuclear
carbon atoms of the carbocyclic ring so as to form the additional
ring structure.
(2)
Note. A fused ring monomer for purposes of this subclass requires
a carbocyclic nucleus which is attached at two of its adjacent nuclear
carbon atoms to a methylene group, or substituted methylene group,
or to a chain of methylene carbon atoms, or a chain of substituted methylene
carbon atoms, so that the adjoined carbon atoms form a carbocyclic
ring which is in addition to the original carbocyclic ring.
This subclass is indented under subclass 281. Subject matter wherein the bridged ring system contains
at least one ethylenic group which is directly or indirectly bonded
to a single carbon atom of the bridged ring nucleus.
(1)
Note. For purposes of this subclass "directly or
indirectly bonded " is meant to include all ethylenic unsaturation which
is external to the bridged nucleus and which is bonded to the bridged nucleus
by a single nuclear carbon atom , e.g.,
, etc.
(2)
Note. For purposes of this subclass, a methylene group which
is bonded to a nuclear carbon atom will suffice as being an external
ethylenic group, and is proper for this subclass, e.g.,
This subclass is indented under subclass 281. Subject matter wherein the bridged ring monomer is a dicyclopentadiene
containing moiety.
(1)
Note. This subclass includes dicyclopentadiene, per se, as
well as derivatives of dicyclopentadiene having at least the basic
structure of dicyclopentadiene, shown below, available ethylenic
bonds but wherein the hydrogen atoms of dicyclopentadiene may have
been substituted by other atoms.
This subclass is indented under subclass 280. Subject matter wherein the fused ring system contains at
least one ethylenic group to which is directly bonded to a single
carbon atom of the fused ring nucleus.
(1)
Note. For purposes of this subclass, "directly or
indirectly bonded" includes all ethylenic unsaturation
which is external to the fused ring nucleus and which is bonded
to the fused ring by a single nuclear carbon atom.
(2)
Note. For purposes of this subclass a methylene group which
is bonded to a nuclear carbon atom will suffice as being an external
ethylenic group.
This subclass is indented under subclass 286. Subject matter wherein the sulfur monomer contains at least
one sulfur atom bonded to at least three oxygen atoms.
This subclass is indented under subclass 286. Subject matter wherein the sulfur monomer contains at least
one sulfur atom as part of a sulfide group.
(1)
Note. A sulfide for purposes of this subclass denotes a class
of compounds having a (S)n group, wherein n
is 1 or more and wherein the carbon atoms bonded to the (S)n atoms
are not double-bonded to oxygen, sulfur, selenium, or tellurium,
or triple-bonded to nitrogen.
This subclass is indented under subclass 72. Subject matter wherein the unsaturated monomer is a mixture
of hydrocarbons derived from a petroleum hydrocarbon fraction; or
the unsaturated monomer is an unsaturated coal, bituminous material,
extract or derivative thereof; or the unsaturated monomer is an
unsaturated fatty still residue; or mixtures of said unsaturated
monomers.
(1)
Note. This subclass includes polymers wherein added material
is interpolymerized with a petroleum hydrocarbon fraction.
This subclass is indented under subclass 72. Subject matter wherein the unsaturated monomer contains
at least one halogen atom and at least three carbon atoms.
This subclass is indented under subclass 292.1. Subject matter wherein said halogen-containing monomer also
contains an oxygen atom other than as part of a carboxylic acid
ester group.
(1)
Note. This subclass excludes halogenated carbonate monomers,
per se; however, a halogen-containing monomer which contains a carboxylic
acid ester moiety and a carbonate moiety would be included herein;
as would a halogen-containing monomer which contains a carboxylic
acid ester moiety and a free carboxylic acid moiety.
This subclass is indented under subclass 292.1. Subject matter wherein said halogen-containing monomer contains
at least two carboxylic acid ester group.
This subclass is indented under subclass 292.1. Subject matter wherein said halogen-containing monomer contains
a ring consisting solely of carbon atoms.
This subclass is indented under subclass 292.1. Subject matter wherein said halogen-containing monomer is
interpolymerized with an ethylenic monomer containing an atom other
than carbon, hydrogen, or halogen.
This subclass is indented under subclass 292.1. Subject matter wherein said halogen-containing monomer is
interpolymerized with another ethylenic monomer.
This subclass is indented under subclass 291. Subject matter wherein said halogen-containing monomer contains
a free carboxylic acid, salt, or carboxylic acid amide group.
Synthetic Resins or Natural Rubbers, Glossary, under "carboxylic acid or derivative",
see definitions of "carboxylic acid", "salt
of a carboxylic acid", and "carboxylic acid amide".
This subclass is indented under subclass 291. Subject matter wherein the unsaturated monomer contains
at least two separate ethylenic groups (e.g., halogenated butadiene,
etc.).
for a polymer derived from a plural halogenated
monomer containing at least one fluorine atom and at least one halogen
atom which is other than fluorine.
This subclass is indented under subclass 72. Subject matter wherein the unsaturated monomer contains
at least one atom of bromine or iodine or is 1, 2-dichloroethylene,
trichloroethylene, or tetrachloroethylene.
This subclass is indented under subclass 72. Subject matter wherein the unsaturated monomer contains
a nitrile group (i.e., R-CN)and wherein said nitrile compound is
other than acrylonitrile, per se, or methacrylonitrile, per se.
This subclass is indented under subclass 297. Subject matter wherein (1) the monomer contains at least
two nitrogen atoms, one of said nitrogen atoms being part of a nitrile
group, and the other nitrogen atom being in a nonnitrile form; or
(2) the nitrile-containing monomer contains an oxygen atom chemically combined
therein.
This subclass is indented under subclass 72. Subject matter wherein the unsaturated monomer contains
a NN group or N group, e.g., unsaturated ureas, etc.
This subclass is indented under subclass 72. Subject matter wherein the unsaturated monomer contains
at least one carboxylic acid amide group, i.e.,-CN or HN.
Synthetic Resins or Natural Rubbers,
subclasses 29.1+ for a resin of the type found in this subclass
but described as a composition (e.g., solution, dispersion, gel,
emulsion, latex, etc.).
This subclass is indented under subclass 303.1. Subject matter wherein the amide monomer contains at least
one carbon atom bonded to at least one oxygen atom and wherein said
carbon to oxygen bond is not part of an amide group.
(1)
Note. Patents included within this subclass include those
wherein two or more carbonyl groups are bonded to a nitrogen atom
so as to form an imide group, e.g.,
This subclass is indented under subclass 303.1. Subject matter wherein the amide monomer contains at least
one additional nonamide group nitrogen atom.
This subclass is indented under subclass 303.1. Subject matter wherein the carboxylic acid amide contains
a N-substituted unsaturated hydrocarbon group (e.g., N-vinyl acetamide, N-allyl
propionamide, etc.).
This subclass is indented under subclass 303.1. Subject matter wherein the copolymer contains at least two
carboxylic acid amide monomers (e.g., polymer from acrylamide and
N, N-dimethylacryiamide, etc.).
This subclass is indented under subclass 303.1. Subject matter wherein the copolymer is derived from a nitrogen-containing
monomer other than (meth)acrylonitrile or a carboxylic acid amide
(e.g., polymer from acrylamide and diethylaminoethy methacrylate,
etc.).
This subclass is indented under subclass 303.1. Subject matter wherein the copolymer is derived from a comonomer
containing oxygen (e.g., polymer from acrylamide and vinyl acetate,
etc.).
This subclass is indented under subclass 307.4. Subject matter wherein the copolymer is derived from a comonomer
containing an ether or hydroxyl group (e.g., polymer from N, N-dimethylacrylamide
and methyl vinyl ether; acrylamide and allyl alcohol, etc.).
This subclass is indented under subclass 307.4. Subject matter wherein the copolymer is derived from a comonomer
containing a caroxylic acid group (e.g., polymer from acrylamide and
acrylic acid, etc.).
This subclass is indented under subclass 307.4. Subject matter wherein the copolymer is derived from a monomer
containing an ester group derived from a comonomer containing an
ester group derived from an unsaturated carboxylic acid (e.g., a
polymer from N-N-ditertiary butylacrylamide and methyl acrylate, etc.).
This subclass is indented under subclass 303.1. Subject matter wherein the copolymer is derived from a hydrocarbon
comonomer (e.g., polymer from acrylamide and ethylene, etc.).
This subclass is indented under subclass 72. Subject matter wherein the unsaturated monomer contains
a ring solely composed of carbon atoms, said ring of carbon atoms
being nonaromatic.
(1)
Note. The ethylenic unsaturation may be part of the ring system
or may be external to the ring system.
This subclass is indented under subclass 308. Subject matter wherein the ring-containing monomer contains
at least one atom which is other than carbon and hydrogen.
This subclass is indented under subclass 72. Subject matter wherein the unsaturated monomer contains
at least one nitrogen atom and is other than acrylonitrile or methacrylonitrile, per
se.
This subclass is indented under subclass 310. Subject matter wherein the nitrogen monomer contains at
least one bond between a nitrogen and an oxygen atom.
This subclass is indented under subclass 310. Subject matter wherein the nitrogen monomer contains at
least one bond between a carbon and an oxygen atom.
Synthetic Resins or Natural Rubbers,
subclass 86 , the Notes thereof, for a definition of the terms "phenol",
phenol ether", and "an inorganic salt of a phenol
(phenolate)".
Synthetic Resins or Natural Rubbers,
subclass 329.1 for polyacrylic acid produced by oxidation of acrylonitrille
and in appropriate subclasses 337-388 for the process oxidation
of acryionitrile; methacrylic acid produced by hydrolysis of polyalphahydroxy
methacrylic acid ester.
This subclass is indented under subclass 317.1. Subject matter wherein the polymer is a block copolymer
derived from vinyl chloride or vinylidene chloride.
(1)
Note. To be proper for this subclass, the initial block copolymer
must be derived from vinyl or vinylidene chloride.
This subclass is indented under subclass 317.1. Subject matter wherein the carboxylic acid monomer contains
an aryl group or two or more ethylenic groups (e.g., cinnamic acid
or sorbic acid, etc.).
This subclass is indented under subclass 317.1. Subject matter wherein the carboxylic acid monomer contains
two or more free carboxyl groups (e.g., maleic acid, fumaric acid,
etc.).
This subclass is indented under subclass 318.2. Subject matter wherein the monomer having two or more carboxyl
groups is interpolyerized with an unsaturated hydrocarbon, vinyl
chloride or vinylidene chloride or mixtures thereof.
This subclass is indented under subclass 318.2. Subject matter wherein the monomer having two or more carboxyl
groups is interpolymerized with an unsaturated monomer which contains
at least one carboxylic acid ester group.
This subclass is indented under subclass 318.4. Subject matter wherein the carboxylic acid monomer is interpolymerized
with two or more carboxylic acid ester monomers.
This subclass is indented under subclass 318.4. Subject matter wherein the carboxylic acid monomer is interpolymerized
with an unsaturated carboxylic acid ester monomer and an unsaturated
hydrocarbon monomer.
This subclass is indented under subclass 317.1. Subject matter wherein the carboxylic acid monomer is interpolymerized
with an additional carboxylic acid monomer, etc.
This subclass is indented under subclass 317.1. Subject matter wherein the carboxylic acid monomer is interpolymerized
with an unsaturated hydrocarbon monomer.
This subclass is indented under subclass 72. Subject matter wherein an unsaturated monomer contains at
least one carboxylic acid ester group.
(1)
Note. This subclass does not require that an ester be prepared
from the reaction of an acid and an alcohol. It is sufficient if the
ester compound be identical in structure to a compound prepared
by the replacement of a hydroxyl group by a carboxylic acid radical.
Each carboxylic acid ester, no matter how prepared, is to be regarded
as being the reaction product of a carboxylic acid and a replaceable hydroxyl
group.
Synthetic Resins or Natural Rubbers, Glossary, for a definition of the term "carboxylic
acid or derivative" which includes a definition of "carboxylic acid
ester".
This subclass is indented under subclass 319. Subject matter wherein in addition to the carboxylic acid
ester group there is also present in the molecule at least one ether
or alcohol group.
This subclass is indented under subclass 319. Subject matter wherein the ester is derived from at least
one carboxylic acid which contains plural carboxylic acid groups.
This subclass is indented under subclass 321. Subject matter wherein at least one of the alcohol moieties
of the ester compound is ethylenically unsaturated (e.g., diallyl
phthalate, etc.).
This subclass is indented under subclass 321. Subject matter wherein a diester derived from an ethylenically
unsaturated monocarboxylic acid and a polyol is polymerized.
This subclass is indented under subclass 323.1. Subject matter wherein the diester is interpolymerized with
at least one monomer which is ethylenically unsaturated.
This subclass is indented under subclass 321. Subject matter wherein a polycarboxylic acid ester is interpolymerized
with at least one monomer which is a diverse ethylenically unsaturated
hydrocarbon.
This subclass is indented under subclass 321. Subject matter wherein a polycarboxylic acid ester is interpolymerized
with at least one monomer which is a diverse ethylenically unsaturated
carboxylic acid ester.
This subclass is indented under subclass 319. Subject matter wherein the ester contains ethylenic unsaturation
in the carboxylic acid group as well as in the alcohol group.
This subclass is indented under subclass 328. Subject matter wherein the unsaturated carboxylic acid ester
monomer is interpolymerized with at least one monomer which is ethylenically
unsaturated.
This subclass is indented under subclass 328.5. Subject matter wherein the unsaturated carboxylic acid ester
monomer is interpolymerized with at least one monomer which is an
ethylenically unsaturated hydrocarbon.
This subclass is indented under subclass 328.5. Subject matter wherein acrylonitrile or methacrylonitrile
is interpolymerized with an ester derived from an ethylenically
unsaturated carboxylic acid.
This subclass is indented under subclass 328.5. Subject matter wherein an ethylenically unsaturated halogen-containing
monomer is interpolymerized with an ester derived from an ethylenically
unsaturated carboxylic acid.
This subclass is indented under subclass 328.5. Subject matter wherein an ethylenically unsaturated ester
derived from a saturated carboxylic acid is interpolymerized with
an ester derived from an ethylenically unsaturated carboxylic acid.
This subclass is indented under subclass 328.5. Subject matter wherein an ethylenically unsaturated ether
is interpolymerized with an ester derived from an ethylenically
unsaturated carboxylic acid.
This subclass is indented under subclass 319. Subject matter drawn to interpolymers derived from at least
one ester having unsaturation in the alcohol portion and which is
devoid of unsaturation in the carboxylic acid portion.
This subclass is indented under subclass 330. Subject matter wherein the unsaturated ester is interpolymerized
with at least one monomer which is an ethylenically unsaturated
hydrocarbon.
This subclass is indented under subclass 332. Subject matter wherein the unsaturated monomer contains
(1) at least one aromatic group; or (2) at least two ethylenically
unsaturated groups.
This subclass is indented under subclass 72. Subject matter wherein the unsaturated monomer is a hydrocarbon
compound which contains at least two ethylenically unsaturated groups.
This subclass is indented under subclass 335. Subject matter wherein two or more ethylenically unsaturated
groups are (1) separated from each other either by an aromatic ring
(e.g., divinyl benzene), or (2) separated by at least one carbon
atom of an acyclic carbon chain which carbon atom is not part of
a methine group (e.g., -C=C-C-C=C-, etc.), or
(3) wherein two ethylenically unsaturated groups share a single
carbon atom (e.g.,C=C=C , etc.).
This subclass is indented under subclass 335. Subject matter which involves the interpolymerization of
at least two hydrocarbon monomers each of which contains two or
more conjugated ethylenic bonds.
This subclass is indented under subclass 335. Subject matter which involves the interpolymerization of
a hydrocarbon monomer containing two or more conjugated ethylenic
bonds with at least one ethylenic monomer which is not a hydrocarbon.
This subclass is indented under subclass 335. Subject matter which involves the interpolymerization of
a hydrocarbon monomer containing two or more conjugated ethylenic
bonds with at least one nonaromatic ethylenic monomer.
This subclass is indented under subclass 335. Subject matter which involves the interpolymerization of
a hydrocarbon monomer containing two or more conjugated ethylenic
bonds with at least one aromatic ethylenic monomer.
This subclass is indented under subclass 335. Subject matter wherein a hydrocarbon monomer containing
two or more ethylenic groups is polymerized under conditions wherein
an aqueous medium (water)is employed in the process or products
which are the result of such a polymerization process.
(1)
Note. This subclass is intended to take those processes or
products thereof, wherein a significant amount of water is employed
(emulsion, suspension, etc.) rather than where mere trace amounts
of water are utilized (e.g., ppm H2O, etc.).
This subclass is indented under subclass 335. Subject matter wherein the hydrocarbon monomer contains
only five carbon atoms (e.g., 1, 3-pentadiene, etc.).
This subclass is indented under subclass 335. Subject matter wherein the hydrocarbon monomer contains
six or more carbon atoms (e.g., 2-methyl-1, 3-pentadiene, etc.).
This subclass is indented under subclass 335. Subject matter wherein polybutadiene formed contains at
least 75 percent cis-configuration.
(1)
Note. Polymers produced with Group VIII transition metal
catalysts are presumed to have 75 percent cis-1, 4-configuration
in the absence of any disclosure to the contrary.
This subclass is indented under subclass 341. Subject matter which involves the interpolymerization of
acrylonitrile or methacrylonitrile with each other or with other
ethylenically unsaturated monomers.
This subclass is indented under subclass 344. Subject matter wherein vinyl chloride only is polymerized
under so-called mass or bulk, also known as block or cast polymerization
conditions, and wherein the process does not involve the use of
a solvent or dispersing medium, and products which are the result
of such a polymerization process.
(1)
Note. Appropriate for this subclass are processes wherein
the monomer or polymer produced act as solvents.
This subclass is indented under subclass 344. Subject matter wherein vinyl chloride only is polymerized
under conditions wherein an aqueous medium (water)is employed in
the process and products which are the result of such polymerization
process.
(1)
Note. This subclass is intended to take those processes and
products wherein a significant amount of water is employed (emulsion,
suspension, etc.) rather than where mere trace amounts of water
are utilized (e.g. ppm H2O, etc.).
This subclass is indented under subclass 344. Subject matter wherein polyvinyl chloride homopolymer is
characterized by mere physical structure such as fiber, sheet, granular,
or the like.
Stock Material or Miscellaneous Articles, for polyvinyl chloride material characterized by
physical structure wherein at least one physical dimension is recited.
This subclass is indented under subclass 344. Subject matter which involves the interpolymerization of
vinyl chloride with at least one ethylenically unsaturated monomer.
This subclass is indented under subclass 72. Subject matter wherein the unsaturated monomer is a compound
having at least one aromatic group and only carbon and hydrogen
atoms.
This subclass is indented under subclass 346. Subject matter wherein an ethylenically unsaturated hydrocarbon
monomer having at least one aromatic group is interpolymerized with
at least one ethylenically unsaturated monomer.
This subclass is indented under subclass 346. Subject matter drawn to crystalline polystyrene:
(1)
Note. All polymers prepared in the presence of a transition-metal
atom and in the substantial absence of water are included herein
unless the disclosure indicates to the contrary that a noncrystalline
polymer is formed.
(2)
Note. All polymers prepared in the presence of a free-radical
catalyst or redox catalyst are excluded herein unless the disclosure
indicates that a crystalline polymer is formed.
(3)
Note. Any degree of crystalline or isotactic content is sufficient
for this subclass.
This subclass is indented under subclass 348. Subject matter wherein the polymeric product has been physically
stretched so as to alter physical properties, e.g., biaxially stretched polyethylene,
etc.
This subclass is indented under subclass 348. Subject matter wherein the hydrocarbon monomer, is interpolymerized
with a nonhydrocarbon monomer (e.g., ethylene-allyl alcohol copolymer,
etc.).
This subclass is indented under subclass 352. Subject matter wherein the density of the formed polymer
is less than or equal to 0.935.
(1)
Note. The term density refers to density as measured by ASTMD
1505 or specific gravity and is not to be confused with terms such
as "apparent density" or "bulk density".
(2)
Note. In the absence of a specific disclosure of density,
all polymers produced by a free radical-yielding catalyst (e.g., peroxy,
azo, or redox, etc.) are presumed to be low density and proper herein.
CROSS-REFERENCE ART COLLECTIONS
The following subclasses are collections of published disclosure
pertaining to various aspects of art relating to synthetic resins
which are derived from ethylenic monomers, and which aspects do
not form an appropriate base for subclass classification in the
classification schedule. Note: SPECIAL CROSS-REFERENCE ART COLLECTIONS:
Subclasses (930-940) relate only to the subject matter of subclasses
317.1+ (excluding 318).
(1)
Note. Disclosures are placed for value as a search aid and
in no instance do they represent the entire extent of the prior art.
MONOMER POLYMERIZED IN PRESENCE OF TRANSITION METAL CONTAINING
CATALYST AND HYDROCARBON ADDITIVE AFFECTING POLYMER PROPERTIES OF
CATALYST ACTIVITY:
Processes of polymerizing an ethylenically unsaturated monomer
in the presence of a catalyst containing a transition metal atom,
and in the presence of a hydrocarbon additive, which additive affects
the final properties of the produced polymer or which affects the
activity of the catalyst.
MONOMER POLYMERIZED IN PRESENCE OF TRANSITION METAL CONTAINING
CATALYST AT LEAST PART OF WHICH IS SUPPORTED ON A POLYMER; E.G.,
PREPOLYMERIZED CATALYSTS, ETC.:
Processes of polymerizing an ethylenically unsaturated monomer
in the presence of a catalyst contains a transition metal, which
transition metal is carried on a polymer support.
COMMINUTION OF TRANSITION METAL CONTAINING CATALYST:
Processes of polymerizing an ethylenically unsaturated monomer
in the presence of a catalyst containing a transition metal, which
transition metal catalyst has been comminuted.
SPECIFIED MEANS OF REACTING COMPONENTS OF TRANSITION METAL
CATALYST:
Processes of polymerizing an ethylenically unsaturated monomer
utilizing a catalyst system containing a transition metal wherein
the catalyst system has been prepared by the reacting of individual
components thereof in a specified manner.
CATALYST INJECTION TECHNIQUE IN ADDITION POLYMERIZATION
PROCESSES:
Subject matter involving ethylenic polymerization processes
wherein a particular technique or injecting catalyst into the reactor
is involved, e.g., into a carrier gas, sparged into monomer stream,
use of a particular pump, etc.
APPARATUS FOR USE IN ADDITION POLYMERIZATION PROCESSES:
Subject matter involving apparatus other than reactors specialized
for use in polymerization processes (e.g., monomer mixing apparatus, catalyst,
pre-treaters, etc.).
Subject matter relating to polymers derived from ethylenically
unsaturated carboxylic acids and having utility in pressure sensitive
adhesive formulation.
Subject matter relating to polymers derived from ethylenically
unsaturated carboxylic acid and having utility as a thickener or
dispersant for aqueous systems.
Subject matter relating to polymers derived from ethylenically
unsaturated carboxylic acid and having detergent properties or utility
as a lubricant additive.
Subject matter relating to polylmers derived from ethylenically
unsaturated carboxlic acid and having utility in a deposition process
of using electrical energy.
Process of polymerization in the presence of metallocene
catalyst.
(1)
Note. Metallocene is defined as an organometallic coordination
compound which is a cyclopentadienyl derivative of a transition
metal or metal halide. Included are substituted cyclopentadienyl
moeties.
This page is produced by the Office of Classification Support (Office of Patent Classification) for the Reference Tools Project.
Note: The Patent
and Trademark Depository Library Program (PTDLP) administers a nationwide
network of public, state and academic libraries designated as Patent and
Trademark Depository Libraries authorized by 35 U.S.C. 13 to: Disseminate
Patent and Trademark Information Support Diverse Intellectual Property
Needs of the Public. PTDL Contact Information
Note: For information/comments on electronic information products, such
as purchasing USPTO data, or to discuss system requirements for magnetic
tape products, contact:
KEY: =online
business system =fees =forms=help =laws/regulations =definition
(glossary)
The Inventors
Assistance Center is available to help you on patent
matters.Send questions about USPTO programs and services
to theUSPTO
Contact Center (UCC). You can suggest USPTO webpages
or material you would like featured on this section by E-mail
to the webmaster@uspto.gov.
While we cannot promise to accommodate all requests, your suggestions
will be considered and may lead to other improvements on the
website.
![[Search a list of Patent Appplications for class 526]](../as.gif)
CLASS 526,![[List of Patents for class 526 subclass 59]](../ps.gif)
59
=online
business system
=fees
=forms
=help
=laws/regulations
=definition
(glossary)
