CPC Definition - Subclass H03M

Last Updated Version: 2023.08
CODING; DECODING; CODE CONVERSION IN GENERAL (using fluidic means F15C 4/00; optical analogue/digital converters G02F 7/00; coding, decoding or code conversion, specially adapted for particular applications, see the relevant subclasses, e.g. G01D, G01R, G06F, G06T, G09G, G10L, G11B, G11C, H04B, H04L, H04M, H04N; ciphering or deciphering for cryptography or other purposes involving the need for secrecy G09C)
Definition statement

This place covers:

The scope of the subclass H03M is so broad that a detailed description of the subject matter appropriate for this place is correctly possible only at the main-group level, e.g. H03M 7/00.

Provisions that are valid at a general level (e.g. of a kind appropriate to more than one of the main groups) are provided in the sections that follow.

The user is otherwise referred to the IPC definitions for the individual main groups of H03M which follow hereinafter. The following list is intended to assist the user.

Coding and decoding

In general

H03M 1/00

To or from differential modulation

H03M 3/00

In connection with keyboards

H03M 11/00

Conversion

Of the form of individual digits

H03M 5/00

Of the sequence of digits

H03M 7/00

Parallel/series or vice versa

H03M 9/00

Others

Error detection or error correction

H03M 13/00

Subject matter not provided for in other groups of this subclass

H03M 99/00

Relationships with other classification places

See the application places listed below the subclass title.

References
Limiting references

This place does not cover:

Using fluidic means

F15C 4/00

Coding, decoding or code conversion, specially adapted for particular applications, see the relevant subclasses

G01D, G01R, G06F, G06T, G09G, G10L, G11B, G11C, H04B, H04L, H04M, H04N

Optical analogue/digital converters

G02F 7/00

Ciphering or deciphering for cryptography or other purposes involving the need for secrecy

G09C

Analogue/digital conversion; Digital/analogue conversion (conversion of analogue values to or from differential modulation H03M 3/00)
Definition statement

This place covers:

  • A/D or D/A converters as such.
  • A/D or D/A conversion systems, e.g. systems comprising one or more A/D or D/A converters working together or systems comprising A/D or D/A converters in combination with other components such as gain stages, filters or which contribute to the overall A/D or D/A conversion.
  • Position or velocity encoders insofar as their coding aspects are relevant.
Relationships with other classification places

The structural association with components such as transducers, sensors, gain stages or filters can be classified either in H03M 1/00 or in the subclass covering the component (or in both the subclasses), depending on which aspect is more relevant.

In particular A/D or D/A converters represented as "black boxes" in a specific application (e.g. a measuring or telecommunication system) are in general not classified in H03M.

Relations between H03M 1/00 and H03M 3/00

A/D and D/A converters using differential modulation are classified in H03M 3/00. According to the reference out following main group symbol H03M 1/00, for all A/D and D/A converters using differential modulation, e.g. delta modulation, DPCM and nowadays in particular delta-sigma modulation, main group H03M 3/00 has precedence over H03M 1/00. Note however, that inventions actually relating to "normal" converters which are used as components within such differential modulators are classified in H03M 1/00 again (because they can be more widely applied than only in the "differential" context). An example of the latter is dynamic element matching in D/A converters used in feedback paths of multi-bit delta-sigma A/D converters or in feedforward paths of multi-bit delta-sigma D/A converters, which is classified in group branch H03M 1/066.

Position or velocity encoders

In principle the classification in H03M 1/00 is directed to the coding aspects, whereas that in G01D or G01P is directed to the transducer aspects, but in practice they also appear to have subgroups directed to coding aspects.

Electro-optical A/D or D/A converters

In many cases inventors state to have invented an optical A/D or D/A converter though in fact only the sampling or signal conditioning is optical but the conversion itself is electronic. In principle both these cases and true electro-optical converters are classified in H03M while true optical converters are classified in G02F 7/00, but in practice many electro-optical converters appear to have been classified in G02F 7/00 as well.

References
Limiting references

This place does not cover:

A/D or D/A conversion using differential modulation

H03M 3/00

Informative references

Attention is drawn to the following places, which may be of interest for search:

Digital delta-sigma modulators per se

H03M 7/3002

A/D or D/A converters using fluidic means (e.g. pneumatic, hydraulic)

F15C 4/00

Position encoders

G01D 5/00

Speed encoders

G01P 3/00

Measuring electric variables using an A/D converter

G01R 19/25

Testing combined analogue and digital circuits in general

G01R 31/3167

Electro-optical A/D or D/A converters

G02F 7/00

Time-to-digital converters

G04F 10/005

Current or voltage sources

G05F 3/00

Digital pulse width modulators per se, i.e. resulting in a discrete PWM signal

G06F 1/025, H03M 5/08

Interfacing or handshaking between A/D or D/A converters on the one hand and computers on the other hand

G06F 3/05

Comparators : for comparing digital (multi-bit) signals for comparing logic signalsfor comparing analogue signals

G06F 7/02, H03K 3/00, H03K 5/24

A/D or D/A converters performing calculations (i.e. on two or more input signals)

G06J 1/00

Transmission of measurement or control data

G08C

Display devices, e.g. LCD displays, using D/A converters

G09G 3/00

Recording or reproducing data using A/D or D/A converters

G11B 20/10

S/H circuits in general

G11C 27/02

Multi-position switches

H01H 19/56

Chip layout of an array of impedances, current sources, switches etc.

H01L 27/00, H01L 29/00

Operational amplifiers

H03F

Sample rate conversion

H03H 17/0416, H03H 17/0621

Analogue pulse width modulators per se

H03K 7/08

Multiplexers per se

H03K 17/00

Transmission systems using pulse modulation

H04B 14/02

Multiplex transmission systems

H04J

Pulse-shaping in general

H04L 25/03

DC level restoring in generalin television receivers

H04L 25/06, H04N 5/18

Imagers using A/D converters

H04N 25/00

Glossary of terms

In this place, the following terms or expressions are used with the meaning indicated:

Pattern shifting code

Serial multiple bit code in which the first n--1 bits of each combination are identical to the last n-- 1 bits of the preceding combination.media6.png

Quantisation value generator

Component generating an analogue value corresponding to an elementary digital value, i.e. to a single bit or digit

Reconfigurable

The converter can be set to operate in different ways by setting switches to a particular position

Synonyms and Keywords

In patent documents the following abbreviations are often used:

English:

ADC

A/D converter

CODEC

coder and decoder

DAC

D/A converter

DEM

dynamic element matching

DWA

data weighted averaging

PWM

pulse width modulation

S/H circuit

sample/hold circuit

SAR

successive approximation register

SA-ADC

successive approximation type A/D converter

French:

CAD, CAN

A/D converter

CDA, CNA

D/A converter

German:

ADU, ADW

A/D converter

DAU, DAW

D/A converter

In patent documents the following expressions are often used as synonyms:

English:

Chain code

pattern shifting code

Encoder, digitiser, quantiser, binariser, voltage-to-digital converter

A/D converter

Flash converter

simultaneous A/D converter

Pipeline converter

synchronous multiple stage SA-ADC each stage of which operates on a different sample

Half -flash convertersemi-flash converter

multiple bits per stage type SA-ADC converting the input value either in two steps in a single flash converter or sequentially in two series-connected flash converters

Two -pass convertertwo-step converter

multiple bits per stage recirculation type SA-ADC converting the input value in two steps in a single flash converter

Dual rank converter extended-flash converter serial-parallel convertertwo-stage converter

multiple bits per stage type SA-ADC converting the input value sequentially in two series-connected flash converters

Algorithmic converter

recirculation type SA-ADC

Tracking converter

servo-type converter

French:

Convertisseur A/N, codeur, numériseur, quantificateur

A/D converter

Convertisseur N/A

D/A converter

Convertisseur instantané

parallel A/D converter

German:

A/D-Wandler, A/D-Übersetzer

A/D converter

D/A-Wandler, D/A-Übersetzer

D/A converter

{Provisions or arrangements for saving power, e.g. by allowing a sleep mode, using lower supply voltage for downstream stages, using multiple clock domains or by selectively turning on stages when needed}
Definition statement

This place covers:

This group deals with the provision of special means for saving power, e.g. for allowing a sleep mode.

Special rules of classification

Thus the group should not be used for overall designs using less power than prior ones.

Reversible analogue/digital converters
Definition statement

This place covers:

This group covers converters which are truly reconfigurable between A/D and D/A conversion as well as CODEC's having separate A/D and D/A converters with at least partially common control.

using stochastic techniques
Definition statement

This place covers:

converters in which the conversion process as such has a stochastical nature or which convert the analogue or digital signal to a (possibly intermediate) signal in which the information content is represented by stochastic parameters.

It does not cover the use of dither or the random selection among identical elements for averaging out errors.

References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Signal in which the information content is represented by stochastic parameters used for calculations

G06F 7/70

{using dither, e.g. using triangular or sawtooth waveforms (for increasing resolution H03M 1/201)}
References
Limiting references

This place does not cover:

using dither for increasing resolution

H03M 1/201

Analogue/digital converters ({H03M 1/001 – } H03M 1/10 take precedence)
Special rules of classification

H03M 1/001 - H03M 1/10 take precedence

{Non-linear conversion not otherwise provided for in subgroups of H03M 1/12}
References
References out of a residual place

Examples of places in relation to which this place is residual:

This group is residual to A/D converters having an intentionally non-linear transfer characteristic and not falling within the scope of anyone of groups

H03M 1/367, H03M 1/464, H03M 1/58, H03M 1/62.

{Sampling or signal conditioning arrangements specially adapted for A/D converters}
References
Informative references

Attention is drawn to the following places, which may be of interest for search:

S/H circuits

G11C 27/02

Sample rate conversion

H03H 17/0416, H03H 17/0621

{Constructional details of parts relevant to the encoding mechanism, e.g. pattern carriers, pattern sensors}
References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Details of housings, casings or the like

G01, H01, H05

{Constructional details of parts relevant to the encoding mechanism, e.g. pattern carriers, pattern sensors}
References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Details of housings, casings or the like

G01, H01, H05

simultaneously only, i.e. parallel type
References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Asynchronous serial converters

H03M 1/42

Thermometer to binary encoders

H03M 7/165

Special rules of classification

It is noted that some patent documents deal with converters stated by the inventor to be "parallel converters using n comparators for n bits" or similar but in which in fact the reference values of the second and further comparators are modified according to the outputs of one or more preceding comparators. Thus, in reality these converters are not parallel but asynchronous serial converters falling within the scope of H03M 1/42.

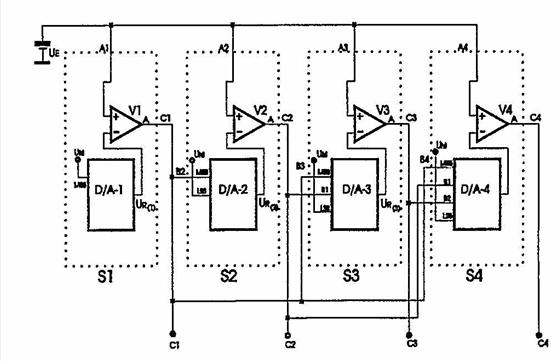

Sequential comparisons in series-connected stages with no change in value of analogue signal
Definition statement

This place covers:

Multiple stage A/D converters in which the input signal is broadcasted to all stages while the reference value applied to each stage but the first one is modified by the output of one or more preceding stages.

Examples:

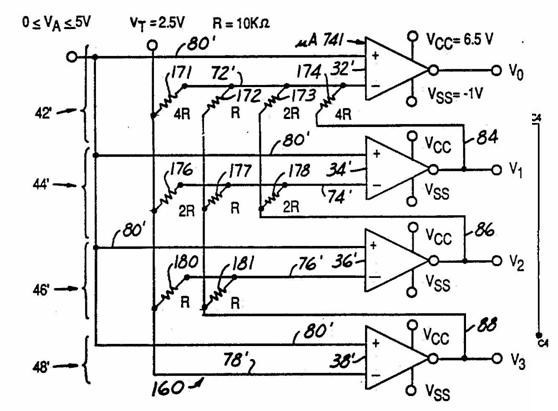

Sequential comparisons in series-connected stages with change in value of analogue signal
Definition statement

This place covers:

Multiple stage A/D converters in which the input signal is broadcasted to all stages while the reference value applied to each stage but the first one is modified by the output of one or more preceding stages.

Servo-type converters
Definition statement

This place covers:

A/D converters in which the output signal continuously tracks the input signal by means of reconversion of the output signal to an analogue feedback signal which is compared to the input signal.

The error signal usually adjusts the digital generator in one or the other direction, in dependence upon the sign of the error, in order to reach the correct position along the shortest route. However, occasionally the digital generator can be adjusted in one direction only; then it has to move circularly through nearly a full cycle in order to obtain a change in the other direction.

Relationships with other classification places

It is difficult sometimes to distinguish the latter systems from the range sweeping type (H03M 1/56) in which, however, the digital generator returns to a datum position between successive conversions.

The "successive approximation" type converters (H03M 1/46) are sometimes called "feedback converters" as well but are also reset between conversions.

Also, it is sometimes difficult to distinguish servo-type converters from A/D converters using differential modulation (H03M 3/00) which, however, deliver an output signal having a reduced number of bits at an oversampling rate, thus needing a decimation filter for converting it to a final result at full resolution and Nyquist rate. General analogue servo-systems using only digital feedback, for example as shown in the following block diagram, do, strictly spoken, not fall within the definition of an A/D conversion system.

However, they are very similar to an A/D conversion system using a D/A converter in a feedback arrangement (output Y instead of X) and therefore these systems are classified in H03M 1/48 unless the converters are merely shown as black boxes.


with intermediate conversion to time interval (H03M 1/64 takes precedence)
References
Limiting references

This place does not cover:

Analogue/digital converters with intermediate conversion to phase of sinusoidal or similar periodical signals

H03M 1/64

Informative references

Attention is drawn to the following places, which may be of interest for search:

Time-to-digital converters

G04F 10/005

Digital/analogue converters ({H03M 1/001 – } H03M 1/10 take precedence)
Special rules of classification

H03M 1/001 - H03M 1/10 take precedence

{Servo-type converters}
Definition statement

This place covers:

D/A converters in which the output signal continuously tracks the input signal by means of reconversion of the output signal to an digital feedback signal which is compared to the input signal.

The error signal usually adjusts the analogue generator in one or the other direction, in dependence upon the sign of the error, in order to reach the correct position along the shortest route. However, occasionally the analogue generator can be adjusted in one direction only; then it has to move circularly through nearly a full cycle in order to obtain a change in the other direction. It is difficult sometimes to distinguish the latter systems from the range sweeping type (H03M 1/82) in which, however, the analogue generator returns to a datum position between successive conversions.

using ladder network
Definition statement

This place covers:

Networks comprising impedances in series as well as parallel branches.

References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Networks having impedances in series branches only

H03M 1/76

Networks having impedances in parallel branches only

H03M 1/80

Conversion of analogue values to or from differential modulation
Definition statement

This place covers:

  • Analogue differential modulators, e.g. delta modulators, differential pulse code modulators, delta-sigma modulators;
  • A/D and D/A converters or conversion systems using differential modulation.
Relationships with other classification places

The structural association with components such as transducers, sensors, gain stages or filters can be classified either in H03M 3/00 or in the subclass covering the component (or in both the subclasses), depending on which aspect is more relevant.

In particular differential modulators represented as "black boxes" in a specific application (e.g. a measuring or telecommunication system) are in general not classified in H03M.

References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Digital delta-sigma modulators

H03M 7/3004

Recording or reproducing data using A/D or D/A converters

G11B 20/10

Transmission systems using differential modulation

H04B 14/06

Synonyms and Keywords

In patent documents the following abbreviations are often used:

ADM

Adaptive Delta Modulator

ADPCM

Adaptive Differential Pulse Code Modulator

ADSM

Adaptive Delta-Sigma Modulator

DM

Delta Modulator

DPCM

Differential Pulse Code Modulator

DPWM

Differential Pulse Width Modulator

DSM

Delta-Sigma Modulator

MASH

Multiple Stage Noise Shaping Delta-Sigma Modulator

SDM

Sigma-Delta Modulator

In patent documents the following expressions are often used as synonyms:

Bitstream converter

A/D converter using single bit delta-sigma modulation

Noise-shaper

delta-sigma modulator

Sigma-delta modulator

delta-sigma modulator

Differential modulation with several bits {, e.g. differential pulse code modulation [DPCM] (H03M 3/30 takes precedence)}
References
Limiting references

This place does not cover:

Delta-sigma modulation

H03M 3/30

Informative references

Attention is drawn to the following places, which may be of interest for search:

Voice coding

G10L 19/00

Image coding

H04N 19/00

{at one point, i.e. by adjusting a single reference value, e.g. bias or gain error}
References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Gain setting for range control

H03M 3/478

{at one point of the transfer characteristic, i.e. by adjusting a single reference value, e.g. bias or gain error}
References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Gain setting for range control

H03M 3/478

{Sampling or signal conditioning arrangements specially adapted for delta-sigma type analogue/digital conversion systems}
References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Sample/hold circuits

G11C 27/02

Sample rate conversion

H03H 17/0416, H03H 17/0621

{Details relating to the interpolation process}
References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Interpolation filters in general

H03H 17/0416, H03H 17/0621

Conversion of the form of the representation of individual digits
Definition statement

This place covers:

Conversion of codes where one aspect is the representation of the code as a signal, e.g. a code embodied by pulses or other shapes (e.g. sinusoidal). Examples are modulation codes (like Manchester coding).

References
Informative references

Attention is drawn to the following places, which may be of interest for search:

A/D or D/A conversion

H03M 1/00

Differential modulation

H03M 3/00, H03M 7/3002

Special rules of classification

In groups H03M 5/02 - H03M 5/22, in the absence of an indication to the contrary, an invention is classified in the last appropriate place.

Classification of additional information:

  • The invention as such as well as additional information shall be classified.
  • The use of the Indexing Codes for classification is compulsory and shall be used in addition to the appropriate CPC Symbol.
  • For the search in main group H03M 5/00 it is noted that additional information has been classified in this group from 01--04--2004 onwards.
Conversion of a code where information is represented by a given sequence or number of digits to a code where the same {, similar or subset of} information is represented by a different sequence or number of digits
Definition statement

This place covers:

A sequence of numerical or textual symbols representing a code and transformations/conversions thereof into a different sequence of numbers or textual symbols. It comprises in particular code conversions resulting in shorter codes (data compression and decompression).

The sequence of textual symbols could be part of a structured text document, for example an XML document.

Also covered are devices which provide for such code conversion, e.g. hardware implemented code converters and code converters based on logic circuit and programmable converters.

Furthermore, data reduction methods in order to get a short representation of a signal or of digital data in general are also covered. An example would be methods for reducing the number of necessary samples in data acquisition.

Relationships with other classification places

Relations between H03M 7/46 and H03M 5/145:

  • H03M 7/46 deals with data compression by replacing a sequence of same digits/characters with the value of the digit/character and a specification of its number (run-length code/compression).
  • H03M 5/145 deals with run-length-limited codes, i.e. modulation schemes which contain a maximum number of same digits.

Relations between H03M 7/30 and H04N 19/00:

Use of data compression bandwidth reduction for in video coding (H04N 19/00) when the data compression is merely represented as a "black box" are not in the scope of H03M 7/30. However, if a certain data compression scheme for video bandwidth reduction is detailed and goes beyond conventional compression algorithms, this new aspect can be classified in H03M 7/30. An example is the use of arithmetic coding in video coding (e.g. CABAC) where specific aspects should be classified under H03M 7/30.

In general, data compression schemes merely represented as "black boxes" in a certain application field should not be classified under H03M 7/00.

References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Use of compressive sensing

G01L 1/00, G01L 5/00

Processing of structured documents, e.g. xml, also for the purpose of size reduction

G06F 40/12

Audio coding

G10L 19/00

Source coding for video and arithmetic data compression for video coding

H04N 19/00

Special rules of classification
  • In groups H03M 7/02 - H03M 7/50, in the absence of an indication to the contrary, an invention is classified in the last appropriate place.

Classification of additional information:

  • The invention as such as well as additional information shall be classified.
  • The use of the Indexing Codes for classification is compulsory and shall be used in addition to the appropriate ECLA code.
  • For the search in main group H03M 7/00 it is noted that in general additional information has been classified in this group from 01--04--2004 onwards. However, in group branch H03M 7/3002 it has been classified for all documents.

Further information:

This subgroup deals solely with data compression and is not to be used for run-length-limited modulation techniques.

This group branch in general deals with all types of data compression unless the data compression is specified merely as a "black box". It also deals with precoding before the actual compression stage in order to get better compression results (e.g. Burrows-Wheeler transform).

This group branch deals with digital differential modulation, e.g. delta modulation [DM], differential pulse code modulation [DPCM], delta-sigma modulation.

Synonyms and Keywords

In patent documents the following abbreviations are often used:

ADM

Adaptive Delta Modulator

ADPCM

Adaptive Differential Pulse Code Modulator

ADSM

Adaptive Delta-Sigma Modulator

CABAC

Context-Adaptive Binary Arithmetic Coding

CAVLC

Context-Adaptive Variable Length Coding

DM

Delta Modulator

DPCM

Differential Pulse Code Modulator

DPWM

Differential Pulse Width Modulator

DSM

Delta-Sigma Modulator

LZ

Lempel-Ziv

MASH

Multiple Stage Noise Shaping Delta-Sgma Modulator

SDM

Sigma-Delta Modulator

VLC

Variable-Length Coding

In patent documents the following expressions are often used as synonyms:

Error quantiser

error feedback type delta-sigma modulator

Noise-shaper

delta-sigma modulator

Sigma-delta modulator

delta-sigma modulator

Conversion to or from n-out-of-m codes
References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Number-of-one counters

G06F 7/607

Conversion to or from stochastic codes
Definition statement

This place covers:

This subgroup deals solely with data compression and is not to be used for run-length-limited modulation techniques.

Compression (speech analysis-synthesis for redundancy reduction G10L 19/00; for image communication H04N); Expansion; Suppression of unnecessary data, e.g. redundancy reduction
Definition statement

This place covers:

all types of data compression unless the data compression is specified merely as a "black box". It also deals with precoding before the actual compression stage in order to get better compression results, e.g. Burrows-Wheeler transform.

References
Limiting references

This place does not cover:

Speech analysis-synthesis for redundancy reduction

G10L 19/00

Speech analysis-synthesis for image communication

H04N

Informative references

Attention is drawn to the following places, which may be of interest for search:

Data acquisition

G06F 17/40

Image data processing

G06T 9/00

Redundancy reduction in data recording

G11B 20/14

Transmission

H04B 1/66

{Conversion to or from differential modulation with several bits only, i.e. the difference between successive samples being coded by more than one bit, e.g. differential pulse code modulation [DPCM] (H03M 7/3004 takes precedence; voice coding G10L 19/00; image coding H04N 19/00)}
References
Limiting references

This place does not cover:

Digital delta-sigma modulation

H03M 7/3004

Speech analysis-synthesis for redundancy reduction

G10L 19/00

Speech analysis-synthesis for image communication

H04N 19/00

Informative references

Attention is drawn to the following places, which may be of interest for search:

Image data processing

G06T 9/00

Parallel/series conversion or vice versa (digital stores in which the information is moved stepwise per se G11C 19/00)
Definition statement

This place covers:

Parallel/series conversion or vice-versa, in general;

Timing and synchronisation aspects thereof.

References
Limiting references

This place does not cover:

Parallel/series conversion or vice-versa of bits, or groups of bits, which are specifically adapted for transmission in telecommunication or data communication apparatus

H04J 3/047

Informative references

Attention is drawn to the following places, which may be of interest for search:

Generation or distribution of clock signals, per se

G06F 1/04

Regularising the speed of data flow, e.g. using first in first out registers for implementing a data queue, per se

G06F 5/06

Frequency multipliers or dividers, per se

G06F 7/68

Digital stores in which the information is moved stepwise, per se

G11C 19/00

Synchronisation of pulse signals to a clock signal, per se

H03K 5/135

Multiplexer switches, per se

H03K 17/002, H03K 17/62, H03K 17/693, H03K 17/76

Frequency dividers using counters, per se

H03K 21/00 - H03K 29/00

Phase locked loops or delay locked loops, per se

H03L 7/00

Synchronisation of a data receiver with a transmitter, per se

H04L 7/00

Line transmission arrangements where a single bit stream is divided between several channels and reassembled at the receiver, per se

H04L 25/14

Coding in connection with keyboards or like devices, i.e. coding of the position of operated keys (keyboard switch arrangements, structural association of coders and keyboards H01H 13/70, H03K 17/94)
References
Limiting references

This place does not cover:

Mapping, i.e. converting a generated code set to a different one

G06F 3/023

Virtual, i.e. software generated keyboards

G06F 3/023

Constructional details of keys or keyboards

H01H 13/70

Electrical details of keyboard switches

H03K 17/94

Synonyms and Keywords

In patent documents the following expressions are often used as synonyms:

Ghost key

Phantom key

Coding, decoding or code conversion, for error detection or error correction; Coding theory basic assumptions; Coding bounds; Error probability evaluation methods; Channel models; Simulation or testing of codes (error detection or error correction for analogue/digital, digital/analogue or code conversion H03M 1/00H03M 11/00; specially adapted for digital computers G06F 11/08; for information storage based on relative movement between record carrier and transducer G11B, e.g. G11B 20/18; for static stores G11C)
Definition statement

This place covers:

Encoding, decoding, coding or decoding schemes for the correction or detection of errors, i.e. error control coding (ECC) or forward error correction (FEC)

  • Codes for the correction or detection of errors, e.g. block codes, convolutional codes or concatenated codes
  • Construction or design (including modification of existing codes by e.g. puncturing or extension) of codes for the correction or detection of errors
  • Algorithms, methods or devices for encoding or decoding of codes for the correction or detection of codes
  • Unequal error protection codes or schemes, i.e. codes or coding schemes that provide several levels of error protection

Coded modulation for error detection or correction.

Combination of error correction coding and techniques for the efficient use of the spectrum, e.g. modulation codes with error correction properties

Synchronisation by means of error correction codes

Relationships with other classification places

H03M 13/00 has relationships with a plurality of different other technical areas, wherein the relationships are characterised in that the other technical areas relate to applications and frameworks to which the H03M 13/00 specific techniques are applied.

Techniques for error control coding and forward error correction, which are characterised by their intrinsic nature, which is independent of its field of use, are to be classified in H03M 13/00. This makes H03M 13/00 a function-oriented place.

The application of techniques for error control coding or forward error correction in the sense that a function is plugged into an application without modification of the intrinsic properties of the function itself is only to classified in the respective application place (e.g. the use of a CRC check to determine whether data read from a memory is error free, the use of Reed-Solomon codes on a recording medium, the use of LDPC coded modulation in a transmitter arrangement).

If the application requires an adaptation of the techniques for error control coding or forward error correction to a particular application place, which involves a modification of the intrinsic properties of the function as well, then the classification in the function-oriented place and the application place is obligatory (e.g. the use of a CRC in a memory wherein the CRC calculation is parallelized in order to increase the read speed; this modification involves an intrinsic property of the CRC calculation; e.g. the design of an LDPC code having particular distance properties for a LDPC coded modulation scheme in a transmitter arrangement).

The application places that have relationships with H03M 13/00 are as follows:

  • The mere application of error control coding or forward error correction to memories and computers: G06F 11/00, in particular G06F 11/08;
  • The mere application of error control coding or forward error correction to recording: G11B 20/00, in particular G11B 20/18;
  • The mere application of error control coding or forward error correction to static stores: G11C 29/00;
  • The mere application of error control coding or forward error correction to arrangements at the transmitting and receiving sides of transmission systems: H04L 1/00
  • The mere application of error control coding or forward error correction to packet switched networks (e.g. packet loss): H04L 12/00
  • The mere application of error control coding or forward error correction to base band systems for channel estimation, detection (e.g. sequence estimation, MAP detection) and equalisation: H04L 25/00
  • The mere application of error control coding or forward error correction to modulated carries systems: H04L 27/00
  • The mere application of error control coding or forward error correction to signalling and control (for e.g. protocol aspects such as error control mechanisms in multimedia streaming protocols): H04L 65/00, for e.g. protocol aspects (e.g. error control mechanisms in multimedia streaming protocols)
  • The mere application of error control coding or forward error correction to television systems: H04N 7/0357 and H04N 19/89
  • H03M 13/00 is the application place for functions from G06F 7/00, e.g. finite field processing (G06F 7/00) for encoding or decoding of Reed-Solomon codes.
References
Limiting references

This place does not cover:

Error detection or error correction for analogue/digital, digital analogue or code conversion

H03M 1/00 - H03M 11/00

Information storage based on relative movement between record carrier and transducer

G03B

Specially Adapted for digital computers

G06F 11/08

Static stores

G11C

Error detection or Error correction in transmission systems

H04L 1/004

Television Systems

H04N 7/0357

Informative references

Attention is drawn to the following places, which may be of interest for search:

Implementation aspects regarding operations, e.g. finite field processing

G06F 7/00

Application places in which specially adapted ECC/FEC techniques may be found

G06F 11/00, G11B 20/00, G11C 29/00, H04L 1/00, H04L 12/00, H04L 25/00, H04L 27/00, H04N 7/00

Cryptographic mechanisms or cryptographic; arrangements for secret or secure communications; Network security protocols

H04L 9/00

Network architectures or network communication protocols for network security

H04L 63/00

Network arrangements, protocols or services for supporting real-time applications in data packet communication

H04L 65/00

Network arrangements or protocols for supporting network services or applications

H04L 67/00

Special rules of classification

The invention as such as well as additional information shall be classified

H03M 13/61 - H03M 13/65 are used to introduce a so-called 2nd dimension to the classification and are, thus, always to be used in combination with one of the subgroups of the range H03M 13/00-H03M 13/45 or the corresponding Indexing Codes

Component or constituent codes within a particular scheme are to be classified by means of the appropriate Indexing Codes; for instance, a product code built from a Reed-Muller code and a BCH code should be classified using H03M 13/2909 (product code) and H03M 13/136 and H03M 13/152 to indicate its component codes

For the search in main group H03M 13/00 it is noted that additional information has been classified in this group from 01-04-2004 onwards.

Further information:

It follows a brief explanation of those CPC subgroups, where it might not be clear from the wording alone what technical features are meant to fall within their scope:

  • covers punctured codes in general and particular details regarding a strategy/scheme for rate matching by puncturing that extends beyond the mere use of punctured codes
  • H03M 13/6368, H03M 13/6393 should be used when a particular type of puncturing is used, viz. rate compatible or complementary puncturing
  • this subgroup covers methods for the construction of codes, wherein the generic term construction covers the design of generator and parity-check matrices, the design of generator polynomials, the design of mapping schemes, the design of puncturing schemes etc.
  • if the design includes a computer search or a random component with subsequent optimisation, then the subgroup H03M 13/033 shall be allocated
  • this subgroup covers the calculation of CRCs (either during encoding or decoding) when the calculation is performed in a parallel or partly parallel manner, e.g. by 8 or 32 bit parallel processing
  • in contrast to partly parallel or parallel processing, there is serial processing in which a CRC is calculated 1 bit by 1 bit as it is done with a conventional linear feed-back shift register
  • in some applications a CRC is calculated over an information word of n bits
  • during transmission over a plurality of hops, the information word may be updated, e.g. some bits in the header are changed, which requires a recalculation of the CRC
  • methods that do not fully recalculate the CRC but update the CRC only in respect to the changes of the information word (by exploitation of the linearity of the CRC code) are to be classified here
  • known in the literature as "Memory-Aware Decoder Architectures" and "Merged-Schedule Message-Passing (MSMP) algorithm"
  • see XP011104612 page 980, Section C for a detailed description
  • the memory efficiency is mainly due to eliminating the storage required to save every bit-to-check messages or check-to-bit messages as in the standard message passing decoding algorithm
  • scheduling is the order in which the messages of the graph should be propagated
  • the "classical" scheduling is the so-called flooding schedule, where all nodes of one class, e.g. all messages send from bit nodes to check nodes, are updated before the nodes of the other class, e.g. all messages send from variable nodes to check nodes, are updated; this can be done one node at a time (serially) or in parallel.
  • full parallel flooding schedule processing should be classified under H03M 13/1134 (Remark: any full parallel schedule is implicitly a flooding schedule) and partly parallel flooding schedule processing under H03M 13/1137
  • note that serial flooding schedules are not explicitly classified
  • the "shuffled" scheduling mixes check node and variable node processing, e.g. check node processing of some check nodes is started before all variable nodes have been updated; this again can be performed serially, i.e. one node after the other, or partly-parallel, i.e. several nodes in parallel.
  • serial "shuffled" scheduling should solely be classified under H03M 13/114.
  • partly-parallel "shuffled" scheduling should be classified under H03M 13/1137 and H03M 13/114.
  • only for shortened or extended codes that fit into H03M 13/151; these codes include in particular Reed-Solomon and BCH codes
  • code shortening or extension for codes other than that, i.e. for codes that are not associated with error location and error correction polynomials, are to be classified under H03M 13/618; these codes include, for instance, Hamming codes or LDPC codes
  • decoder implementations that comprise a set of data processing elements connected in series, so that the output of one element is the input of the next one and so that the elements of a pipeline are often executed in parallel or in time-sliced fashion
  • for instance, Reed-Solomon decoders are often implemented using a pipeline with 3 stages for syndrome calculation, calculation of the error locator polynomial and Chien search; cf. e.g. US2003140303
  • a cyclic block code with minimum hamming distance d can correct up to (d-1)/2 errors
  • however, as long as the code is not perfect, i.e. does not meet the Hamming bound, there exist error patterns with weight greater than (d-1)/2 that can be corrected
  • algorithms that provide decoding beyond (d-1)/2 errors are to be classified using H03M 13/1565
  • evaluation of polynomial equations, e.g. syndrome evaluation using a blockwise parallelized Horner scheme
  • direct decoding denotes decoding methods/decoders that do not require the calculation and evaluation of the error locator polynomial by means of complex algorithms like Berlekamp-Massey decoding or Chien search
  • direct decoding is limited to small error weights or codes with small minimum Hamming distance
  • by means of direct decoding the error locator polynomial or its roots or even the error values can be directly determined from the syndromes

Methods and arrangements for finite field processing when applied in an encoder or decoder for error correcting codes, e.g. a finite field multiplier.

If the finite field processing is not disclosed in the context of error control coding, then this class is not to be given.

Methods and arrangements for finite field arithmetic are always to be circulated to G06F 7/72.

Coded modulation.

The subgroups H03M 13/251 - H03M 13/258 provide details as to the type of code that is used.

The type of code can be further refined by using the appropriate Indexing Code or ECLA subgroup; e.g. coded modulation with a Reed-Muller code would be classified using H03M 13/251 (coded modulation with block coding) and H03M 13/136 (Reed-Muller codes).

For a complete classification of a document concerning interleaving, it may be required to allocate more than one subgroup of H03M 13/27 to the document.

H03M 13/2703 - H03M 13/2757 relate to different types of interleavers, whereas H03M 13/2771 - H03M 13/2796 relate to characteristics other than the type of interleaving.

Hence, a document relating to interleaving should usually have a designation of the type of interleaving (H03M 13/2703 - H03M 13/2757) and optionally one or more classes relating to the other characteristics (H03M 13/2771 - H03M 13/2796).

H03M 13/2771 indicates that the document deals with interleavers/interleaving for turbo codes (so-called turbo code internal interleavers).

This subgroup covers the principle underlying a helical type interleaver for 1-bit dummy codes

This subgroup covers the actual calculation of interleaving addresses.

Note that the principle underlying a particular interleaving type may be described without actually providing details about how the address or index calculation is performed or implemented.

If a document does not only relate to a particular type of interleaver but provides in addition details about the calculation of interleaver addresses or indices, then this class should be given in addition.

Circuits/hardware implementations for the calculation of interleaver addresses or indices.

See also the comments w.r.t. H03M 13/276.

Product codes in which the sub-block comprising the checks-on-checks or parity-on-parity is not present (as it is either not generated or removed).

Turbo decoding of concatenated block codes is to be classified in H03M 13/2963.

If the decoding strategy involves iterative decoding different from turbo decoding, e.g. sub-sequent decoding of rows and columns of a product code, then this feature (iterative decoding) is to be classified using H03M 13/2948.

Coding schemes including any concatenation of two or more convolutional codes, wherein decoding is not based on the turbo principle, e.g. serial concatenation of convolutional codes without turbo decoding.

If the decoding strategy involves iterative decoding different from turbo decoding, e.g. decoding without exchange of extrinsic soft-decision information between decoders, then this feature (iterative decoding) is to be classified using H03M 13/2948.

Note that H03M 13/2957 is also to be allocated when a component code is replaced by a non-coded constraint, e.g. turbo equalisation (cf. also the Glossary of terms and the comments on H03M 13/63).

Feedback from the channel decoder to a synchronisation unit is used to establish synchronisation with respect to a frame or block of bits.

Phase recovery in combination with channel decoding, wherein feedback from the channel decoder to phase estimation is used to achieve or improve the recovery/estimation of the symbol phase.

Decoding methods or techniques providing more than one decoding algorithm for one code and selection of the appropriate decoding method or technique

Adaptive decoding in which decoding is adapted to some extrinsic or intrinsic parameter, e.g. setting of internal thresholds.

The extrinsic or intrinsic parameter is the number of estimated errors or information about the state of the channel (e.g. SNR).

Initialisation is meant to denote the configuration of the decoder (e.g. setting of internal variables) prior to decoding.

Initialisation of MAP decoders for turbo decoding using the result of the previous iteration; initialisation of variable nodes for LDPC code decoding; initialisation of state probabilities for a tail-biting MAP decoder.

Note that re-encoding is often performed to estimate error rates but is not integral to decoding as such.

For trellis decoding, some bits may be known (e.g. during decoding of concatenated codes, padding bits) to the decoder, which exploits this information as a priori information.

The trellis decoder is forced to take the a priori known decision, for instance, by adding to the ACS circuit a decision-overriding logic or by saturating state or branch metrics.

This technique is sometimes referred to by state pinning or decision forcing or trellis pruning.

For decoding, the optimum code word (in terms of a metric) is searched in a set of possible code words

The set of possible code words is often denoted by candidate code words

This subgroup includes maximum likelihood or MAP decoding, wherein a list of all code words of the code or its dual code is processed.

SISO decoding of block codes with updating of hard decisions of most reliable symbols using extrinsic information from least reliable symbols.

Use of properties of the code to be encoded or decoded that relate to its dual code.

This includes, for instance, decoding using the trellis of the dual code instead of that of the code itself.

H03M 13/63 and its subgroups:

These subgroups are intended to cover the combination of error control coding and other techniques.

These subgroups are in particular important when the so-called turbo principle is applied to e.g. demodulation (turbo demodulation) or equalisation (turbo equalisation); then, H03M 13/2957 is to be used to indicate the use of the turbo principle and H03M 13/6325 and H03M 13/6331, respectively, are used to indicate the non-coded constraint.

H03M 13/65 and its subgroups:

  • These subgroups are in general independent of the error control code/scheme and relate to implementation aspects and the intended application (in terms of standardized communication systems)
  • H03M 13/6569 is used for documents that are specific to implementations on processors or in software (e.g. software defined radio)
  • H03M 13/6575 covers implementations using circuits without memory, e.g. boolean circuits; these type of circuits are often applied to encoding and decoding when the operations can be expressed by means of boolean algebra
Glossary of terms

In this place, the following terms or expressions are used with the meaning indicated:

Product

mathematical operation

Turbo

the term turbo denotes the principle that soft-decision information is exchanged in an iterative manner between two decoders or between one decoder and another unit like e.g. a demodulator or equaliser;turbo is also used to denote a code (turbo code) that can be turbo decoded, e.g. a parallel concatenated convolutional code or a serial concatenated convolutional code

Synonyms and Keywords

In patent documents, the following abbreviations are often used:

ACS

Add-Compare-Select

APP

A Posteriori Probability

BCM

Block Coded modulation

BP

Belief Propagation

CC

Convolutional Code

DED

Double Error Detecting

ECC

Error Control Codes/Coding

EDC

Error Detection/Detecting Code

EG

Euclidian Geometry

EXIT

EXtrinsic Information Transfer

FEC

Forward Error Correction

GF

Galois Field

GMD

Generalised Minimum Distance

LDPC

Low-Density Parity-Check

MAP

Maximum A Posteriori

LLR

Log-Liklihood Ratio

MDS

Maximum Distance Separable

ML

Maximum Likelihood

MLD

Maximum Likelihood Decoding

PCCC

Parallel Concatenated Convolutional Code

QC

Quasi-Cyclic

OSD

Ordered Statistics Decoding

RM

Reed-Muller

RS

Reed-Solomon

RSC

Recursive Systematic Convolutional code

SCCC

Serial Concatenated Code

SEC

Single Error Correcting

SISO

Soft-In Soft-Out

SOVA

Soft-Output Viterbi Algorithm

SPA

Sum-Product Algorithm

TB

Tail-Biting

TCM

Trellis-Coded Modulation

UEP

Unequal Error Protection

VA

Viterbi Algorithm

In patent documents, the following words/expressions are often used as synonyms:

  • "CRC", "FCS" and "BCS"
  • "message passing", "sum-product algorithm", "belief propagation"
  • "APP", "MAP", and "BCJR"
  • "Max-LOG-MAP", "maxlogMAP", "maxAPP"
  • "LDPC codes" and "Gallager codes"
Error detection only, e.g. using cyclic redundancy check [CRC] codes or single parity bit
References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Error detection or correction by redundancy in data representation

G06F 11/08

{Finite field arithmetic processing}
Definition statement

This place covers:

Methods and arrangements for finite field processing when applied in an encoder or decoder for error correcting codes, e.g. a finite field multiplier.

References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Methods or arrangements for finite field arithmetic

G06F 7/72

Special rules of classification

If the finite field processing is not disclosed in the context of error control coding, then this group is not to be given.

{Judging correct decoding, e.g. iteration stopping criteria}
References
Informative references

Attention is drawn to the following places, which may be of interest for search:

Stopping criteria for iterative decoding

H04L 1/0051

{Maximum a posteriori probability [MAP] decoding or approximations thereof based on trellis or lattice decoding, e.g. forward-backward algorithm, log-MAP decoding, max-log-MAP decoding}
References
Informative references

Attention is drawn to the following places, which may be of interest for search:

MAP decoding for transmission of digital information

H04L 1/0055

Subject matter not provided for in other groups of this subclass
References
Limiting references

This place does not cover:

Analogue/digital conversion; Digital/analogue conversion

H03M 1/00

Conversion of analogue values to or from differential modulation

H03M 3/00

Conversion of the form of the representation of individual digits

H03M 5/00

Conversion of a code where information is represented by a given sequence or number of digits to a code where the same information is represented by a different sequence or number of digits

H03M 7/00

Parallel/series conversion or vice versa

H03M 9/00

Coding in connection with keyboards or like devices, i.e. coding of the position of operated keys

H03M 11/00

Coding, decoding or code conversion, for error detection or error correction; Coding theory basic assumptions; Coding bounds; Error probability evaluation methods; Channel models; Simulation or testing of codes

H03M 13/00
